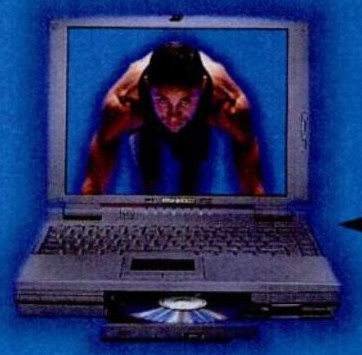

NEC Versa 2600 Series
The NEC Versa 2600 Series are Pentium-based laptops that were released in March 1997. If you run into a "26x5" model, it is identical to the 26x0 model of the same name.
Specifications
| Spec | Versa 2630CD | Versa 2650CD | Versa 2650CDT |
|---|---|---|---|
| CPU | CPU Type: Unknown Intel Pentium @133MHz | CPU Type: Unknown Intel Pentium MMX @150MHz | |
| Chipset | OPTi Viper-N+ | ||
| RAM | Type: 2 DIMM slots Standard: 16MB Soldered Maximum: 80MB | ||
| Storage | 2.5" IDE Requires Adapter: Unknown Standard: 1.44GB | ||
| Display Options | 12.1" Passive Matrix LCD @800x600 | 12.1" Active Matrix LCD @800x600 | |
| Graphics Chipset | Chips & Technologies 65550 VRAM: 1.5MB | ||
| Audio | ESS AudioDrive 1688 | ||
| Main Battery | - NiMH (9.6V, 3600mAH) - Lithium Ion (14.4V, 2700mAH) | ||
| CMOS Battery | NiMH (3.6V, 60mAH) | ||
| Power Supply | Unknown | ||
| Media Drives | 3 Spindle - 3.5" 1.44MB Floppy Drive - 10X CD-ROM Drive | ||
| PC Cards | 2x PCMCIA Slots - O2Micro OZ6730D Controller | ||
| Networking | None | ||
| Other I/O | - 1x Parallel - 1x Serial - 1x VGA Out - 1x PS/2 - 1x Dock Connector - 1x Mic In - 1x Line In - 1x Line Out - Infrared | ||
| BIOS | SystemSoft | ||
| Pointing Device | Trackpad | ||
Resources
 Service Manual |
|---|
Page last updated (MM/DD/YYYY): 04/17/2025
Update Reason: page created
