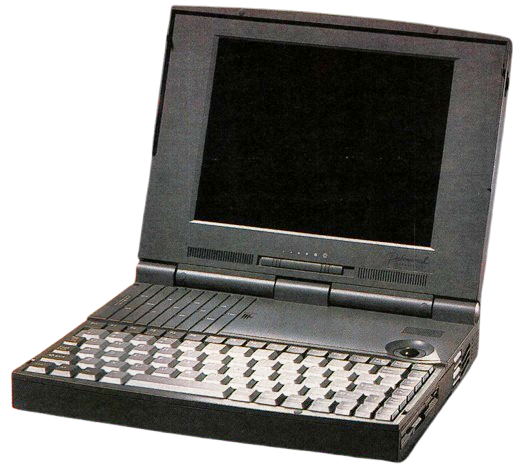

Nan Tan 6500 Series
The Nan Tan 6500 (also known as the FMA6500) Series are 486-based laptops released in 1993 and 1994. These are not very rare but I currently don't have enough direct information on them to compile a full specsheet, so a good amount of information is currently missing. If you own one of these and can provide more info, please reach out!
Models in the series include the 6500M, 6500C, and 6500E. There was also a closely related series known as the 6530 which I have even less information on.
This laptop was sold as the following laptops by the following brands:
- Generic (unbranded)
- Sager
Specifications
| Spec | Details |
|---|---|
| CPU | CPU Type: Socket 2? Intel 486DX2 @66MHz, other options |
| Chipset | Unknown |
| RAM | Type: Proprietary Standard: Unknown Maximum: Unknown |
| Hard Disk | 2.5" IDE Uses proprietary adapter?: Unknown Standard: N/A |
| Display Options | - Passive Matrix Grayscale @640x480 - Passive Matrix Color @640x480 - Active Matrix Color @640x480 |
| Graphics Chipset | Unknown VRAM: Unknown |
| Audio | PC Speaker |
| Main Battery | NiCad (14.4V, 2000mAH) |
| CMOS Battery | Unknown |
| Power Supply | Kycon KPPX-4P Connector - Proton SPN-252D |
| Disk Drives | 3.5" 1.44MB Floppy Drive |
| PC Cards | 2x PCMCIA Slots |
| Networking | None |
| Other I/O | - 1x Parallel - 1x Serial - 1x VGA Out - 1x PS/2 - 1x Dock Connector |
| BIOS | Award |
| Pointing Device | Trackball |
Page last updated (MM/DD/YYYY): 12/06/2024
Update Reason: image replaced
