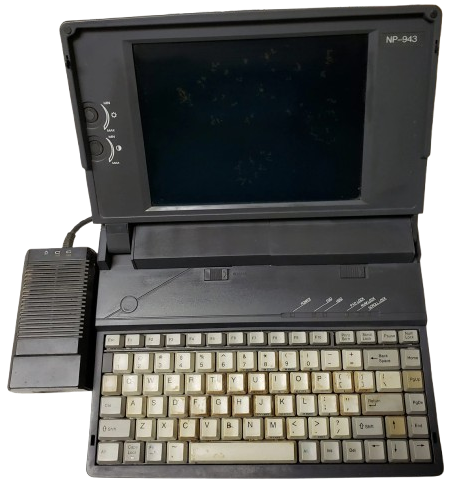

Modern Computer Corp NP-943

Modern Computer Corp NP-943

The NP-943 is a generic/ODM 486-based notebook that was released in around August 1992. Modern Computer sold these under the NoteStar name, which was their trademark. It may have also been sold under the Walkom name, another MCC trademark.

Like the rest of the NP-900 Series, this laptop's two battery bays double as expansion bays that could accept a variety of modules.


Specifications

Spec Details
CPU CPU Type: Socket 486
- Intel 486DX @33MHz
- Other options
Chipset ACC Micro
RAM Type: Unknown
Standard: Unknown
Maximum: Unknown
Storage 2.5" IDE
Requires Adapter: Unknown
Standard: Unknown
Display Options - 10" Passive Matrix Grayscale @640x480
- 9" Passive Matrix Color @640x480 (NP-943c)
Graphics Chipset Cirrus Logic (GD6410?)
VRAM: Unknown
Audio PC Speaker
Main Battery 2x NiCad Batteries
CMOS Battery Soldered NiCad cell
Power Supply Proprietary 6-pin
- Proton SPN-240A
Media Drives 3.5" 1.44MB Floppy Drive
PC Cards Battery bays double as proprietary expansion bays that support the following:
- Modem Module
- Fax/Modem Module
- Scanner/Fax Module
- Ethernet Module
- Video Capture Module
- Voice Recorder Module
- 3270 Terminal Emulator
- SCSI Interface Module
- 2nd Hard Disk
Networking Optional Modem or Ethernet in expansion bay
Other I/O - 1x Parallel
- 1x Serial
- 1x VGA Out
- 1x PS/2
BIOS Unknown
Pointing Device None


Page last updated (MM/DD/YYYY): 01/28/2025
Update Reason: page created
