Modern Computer Corp NP-933
The NP-933 is a generic/ODM 386 notebook that was released in 1992. Modern Computer sold these under the NoteStar name. They owned the trademark for NoteStar, so it was a brand of theirs rather than another company that sold them. They may have also been sold under the Walkom name, another MCC trademark.

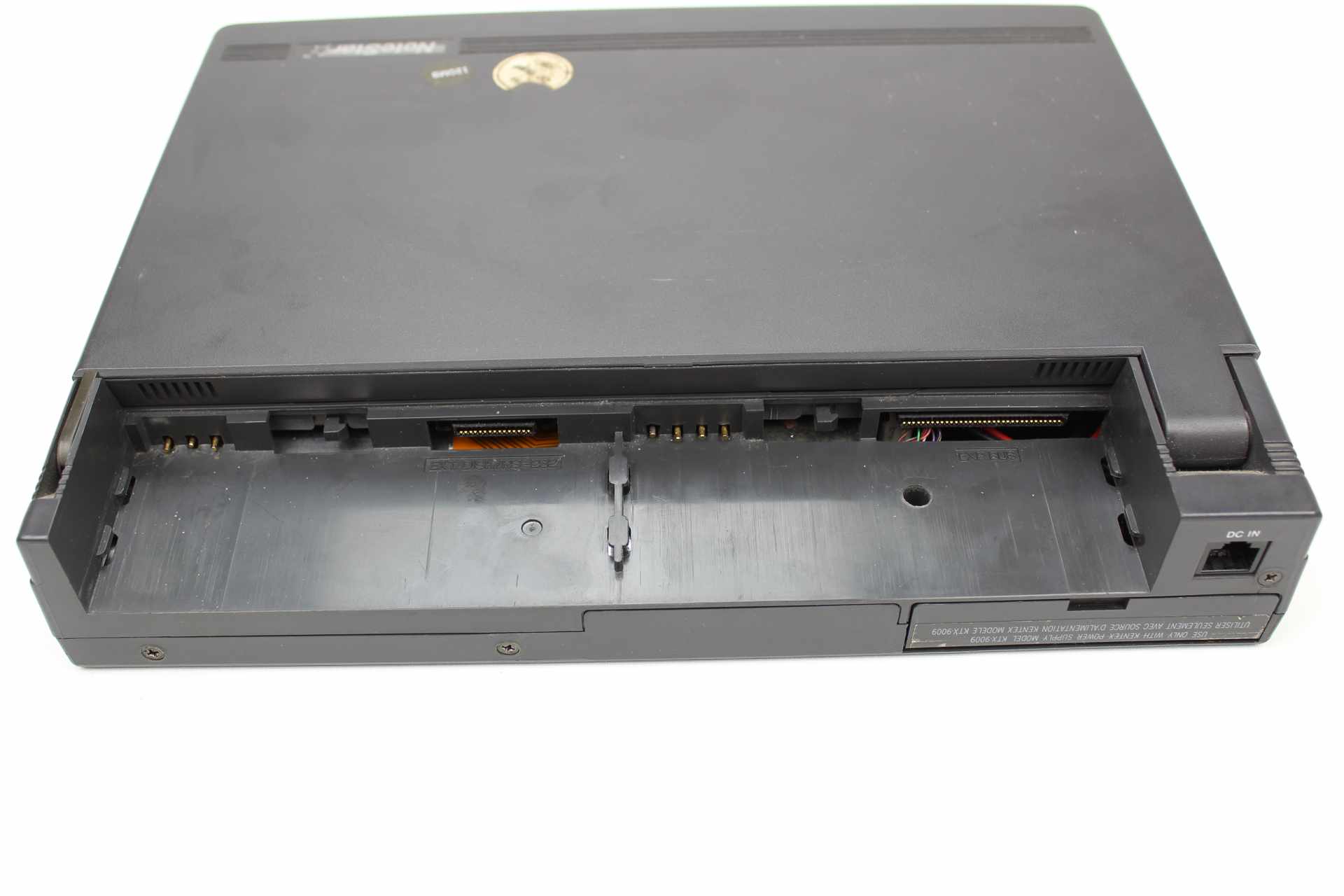

It appears that the two batteries in this laptop can be replaced with expansion devices of some kind. One port is labelled "EXT. DISK/RS-232" and the other is just labelled as an expansion bus.
Specifications
| Spec | Details |
|---|---|
| CPU | CPU Type: Soldered QFP AMD Am386DX/DXL @33MHz |
| Chipset | Unknown |
| RAM | Type: Unknown Standard: Unknown Maximum: Unknown |

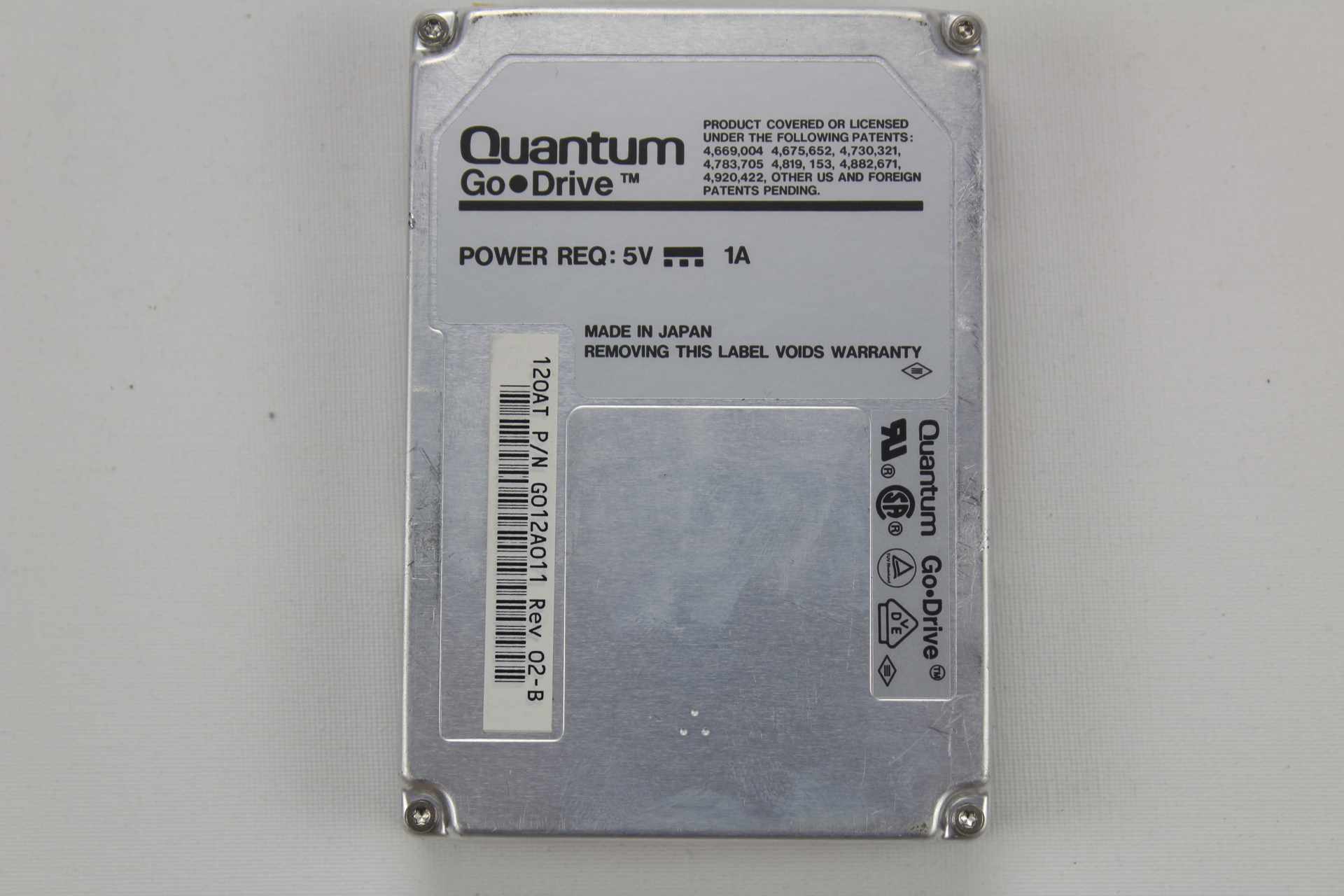

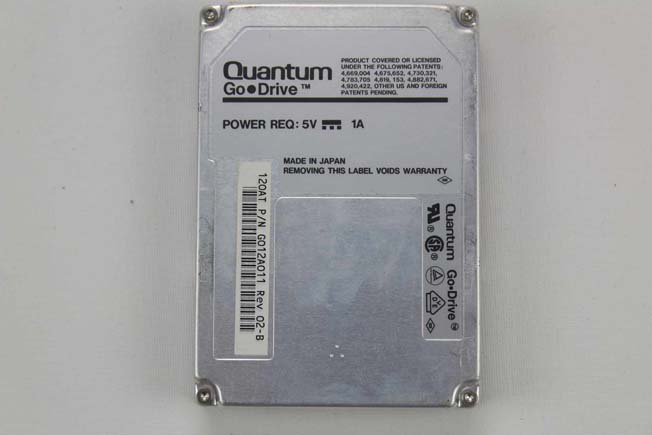

| Storage | 2.5" IDE Requires Adapter: Unknown Standard: N/A |

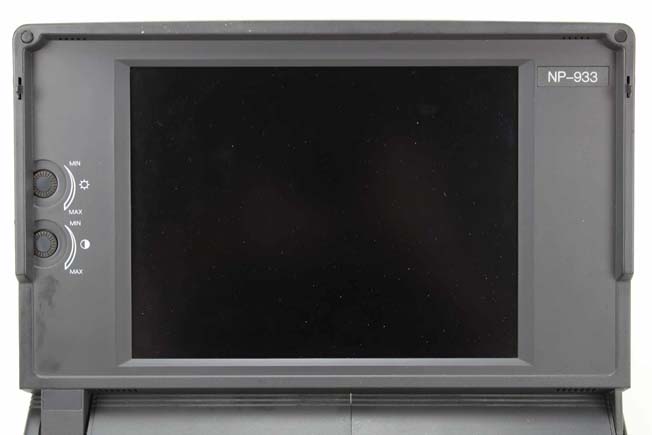

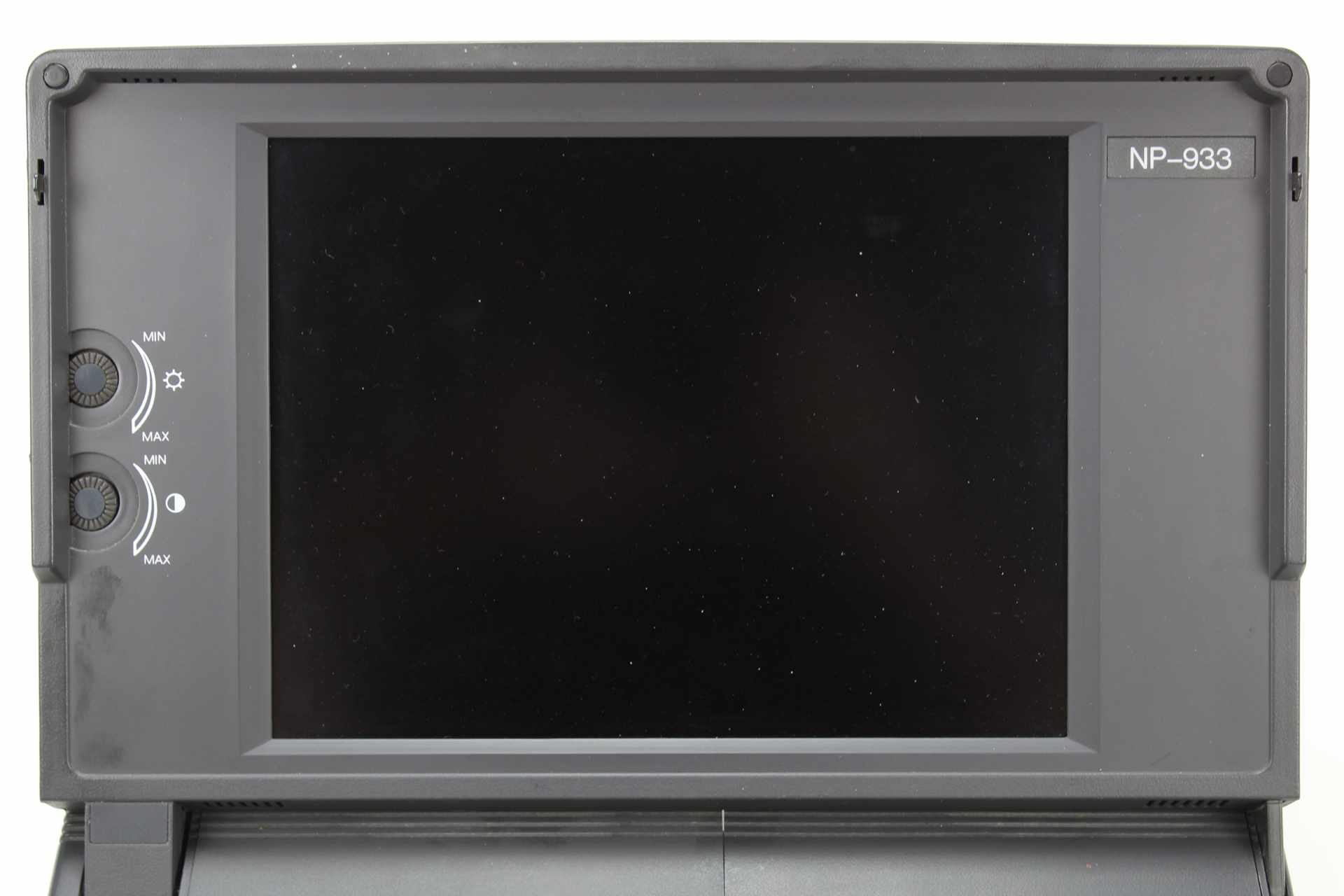

| Display Options | 9.5" Passive Matrix Grayscale (256 shades) @640x480 |
| Graphics Chipset | Cirrus Logic GD6410 VRAM: 256KB |
| Audio | PC Speaker |

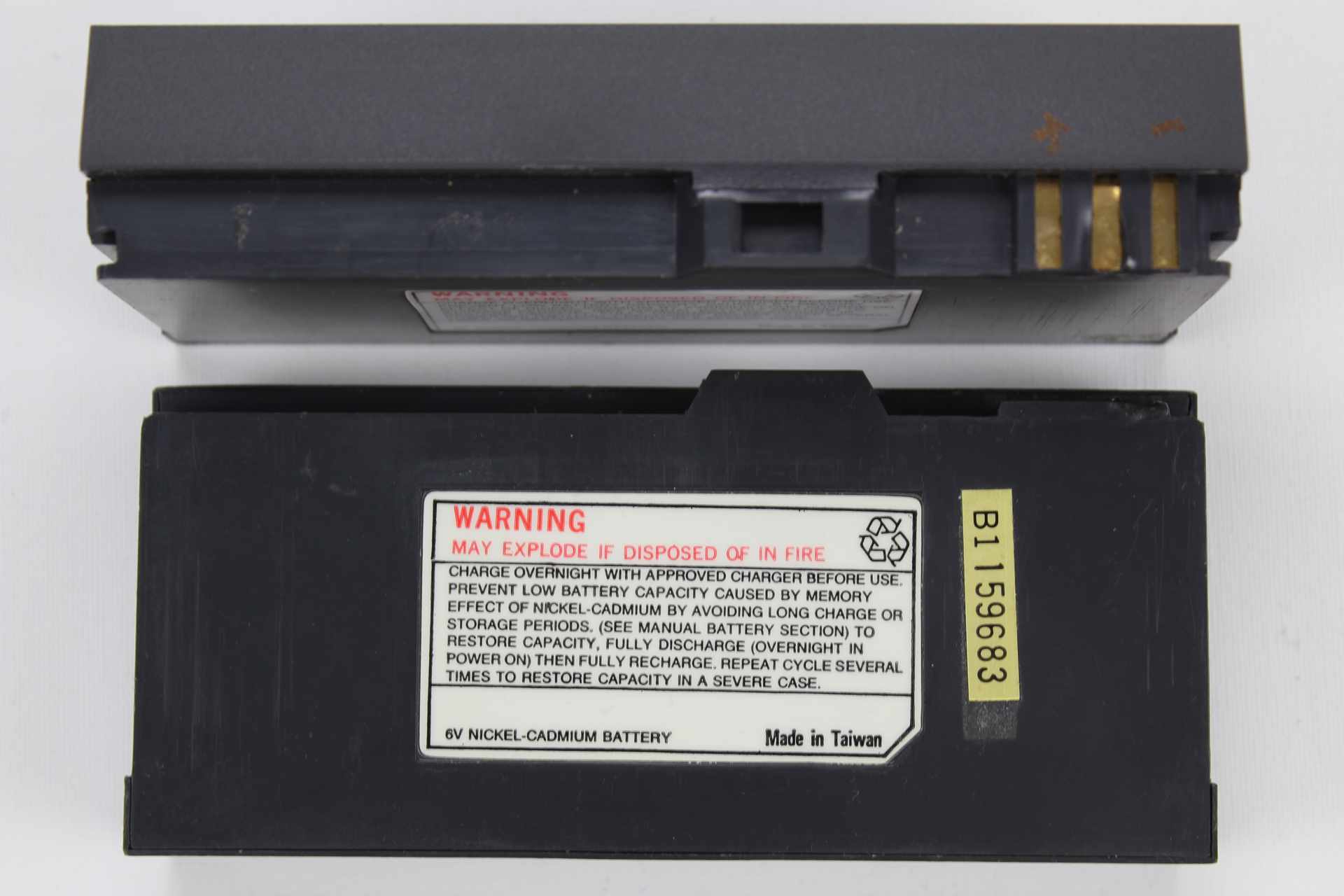

| Main Battery | 2x NiCad Batteries |

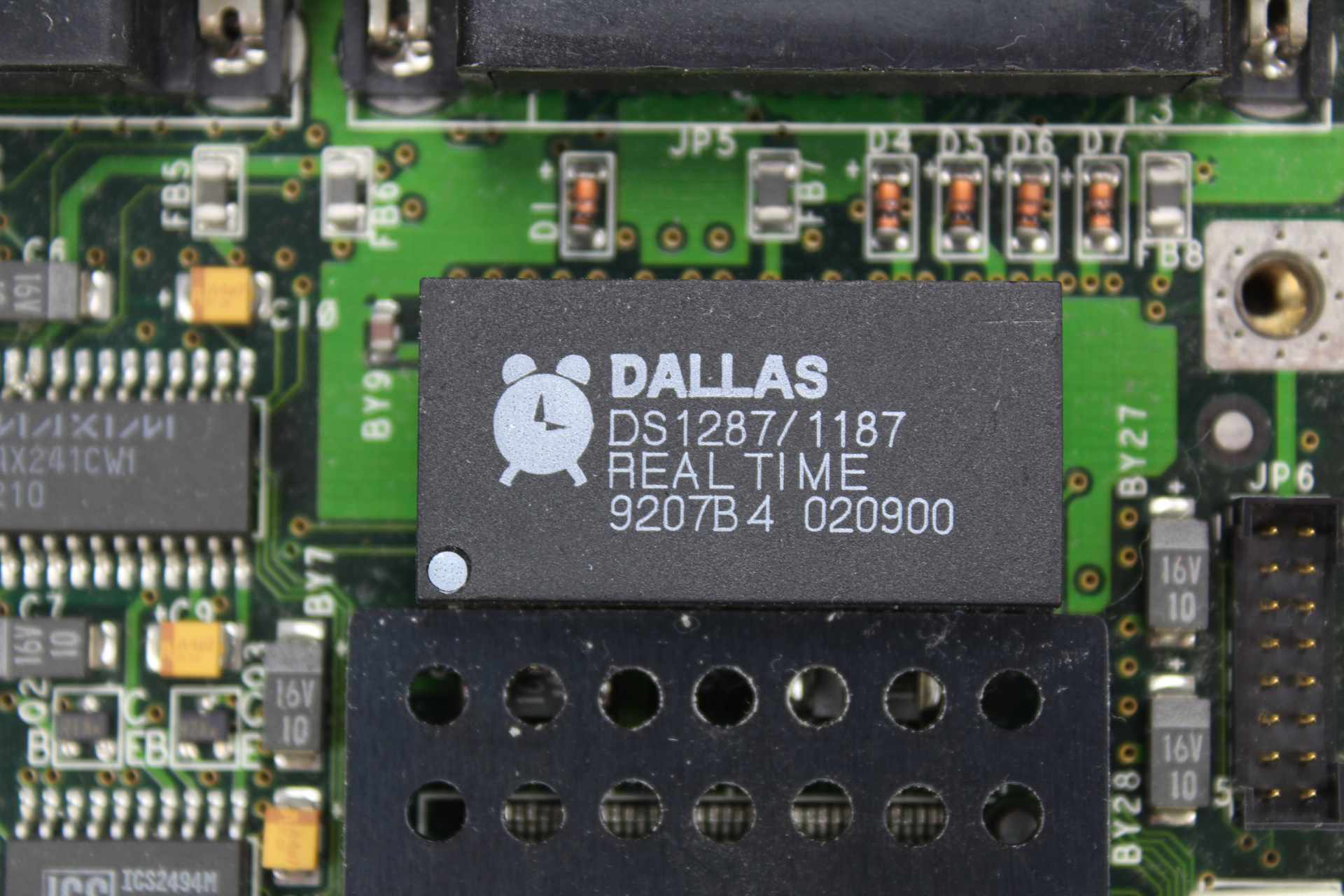

| CMOS Battery | Dallas Integrated RTC/Battery |

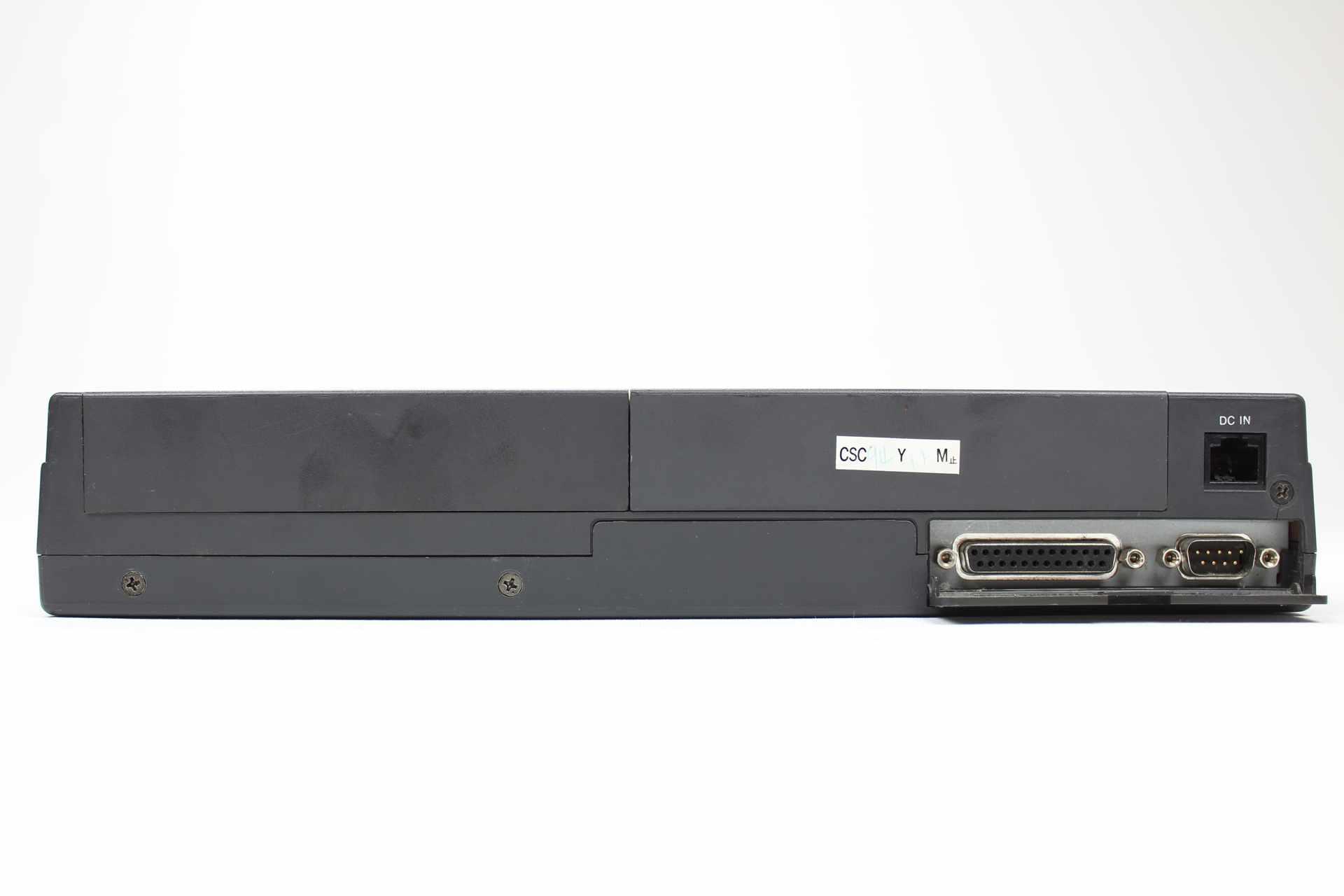

| Power Supply | Proprietary plug (looks like an RJ-45 jack but is not) - Alitech AD-960-06 |

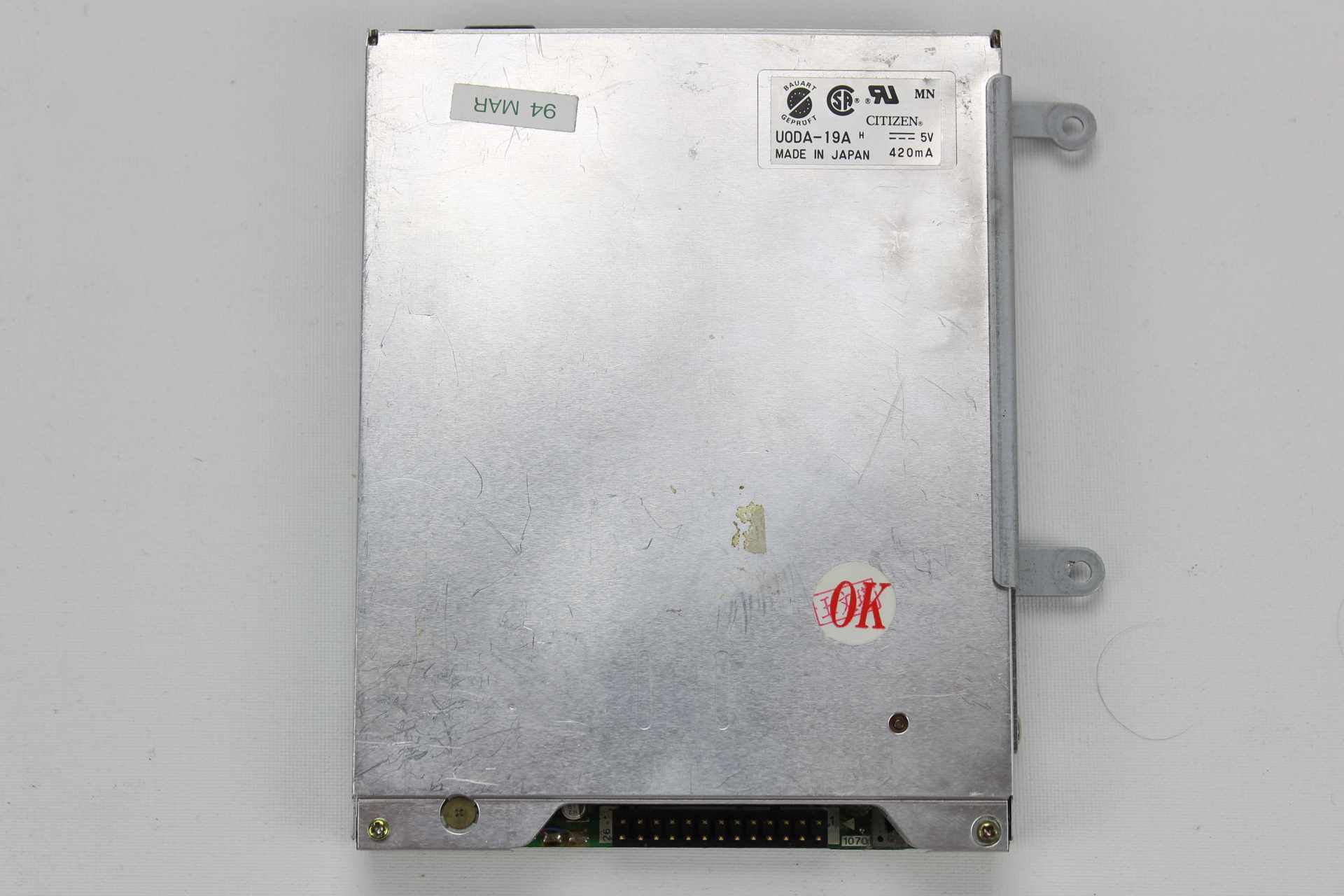

| Media Drives | 3.5" 1.44MB Floppy Drive (Citizen U0DA, belt drive) |
| PC Cards | Battery bays double as proprietary expansion bays that support the following: - Modem Module - Fax/Modem Module - Scanner/Fax Module - Ethernet Module - Video Capture Module - Voice Recorder Module - 3270 Terminal Emulator - SCSI Interface Module - 2nd Hard Disk |
| Networking | None |

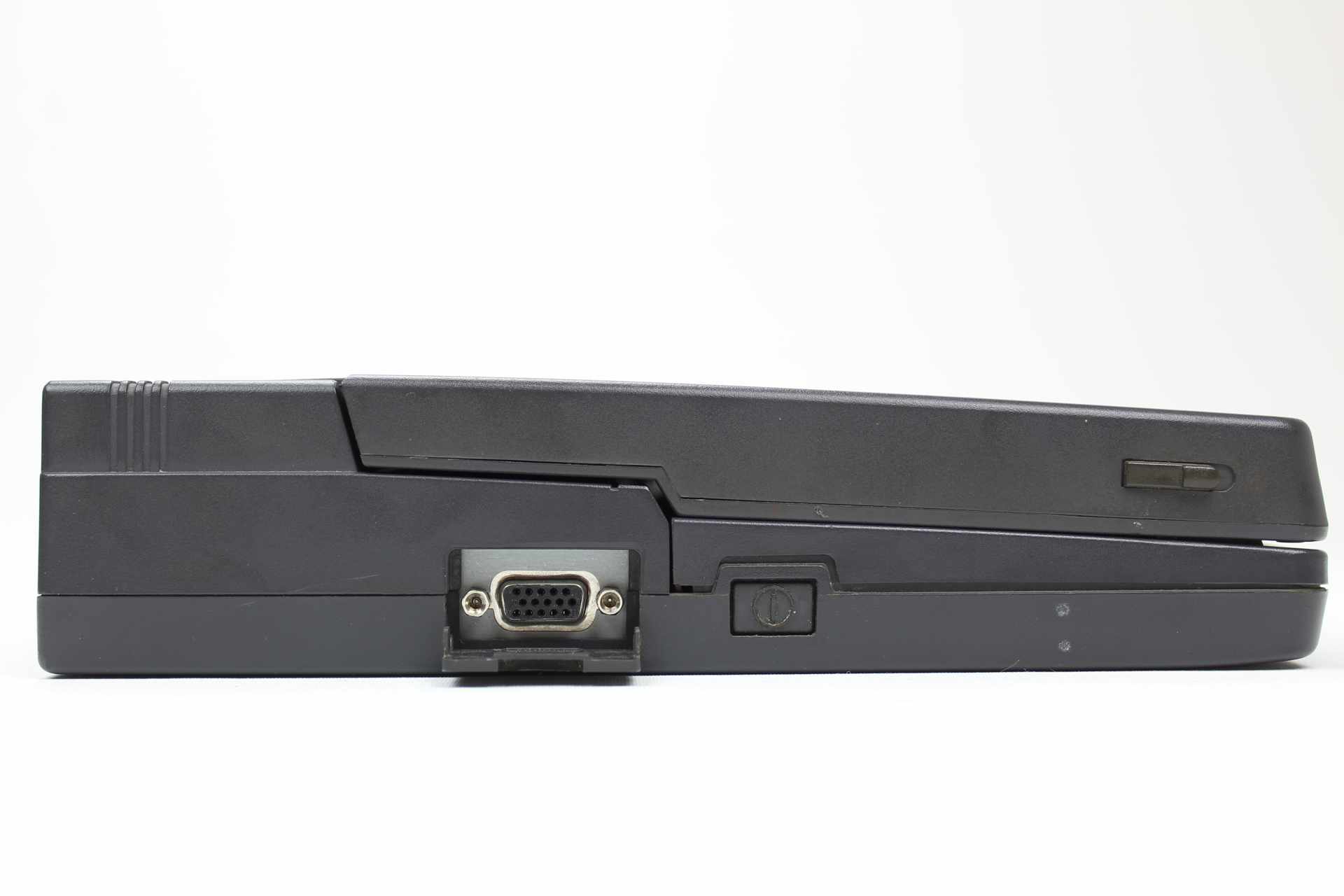

| Other I/O | - 1x Parallel - 1x Serial - 1x VGA Out - 1x PS/2 |
| BIOS | AMI |
| Pointing Device | None |
Gallery

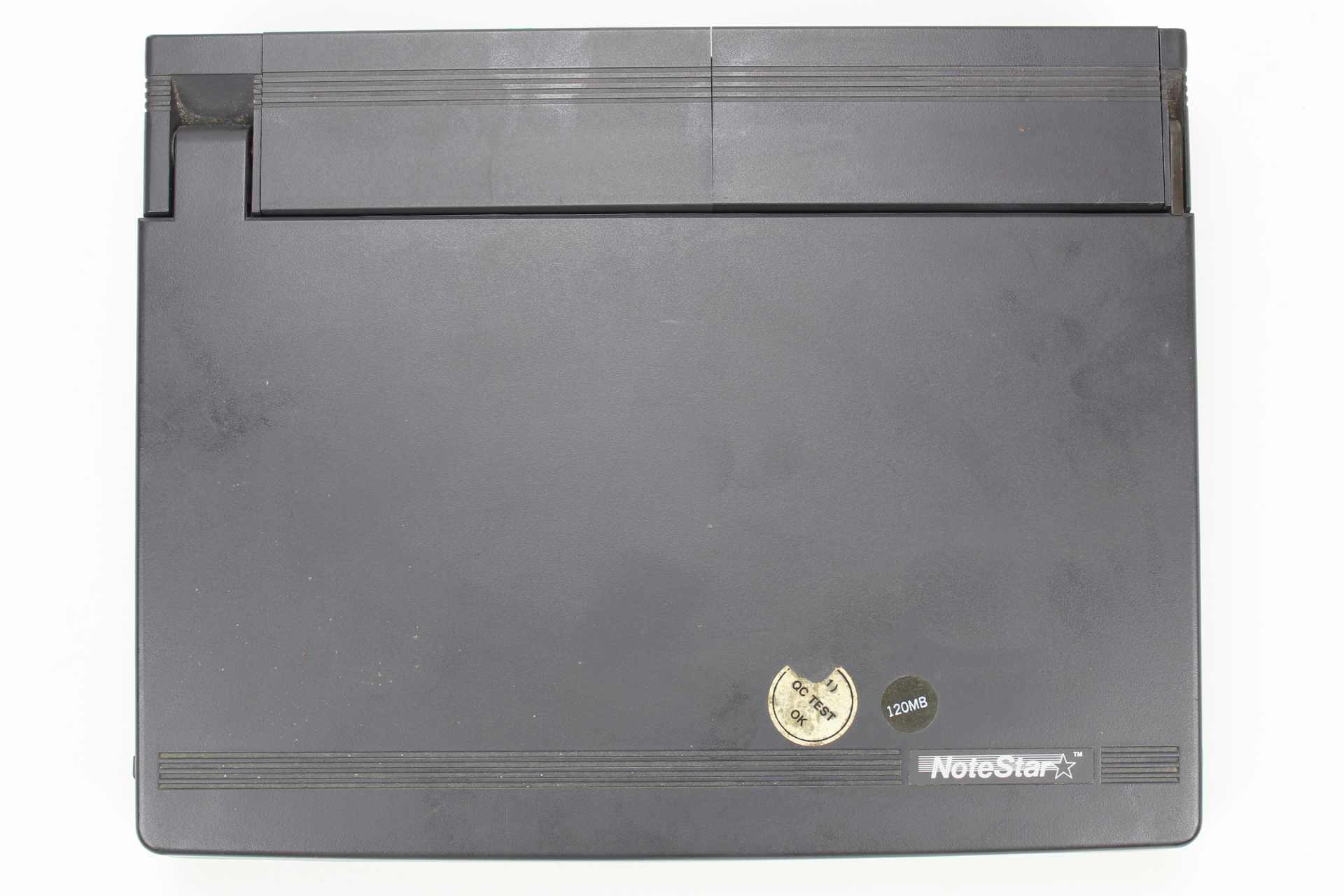

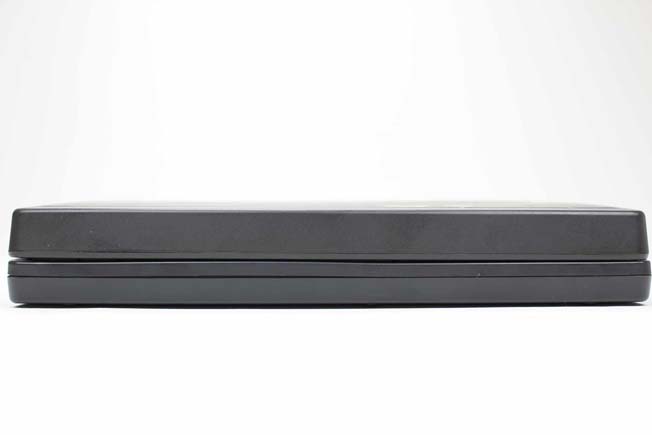

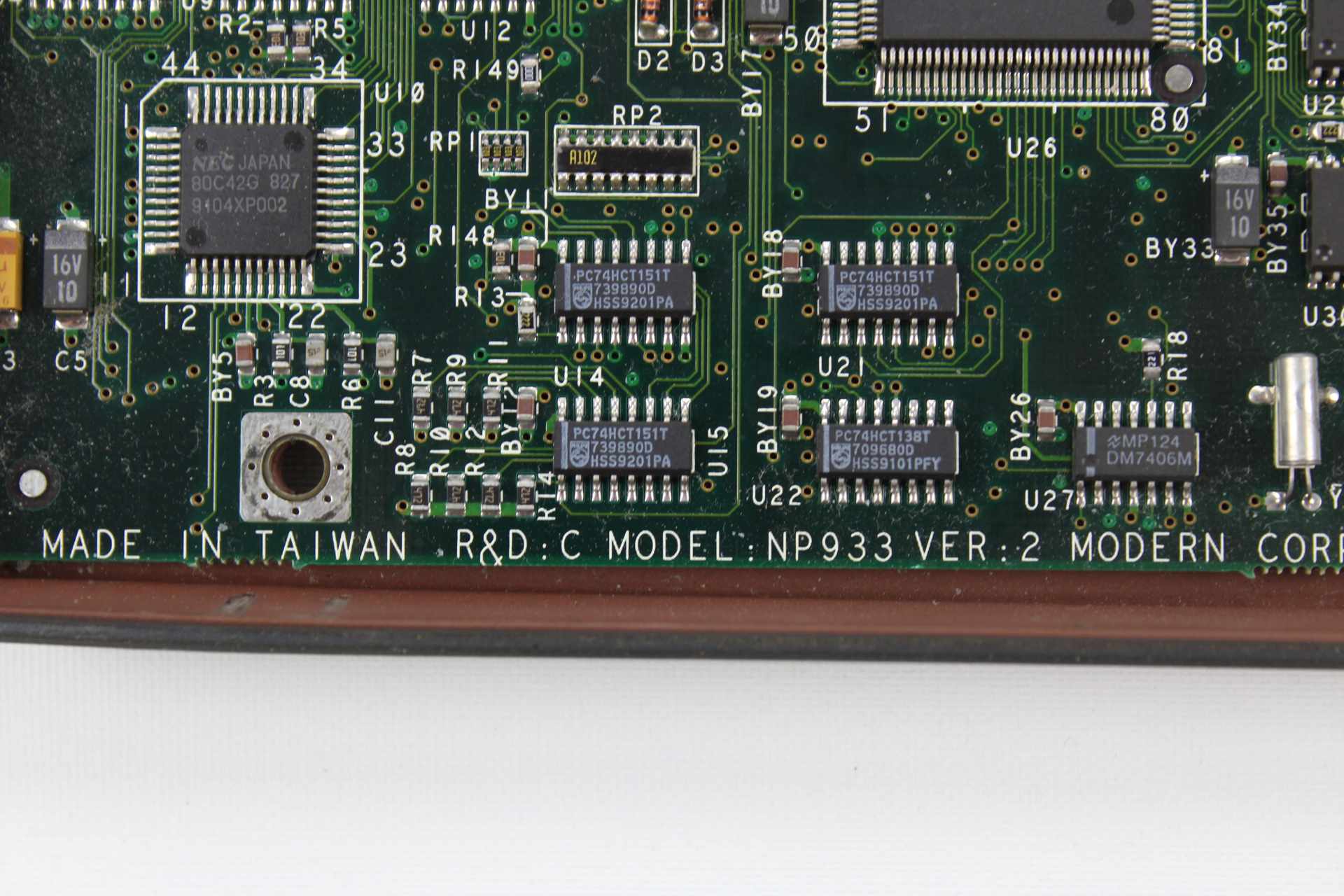

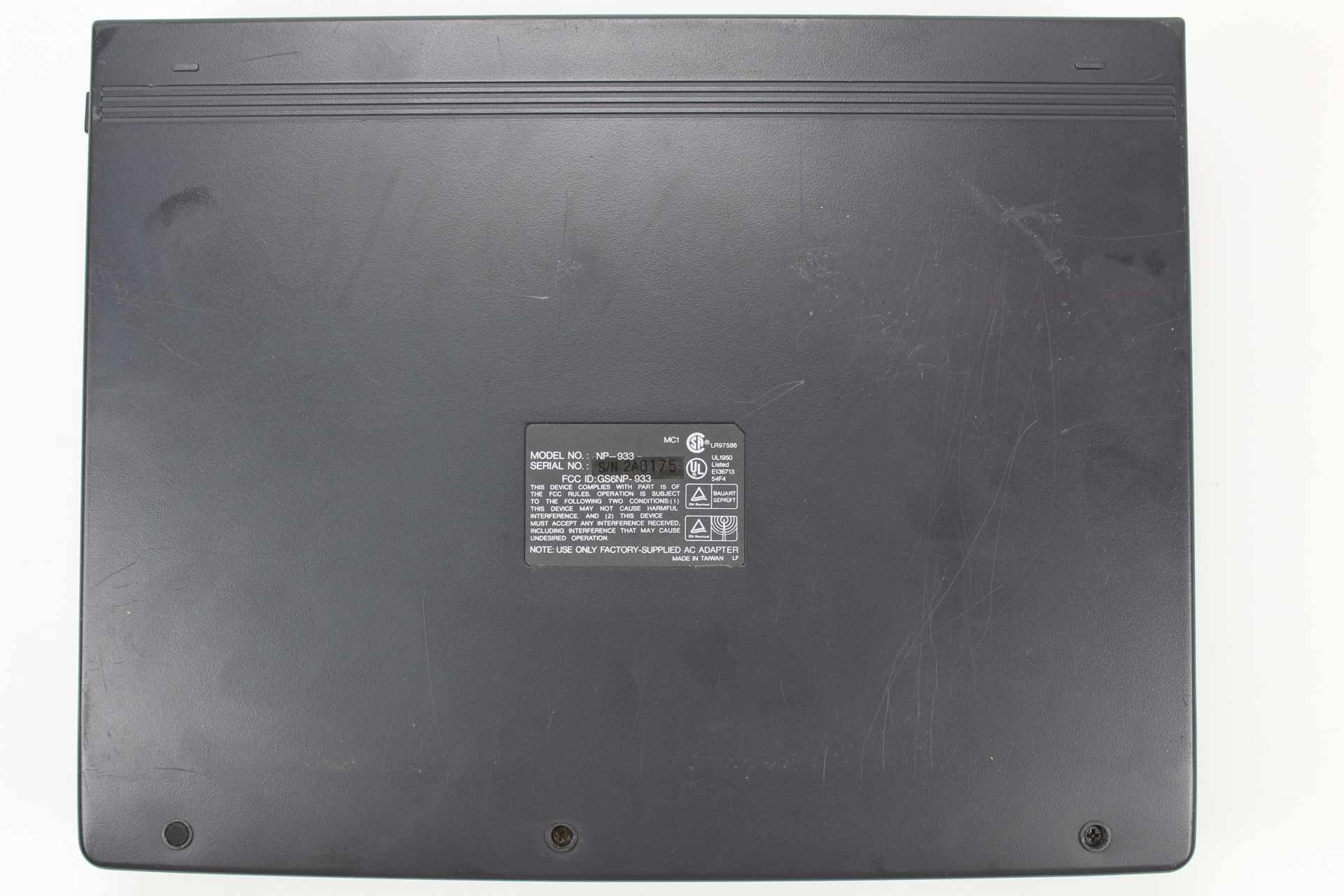

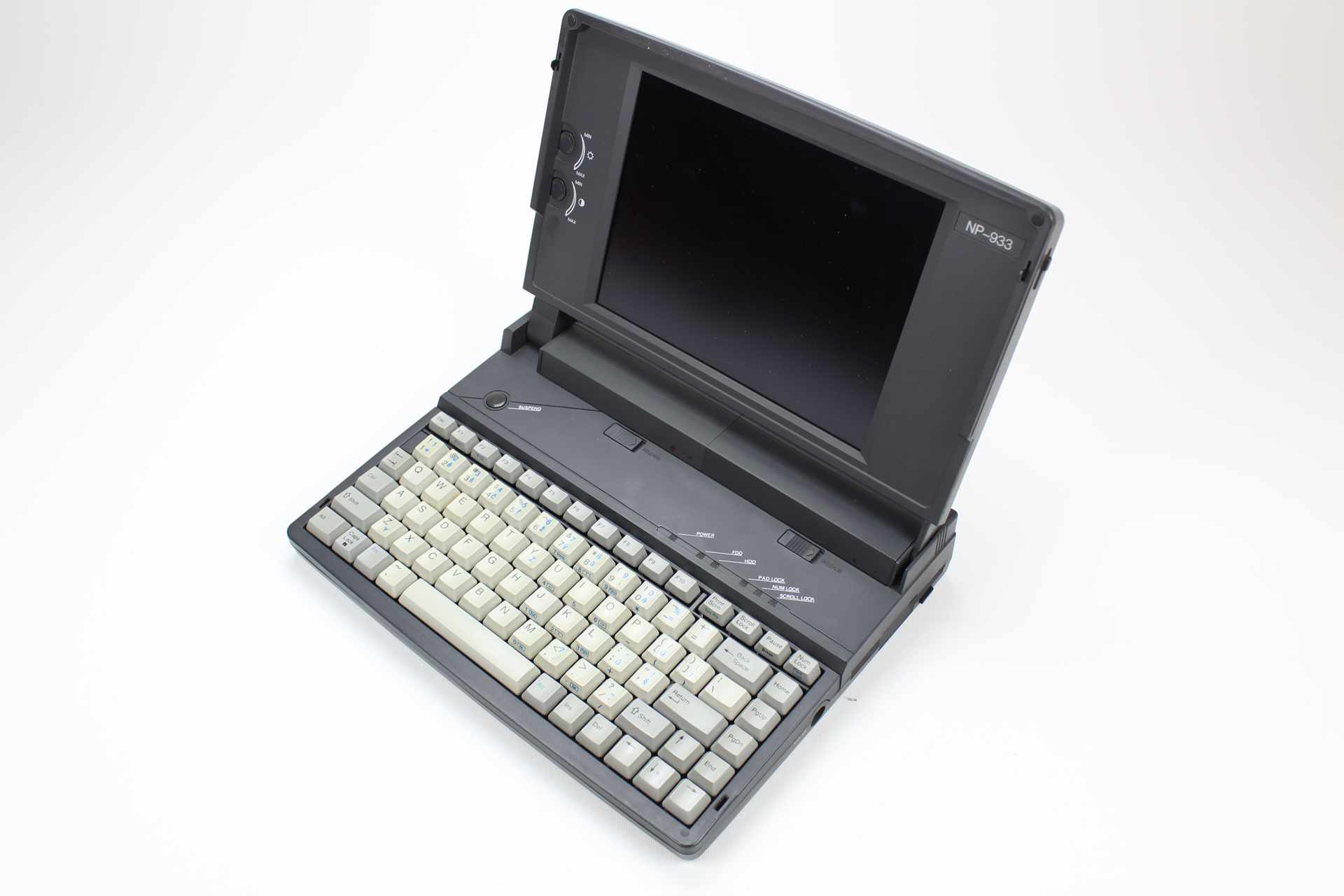

Photos from Clous. Used with permission.
