MiTAC 5033
The MiTAC 5033 is a Socket 7 (Pentium MMX/AMD K6-2)-based generic/ODM laptop that was released in early 1998. The 5033 went through several minor hardware revisions and was sold by a large number of different companies. Here's a list of laptops that were MiTAC 5033s and companies that sold them:
- AMS Roadster 15 Series
- Jetta Jetbook 7050 and 7050XL
- HyperData MediaGo 780
- Trogon
- Chembook
- Novatech
CPU Support
The 5033 uses standard Socket 7 CPUs. The early revision 5033s only support Intel CPUs, with later ones being able to support Intel and AMD:
- 5033: Intel
- 5033H: Unknown
- 5033K: Intel and AMD
- 5033L: Intel and AMD
- 5033T: Intel and AMD

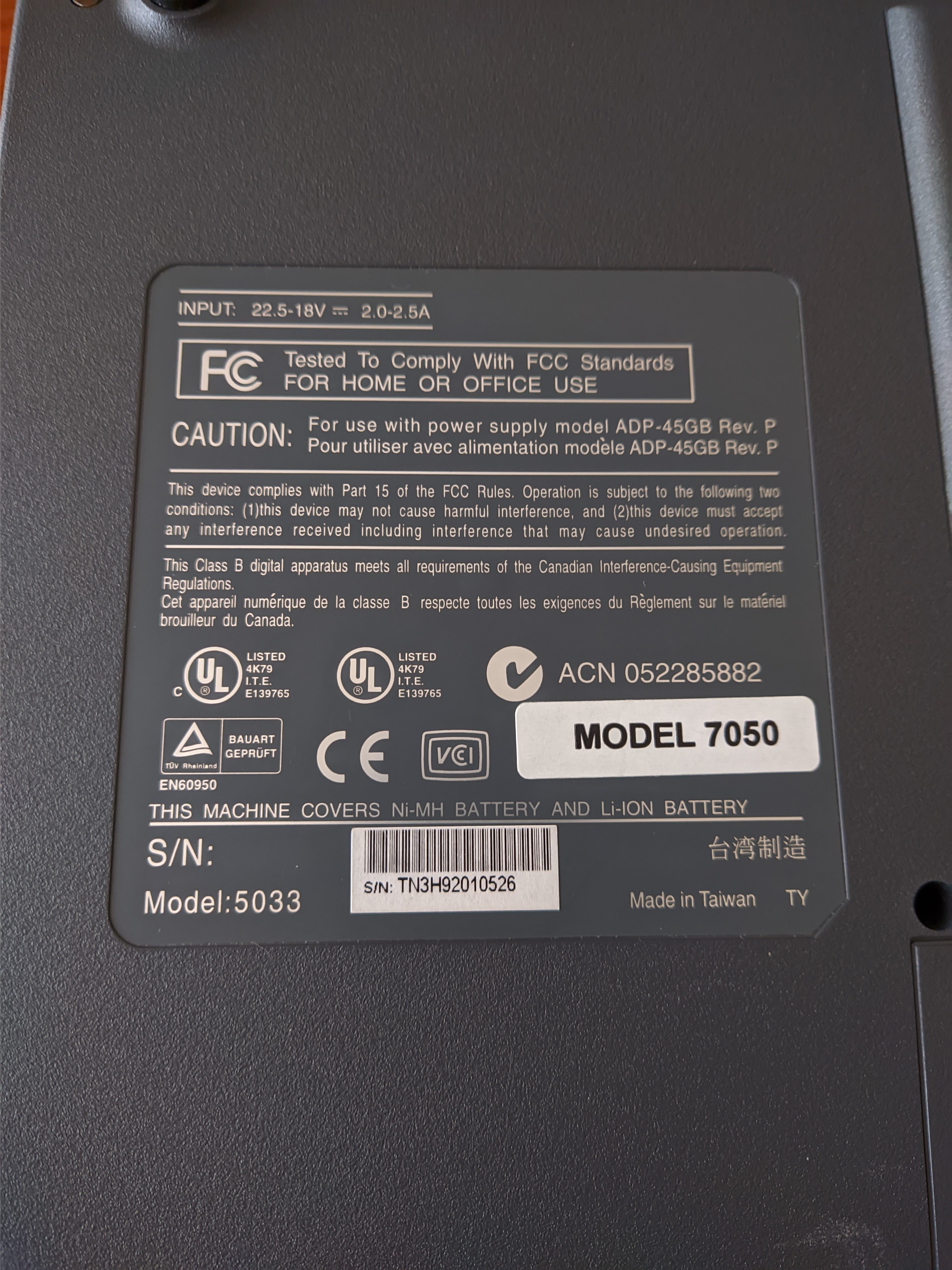

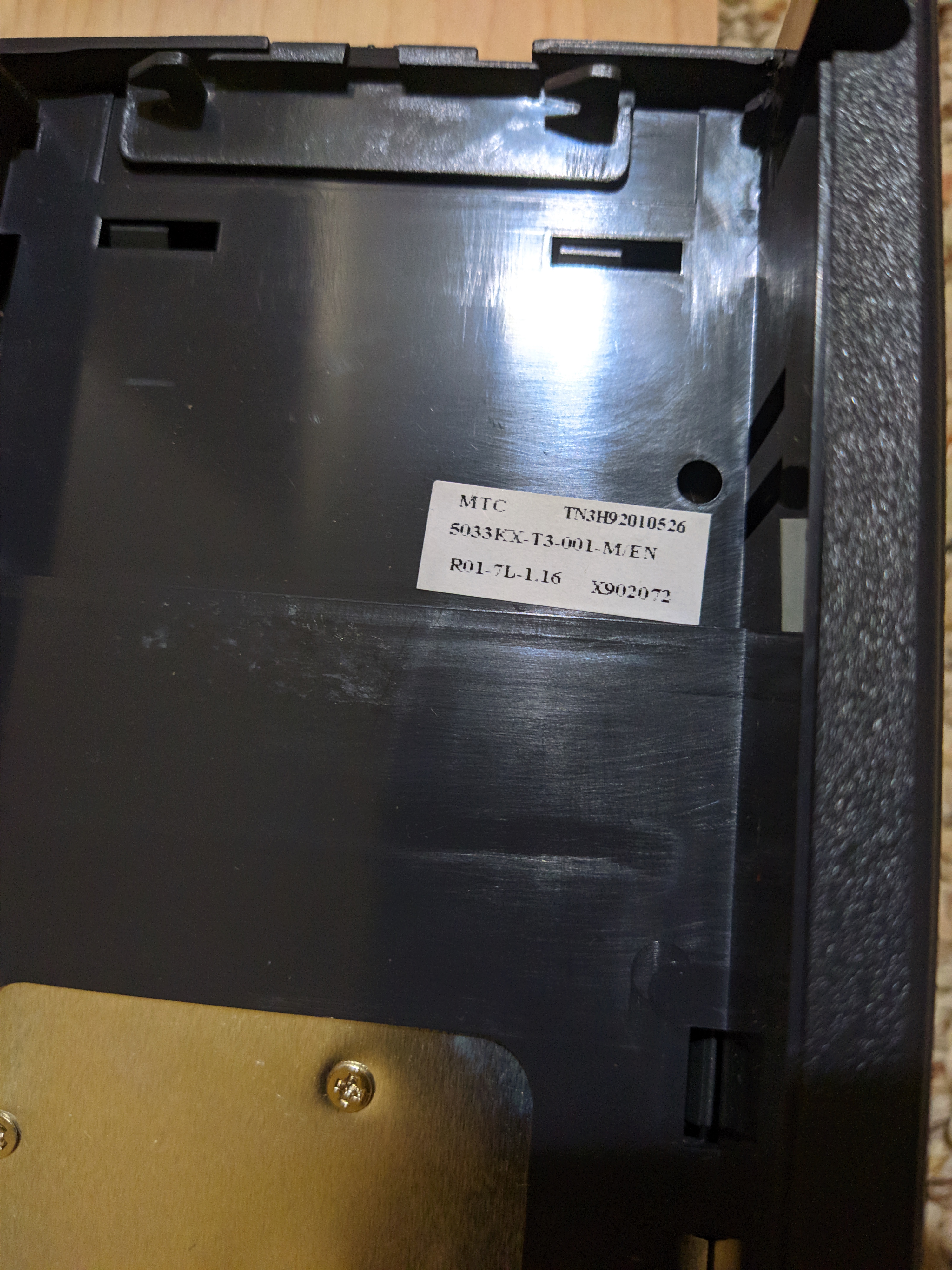

Your 5033's revision should be printed on a label under the battery.
CPU switch settings are listed on Page 25 of the service manual (see resources section below). Note that it only lists up to 266MHz on supported AMD processors - K6-2s at up to 400MHz are supported, so if you have a 5033 with a chip faster than 266MHz, please email me with the switch settings.
Specifications
| Spec | Details |
|---|---|
| CPU | See CPU Support section above. |
| Chipset | Intel Mobile Triton II (430TX) |
| RAM | 1x 144pin slot w/ 32MB soldered. Expansion RAM type and limit depends on revision: 5033: 64MB EDO 5033H: ?? 5033K: ?? 5033L: 128MB SDRAM 5033T: 128MB SDRAM |
| Hard Disk | 2.5" IDE |
| Display Options | - 12.1" Passive Matrix LCD @800x600 - 12.1" Active Matrix LCD @800x600 - 13.3" Active Matrix LCD @1024x768 |
| Graphics Chipset | Trident 9385G - 2MB VRAM |
| Audio | ESS AudioDrive 1869 - Stereo Speakers - Microphone |
| Main Battery | - 10-cell NiMH - 8-cell Lithium Ion |
| CMOS Battery | Socketed Lithium. It is cited on orphanlaptops that some 5033s may not boot if this battery is dead. |
| Power Supply | Barrel Jack |
| Disk Drives | 3 Spindle - 3.5" 1.44MB Floppy Drive (Mitsumi) - CD-ROM |
| PC Cards | 2x PCMCIA slots - CardBus Support - ZoomVideo Support |
| Networking | None internal |
| Other I/O | - 1x VGA Out - 1x Serial - 1x Parallel - 1x Dock Connector - 1x PS/2 - 1x USB 1.x - 1x Line Out - 1x Mic In - Infrared |
| BIOS | SystemSoft |
| Pointing Device | Trackpad |
Resources
 Service Manual |
|---|
Gallery
Click on a photo to view the full-size version.

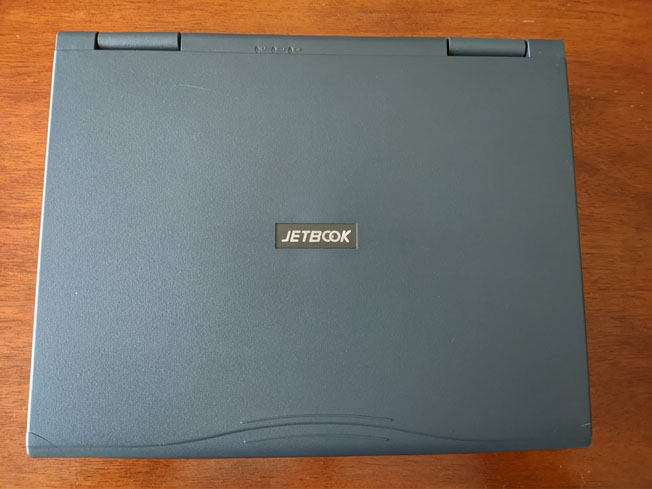

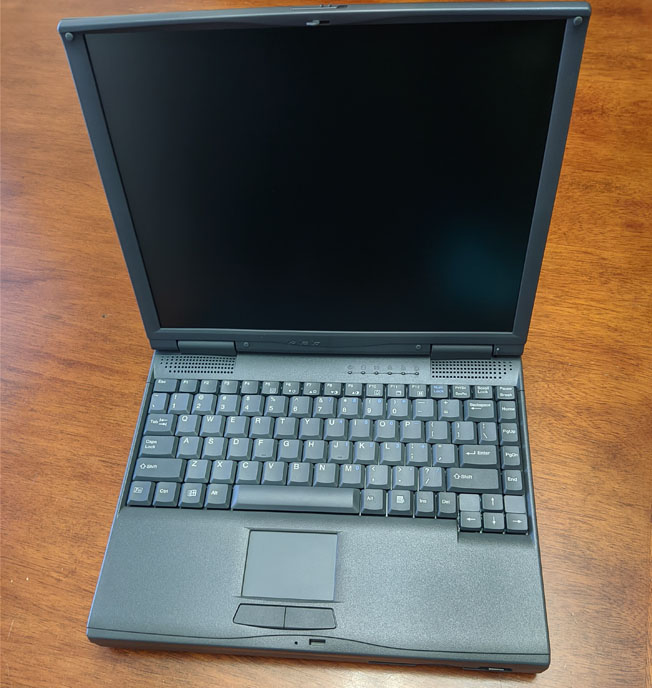

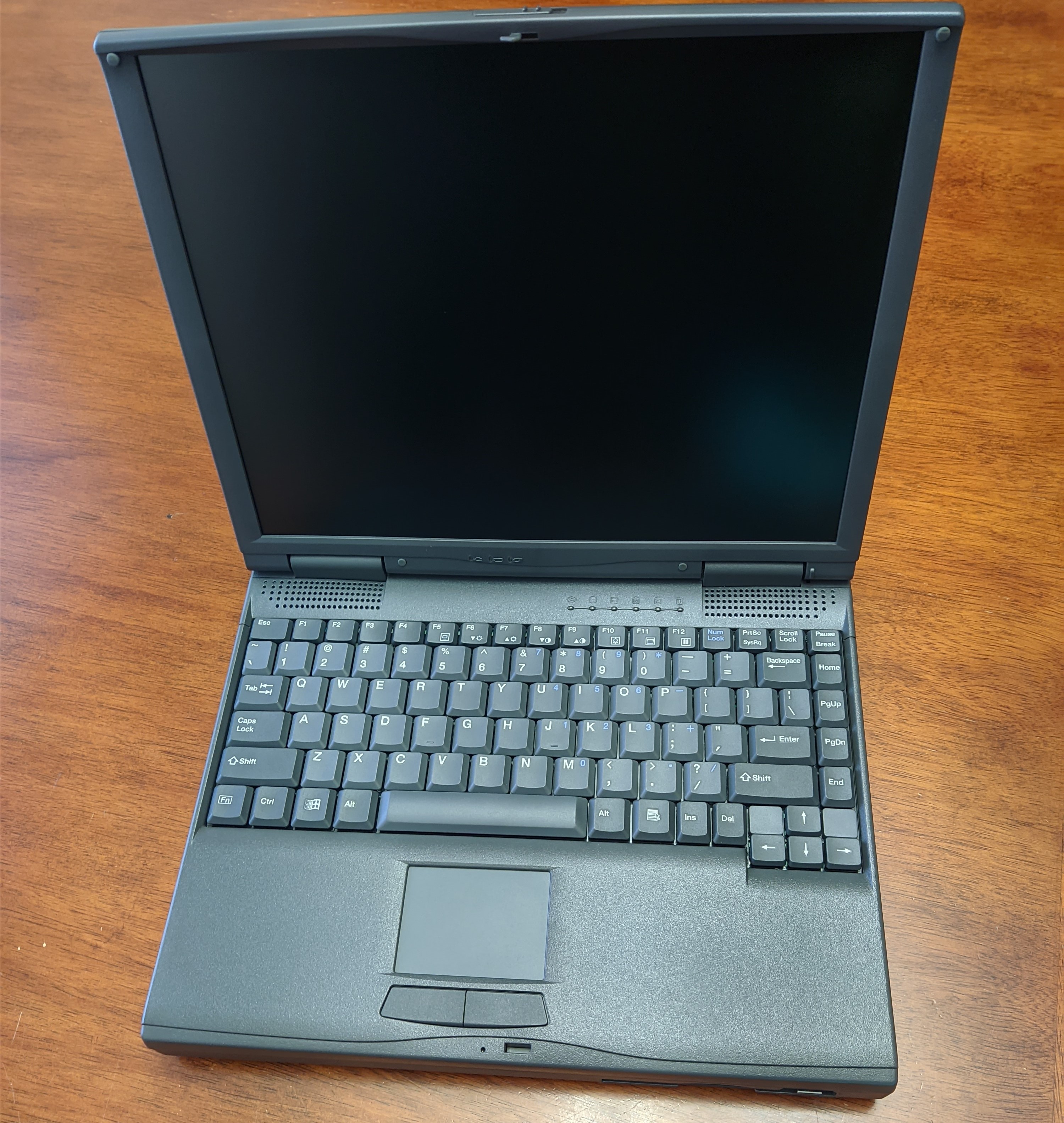

Jetta Jetbook 7050
Page last updated (MM/DD/YYYY): 10/07/2024
Update Reason: page created
