MiTAC 5026

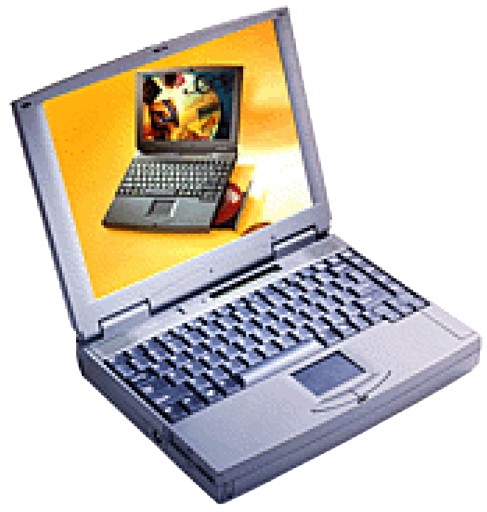

The MiTAC 5026 is a Socket 7-based generic/ODM laptop that was released in January 1997. It was available in a light gray color (shown in the photo), as well as dark gray (more common). Below is a list of brands/models that sold/were MiTAC 5026s:
- MiTAC-branded
- Jetta Jetbook 7000
- DFI 8120
- Others?
Specifications
| Spec | Details |
|---|---|
| CPU | CPU Type: Socket 7 - Intel Pentium @133, 150, 166, or 200MHz - Intel Pentium MMX @166 or 200MHz |
| Chipset | UMC UM8891-N |
| RAM | Type: EDO, 2x 72-pin slots Standard: N/A Maximum: 128MB |
| Storage | 2.5" IDE Requires Adapter: Yes Standard: N/A |
| Display Options | - 12.1" Passive Matrix LCD @800x600 - 12.1" Active Matrix LCD @800x600 |
| Graphics Chipset | Trident Cyber9385 VRAM: 2MB |
| Audio | ESS AudioDrive 1878 - Stereo Speakers - Microphone |
| Main Battery | NiMH or Lithium Ion |
| CMOS Battery | BR1225 Lithium (Soldered) |
| Power Supply | Barrel Jack |
| Media Drives | 3 Spindle (Dual Modular Bays) with the following available modules: - 3.5" 1.44MB Floppy Drive - 10X CD-ROM Drive - Internal AC Adapter - 230MB MO Drive - 170MB Cartridge Hard Drive - 2nd HDD - 2nd Battery |
| PC Cards | 2x PCMCIA/CardBus Slots (2x Type II/1x Type III) - ZoomVideo Support - Cirrus Logic PD6730 Controller |
| Networking | Modem (Optional) |
| Other I/O | - 1x Parallel - 1x Serial - 1x VGA Out - 1x PS/2 - 1x Dock Connector - 1x Composite Out - 1x Composite In (Optional) - 1x Mic In - 1x Line In - 1x Line Out |
| BIOS | Phoenix |
| Pointing Device | Trackpad |
Resources
 Service Manual |
|---|
Service Manual includes CPU switch settings.
Page last updated (MM/DD/YYYY): 03/27/2025
Update Reason: page created
