MiTAC 5021
The MiTAC 5021 is a Pentium-based generic/ODM laptop that was released in around February 1995. It used a very different design from all the other MiTAC laptops from this time, being more similar to the 4021 from 1993. Like the 4021, the 5021 had a focus on multimedia, supporting an optional MPEG module.
Below is a list of brands/names that are known to be this laptop:
- MiTAC branded
- Jetta Jetbook CD5

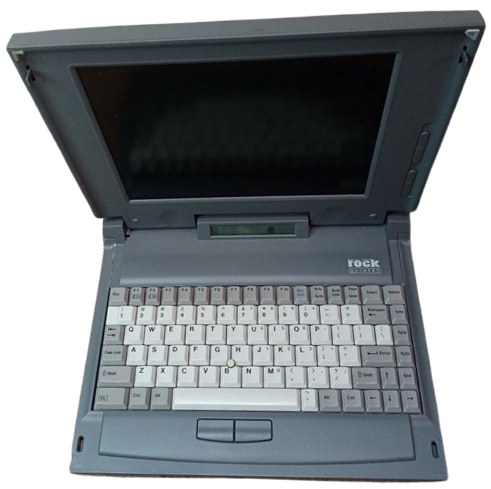

- Rock Quintet
- Others?
Specifications
| Spec | Details |
|---|---|
| CPU | CPU Type: Socket 5 Intel Pentium @75, 90, 100, or 133MHz |
| Chipset | ACC Micro 2056 |
| RAM | Type: 2x 72-pin slots Standard: Unknown Maximum: 40MB |
| Storage | 2.5" IDE Requires Adapter: Unknown Standard: N/A |
| Display Options | - 10.4" Passive Matrix Color LCD - 10.4" Active Matrix Color LCD |
| Graphics Chipset | Chips & Technologies 65545 VRAM: 1MB |
| Audio | ESS AudioDrive 1688 - Stereo Speakers - Microphone |
| Main Battery | Lithium Ion |
| CMOS Battery | Unknown |
| Power Supply | Barrel Jack |
| Media Drives | 3 Spindle - 3.5" 1.44MB Floppy Drive - CD-ROM Drive |
| PC Cards | 2x PCMCIA Slots (2x Type II/1x Type III) - Vadem VG-468 Controller |
| Networking | None |
| Other I/O | - 1x Parallel - 1x Serial - 1x VGA Out - 1x PS/2 - 1x Dock Connector - 1x Mic In - 1x Line In - 1x Line Out - Infrared |
| BIOS | Unknown |
| Pointing Device | Unknown |
Resources
| Link | Details |
|---|---|
 |
MiTAC 5021 Notebook Service Manual |
Service Manual includes CPU switch settings.
