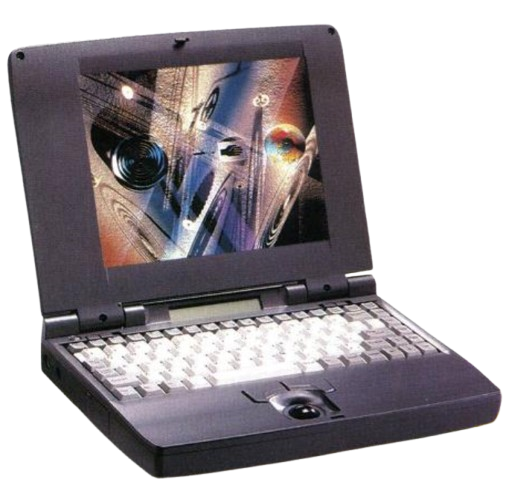

MiTAC 4024
The MiTAC 4024 is a 486-based generic/ODM laptop that was released in around February 1995. Below is a list of brands/names that are known to be this laptop:
- MiTAC branded
- Vobis HIGHSCREEN ModuleNote II
- Others?
Specifications
| Spec | Details |
|---|---|
| CPU | CPU Type: Socket 486 Up to 486DX4 @100MHz |
| Chipset | Unknown |
| RAM | Type: FPM, 2x 72-pin slots Standard: N/A Maximum: Unknown |
| Storage | 2.5" IDE Requires Adapter: Uses standard IDE cable Standard: N/A |
| Display Options | - Passive Matrix Grayscale @640x480 - Other options? |
| Graphics Chipset | Chips & Technologies 65540 VRAM: Unknown |
| Audio | Optional audio daughtercard |
| Main Battery | Unknown |
| CMOS Battery | 3-cell Varta NiMH (Soldered) |
| Power Supply | Barrel Jack |
| Media Drives | Modular bay holds floppy drive or CD-ROM |
| PC Cards | 2x PCMCIA Slots |
| Networking | Unknown |
| Other I/O | - 1x Parallel - 1x Serial - 1x VGA Out - 1x PS/2 - 1x Mic In (Optional) - 1x Line In (Optional) - 1x Line Out (Optional) |
| BIOS | Unknown |
| Pointing Device | Trackpad or Trackball |
Page last updated (MM/DD/YYYY): 01/29/2025
Update Reason: page created
Have additional information on this laptop? Want to send me photos to use on the site? Send me an email: macdatnet@gmail.com
