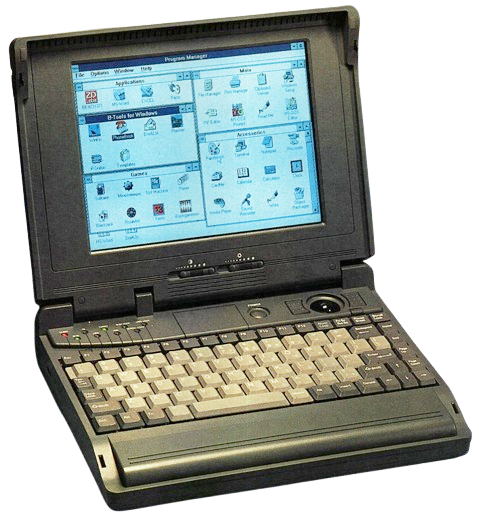

Kapok 8200
The Kapok 8200 (also known as the FMA8200) is a 486-based laptop that was released in 1993. While commonly called a Nan Tan, this was actually the first laptop manufactured by Nan Tan's sub-division Kapok.
Chicony may have also played a role in designing the 8200, as they listed an identical looking laptop on their website at one point called the "NB9800". Both companies have an FCC record for the respective model numbers mentioned. A couple 8200's with the model number NB9800 (or NB9800A) printed on the bottom have shown up on eBay, but they retain the Nan Tan FCC ID.
This laptop was sold as the following laptops by the following brands:
- Duracom TravelPro NBM, NBC, and NBAC
- Micro Express NB8266 and NB8266M
- Keydata Commander
- Tri-Star Tri-CAD DesignBook
- Ambra
- Acom
- Sager
- ProStar 8200
- Orange
Specifications
| Spec | Details |
|---|---|
| CPU | CPU Type: Socket 2 - Intel 486SX @25MHz - Intel 486DX @33MHz - Intel 486DX2 @50 or 66MHz |
| Chipset | Unknown |
| RAM | Type: Proprietary Standard: 4MB Maximum: 20MB |
| Storage | 2.5" IDE Requires Adapter: Unknown Standard: N/A |
| Display Options | - 9.5" Passive Matrix Grayscale LCD @640x480 - 9.5" Passive Matrix Color LCD @640x480 - 8.4" Active Matrix Color LCD @640x480 |
| Graphics Chipset | Cirrus Logic GD6225 VRAM: Unknown |
| Audio | PC Speaker |
| Main Battery | NiCad |
| CMOS Battery | Unknown |
| Power Supply | Kycon KPPX-4P Connector - Proton SPN-252D AC Adapter |
| Media Drives | 3.5" 1.44MB Floppy Drive |
| PC Cards | 2x PCMCIA Slots (2x Type II/1x Type III) |
| Networking | None |
| Other I/O | - 1x Parallel - 1x Serial - 1x VGA Out - 1x PS/2 |
| BIOS | Award |
| Pointing Device | Trackball |
Resources
 User Manual |
|---|
Gallery
Print Ads
Click here to view all print ads featuring this laptop.
Page last updated (MM/DD/YYYY): 03/18/2025
Update Reason: moved to the kapok section
