Kapok 5000 Series

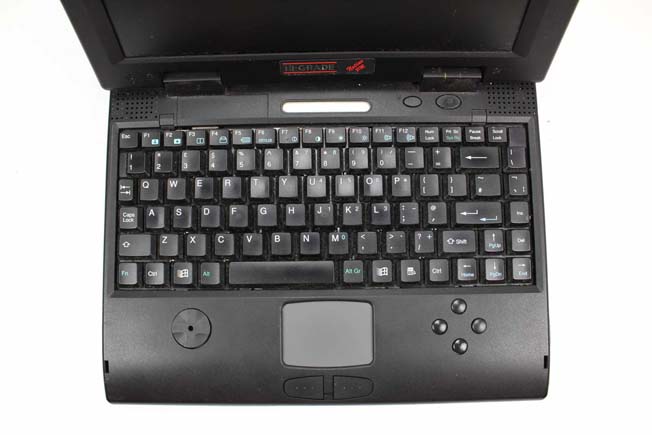

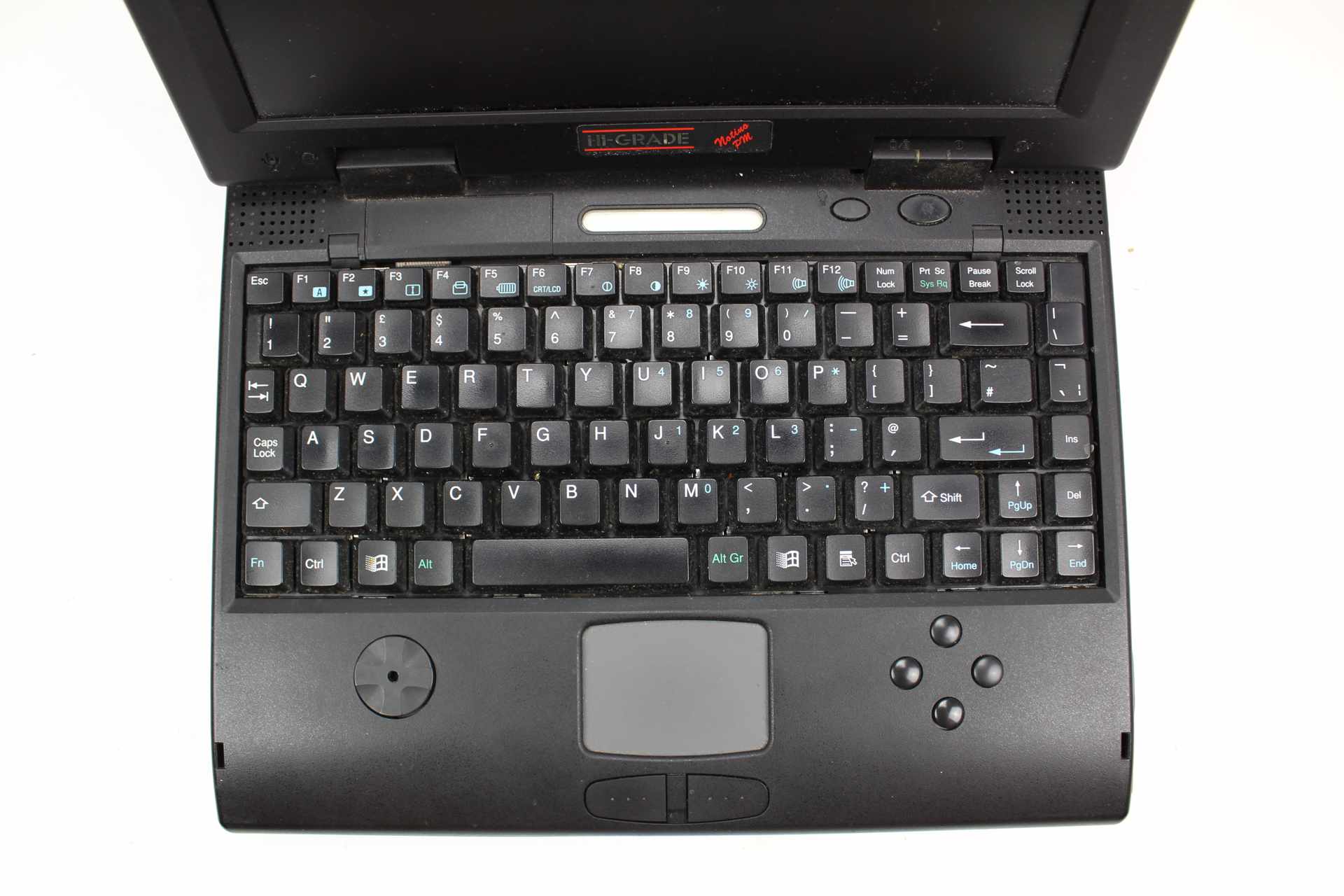

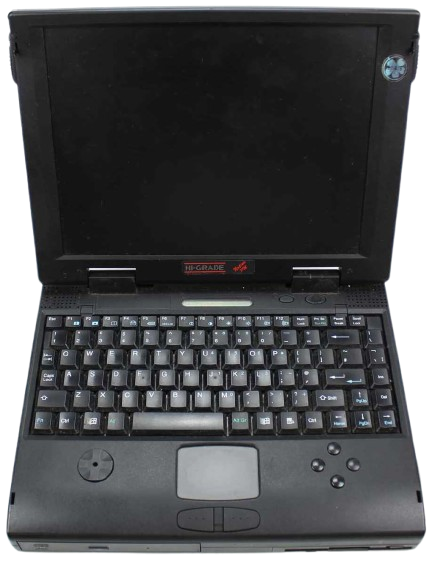

The Kapok 5000 Series laptops (comprised of the 5200 and 5400) are large desktop replacements that were released in 1995. The most unique feature of these laptops are that they have a built-in gamepad in the palmrest.
This laptop was sold badged as the following brands/models:
- Sager
- Hi-Grade

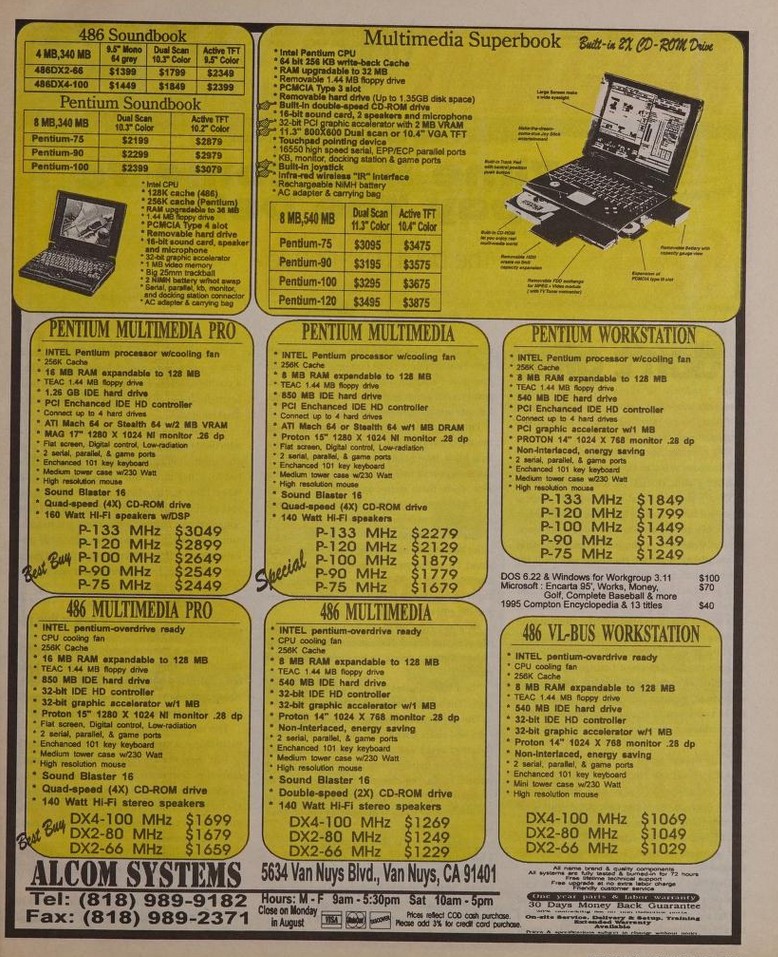

- Alcom Systems Multimedia Superbook
Specifications
| Spec | Details |
|---|---|
| CPU | CPU Type: Socket 7 - Intel Pentium @75, 90, 100, 120, 133, 150, or 166MHz - Intel Pentium MMX |
| Chipset | SiS 5131? |
| RAM | Type: FPM or EDO, 2x 72-pin slots Standard: N/A Maximum: 32MB |
| Hard Disk | 2.5" IDE Uses proprietary adapter?: Yes Standard: N/A |
| Display Options | - 10.4" Active Matrix LCD @800x600 - 11.3" Passive Matrix LCD @800x600 - 11.3" Active Matrix LCD @800x600 - 12.1" Active Matrix LCD @800x600 |
| Graphics Chipset | Cirrus Logic GD7543 VRAM: 2MB |
| Audio | ESS AudioDrive 1788 - Stereo Speakers - Microphone |
| Main Battery | NiMH (9.6V, 3000mAH) |
| CMOS Battery | Soldered Lithium |
| Power Supply | Barrel Jack |
| Disk Drives | 3 Spindle - 3.5" 1.44MB Floppy Drive - CD-ROM Drive |
| PC Cards | 2x PCMCIA Slots |
| Networking | None |
| Other I/O | - 1x Parallel - 1x Serial - 1x VGA Out - 1x PS/2 - 1x MIDI/Game Port - 1x Dock Connector - 1x Line In - 1x Mic In - 1x Line Out - Infrared |
| BIOS | SystemSoft |
| Pointing Device | Trackpad |
Gallery

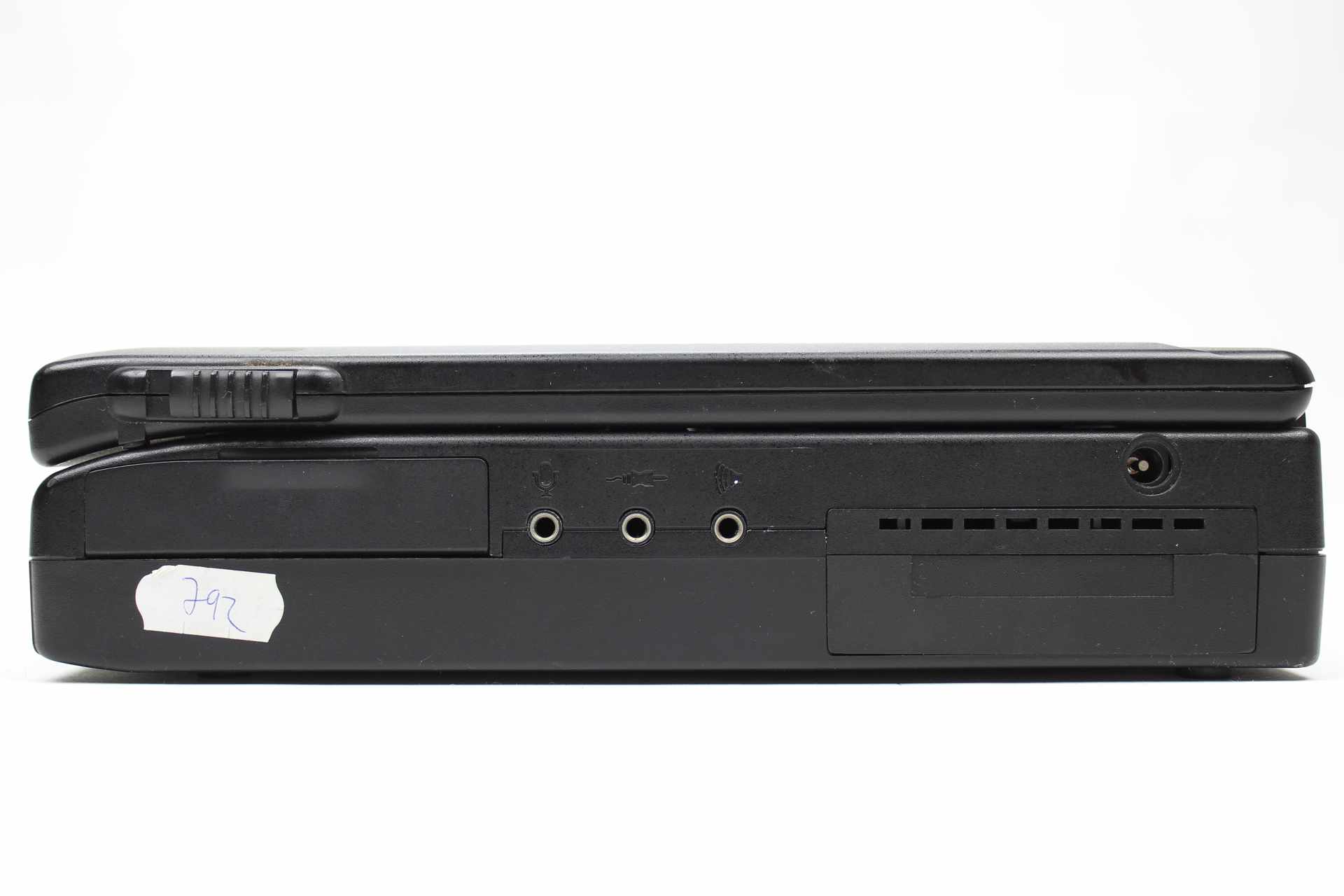

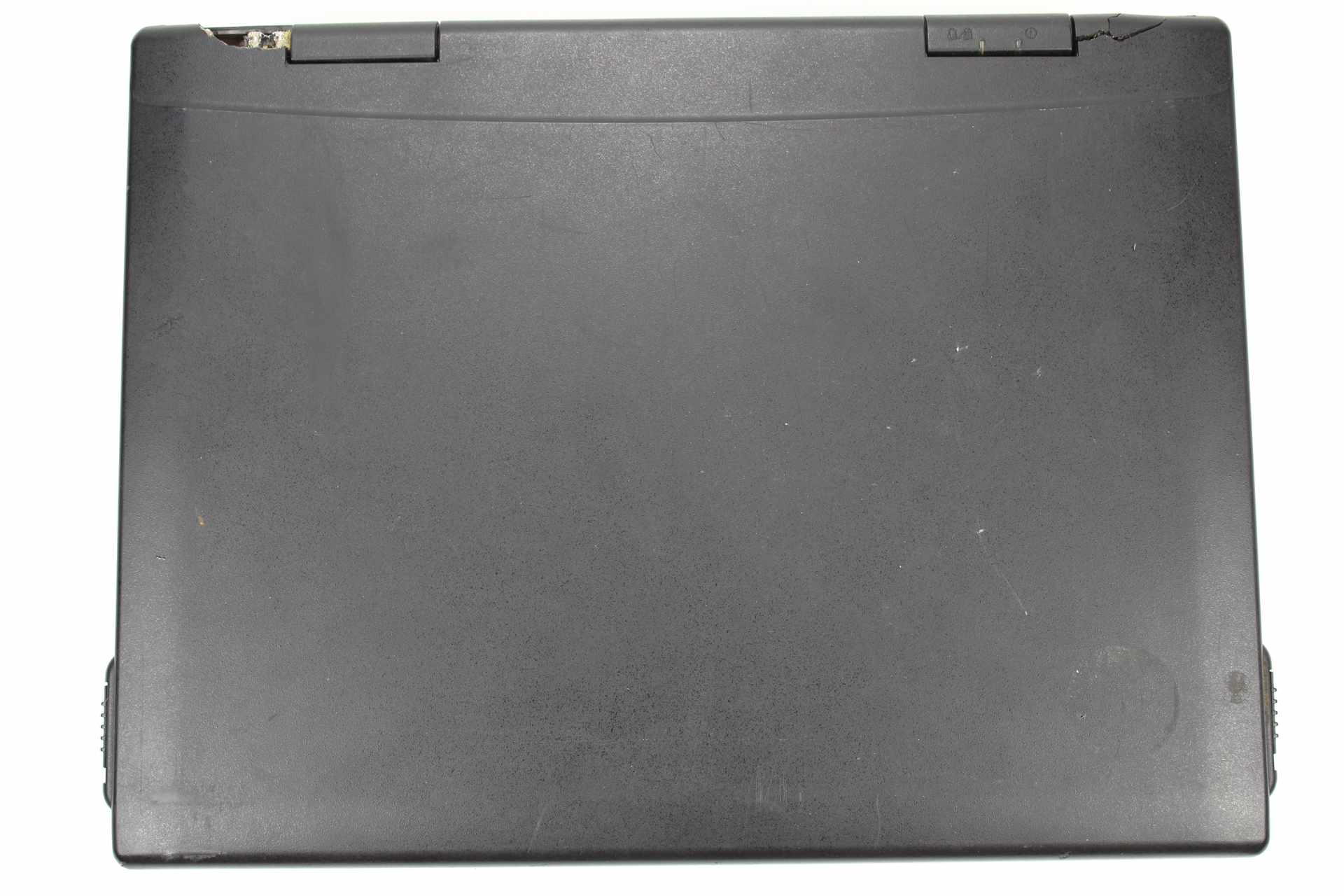

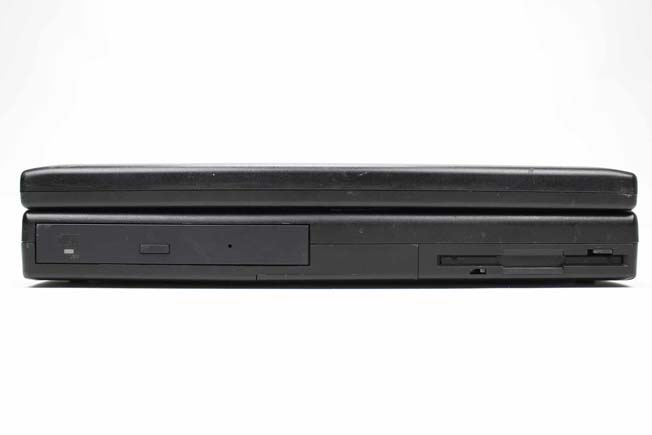

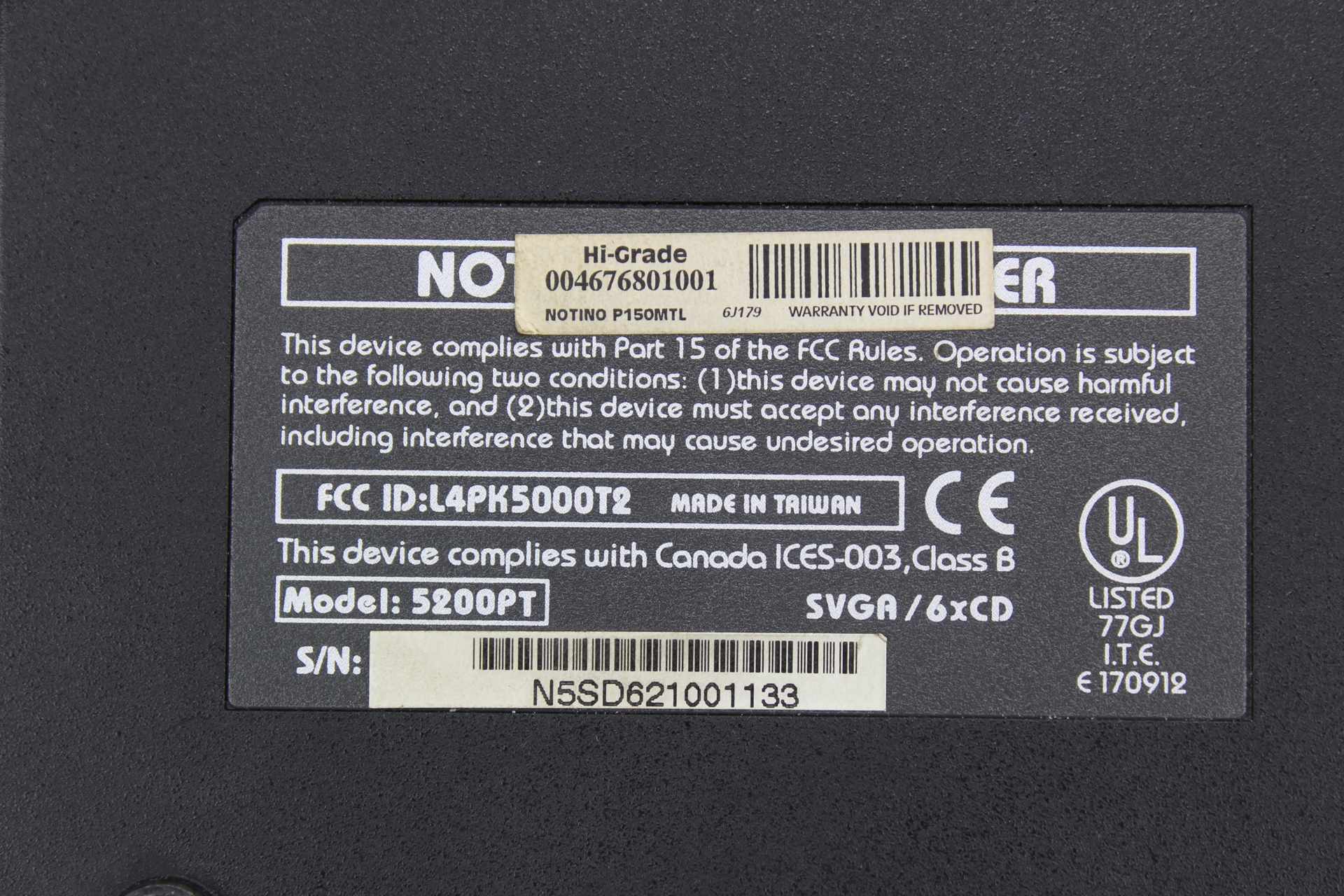

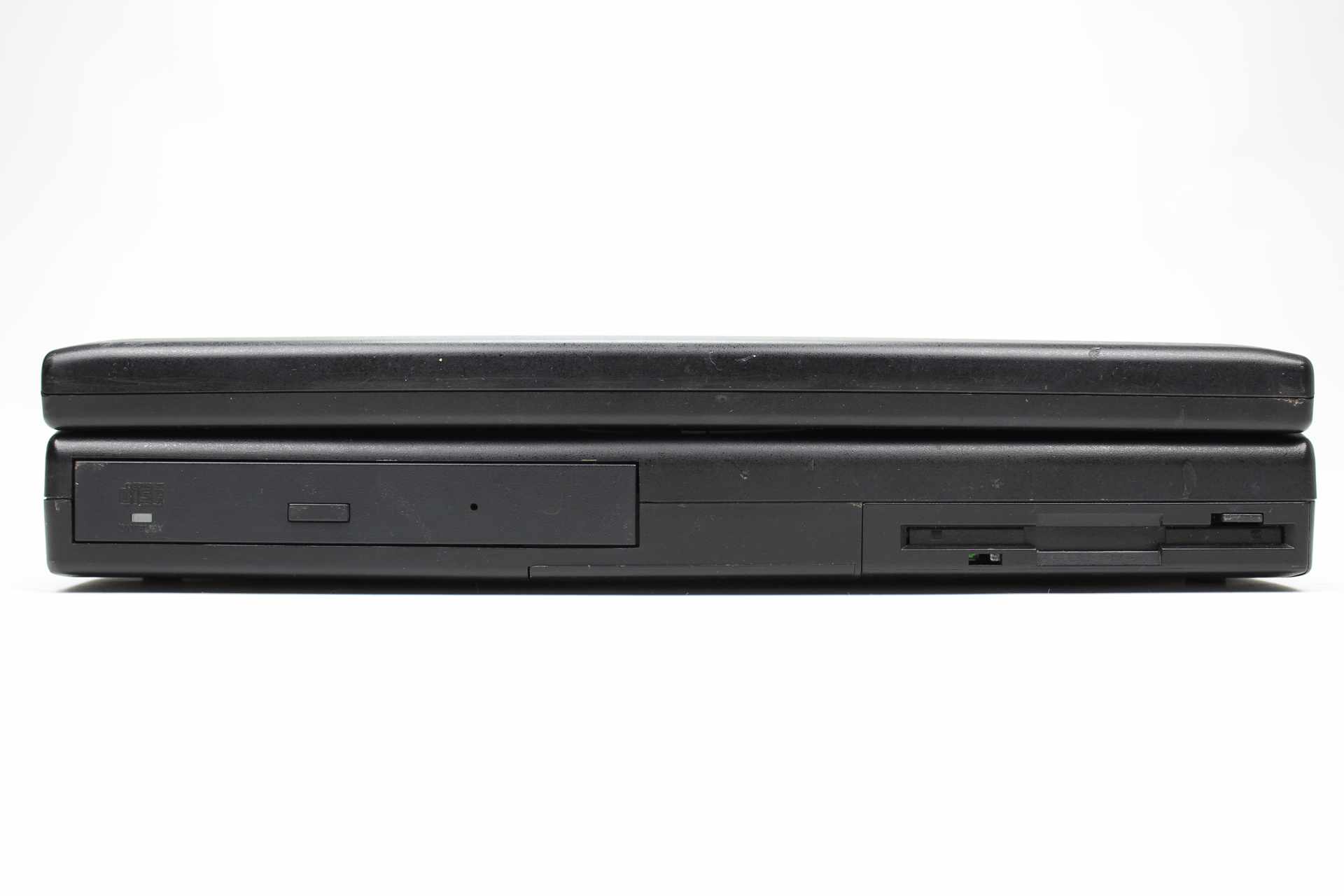

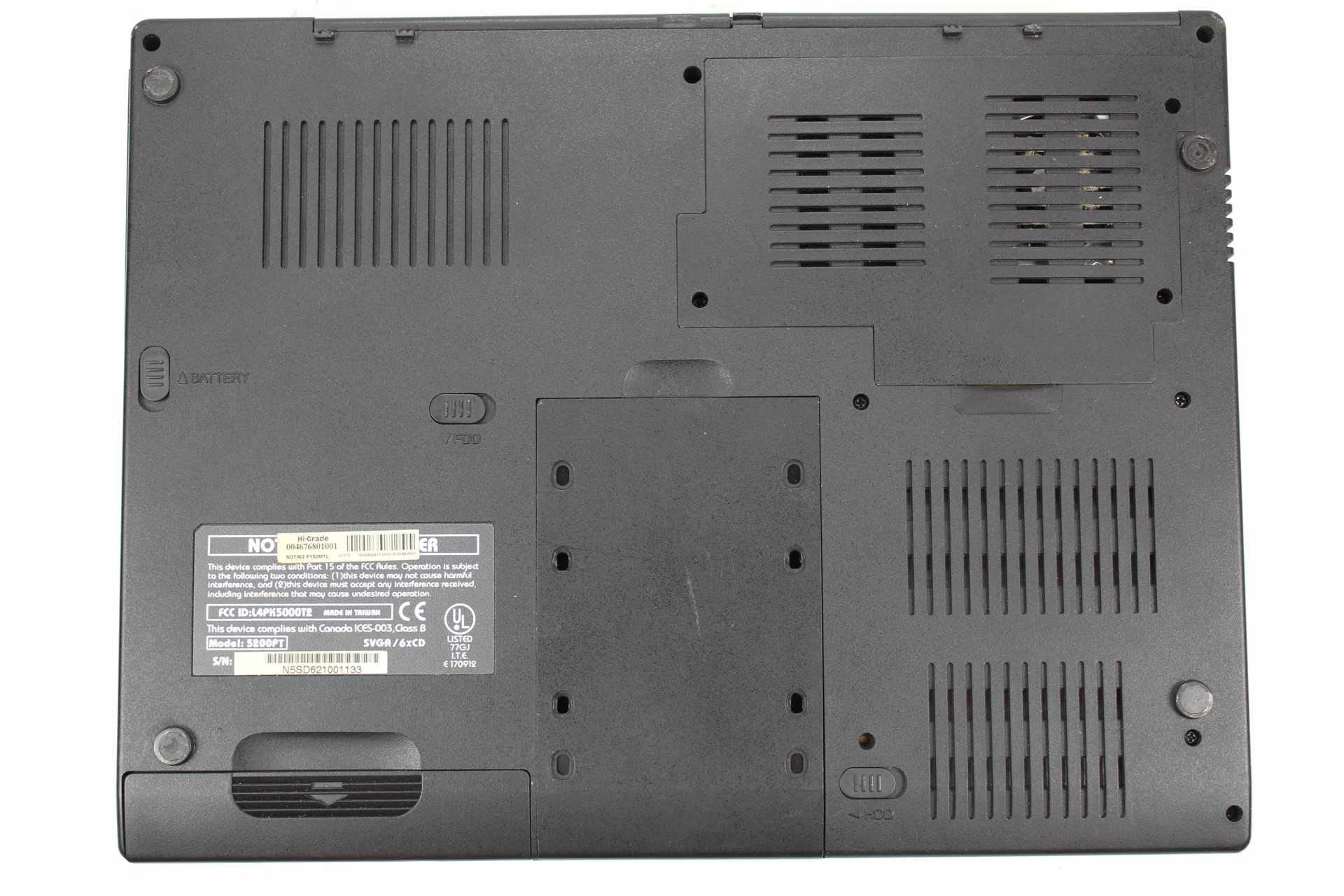

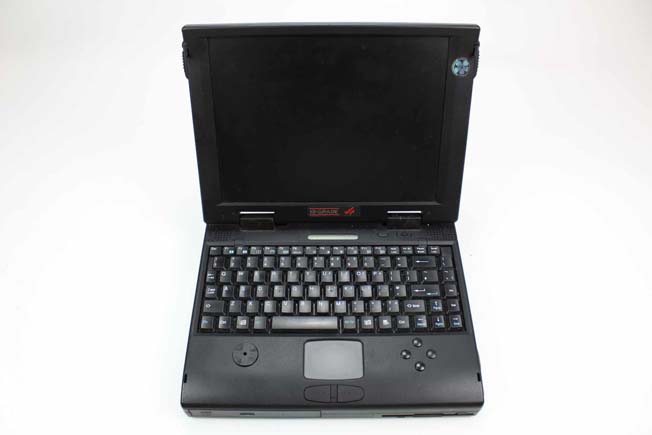

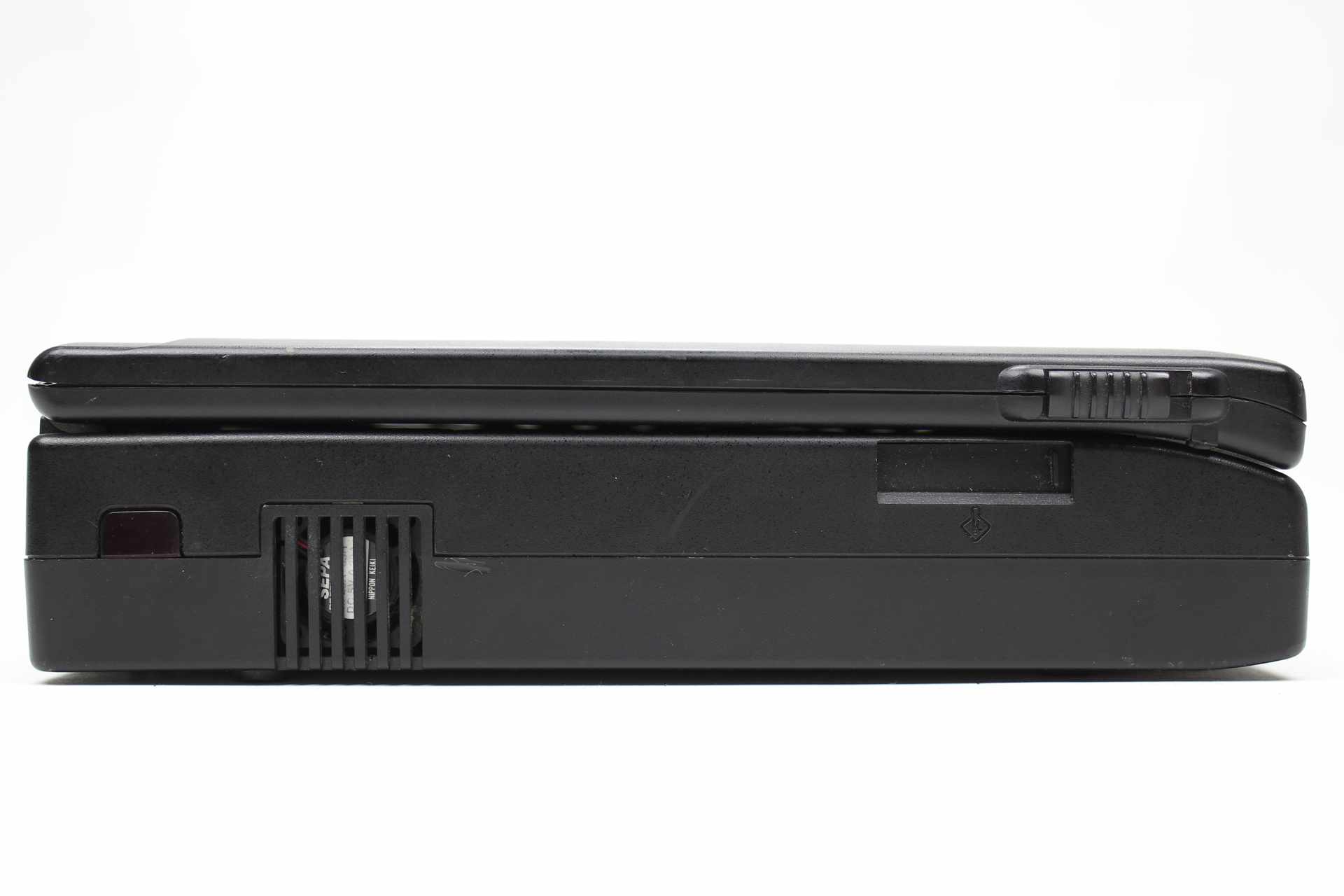

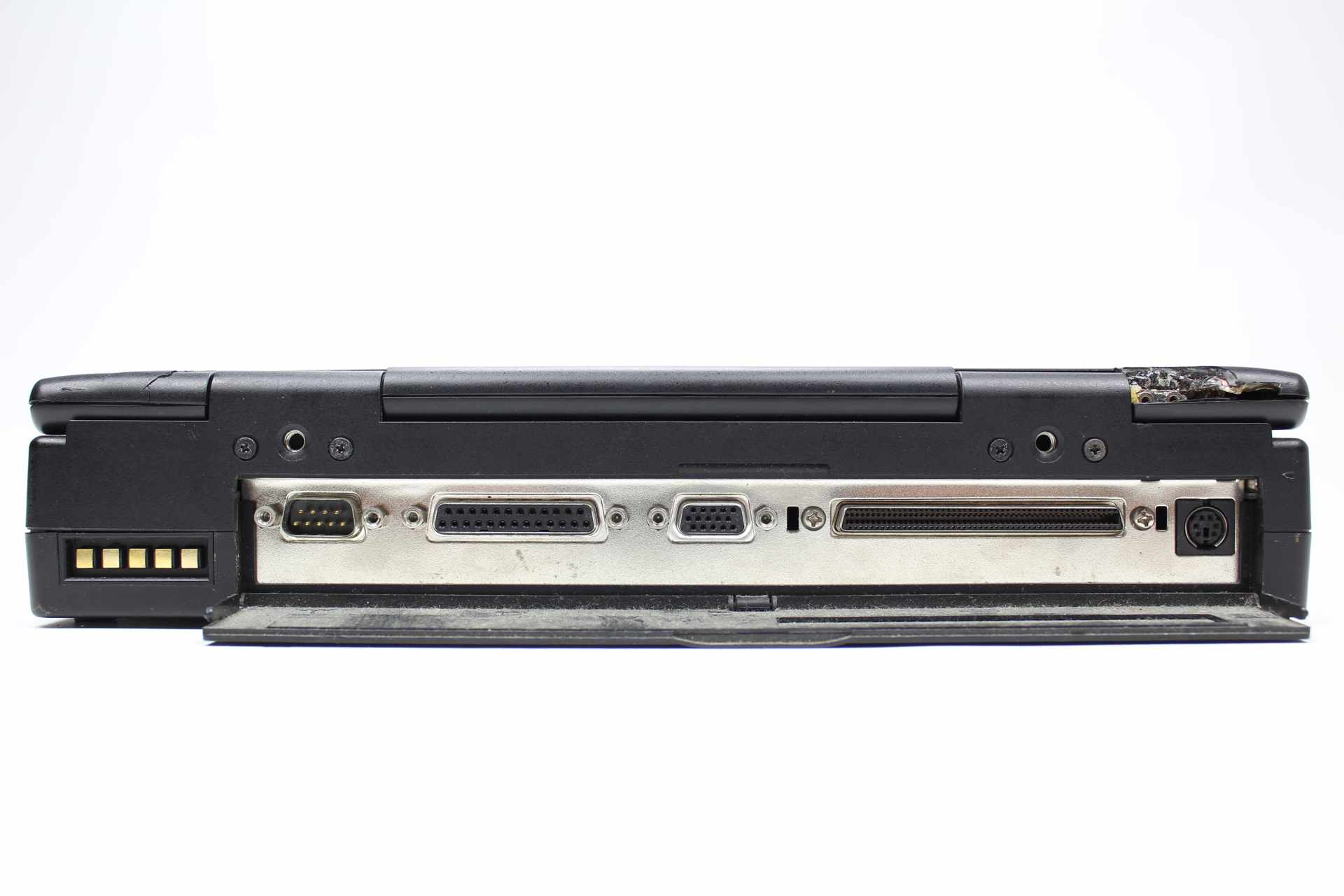

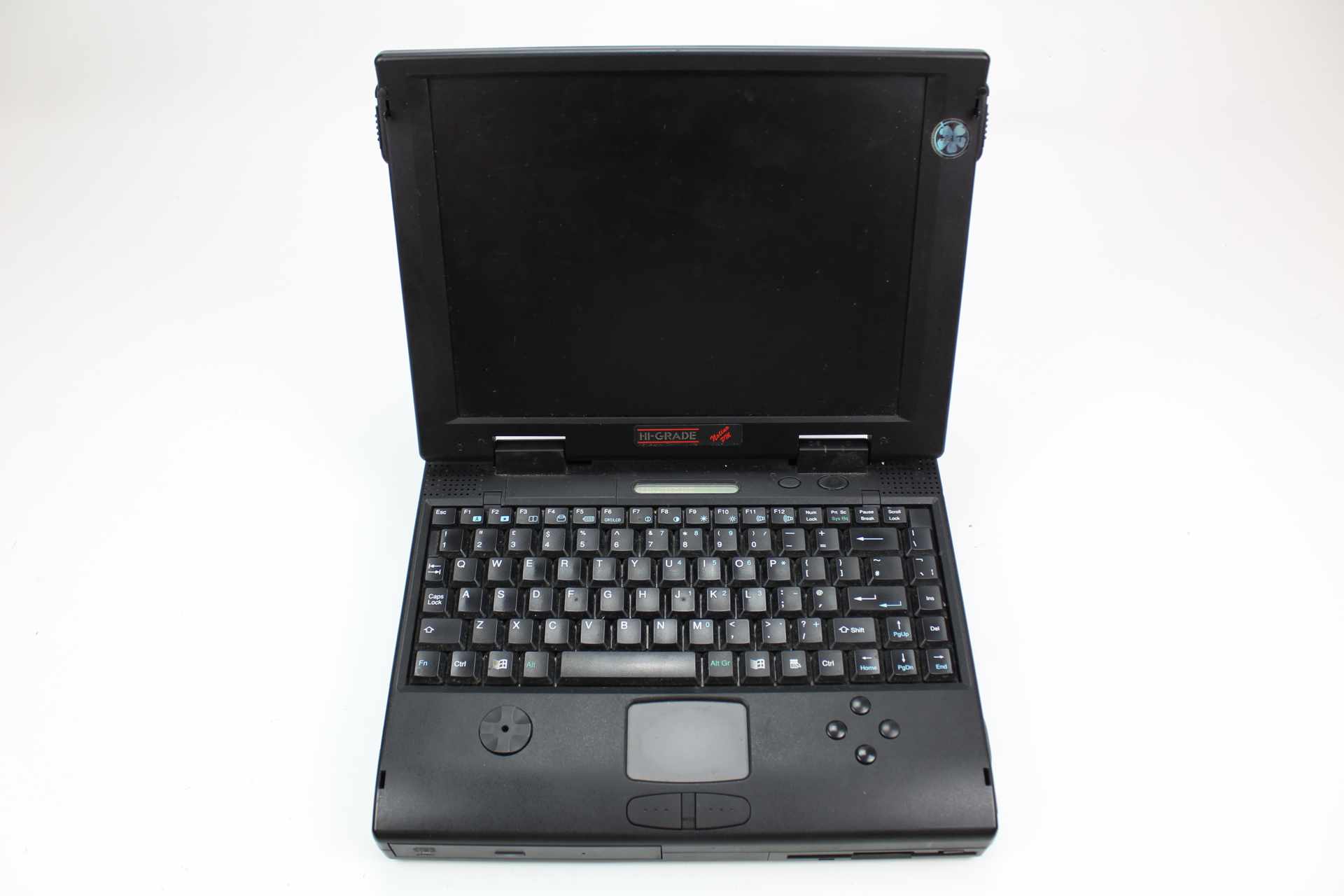

Photos of a Hi Grade-branded unit from Clous. Used with permission.
Page last updated (MM/DD/YYYY): 12/08/2024
Update Reason: images added
