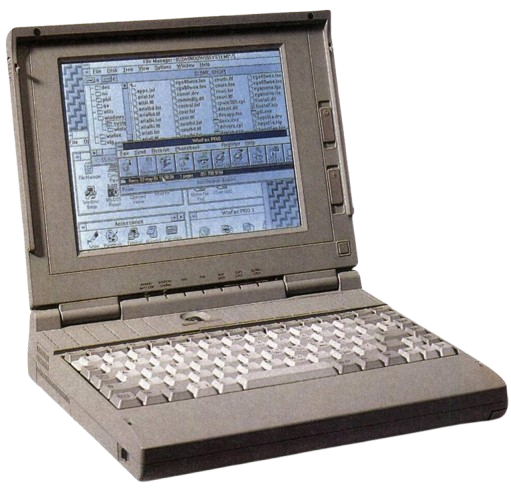

Jetta Jetbook B3 (486DX/33)
Known Model Numbers: None
The Jetbook B3 is a 486-based laptop that was released in 1993. I've so far only seen this laptop old magazine reviews and print-ads, which all called it the "Jetbook 486DX/33". Through process of elimination, this must be the Jetbook B3 referenced in Jetta's FCC records. I'd guess that the model number on the bottom of one of these is probably "486B3DX-33", or possibly just "486DX-33".
This laptop was sold under Jetta's own Jetbook brand (through a number of distributors), as well as being rebadged and sold by other companies. Below is a list of such laptops which are Jetbook B3s:
- Santron 486 Jetbook
- MDS Maxi Plus i486 Jetbook
Specifications
| Spec | Details |
|---|---|
| CPU | CPU Type: Socket 486 - Intel 486SX @25MHz - Intel 486DX @33MHz |
| Chipset | Unknown |
| RAM | Type: Unknown Standard: 4MB Maximum: 8MB |
| Hard Disk | 2.5" IDE Uses proprietary adapter?: Unknown Standard: 80, 120, or 200MB |
| Display Options | 9.5 or 10" Passive Matrix Grayscale @640x480 |
| Graphics Chipset | Cirrus Logic VRAM: Unknown |
| Audio | PC Speaker |
| Main Battery | NiCad |
| CMOS Battery | Unknown |
| Power Supply | Kycon KPPX-3P Connector |
| Disk Drives | 3.5" 1.44MB Floppy Drive |
| PC Cards | None |
| Networking | Modem (Optional) |
| Other I/O | - 1x Parallel - 1x Serial - 1x VGA Out - 1x PS/2 - 1x Dock Connector - 1x Scanner Port |
| BIOS | Unknown |
| Pointing Device | Trackball (Optional) |
Gallery
Print Ads

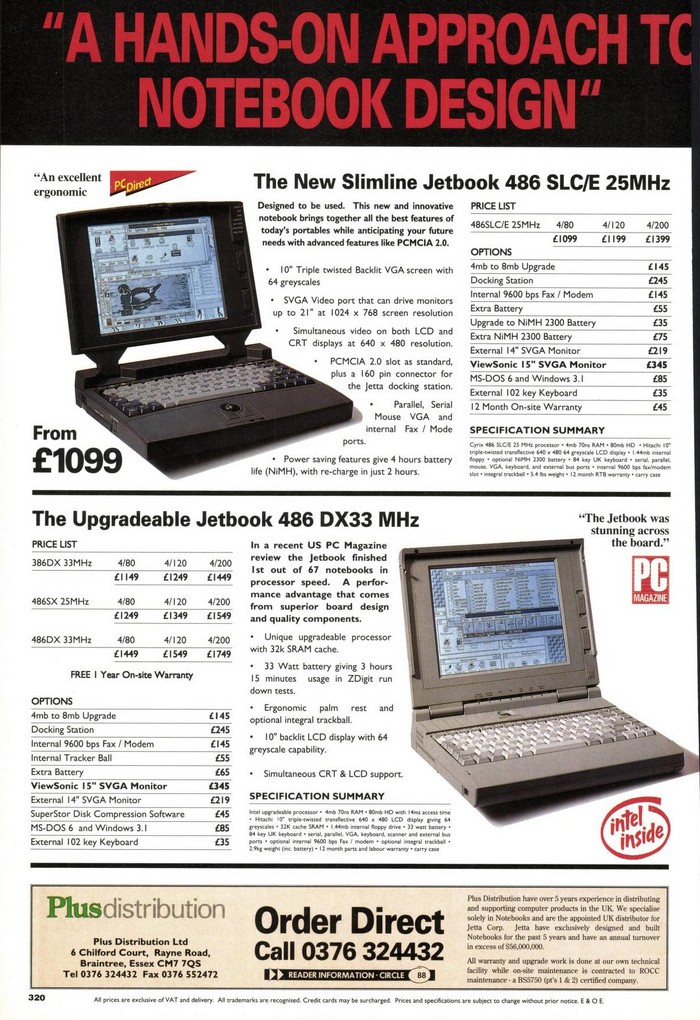

Plus Distribution (UK)

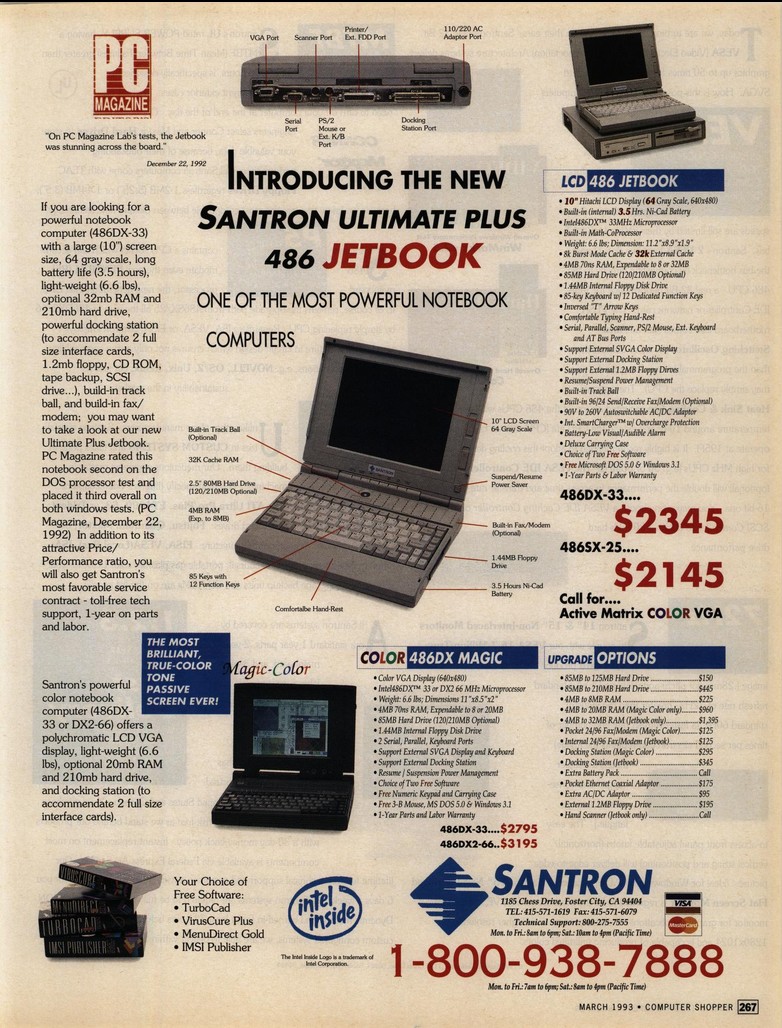

Santron

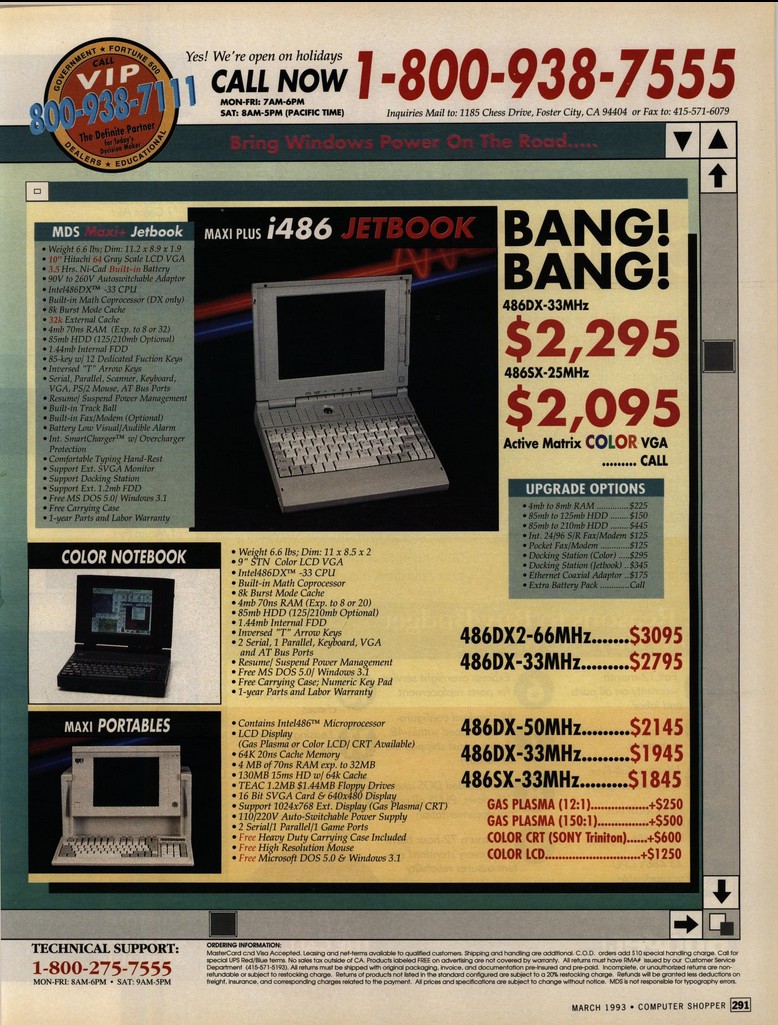

MDS
Page last updated (MM/DD/YYYY): 01/02/2025
Update Reason: page created
