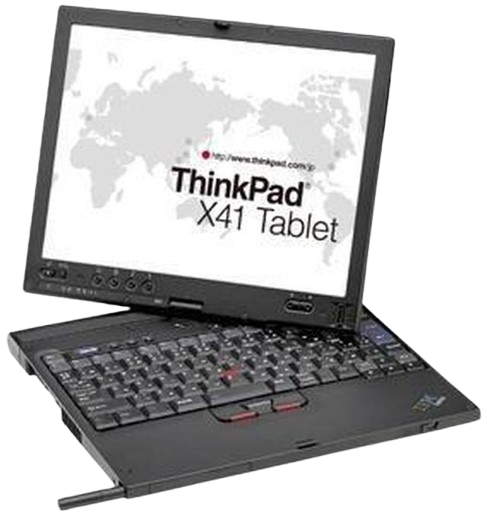

IBM ThinkPad X41 Tablet
The ThinkPad X41 Tablet is a 12" Pentium M LV-based convertible tablet that was released in July 2005.
Specifications
| Spec | Details |
|---|---|
| CPU | CPU Type: Unknown - Intel Pentium M ULV 753 @1.2GHz - Intel Pentium M LV 758 @1.5GHz - Intel Pentium M LV 778 @1.6GHz |
| Chipset | Intel 915GM Express |
| RAM | Type: PC2-4200 DDR2, 1 slot Standard: 256 or 512MB Soldered Maximum: 1.28 or 1.53GB |
| Storage | 2.5" IDE Requires Adapter: Unknown Standard: 40 or 60GB |
| Display Options | 12.1" FFS LCD @1024x768 w/ Pen Touch support |
| Graphics Chipset | Intel GMA 900 VRAM: Up to 128MB shared/SMA |
| Audio | AD1981B AC97 - Mono Speaker - Microphone |
| Main Battery | Lithium Ion (4 or 8 cell) |
| CMOS Battery | Proprietary Lithium |
| Power Supply | Barrel Jack |
| Media Drives | None, supports UltraBay Slim devices via UltraBase dock |
| PC Cards | 1x PCMCIA/CardBus Slot (Type II) |
| Networking | - 56k Modem - Gigabit Ethernet - WiFi (Optional) - Bluetooth (Optional) |
| Other I/O | - 3x USB 2.0 (1 powered) - 1x VGA Out - 1x SD Card Reader - 1x Dock Connector - 1x Mic In - 1x Line Out - Infrared |
| BIOS | IBM |
| Pointing Device | TrackPoint |
Resources
| Link | Details |
|---|---|
 |
IBM ThinkPad X41 Tablet Drivers |
 |
IBM ThinkPad X41 Tablet Hardware Maintenance Manual |
 |
IBM/Lenovo ThinkPad 2005-2013 Personal Systems Reference (PSREF) |
