IBM ThinkPad i Series 1124
IBM Type 2609
The ThinkPad i Series 1124 is a Pentium III-based subnotebook that was released in May 2000, exclusively in Japan. It is a rebadged version of the ThinkPad 240X and 240Z. Its has a silvery-gray case rather than the black color of the standard 240.
Specifications
| Spec | Details |
|---|---|
| CPU | CPU Type: Unknown - Intel Mobile Pentium III ULV "Coppermine" @500MHz - Intel Mobile Celeron "Coppermine" @450 or 500MHz |
| Chipset | Intel 440MX |
| RAM | Type: PC100 SDRAM, 1 slot Standard: 64MB Soldered Maximum: 192MB |
| Storage | 2.5" IDE Requires Adapter: Unknown Standard: 12 or 20GB |
| Display Options | - 10.4" TFT LCD @800x600 - 10.4" TFT LCD @1024x768 |
| Graphics Chipset | Either: - Silicon Motion LynxEM+ - Silicon Motion LynxEM4+ VRAM: 2MB (EM+) or 4MB (EM4+) |
| Audio | Unknown SB Pro Compatible - Mono Speaker - Microphone |
| Main Battery | Lithium Ion |
| CMOS Battery | Unknown |
| Power Supply | Barrel Jack |
| Media Drives | None, external only |
| PC Cards | 1x PCMCIA/CardBus Slot (Type II) |
| Networking | 56k Modem |
| Other I/O | - 1x Parallel - 1x Serial - 1x VGA Out - 1x PS/2 - 1x USB 1.x - 1x External FDD Connector - 1x Mic In - 1x Line In - 1x Line Out - Infrared |
| BIOS | IBM |
| Pointing Device | TrackPoint |
Gallery

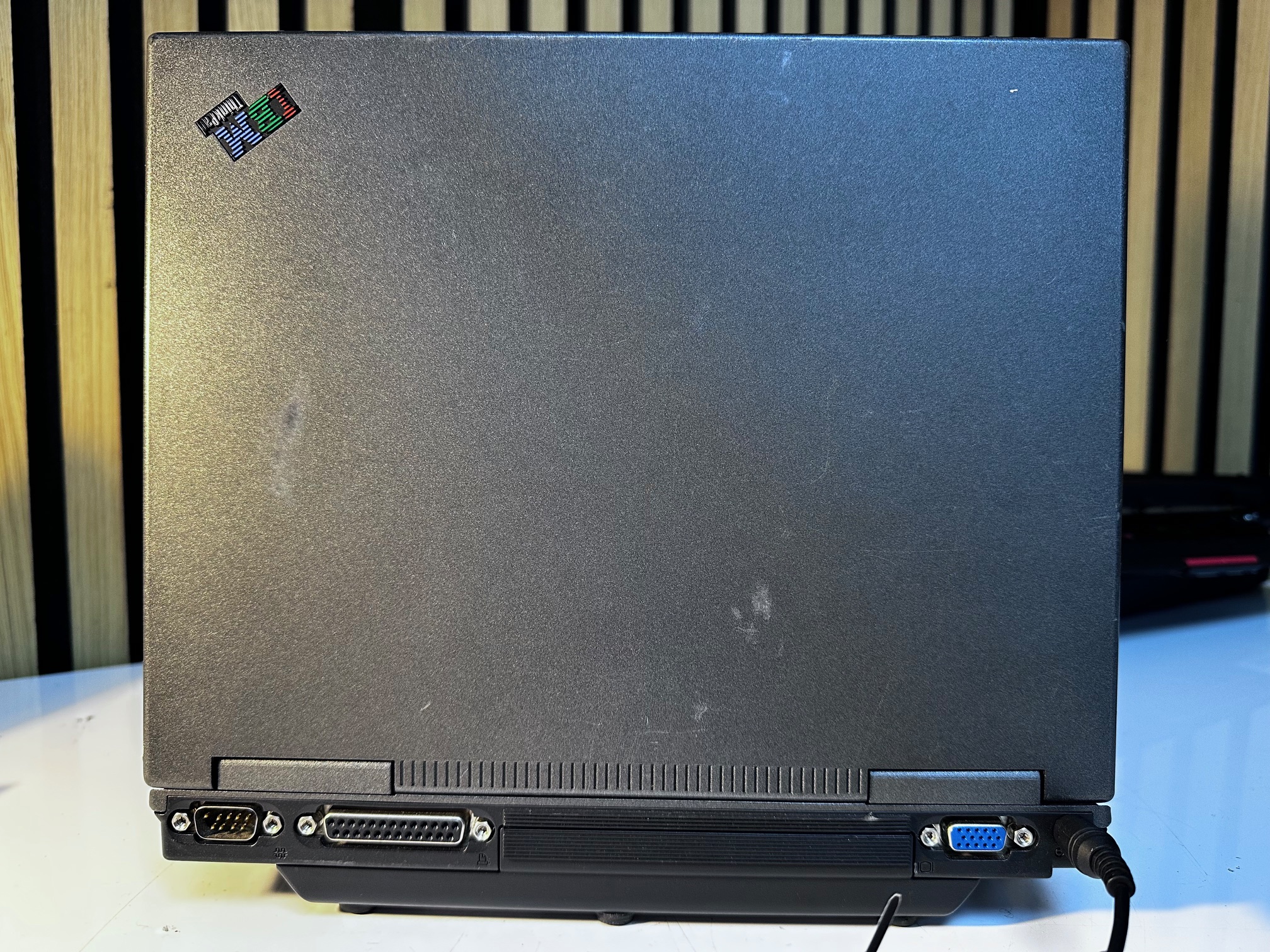

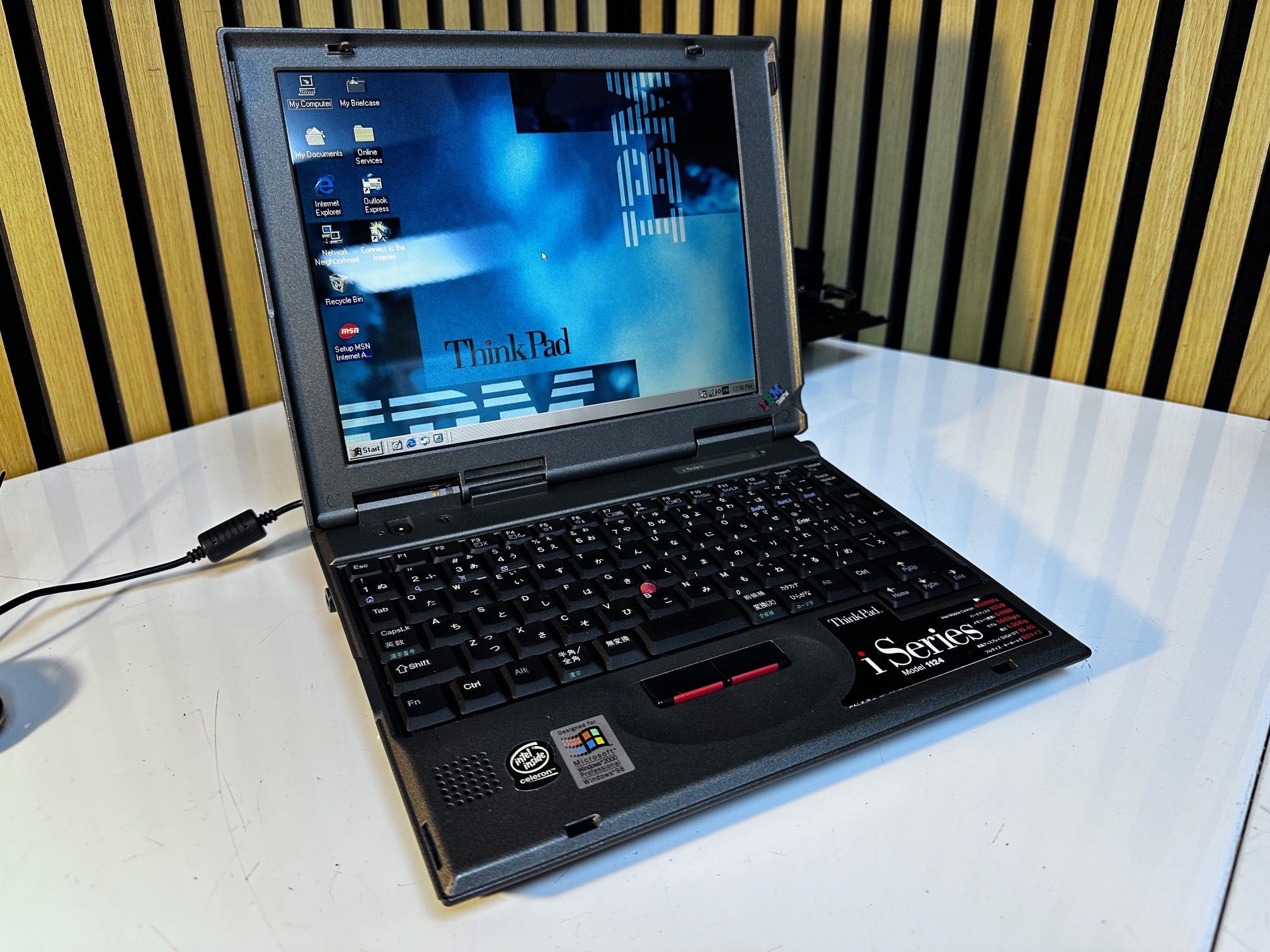

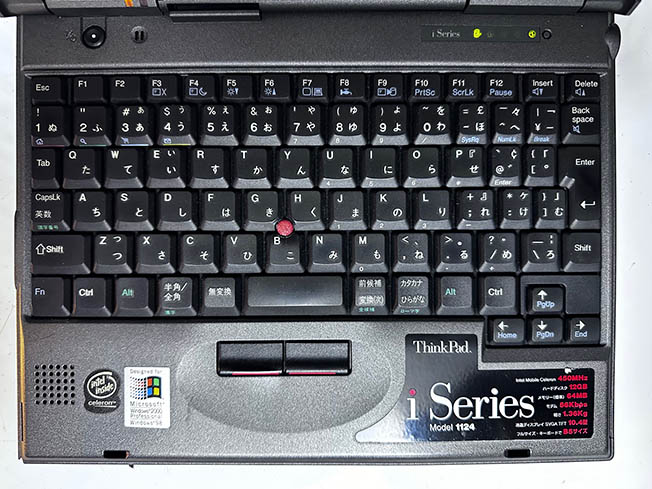

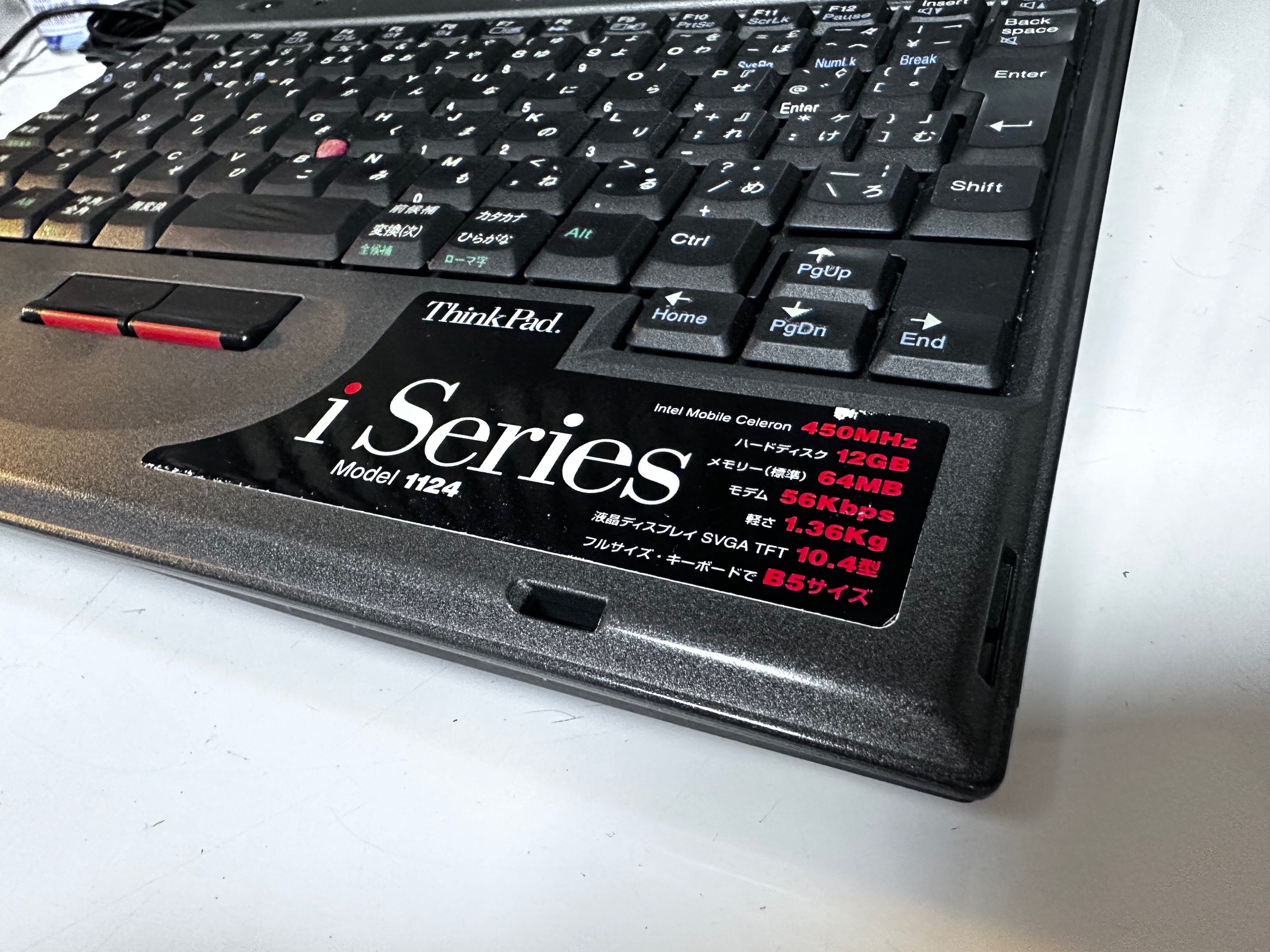

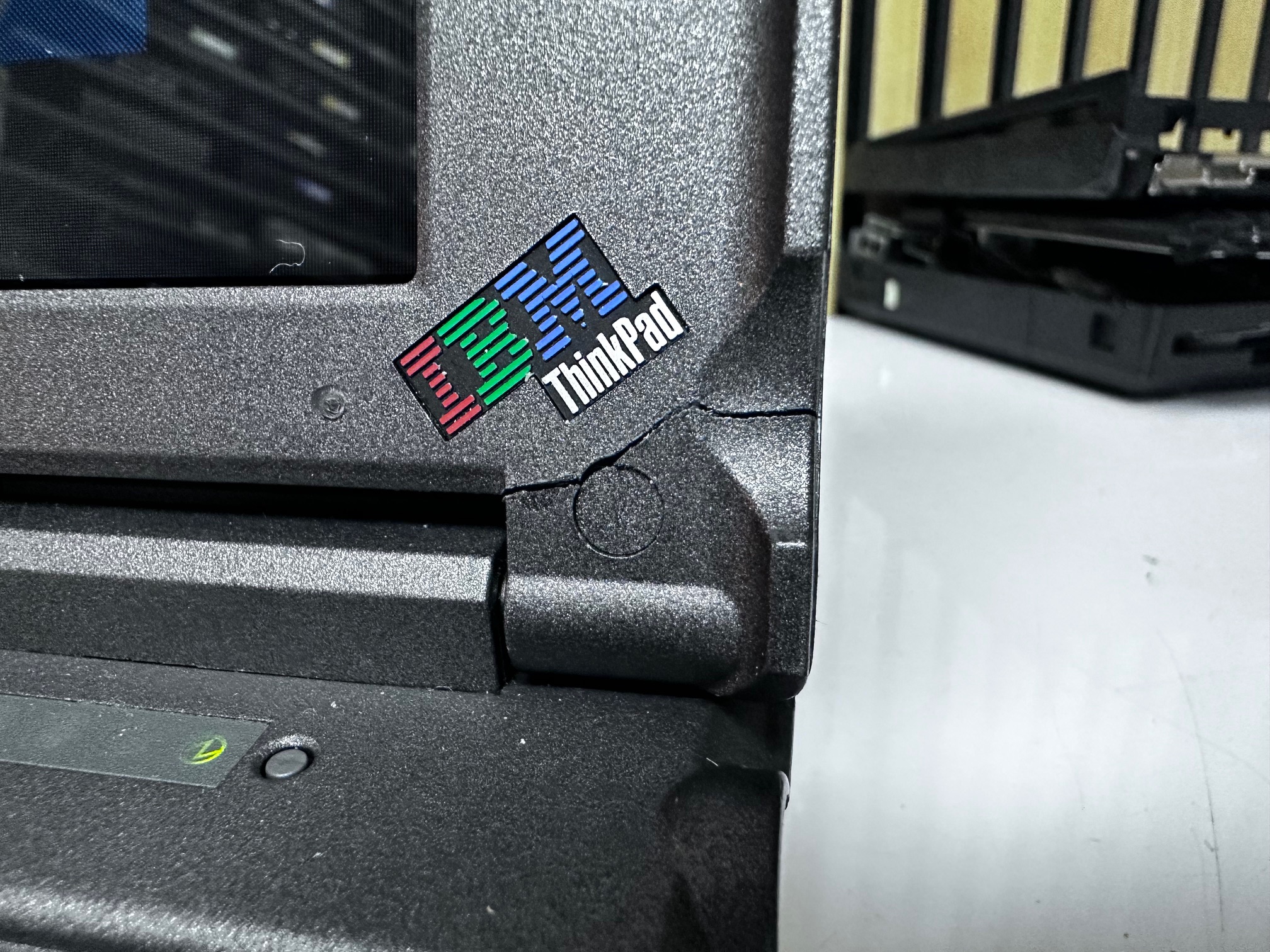

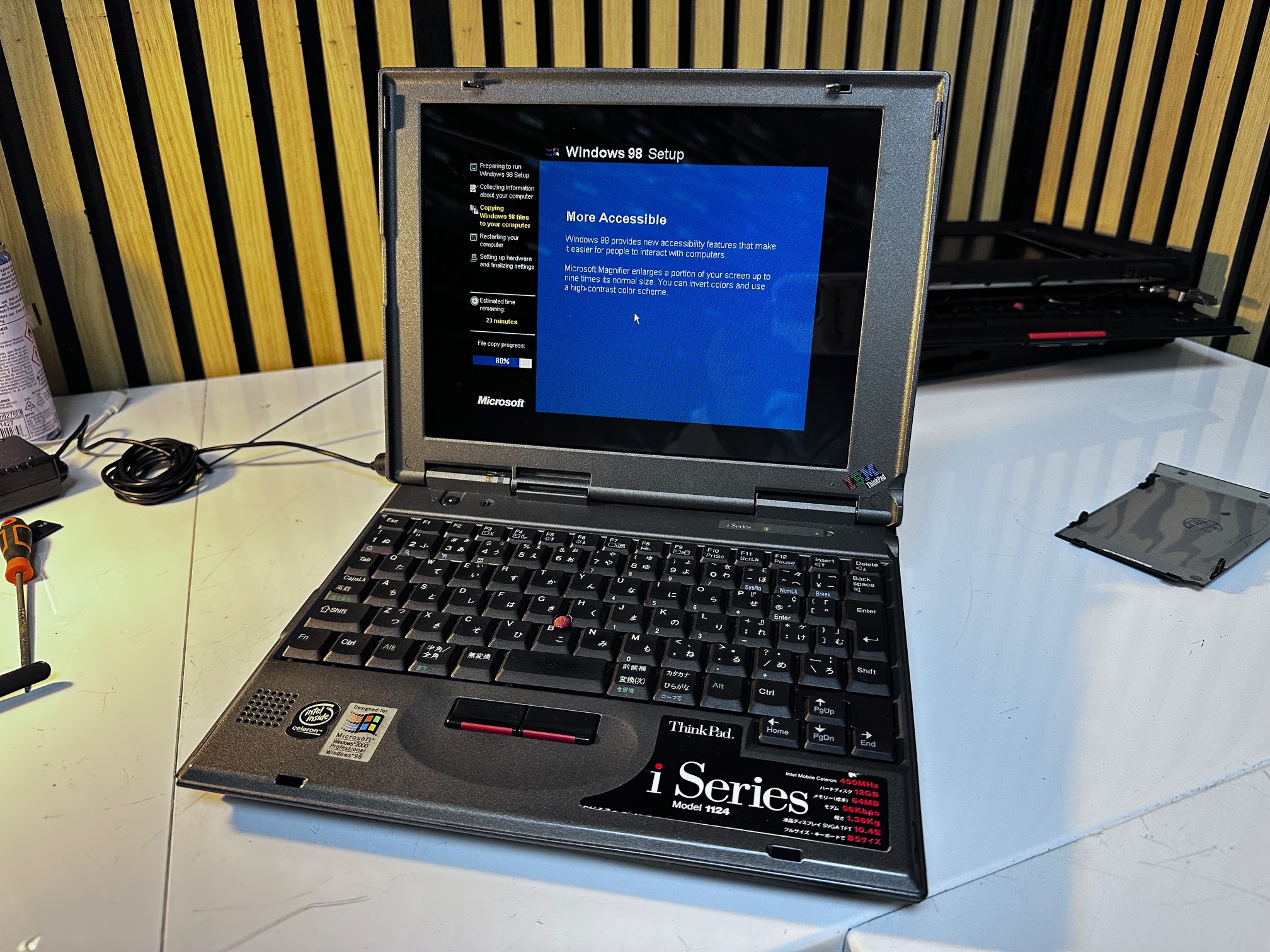

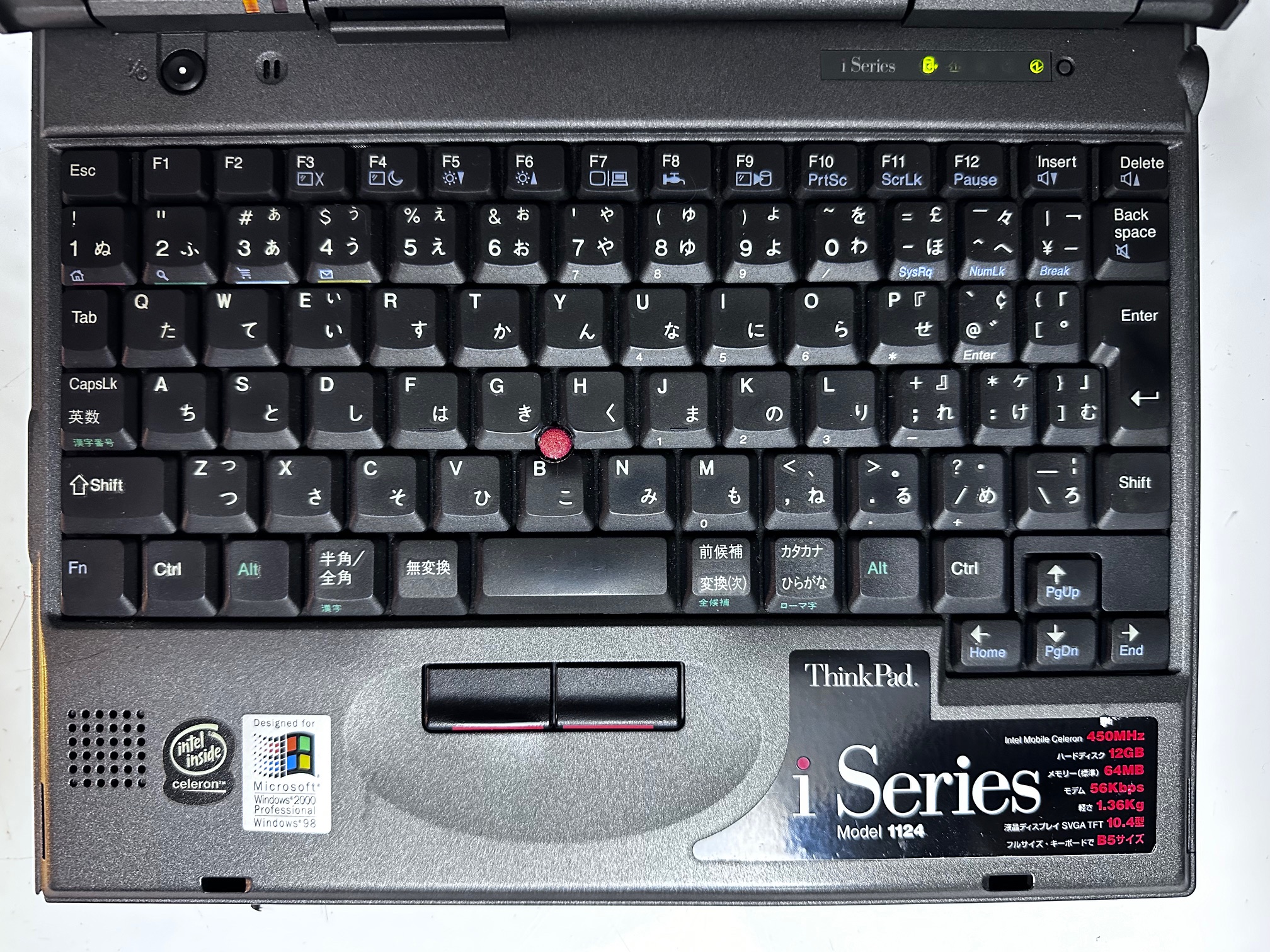

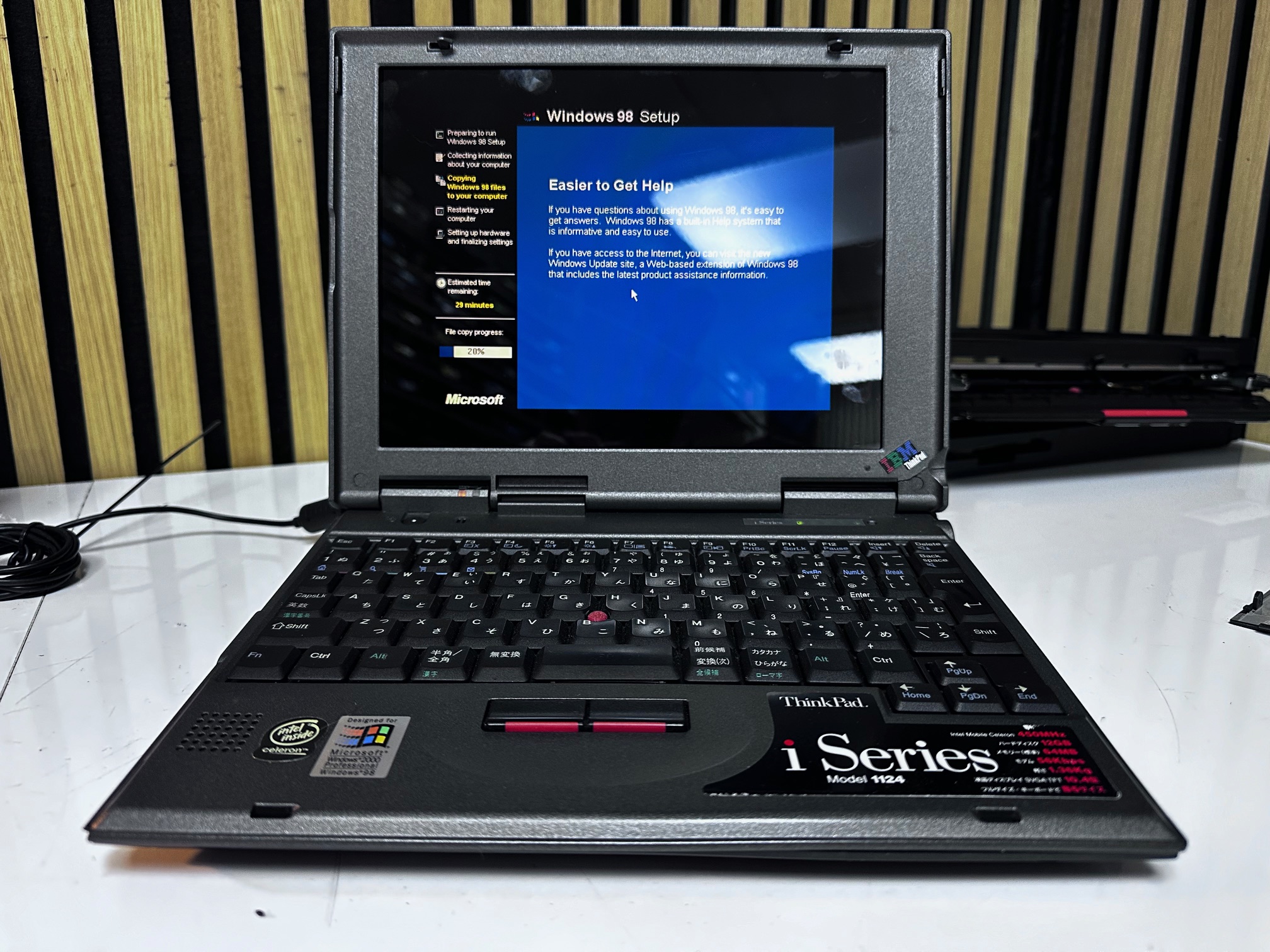

Photos from solidpro. I don't think the glossy display was a factory option. Solidpro replaced the panel on this unit with said panel.
