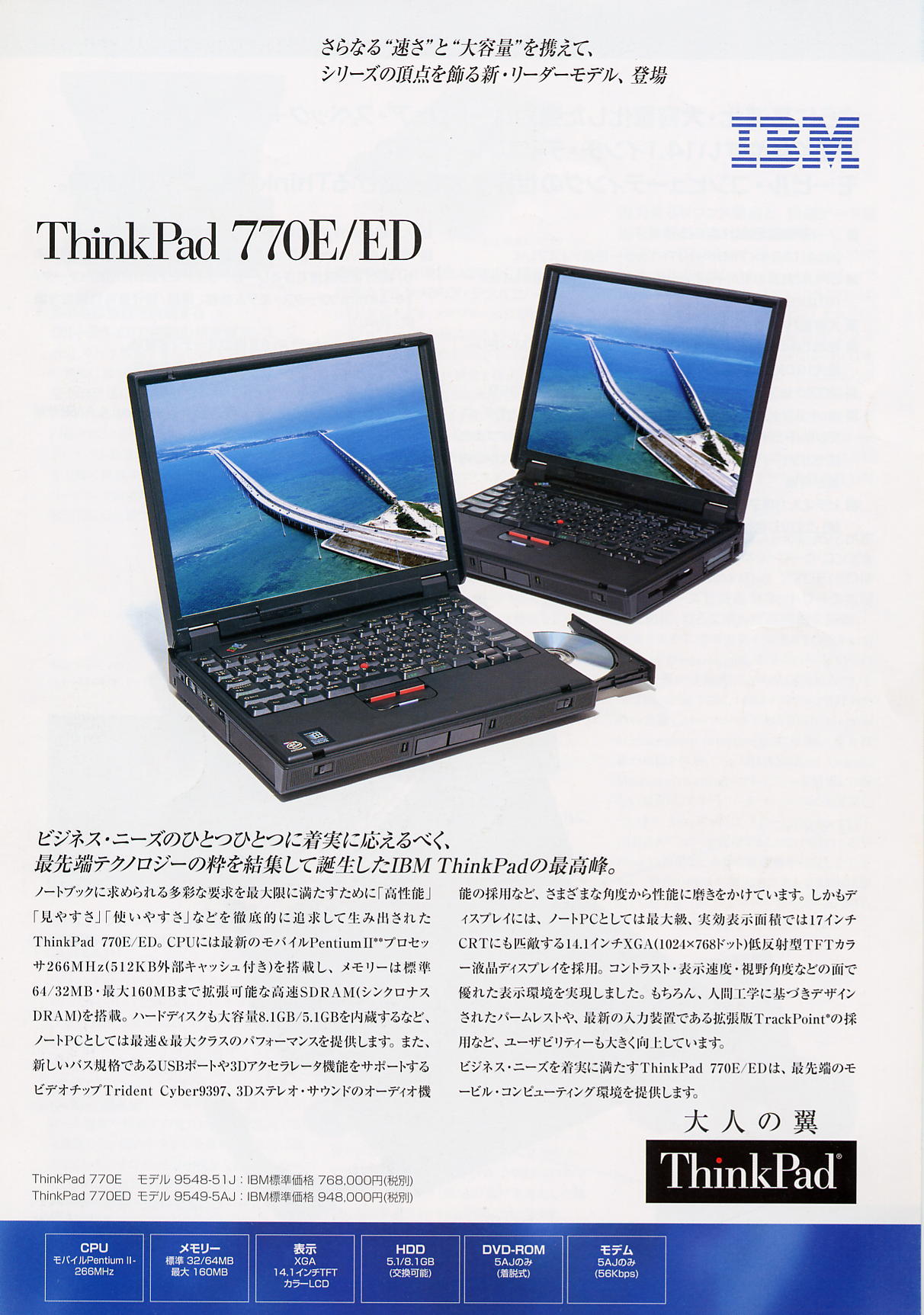

IBM ThinkPad 770 Series

The ThinkPad 770 Series laptops were desktop replacements sold from October 1997 through December 1999. They were the last ThinkPads in the 700 Series.

Specifications

Spec	ThinkPad 770	ThinkPad 770E	ThinkPad 770ED	ThinkPad 770X	ThinkPad 770Z
Release Date	October 1997	April 1998		October 1998	February 1999
CPU	CPU Type: Unknown Intel Pentium MMX "Tillamook" @200 or 233MHz	CPU Type: Unknown Intel Mobile Pentium II @266MHz		CPU Type: Unknown Intel Mobile Pentium II @300MHz	CPU Type: Unknown Intel Mobile Pentium II @366MHz
Chipset	Unknown
RAM	Type: EDO or SDRAM, 2x 144-pin Slots Standard: 32MB Maximum: 256MB	Type: SDRAM, 2 slots Standard: 32MB Maximum: 288MB	Type: SDRAM, 2 slots Standard: 64MB Maximum: 288MB	Type: SDRAM, 2 slots Standard: 64 or 128MB Maximum: 288MB	Type: SDRAM, 2 slots Standard: 128MB Maximum: 320MB
Storage	2.5" IDE Requires Adapter: Yes Standard: 3.2, 4.0, or 5.1GB	2.5" IDE Requires Adapter: Yes Standard: 5.1GB	2.5" IDE Requires Adapter: Yes Standard: 8.1GB		2.5" IDE Requires Adapter: Yes Standard: 14.1GB
Display Options	- 13.3" Active Matrix LCD @1024x768 - 14.1" Active Matrix LCD @1024x768	14.1" Active Matrix LCD @1024x768		- 13.7" Active Matrix LCD @1280x1024 - 14.1" Active Matrix LCD @1024x768	- 14.1" TFT LCD @1024x768 - 13.7" TFT LCD @1280x1024
Graphics Chipset	Trident Cyber9397 VRAM: 2MB	Trident Cyber9397E VRAM: 4MB		Trident Cyber9397DVD VRAM: 4MB (XGA) or 8MB (SXGA)	Trident Cyber9397DVD VRAM: 4MB (XGA models) or 8MB (SXGA models)
Audio	Crystal CS4237B - Stereo Speakers - Microphone			Crystal CS4239 - Stereo Speakers - Microphone	Crystal CS4239
Main Battery	Lithium Ion
CMOS Battery	- Lithium CMOS Battery - 3-cell Varta NiMH Reserve Battery
Power Supply	Barrel Jack
Media Drives	Ultrabay II - Optional DVD-ROM (standard on 14.1" models)	Ultrabay II - Optional DVD-ROM	Ultrabay II - DVD-ROM Standard	Ultrabay II - Optional DVD-ROM
PC Cards	2x PCMCIA/CardBus Slots - ZoomVideo Support
Networking	Modem (Optional)			Modem
Other I/O	- 1x Parallel - 1x Serial - 1x VGA Out - 1x PS/2 - 1x USB 1.x - 1x Dock Connector - 1x External FDD Connector - 1x Line In - 1x Line Out - Infrared				- 1x Parallel - 1x Serial - 1x VGA Out - 1x PS/2 - 1x Dock Connector - 1x External FDD Port - 1x USB 1.x - 1x Line In - 1x Line Out - Infrared
BIOS	IBM BIOS w/ Easy Setup				IBM with Easy Setup
Pointing Device	TrackPoint

Resources

Service Manual	Withdrawn Models PSREF

Common Faults & Maintenance

The ThinkPad 770s are built like tanks and don't typically suffer from hinge failures and those sorts of issues.

Hibernation Battery Leaks

In addition to the Lithium CMOS battery, the 770 Series ThinkPads have a VARTA battery under the keyboard that's used to allow battery sleep-swapping. This battery nearly always leaks with age and MUST be removed from any ThinkPad 770. It is center-left, under the keyboard.

Rubber Coating and Palmrest Paint

The outside of the 770 is coated in soft touch rubber. This coating often goes sticky with age and may need to be stripped off. The palmrest is also painted metal, and the paint is prone to wearing and chipping off.
