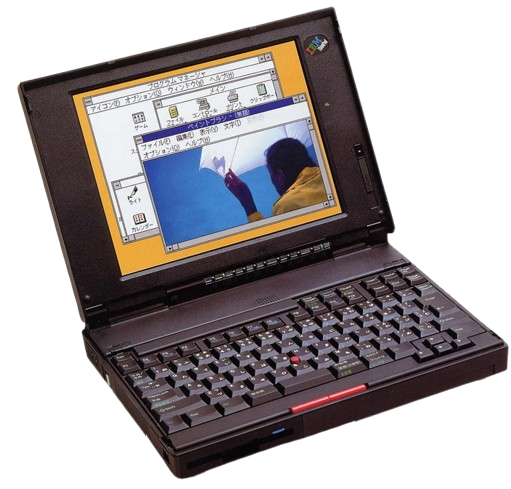

IBM ThinkPad 370C
IBM Type Unknown
The ThinkPad 370C is a 486-based mid-range laptop that was released in May 1995. It was positioned between the 360 and 755 series, and shared mostly the same physical design as them. I don't believe the 370C was sold in the US, but it wasn't exclusive to Japan either. It was definitely sold in Europe.
Specifications
| Spec | Details |
|---|---|
| CPU | CPU Type: Unknown Intel 486DX4 @75MHz |
| Chipset | Unknown |
| RAM | Type: IC DRAM or 72-pin Standard: 4MB Maximum: 36MB |
| Hard Disk | 2.5" IDE Uses proprietary adapter?: Yes Standard: 340 or 540MB |
| Display Options | 10.4" Active Matrix Color LCD @640x480 |
| Graphics Chipset | Western Digital WD90C24A VRAM: 1MB |
| Audio | PC Speaker |
| Main Battery | NiMH |
| CMOS Battery | Unknown |
| Power Supply | Unknown |
| Disk Drives | UltraBay supporting the following: - 3.5" 1.44MB Floppy Drive - 3.5" 2.88MB Floppy Drive - Cellular Modem - TV Tuner |
| PC Cards | 2x PCMCIA Slots (2x Type II/1x Type III) |
| Networking | None |
| Other I/O | - 1x Parallel - 1x Serial - 1x VGA Out - 1x PS/2 - 1x Dock Connector |
| BIOS | IBM BIOS with Easy Setup |
| Pointing Device | TrackPoint |
Resources
 Service Manual |
Withdrawn Models PSREF |
|---|
Page last updated (MM/DD/YYYY): 12/18/2024
Update Reason: page created
