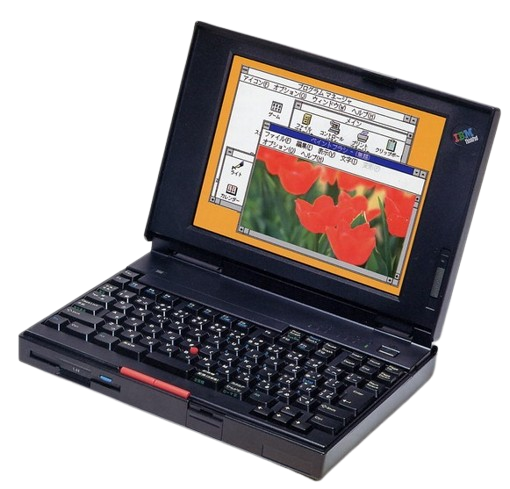

IBM ThinkPad 345CS and 345C
IBM Type 2610
The ThinkPad 345CS and 345C are 486-based subnotebooks that were released in September 1995. These models were not sold in the US, but were sold in Europe and other places outside of Japan.
Specifications
| Spec | ThinkPad 345CS | ThinkPad 345C |
|---|---|---|
| Release Date | September 1995 | |
| CPU | CPU Type: Unknown Intel 486DX4 @75MHz | |
| Chipset | Unknown | |
| RAM | Type: IC DRAM Standard: 4MB Maximum: 20MB | |
| Storage | 2.5" IDE Requires Adapter: No Standard: 360 or 540MB | |
| Display Options | 10.4" Passive Matrix Color LCD @640x480 | 10.4" Active Matrix Color LCD @640x480 |
| Graphics Chipset | Western Digital WD90C24A VRAM: 1MB | |
| Audio | PC Speaker | |
| Main Battery | NiMH | |
| CMOS Battery | NiCad | |
| Power Supply | Barrel Jack | |
| Media Drives | 3.5" 1.44MB Floppy Drive | |
| PC Cards | 1x PCMCIA Slot (Type III) | |
| Networking | None | |
| Other I/O | - 1x Parallel - 1x Serial - 1x VGA Out - 1x PS/2 | |
| BIOS | IBM BIOS with Easy Setup | |
| Pointing Device | TrackPoint | |
Resources
| Link | Details |
|---|---|
 |
IBM ThinkPad 345 Series Drivers |
 |
IBM ThinkPad 340 Hardware Maintenance Manual |
 |
IBM ThinkPad 345C/345CS Product Brochure (Japanese) |
Linked service manual is for the 340 Series, but most should apply to the 345 Series as well. There was no dedicated 345 service manual that I can find.
