IBM ThinkPad 330C/330CS
IBM Type 5523

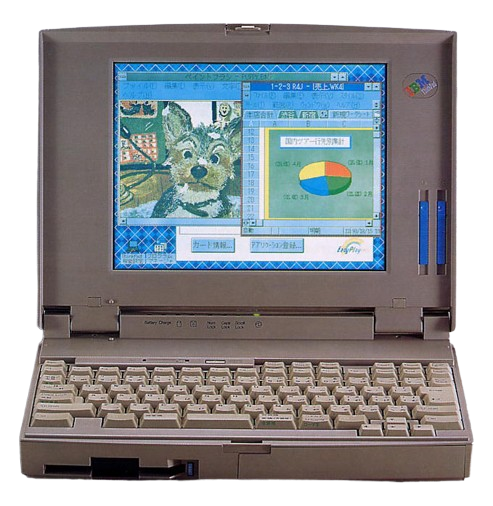

The ThinkPad 330C and 330CS were a pair of Japan-exclusive ThinkPads that were probably released in 1993 or 1994. They are notable for being a gray color, rather than the usual ThinkPad black. The main difference between the 330C and 330CS is that the C has an Active Matrix display, and the 330CS has a Passive Matrix one.
These models have no TrackPoint.
Specifications
| Spec | ThinkPad 330CS | ThinkPad 330C |
|---|---|---|
| Release Date | 1993 | |
| CPU | CPU Type: Soldered QFP IBM 486SLC2 @50MHz | |
| Chipset | Unknown | |
| RAM | Type: Non upgradeable Standard: 4 or 8MB Maximum: 8MB | |

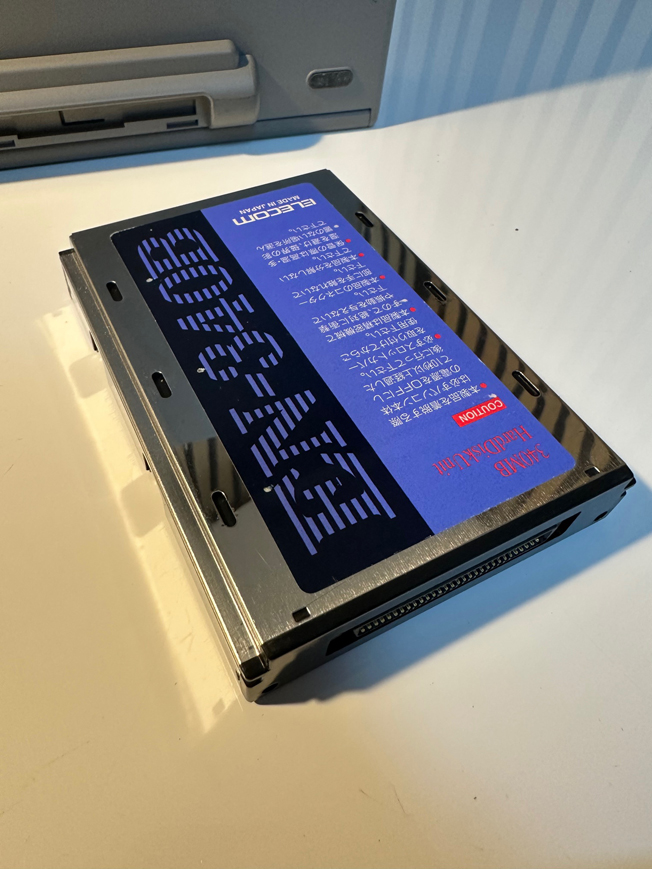

| Storage | 2.5" IDE Requires Adapter: Yes Standard: 80 or 170MB | |
| Display Options | 9.5" Passive Matrix Color @640x480 | Active Matrix Color @640x480 |
| Graphics Chipset | Western Digital WD90C26 VRAM: 512KB | |
| Audio | PC Speaker | |
| Main Battery | NiCad (optional, goes in place of PSU, very rare) | |
| CMOS Battery | Unknown | |

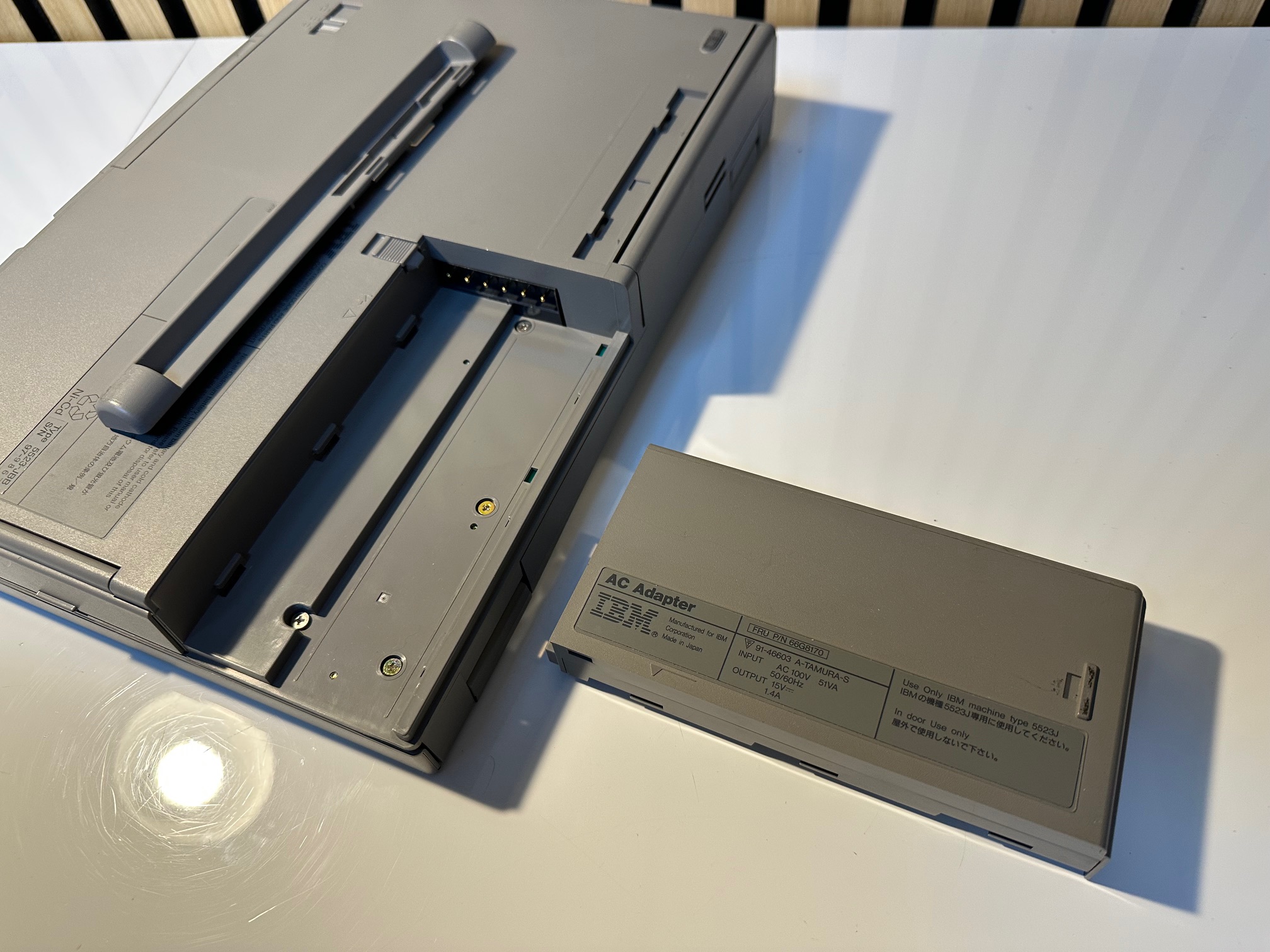

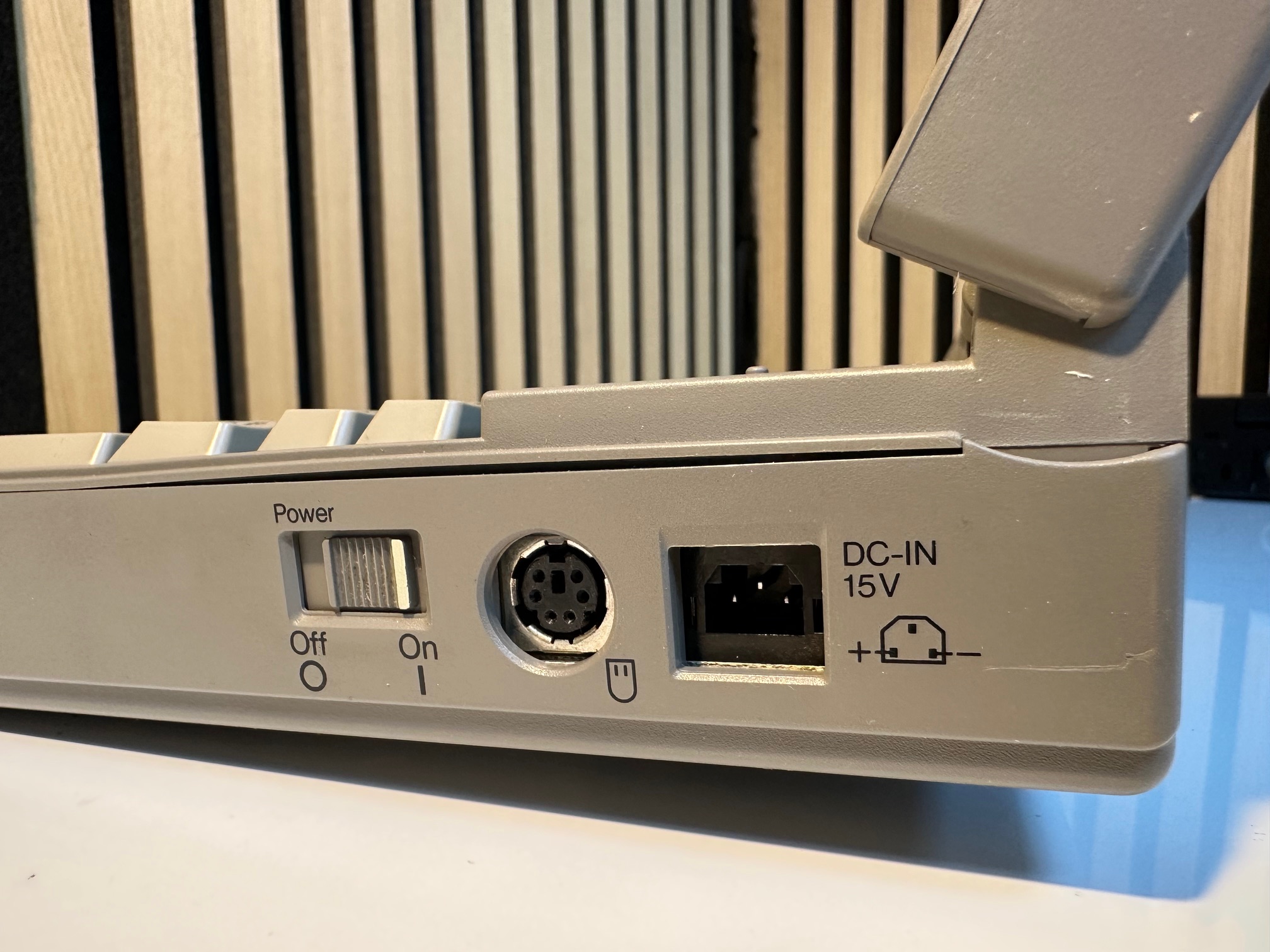

| Power Supply | Internal PSU or External proprietary 3-pin | |
| Media Drives | 3.5" 1.44MB Floppy Drive | |

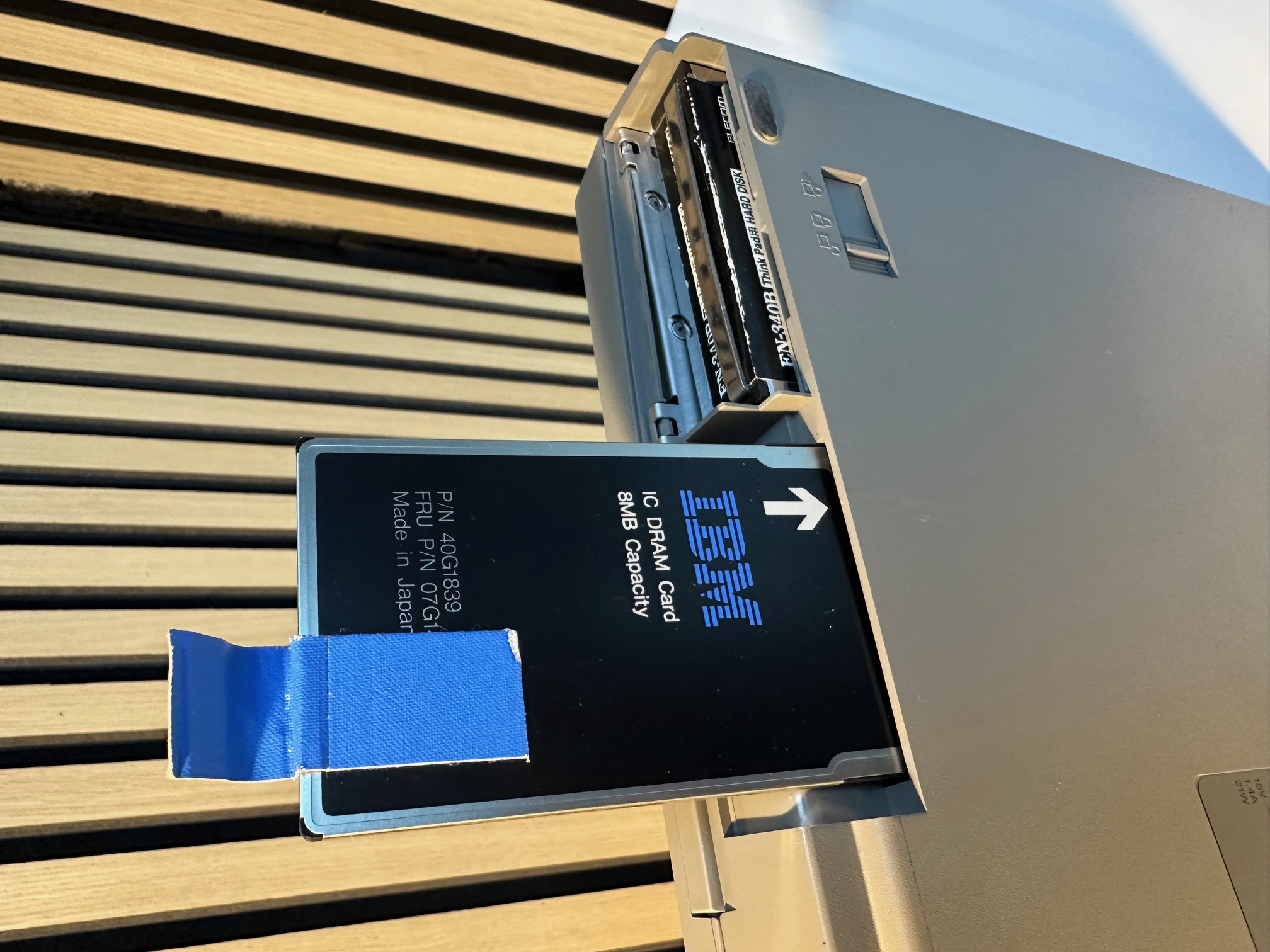

| PC Cards | 1x PCMCIA Slot | |
| Networking | None | |

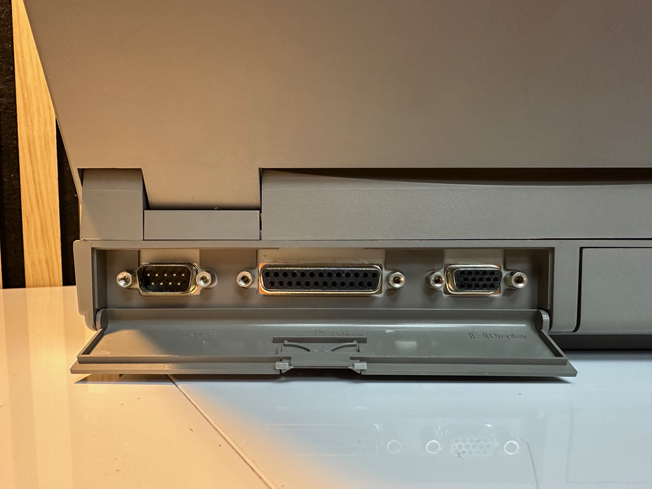

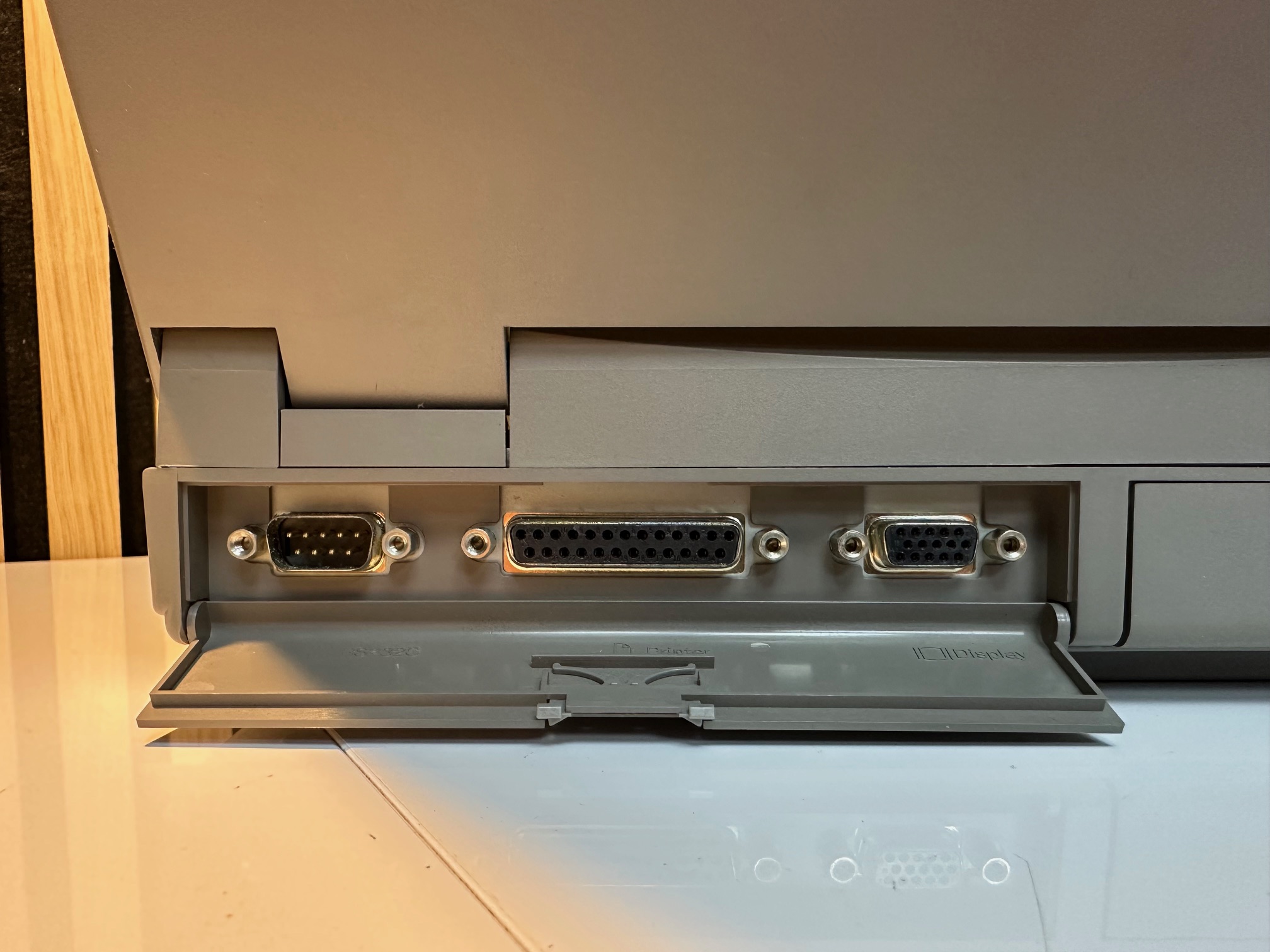

| Other I/O | - 1x Parallel - 1x Serial - 1x VGA Out - 1x PS/2 | |
| BIOS | IBM BIOS w/ Easy Setup | |
| Pointing Device | None | |
Common Faults & Maintenance

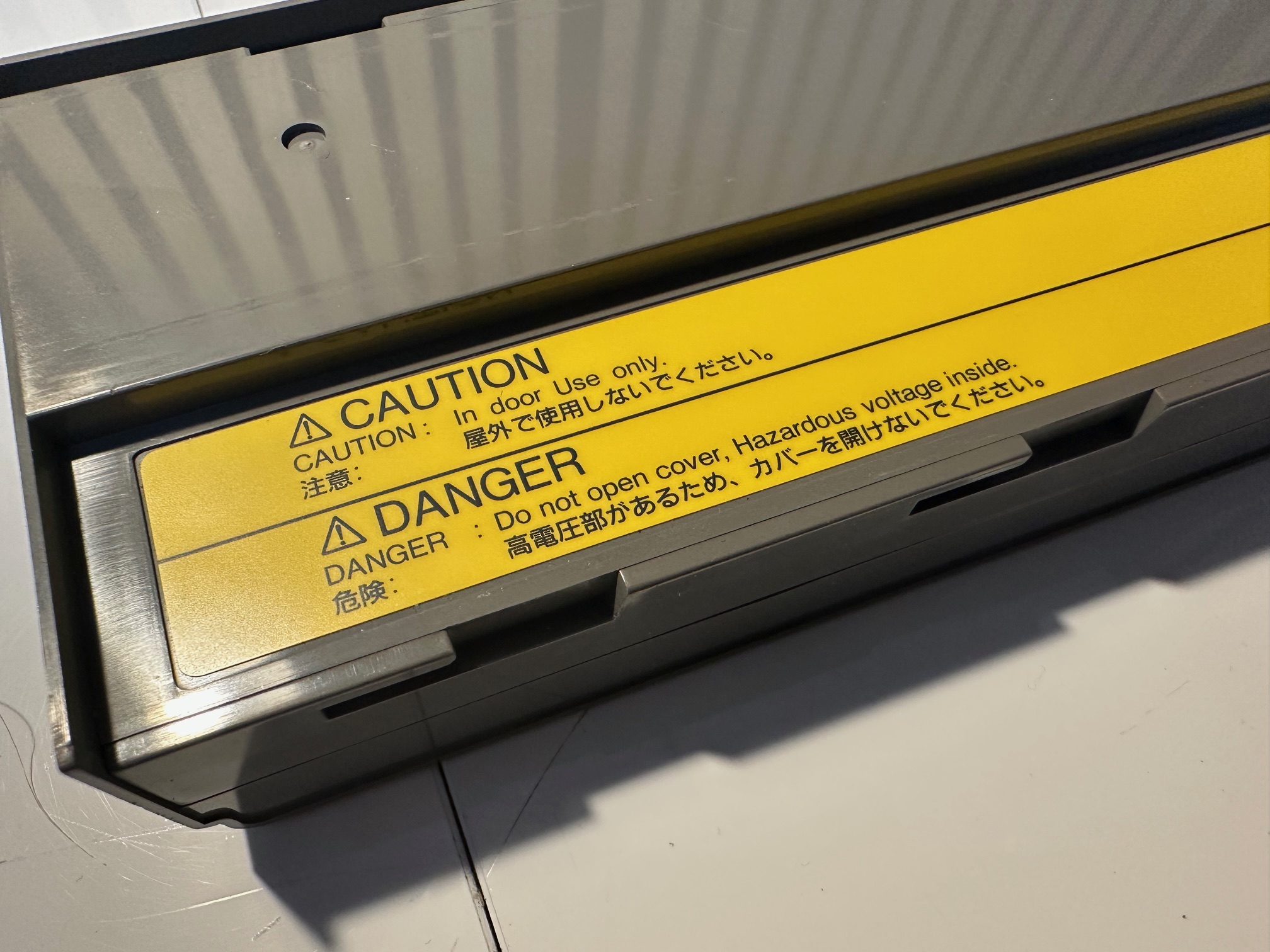

The internal PSU module for the 330C/CS suffers from leaking electrolytic capacitors and must be recapped for reliable operation. Beyond this, I don't know what else fails in these.
Gallery

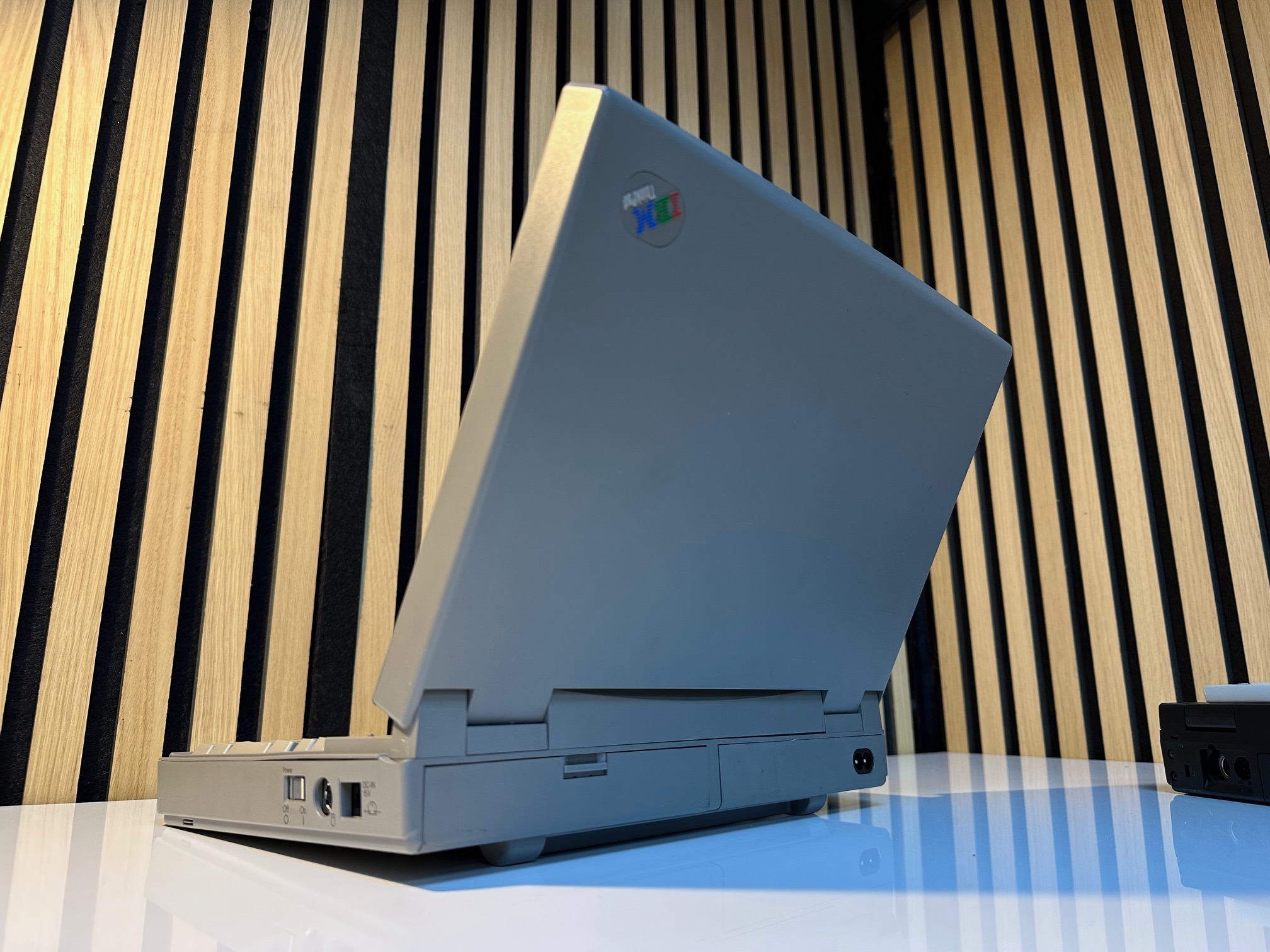

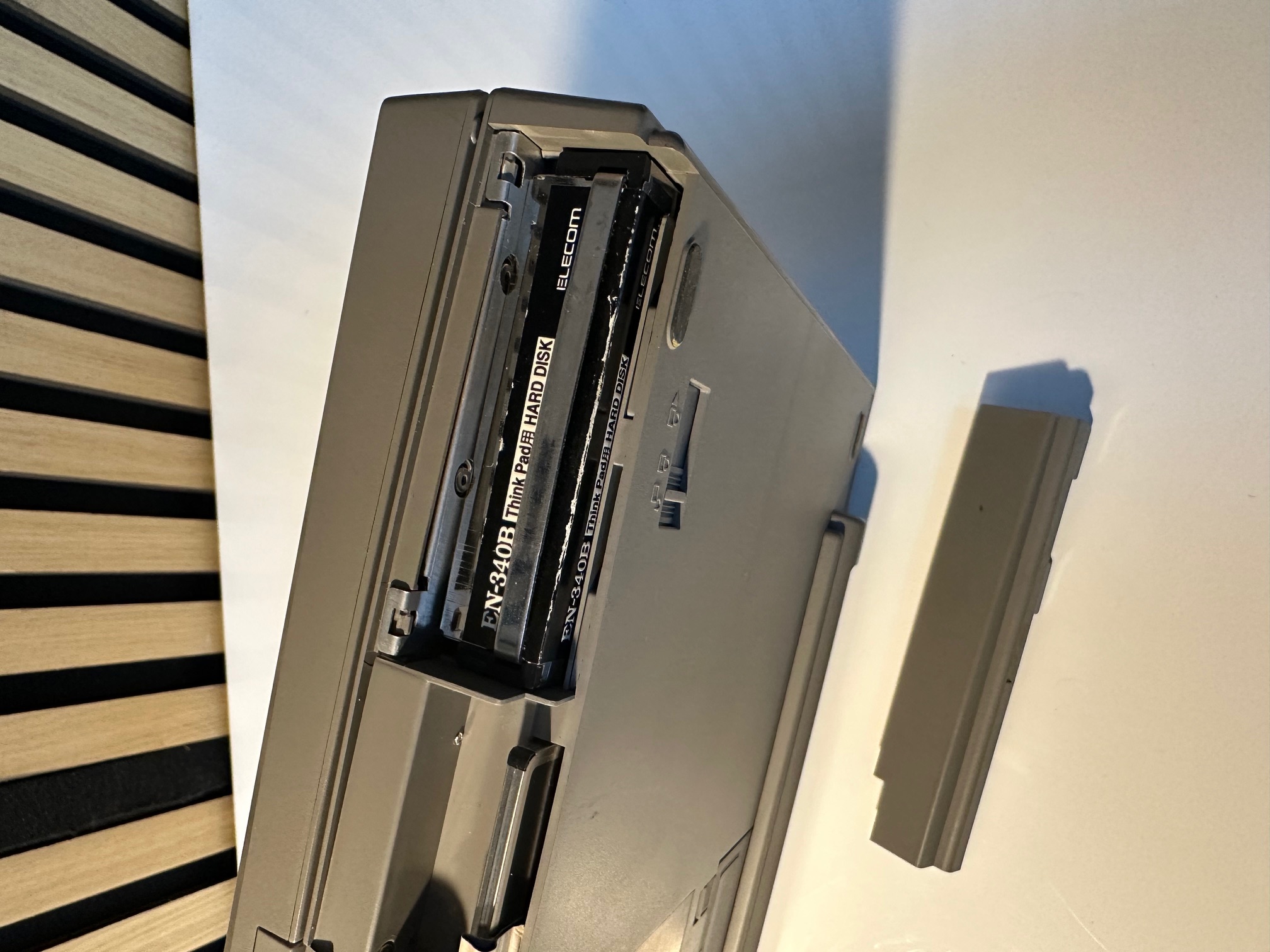

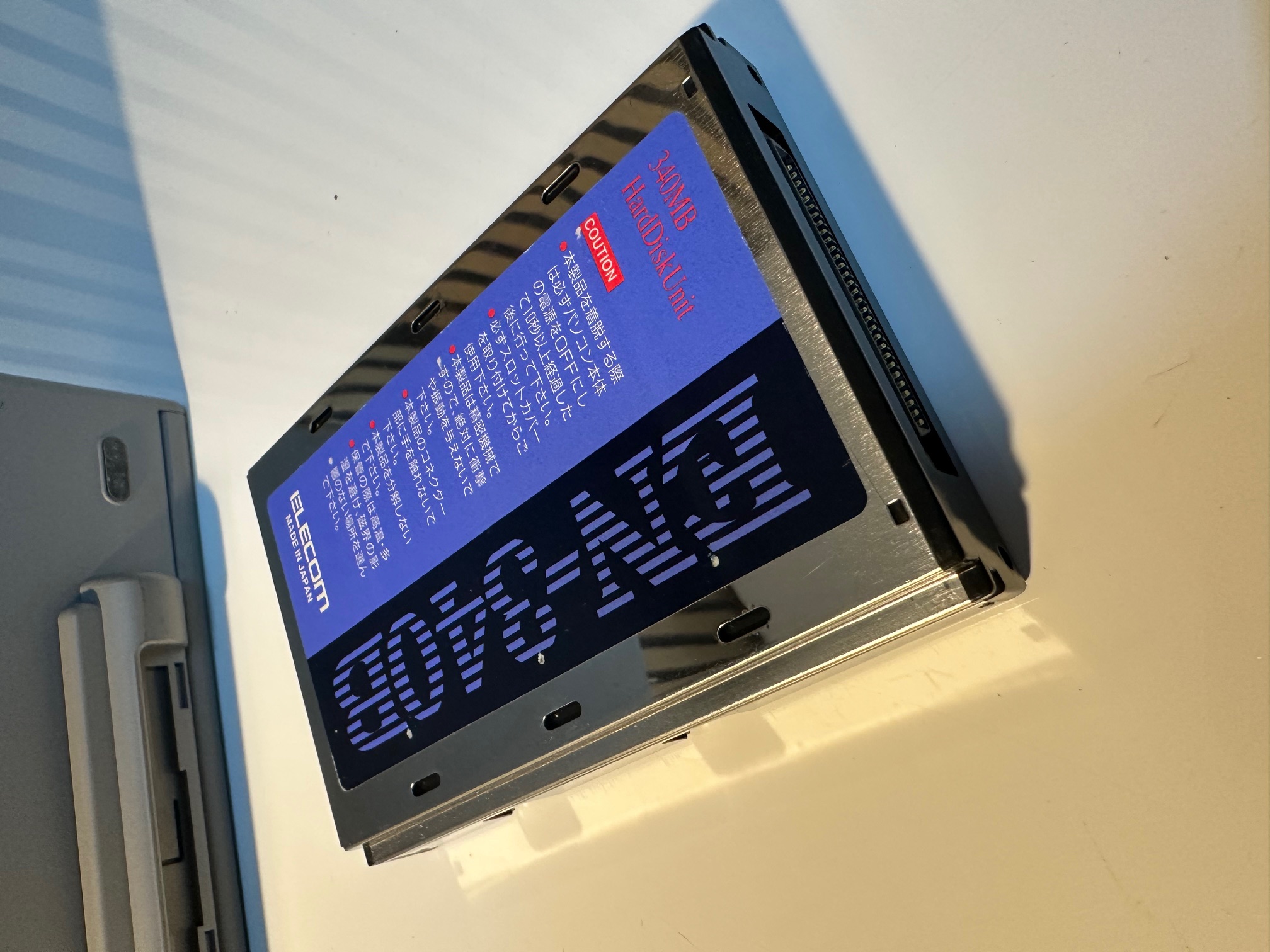

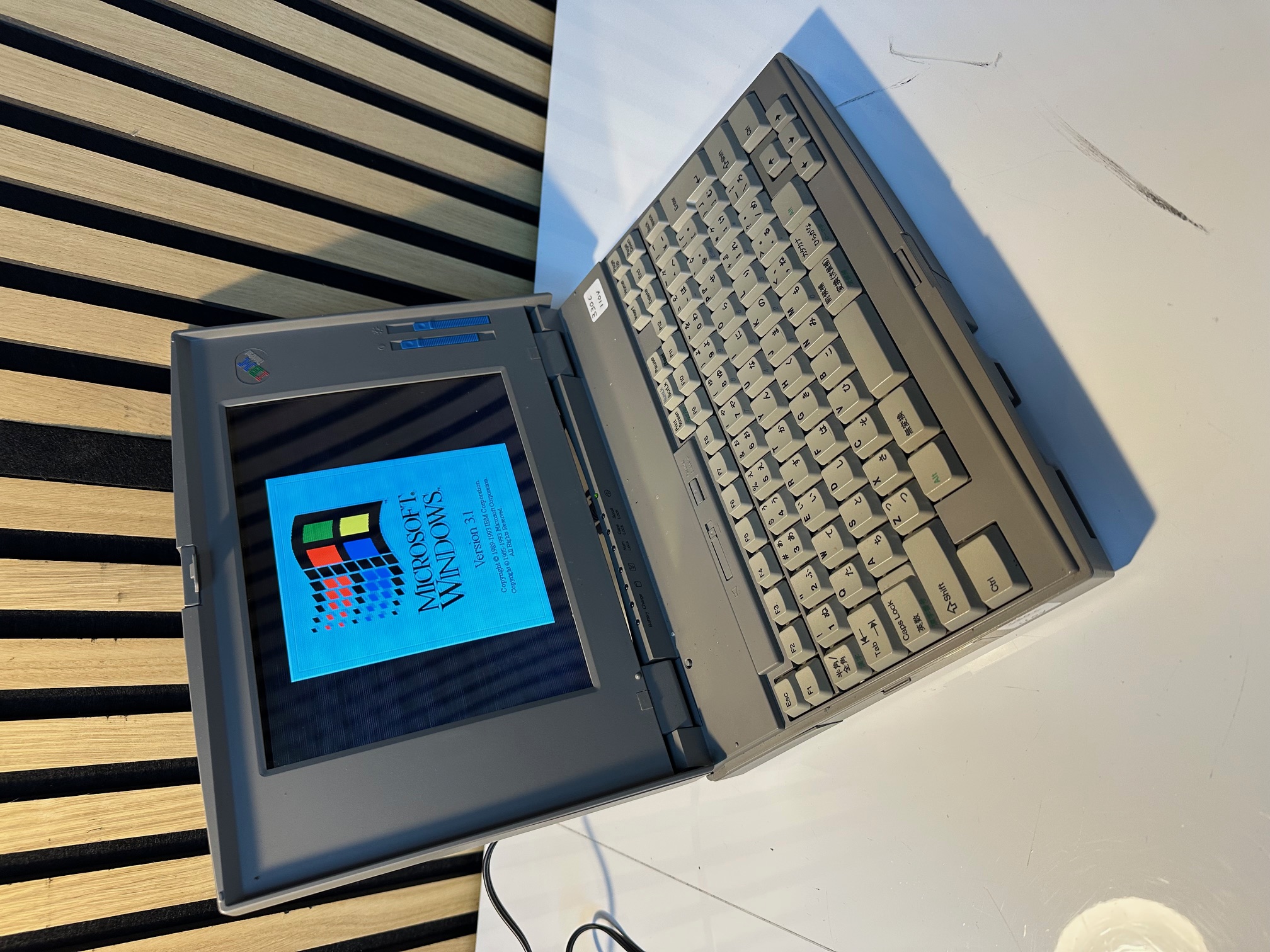

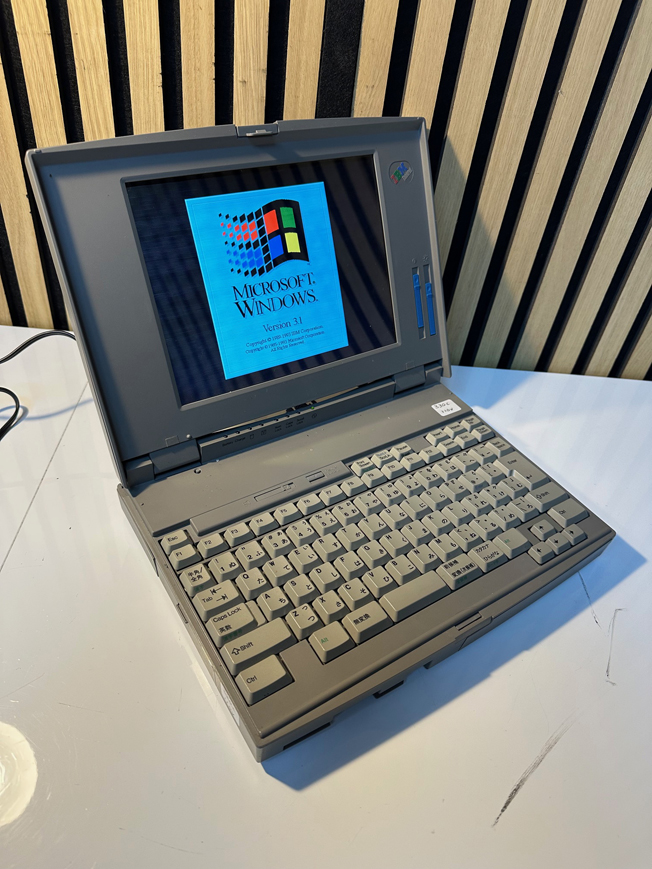

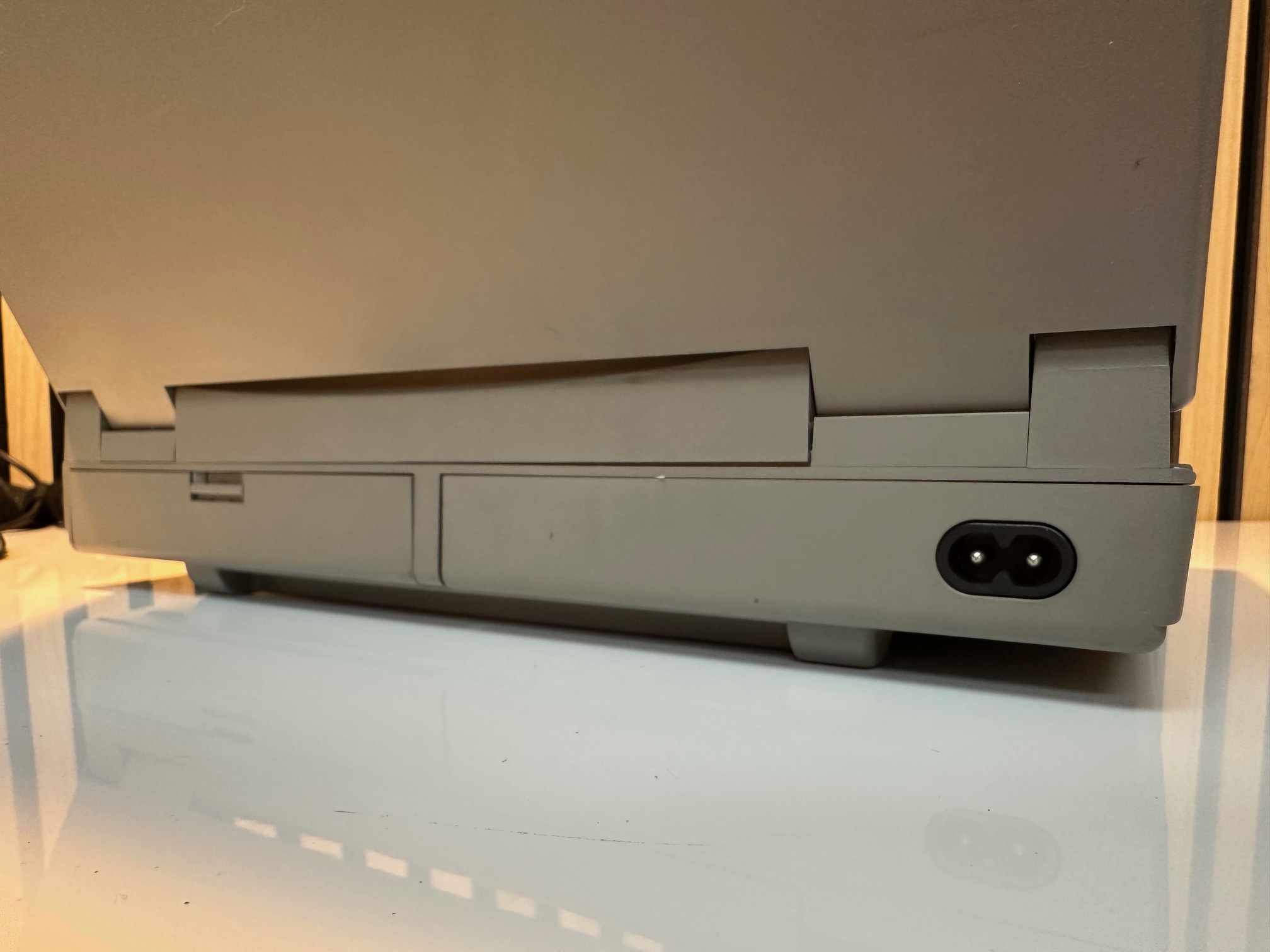

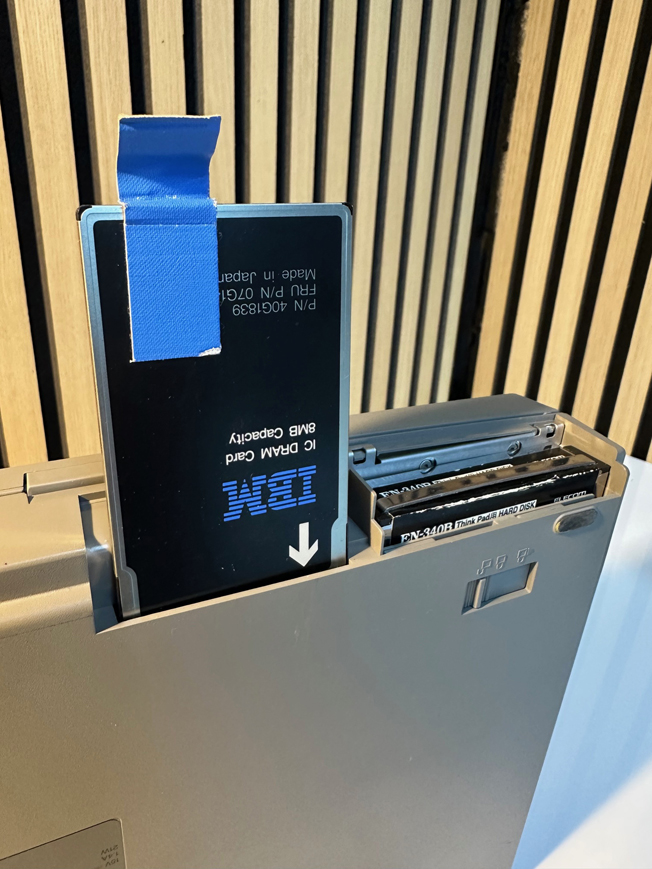

Photos of a ThinkPad 330C from solidpro.
