IBM ThinkPad 240 Series

IBM ThinkPad 240

The ThinkPad 240 Series were subnotebooks, sold from 1999 through 2001 (I think). The series was comprised of the 240, 240X, and 240Z (the last of which was exclusive to Japan).

Image on this page from solidpro - Japanese 240X.


Specifications

SpecThinkPad 240ThinkPad 240XThinkPad 240Z
Release DateJune 1999June 2000 2000?
CPUCPU Type: Unknown
Intel Mobile Celeron @300, 366, or 400MHz
CPU Type: Unknown
- Intel Mobile Celeron @450MHz
- Intel Mobile Pentium III @500MHz
CPU Type: Unknown
- Intel Mobile Celeron @500MHz
- Intel Mobile Pentium III @600MHz
ChipsetUnknown
RAMType: PC100 SDRAM, 1 slot
Standard: 64MB
Maximum: 192MB
Type: PC100 SDRAM, 1 slot
Standard: 64 or 128MB
Maximum: Unknown
Storage2.5" IDE
Requires Adapter: Unknown
Standard: 6.4 or 12GB
2.5" IDE
Requires Adapter: Unknown
Standard: 6 or 12GB
2.5" IDE
Requires Adapter: Unknown
Standard: 10 or 20GB
Display Options10.4" Active Matrix LCD @800x600- 10.4" Active Matrix LCD @800x600
- 10.4" Active Matrix LCD @1024x768
Graphics ChipsetNeoMagic MagicGraph 128XD (NM2160)
VRAM: 2MB
Silicon Motion LynxEM+
VRAM: 2MB
Silicon Motion LynxEM+ or EM4+
VRAM: 2 or 4MB
AudioESS Solo-1E (ES1946)Crystal CS4281Crystal CS4297A
Main BatteryLithium Ion (3 cell)Lithium Ion (3 or 6 cell)Unknown
CMOS BatterySoldered Lithium Cell
Power SupplyBarrel Jack
Media DrivesNone, external only
PC Cards1x PCMCIA/CardBus SlotUnknown
NetworkingModemModem or Ethernet
Other I/O- 1x Parallel
- 1x Serial
- 1x VGA Out
- 1x USB 1.x
- 1x Mic In
- 1x Headphone Out
Unknown
BIOSIBM BIOS
Pointing DeviceTrackPoint

Resources


Drivers (240)

Drivers (240X)

Drivers (240Z)

Service Manual (240)

Service Manual (240X)

Withdrawn Models PSREF

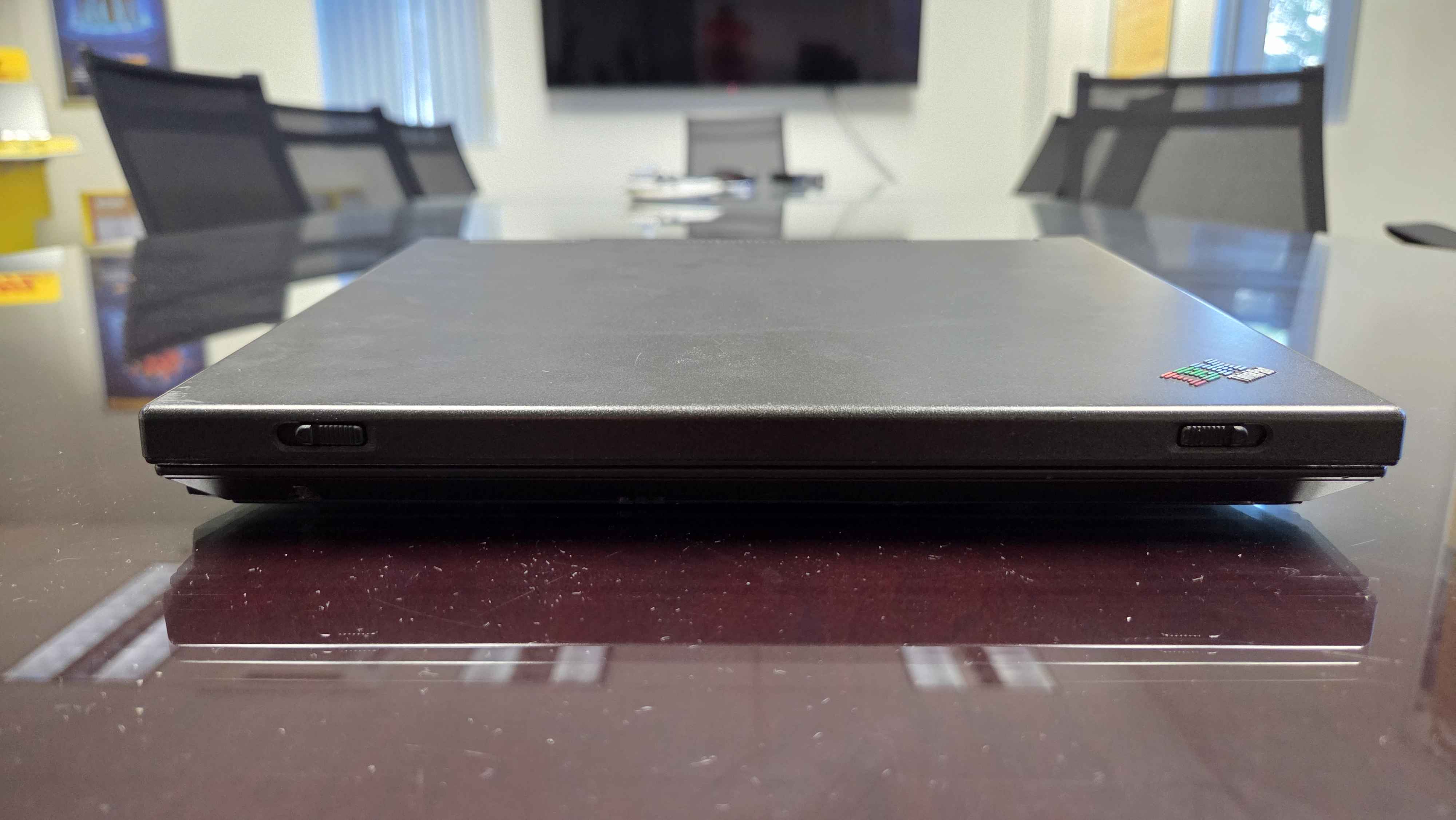

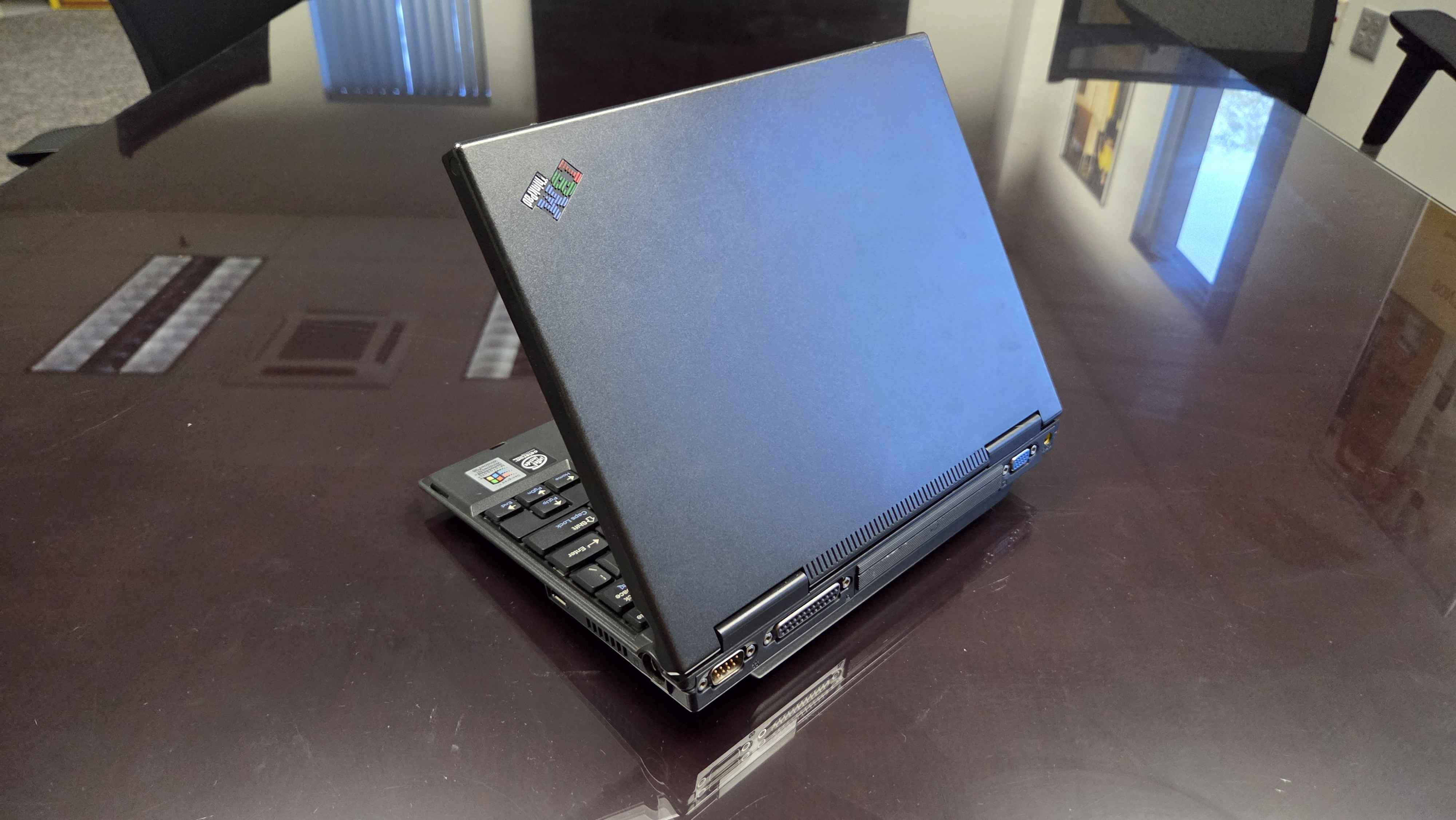

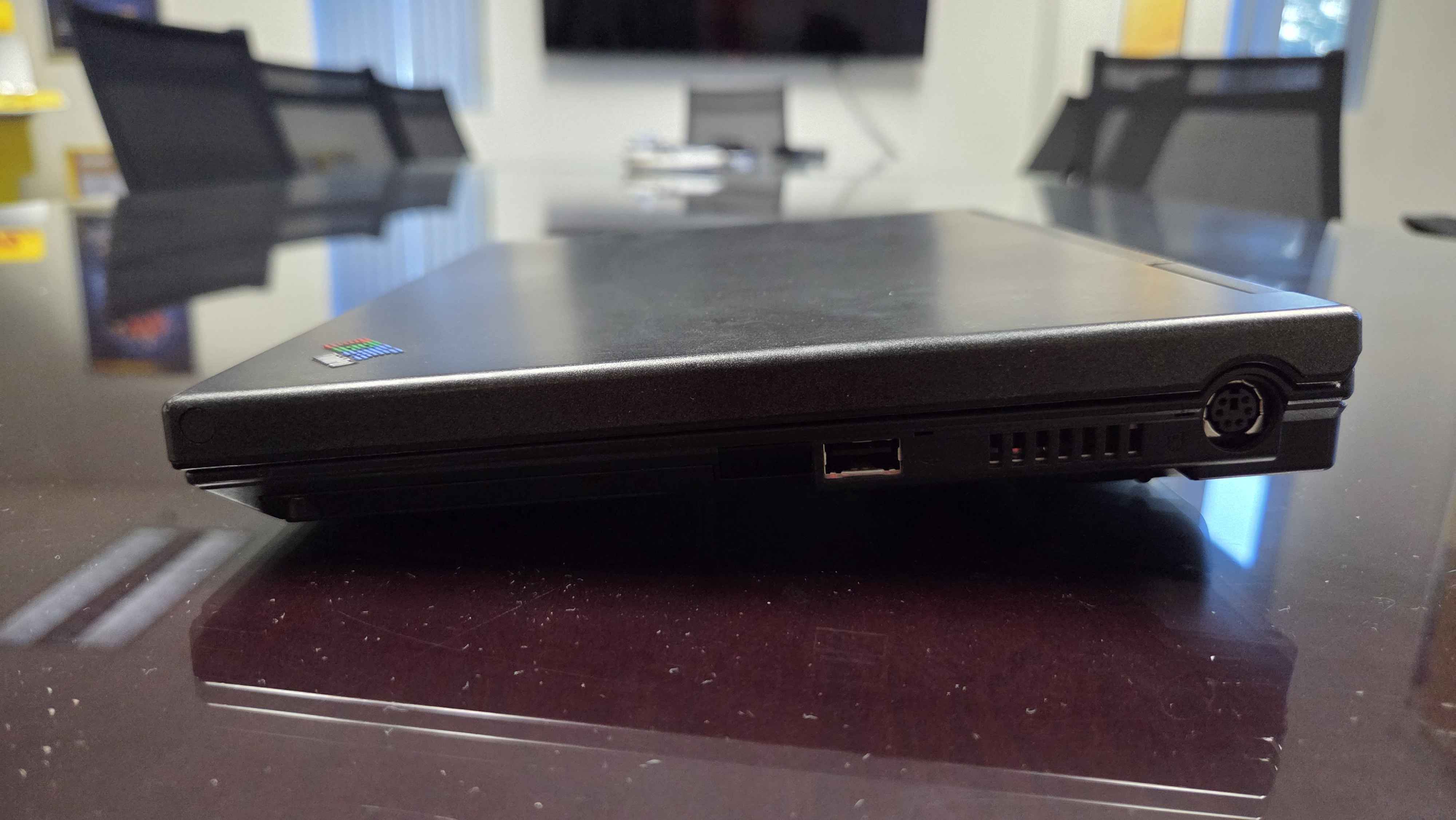

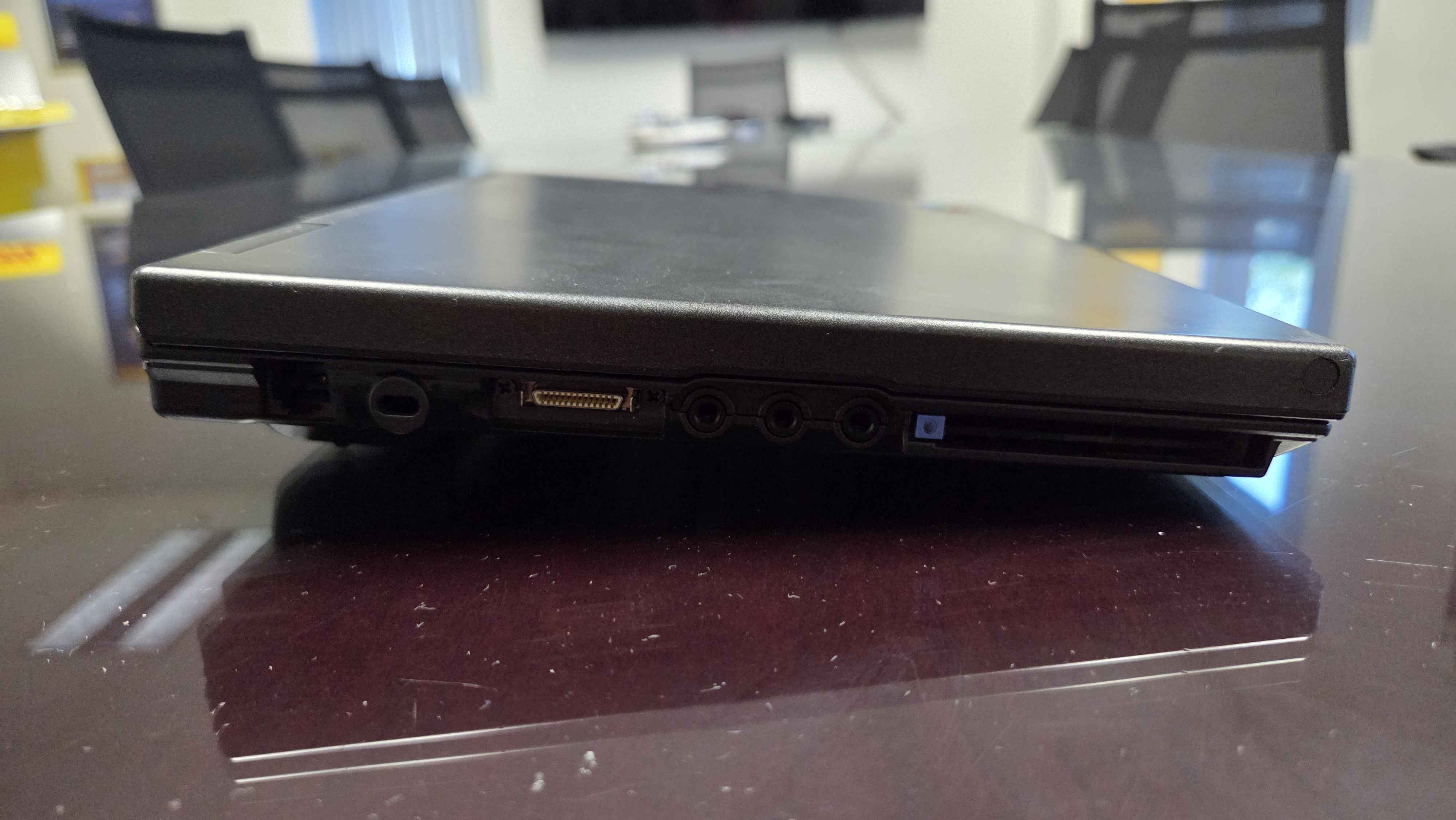

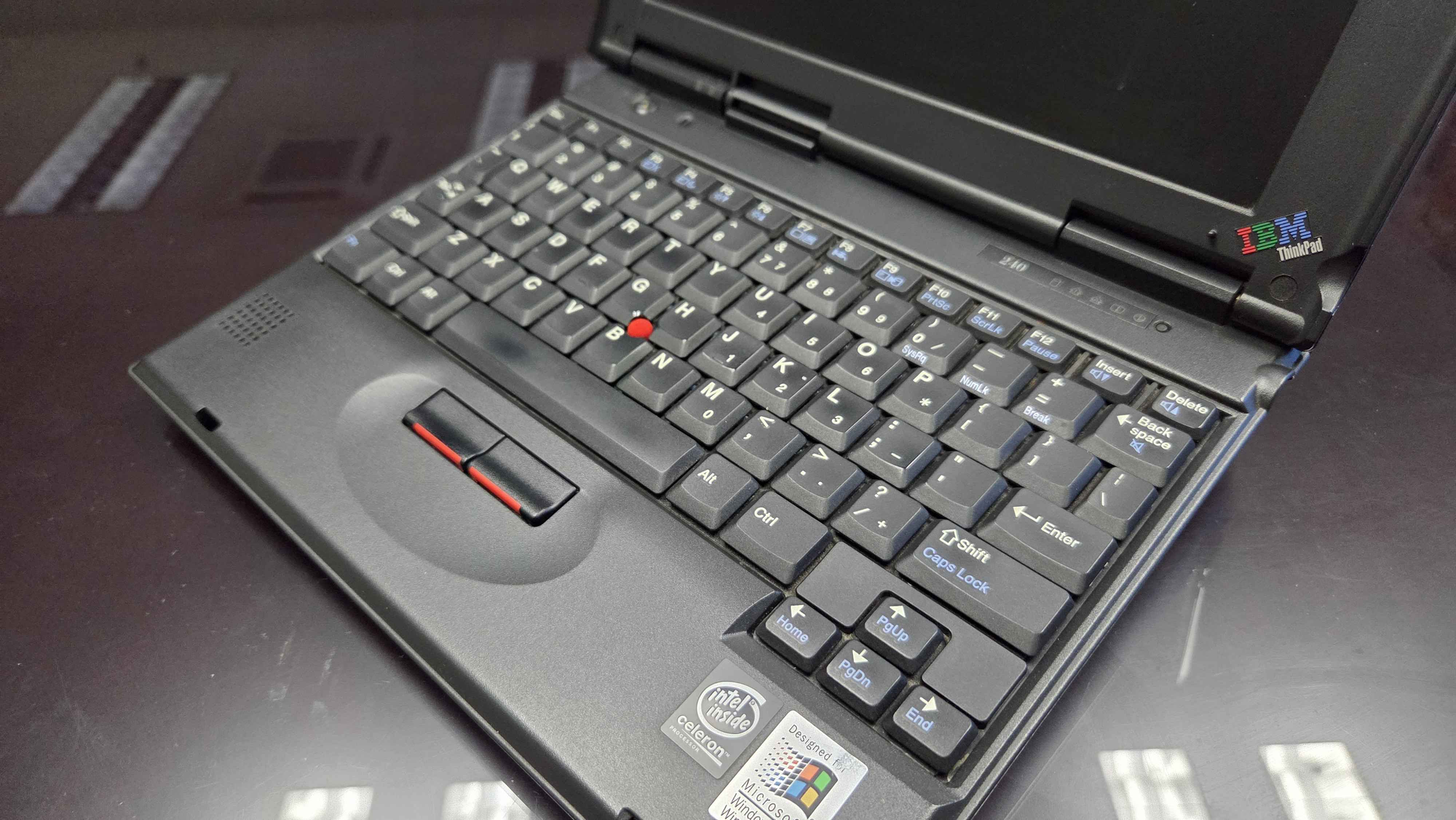

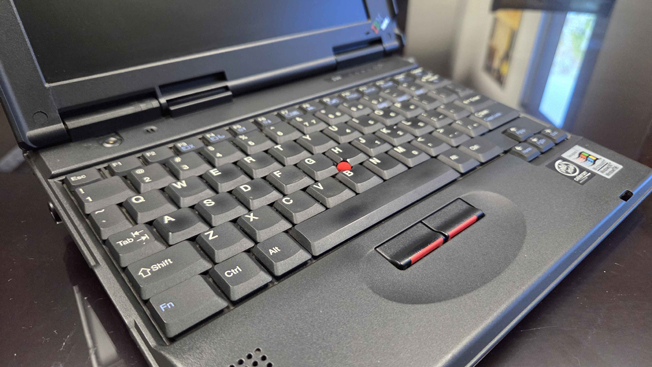

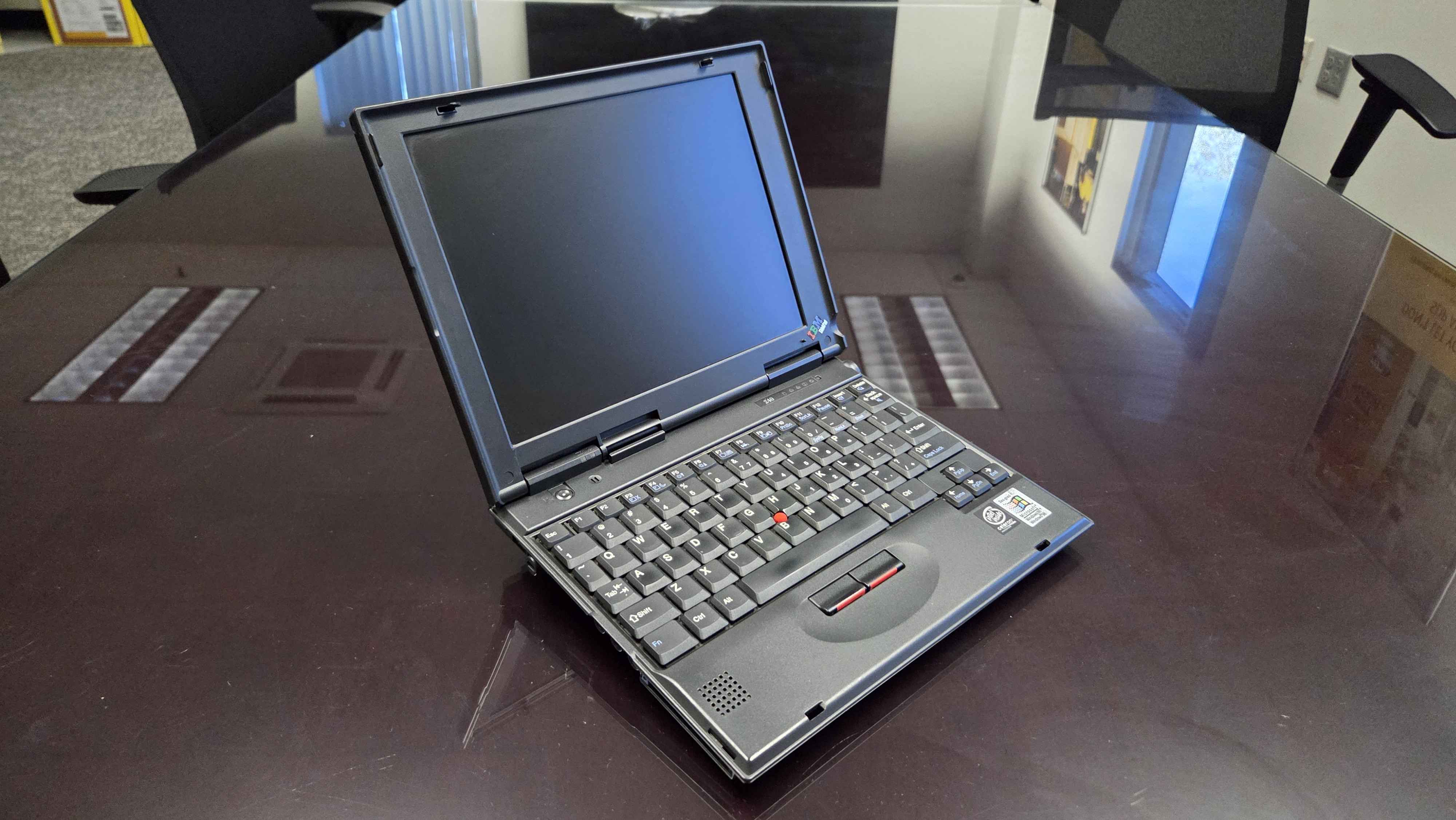

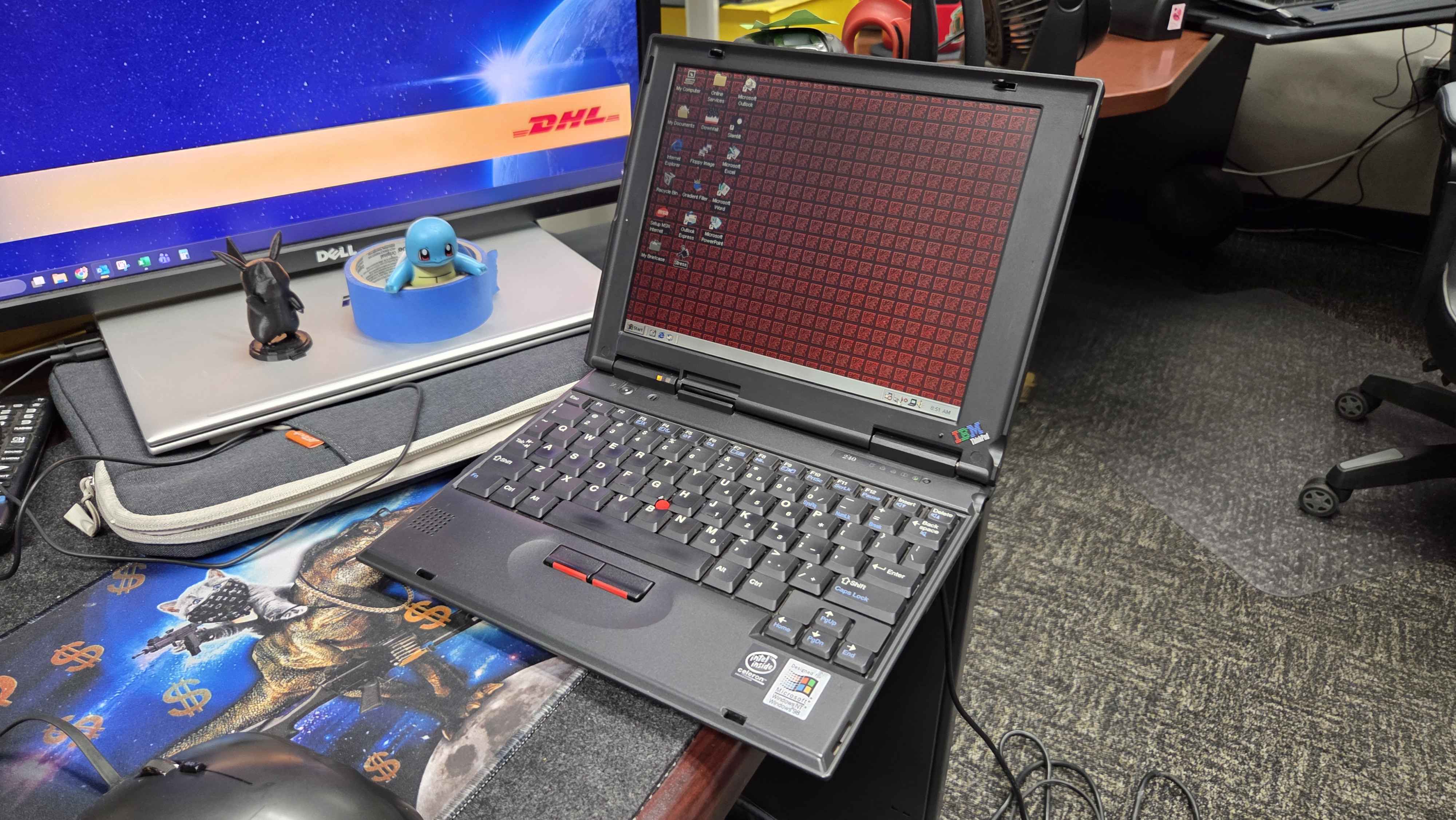

Gallery

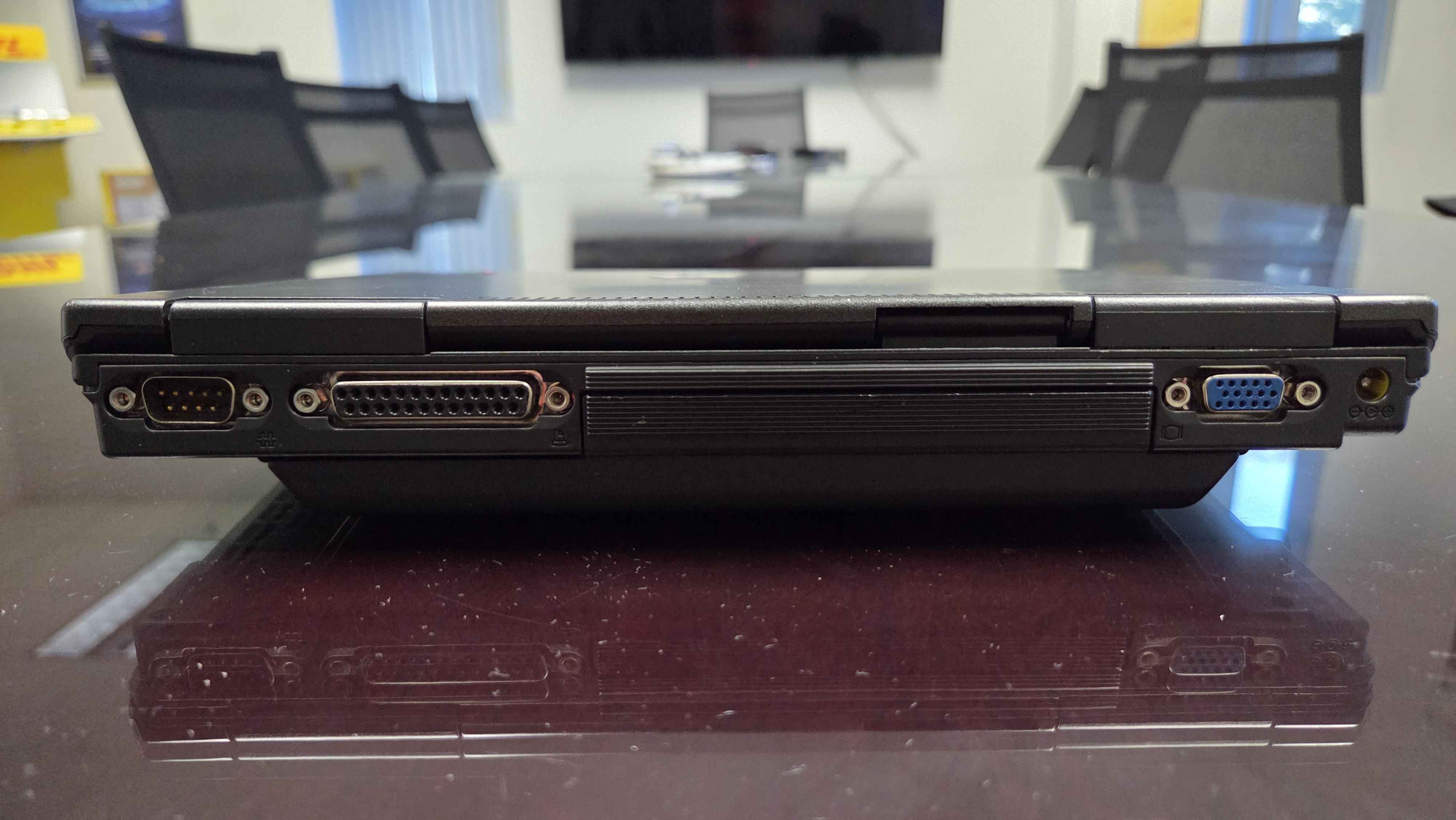

Japanese ThinkPad 240X

Images from solidpro.


Additional Photos Here
