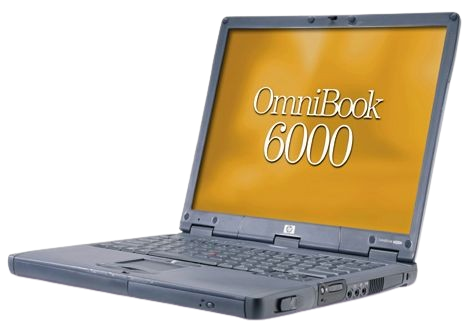

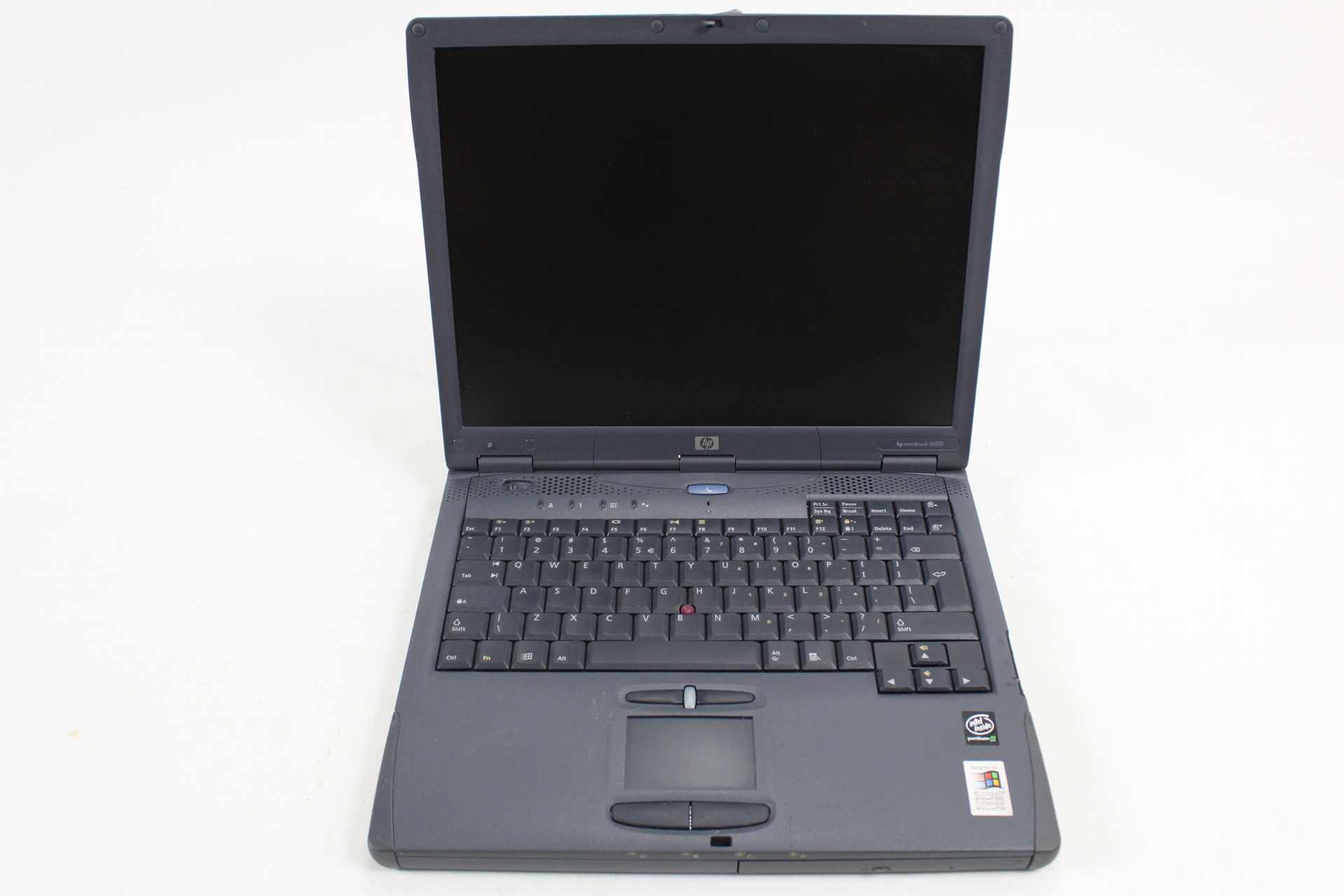

HP OmniBook 6000
The OmniBook 6000 is a Pentium III-based laptop that was released in 2000.
Specifications
| Spec | Details |
|---|---|
| CPU | CPU Type: Socket 495 - Intel Mobile Pentium III @600MHz, 650MHz, 700MHz, 800MHz, 850MHz, 900MHz, or 1.0GHz - Intel Mobile Celeron @550, 650, or 750MHz |
| Chipset | Intel 440BX |
| RAM | Type: PC100 SDRAM, 2 slots Standard: 64 or 128MB Maximum: 512MB |
| Storage | 2.5" IDE Requires Adapter: Yes Standard: 5, 6, 7.5, 10, 12, 18, or 20GB |

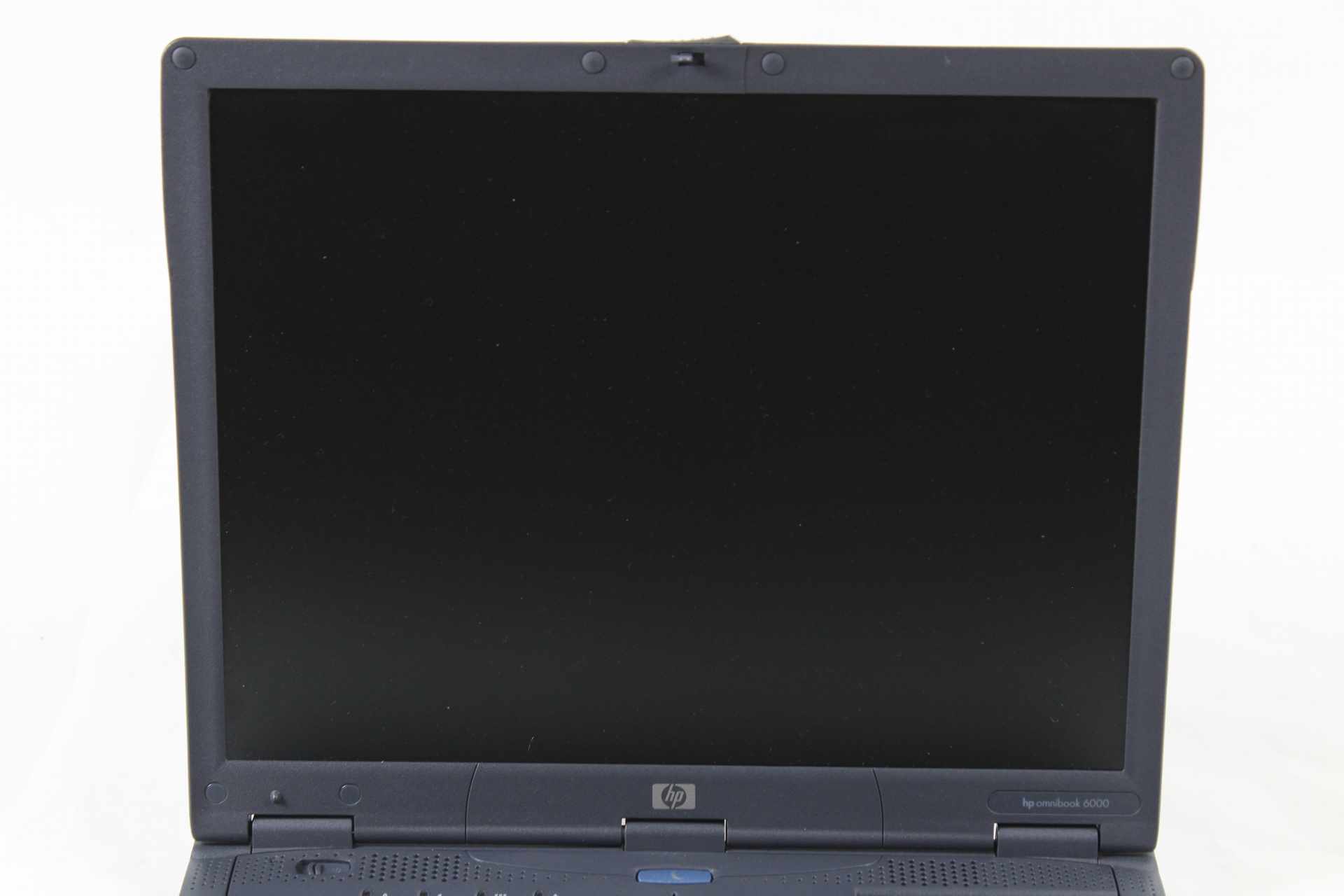

| Display Options | - 14.1" TFT LCD @1024x768 - 15.0" TFT LCD @1024x768 - 15.0" TFT LCD @1400x1050 |
| Graphics Chipset | ATI Rage Mobility-M (Celeron models) or Mobility-M1 (Pentium models) VRAM: 4MB (M) or 8MB (M1) |
| Audio | ESS Maestro-3i - Stereo Speakers - Microphone |
| Main Battery | Lithium Ion (8 cell) |
| CMOS Battery | Socketed ML1220 Lithium |

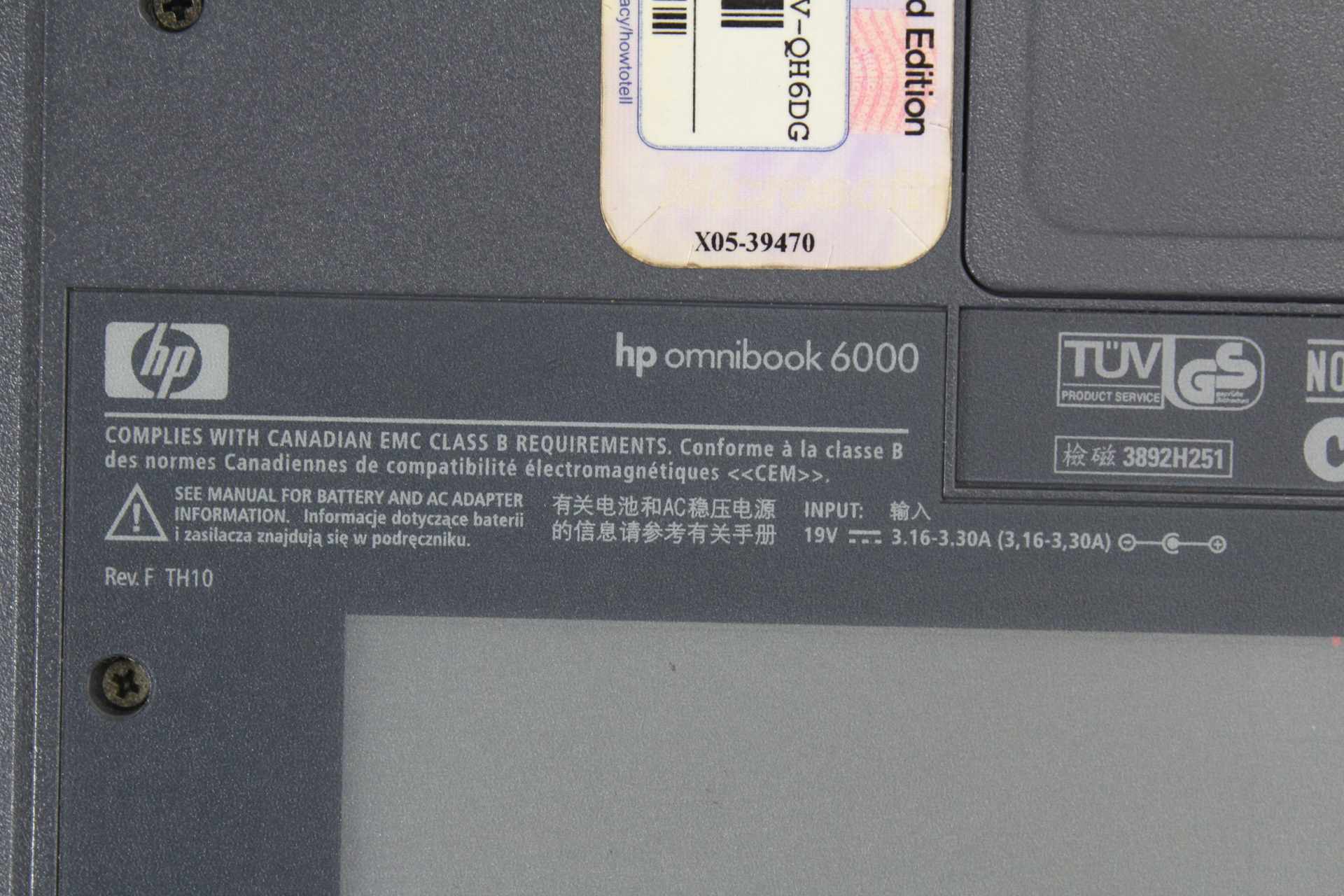

| Power Supply | Barrel Jack |

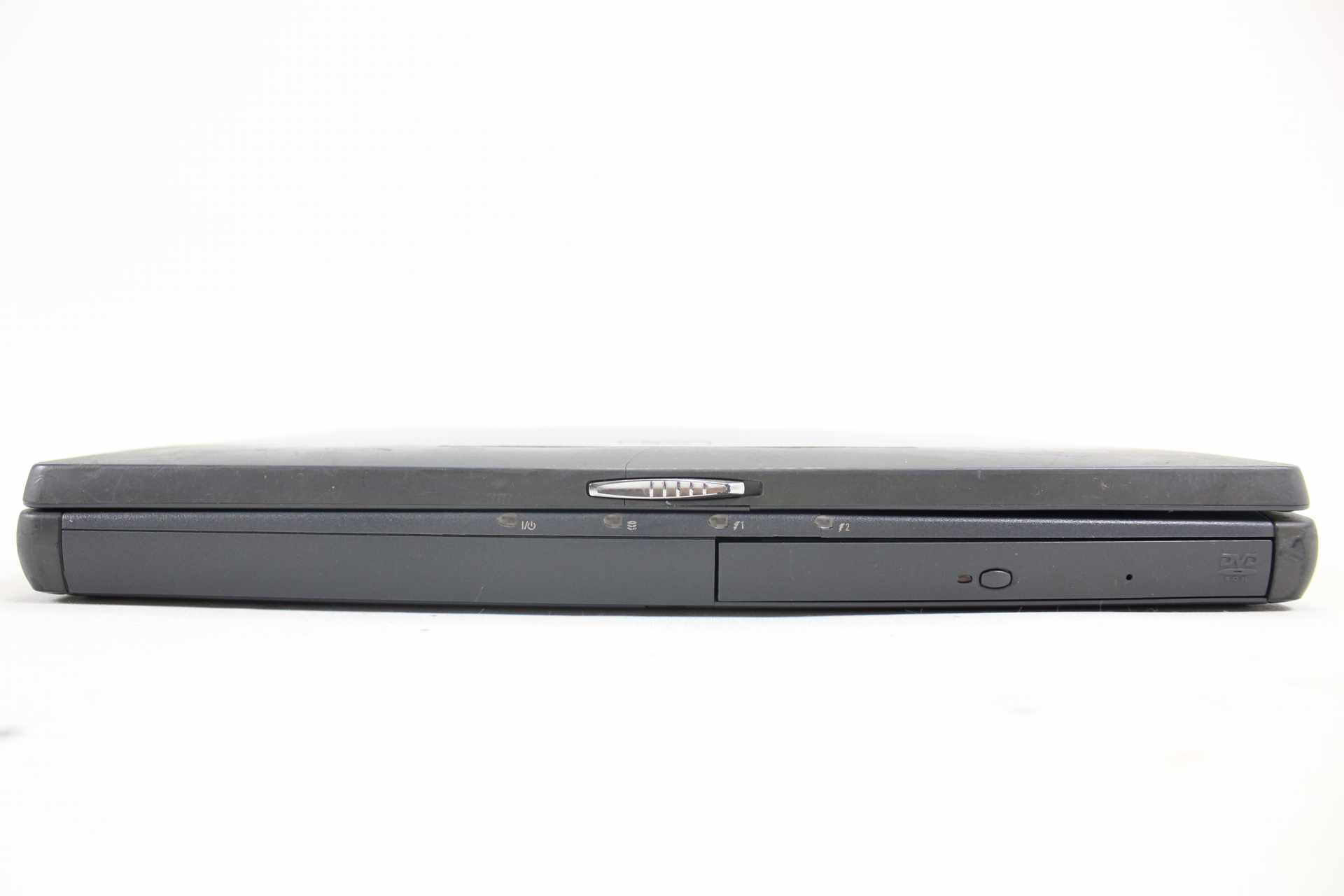

| Media Drives | Modular Bay supporting the following: - 3.5" 1.44MB Floppy Drive - CD-ROM Drive - DVD-ROM Drive - CD-RW Drive - DVD/CD-RW Drive - LS-120 SuperDisk Drive - ZIP Drive |
| PC Cards | 2x PCMCIA/CardBus Slots (2x Type II/1x Type III) - ZoomVideo Support (bottom slot) - TI PCI 1420 Controller |
| Networking | - Modem (Optional) - Ethernet (Optional) |

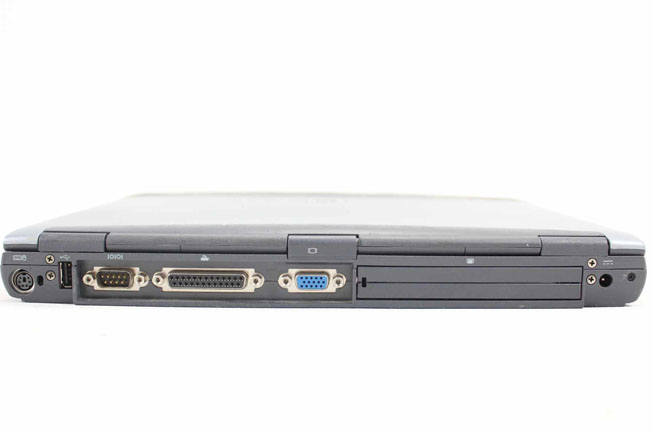

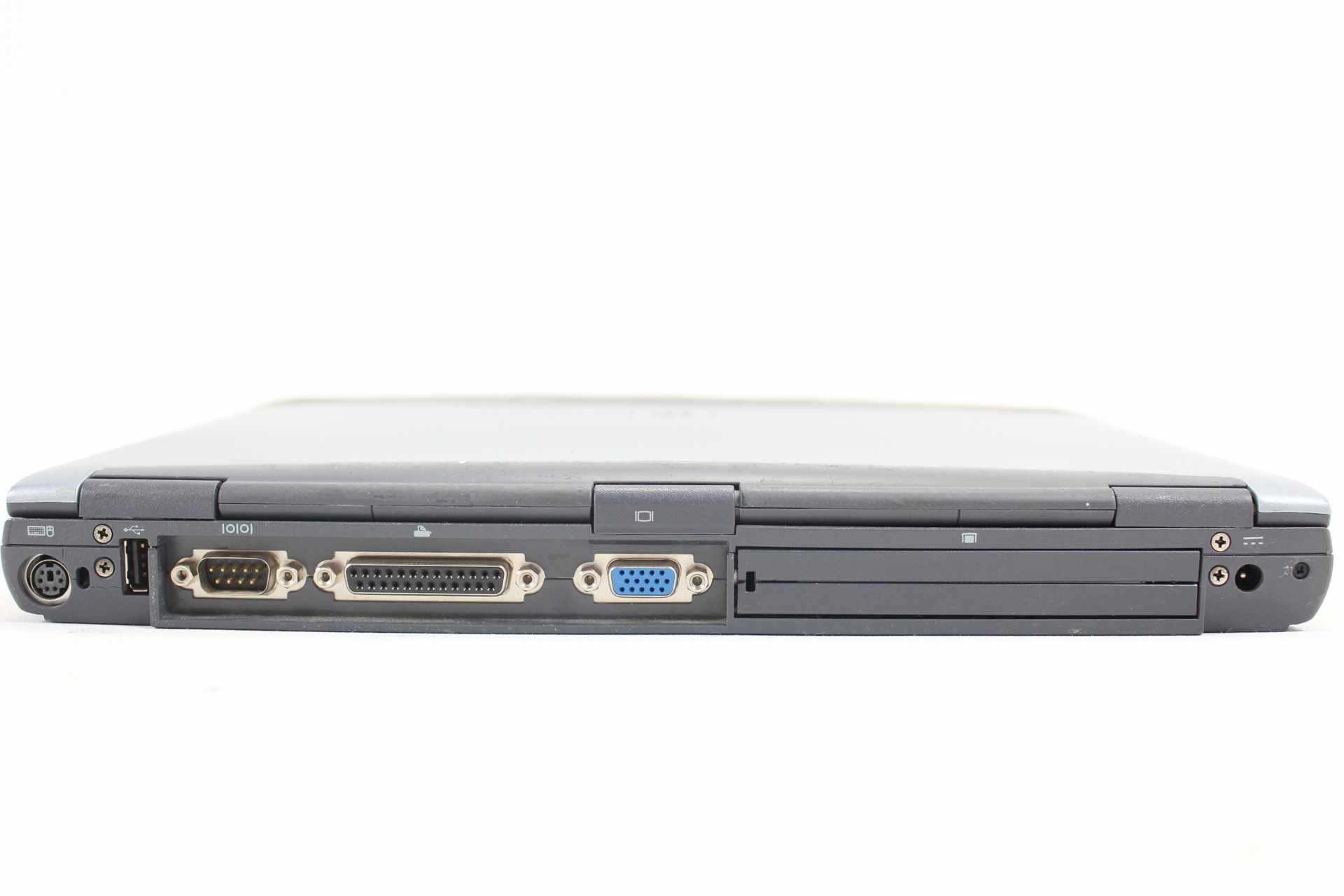

| Other I/O | - 1x Parallel - 1x Serial - 1x VGA Out - 1x PS/2 - 1x Dock Connector - 1x USB 1.x - 1x Mic In - 1x Line In - 1x Headphone Out - Infrared |
| BIOS | Unknown |

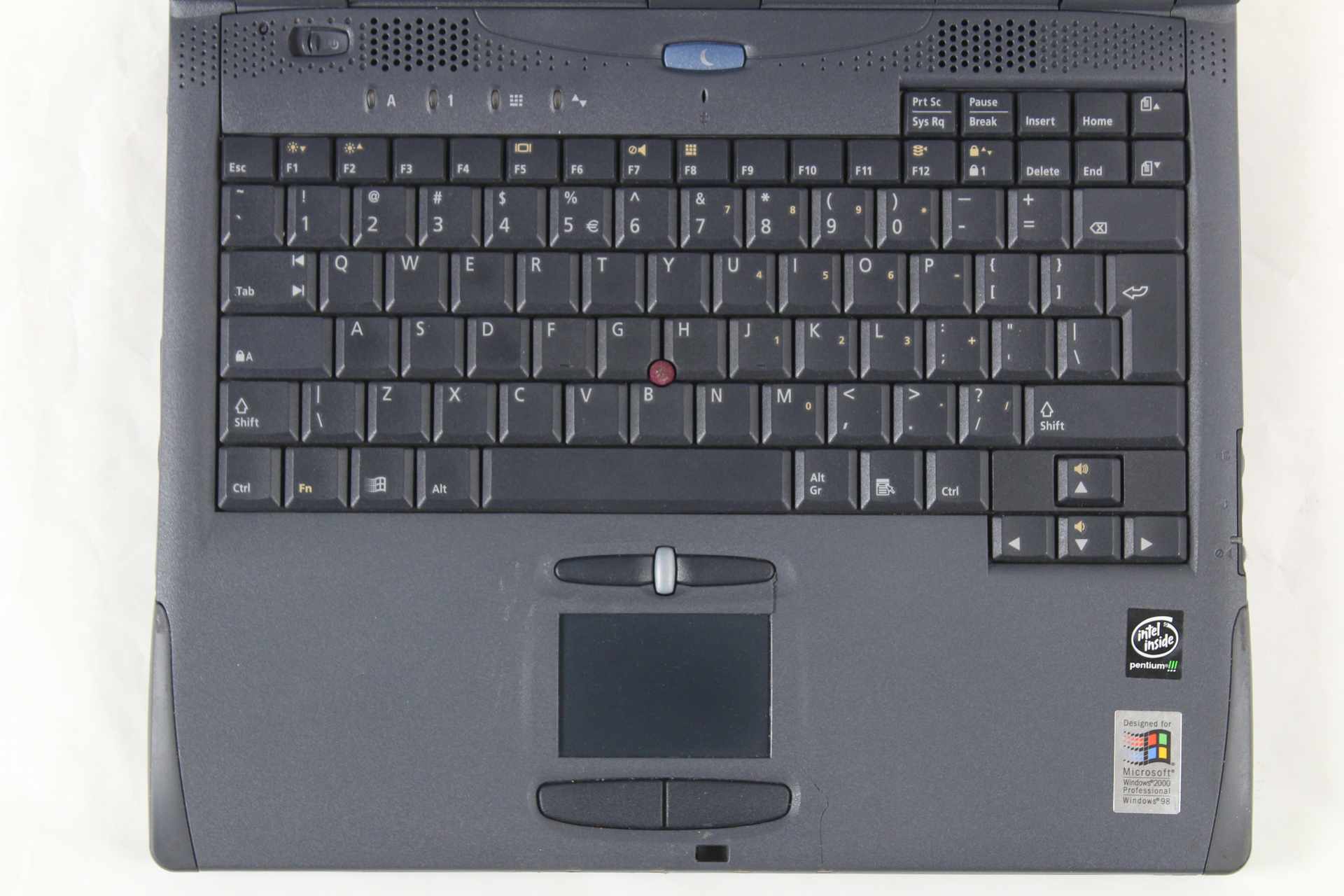

| Pointing Device | Trackpad & TrackPoint |
Resources
 Service Manual |
|---|
Page last updated (MM/DD/YYYY): 02/02/2025
Update Reason: page created
