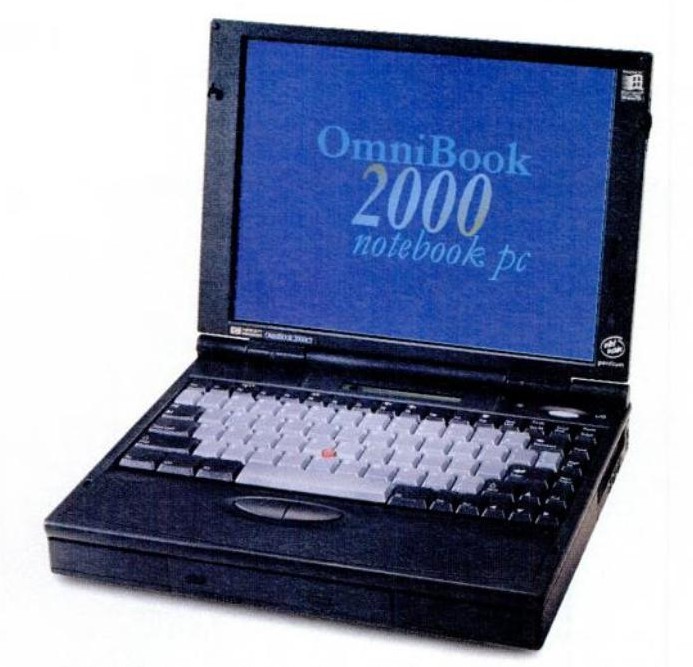

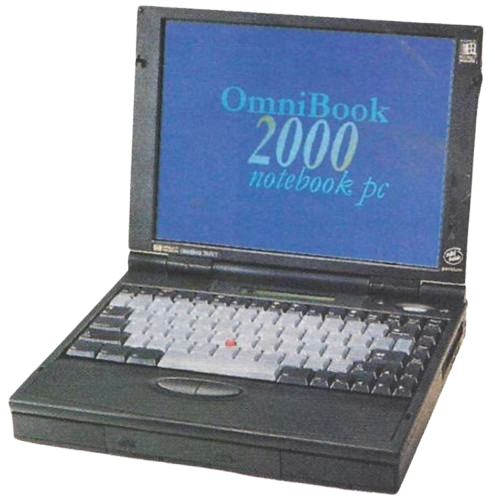

HP OmniBook 2000
The OmniBook 2000 is a Pentium-based laptop that was released around July 1997. 2000CS models have passive matrix screens while 2000CT models have active matrix screens. I believe these laptops were manufactured by Twinhead, based off of a custom design.
Specifications
| Spec | Details |
|---|---|
| CPU | CPU Type: Unknown Intel Pentium or Pentium MMX @133MHz |
| Chipset | OPTi Viper-N+ |
| RAM | Type: Unknown FPM Standard: 16 or 32MB Maximum: 128MB |
| Hard Disk | 2.5" IDE Uses proprietary adapter?: Unknown Standard: 1.44 or 2.0GB |
| Display Options | - 12.1" Passive Matrix LCD @800x600 - 12.1" Active Matrix LCD @800x600 |
| Graphics Chipset | Chips & Technologies 65554 VRAM: 2MB |
| Audio | Crystal (SoundBlaster Compatible) - Stereo Speakers - Microphone |
| Main Battery | Lithium Ion |
| CMOS Battery | NiMH Reserve Battery |
| Power Supply | Barrel Jack |
| Disk Drives | Modular Bay holds Floppy Drive, 10X CD-ROM Drive, or 2nd Battery |
| PC Cards | 2x PCMCIA/CardBus Slots - ZoomVideo Support (lower slot) |
| Networking | None |
| Other I/O | - 1x Parallel - 1x Serial - 1x VGA Out - 1x PS/2 - 1x Dock Connector - 1x MIDI/Game Port - 1x Mic In - 1x Line In - 1x Line Out - Infrared |
| BIOS | SystemSoft |
| Pointing Device | TrackPoint |
Resources
 Service Manual |
|---|
Common Faults & Maintenance
These laptops seem to be fairly reliable, but they used one of the worst hinge mount designs I've ever seen, and now, like most laptops from this time, the plastics are very brittle. Due to this, all of these will suffer from hinge failure if the hinges are used. It's probably possible to fix this with enough epoxy, but I haven't gotten my hands on one yet to try and see.
Page last updated (MM/DD/YYYY): 01/05/2025
Update Reason: page created
Have additional information on this laptop? Want to send me photos to use on the site? Send me an email: macdatnet@gmail.com
