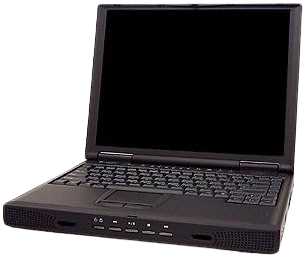

Gateway Solo 9300
The Gateway Solo 9300 is a Pentium II or III-based laptop that was originally released in 1999. Gateway released three total revisions of this design, the specs of which are in the table below.
Specifications
| Spec | Solo 9300 (Original) | Solo Pro 9300 | Solo 9300VE |
|---|---|---|---|
| Release Date | 1999 | 2000? | |
| CPU | CPU Type: MMC2 - Intel Mobile Pentium III @450, 500, 600, 650, or 700MHz - Intel Mobile Pentium II @333, 366, or 400MHz - Intel Mobile Celeron @366, 400, 433, 450, or 500MHz | CPU Type: MMC2 - Intel Mobile Pentium II @333, 366, or 400MHz - Intel Mobile Pentium III "Coppermine" @450, 500, 600, 650, or 700MHz | CPU Type: MMC2 Intel Mobile Pentium III @450, 500, 600, 650, 700, 750, 800, or 850MHz |
| Chipset | Intel 440BX | ||
| RAM | Type: SDRAM, 2 slots Standard: Unknown Maximum: 288MB | Type: PC100 SDRAM, 2 slots Standard: 32MB Soldered Maximum: 256MB? | Type: SDRAM, 2 slots Standard: Unknown Maximum: 544MB |
| Storage | 2.5" IDE Requires Adapter: Unknown Standard: Up to 12GB | 2.5" IDE Requires Adapter: Unknown Standard: Unknown | |
| Display Options | - 14.1" TFT LCD @1024x768 - 15.0" TFT LCD @1024x768 - 15.7" TFT LCD @1280x1024 | - 14.1" TFT LCD @1024x768 - 15.0" TFT LCD @1024x768 | - 14.1" TFT LCD @1024x768 - 15.0" TFT LCD @1024x768 - 15.7" TFT LCD @1280x1024 |
| Graphics Chipset | ATI Rage Mobility-P VRAM: 8MB | ATI Rage Mobility-P VRAM: 4 or 8MB | Unknown VRAM: 4 or 8MB |
| Audio | ESS Maestro-2E - Stereo Speakers - Microphone | ||
| Main Battery | Lithium Ion (12 cell) | ||
| CMOS Battery | Unknown | Unknown, includes NiMH bridge battery | Unknown, also has 3-cell NiMH varta bridge battery |
| Power Supply | Barrel Jack | Unknown | Barrel Jack |
| Media Drives | 3 Spindle (Dual Modular Bays) - Bay 1 holds floppy drive, 2nd HDD, or 2nd Battery - Bay 2 holds DVD or CD-ROM drive | 3 Spindle - Modular Bay holds floppy drive, LS-120 drive, 2nd HDD, or 2nd Battery - CD-ROM, CD-RW, or DVD-ROM Drive | 3 Spindle (Dual Modular Bays) - Bay 1 holds floppy drive, LS-120 drive, 2nd HDD, or 2nd Battery - Bay 2 holds DVD-ROM, CD-RW, or CD-ROM drive |
| PC Cards | 2x PCMCIA/CardBus Slots (2x Type II/1x Type III) - ZoomVideo Support | 2x PCMCIA/CardBus Slots - ZoomVideo Support (1 slot) - TI PCI 1450 Controller | 2x PCMCIA/CardBus Slots (2x Type II/1x Type III) - ZoomVideo Support |
| Networking | Modem | - Modem (Optional) - Ethernet (Optional) | Modem (15.0 and 15.7" only) |
| Other I/O | - 1x Parallel - 1x Serial - 1x VGA Out - 1x PS/2 - 1x Dock Connector - 2x USB 1.x - 1x Composite In - 1x Composite Out - 1x Mic In - 1x Line In - 1x Headphone Out - 1x Dolby Digital Output - Infrared | - 1x Parallel - 1x Serial - 1x VGA Out - 1x PS/2 - 1x Dock Connector - 2x USB 1.x - 1x Mic In - 1x Line In - 1x Headphone Out - 1x SPDIF Out (Optional) - Infrared | - 1x Parallel - 1x Serial - 1x VGA Out - 1x PS/2 - 1x Dock Connector - 2x USB 1.x - 1x Composite In (15.7" only) - 1x Composite Out - 1x Mic In - 1x Line In - 1x Headphone Out - 1x SPDIF Out (15.0 and 15.7" only) - 1x IEEE1394/FireWire (15.7" only) - Infrared |
| BIOS | Phoenix | ||
| Pointing Device | Trackpad | Trackpad (Synaptics) | Trackpad |
Page last updated (MM/DD/YYYY): 04/06/2025
Update Reason: page created
