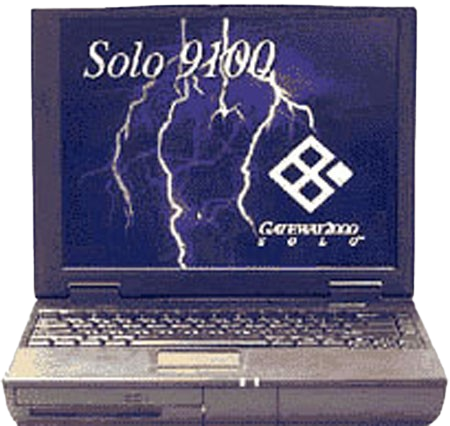

Gateway Solo 9100
The Gateway Solo 9100 is a Pentium MMX or Pentium II-based laptop that was originally released in 1997. Gateway released three total revisions of this design, the specs of which are in the table below.
Specifications
| Spec | Solo 9100 (13.3" LCD) | Solo 9100 (14.1" LCD) | Solo 9100 (Trident Video) |
|---|---|---|---|
| Release Date | 1997 | 1997? | 1998? |
| CPU | CPU Type: Soldered TCP Intel Pentium MMX @150 or 166MHz | CPU Type: Soldered TCP Intel Pentium MMX @150, 166, 200, or 233MHz | CPU Type: MMC1 - Intel Mobile Pentium II @233, 266, 300, 333, 366, or 400MHz - Intel Pentium MMX @166, 200, 233, or 266MHz |
| Chipset | Intel 430TX | Intel 440BX | |
| RAM | Type: Unknown Standard: Unknown Maximum: Unknown | Type: SDRAM, 3 slots Standard: Unknown Maximum: 384MB | |
| Storage | 2.5" IDE Requires Adapter: Unknown Standard: 1.0, 1.4, 2.0, or 3.0GB | 2.5" IDE Requires Adapter: Unknown Standard: Unknown | |
| Display Options | 13.3" TFT LCD @1024x768 | 14.1" TFT LCD @1024x768 | |
| Graphics Chipset | Chips & Technologies 65554 VRAM: 4MB | Chips & Technologies 65555 VRAM: 4MB | Trident Cyber9397 VRAM: 4MB |
| Audio | Yamaha OPL-SA3 - Stereo Speakers - Microphone | ||
| Main Battery | Unknown | Lithium Ion (12 cell) | |
| CMOS Battery | Unknown, also has a bridge battery (Varta) | Unknown | |
| Power Supply | Barrel Jack | ||
| Media Drives | 3 Spindle - 3.5" 1.44MB Floppy Drive - CD-ROM Drive | 3 Spindle - 3.5" 1.44MB Floppy Drive - CD-ROM or DVD-ROM Drive | |
| PC Cards | 2x PCMCIA/CardBus Slots - ZoomVideo Support - Cirrus Logic GD6832 Controller | 2x PCMCIA/CardBus Slots (2x Type II/1x Type III) - ZoomVideo Support - Cirrus Logic PD6832 Controller | |
| Networking | Unknown | ||
| Other I/O | Unknown | - 1x Parallel - 1x Serial - 1x VGA Out - 1x PS/2 - 1x Dock Connector - 2x USB 1.x - 1x Composite In - 1x Composite Out - 1x MIDI/Game Port - 1x Mic In - 1x Line In - 1x Headphone Out - Infrared | |
| BIOS | Phoenix | ||
| Pointing Device | Trackpad | ||
Page last updated (MM/DD/YYYY): 04/06/2025
Update Reason: page created
Have additional information on this laptop? Want to send me photos to use on the site? Send me an email: macdatnet@gmail.com
