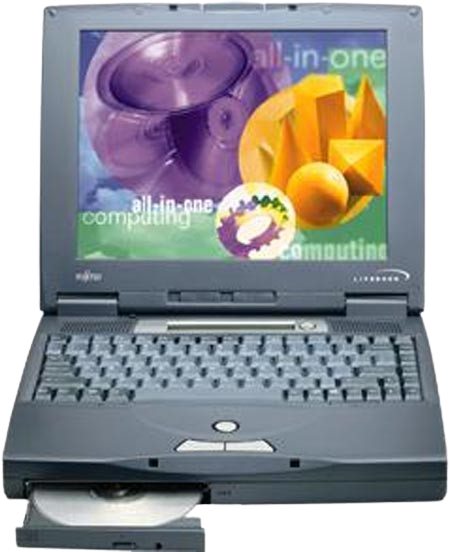

Fujitsu LifeBook C Series (1998)

The Fujitsu LifeBook C Series (1998) are Pentium II-based laptops that were released in 1998. One or two of the models listed below actually released in 1999, but they share the same chassis as the 1998 machines, rather than using the redesigned chassis that Fujitsu used in the later 1999 C Series refresh.


Specifications

SpecLifeBook C235LifeBook C340LifeBook C350LifeBook C353
Release Date 1998 1998? 1999
CPUCPU Type: Unknown
Intel Pentium MMX @233MHz
CPU Type: Unknown
Intel Mobile Pentium II @233MHz
CPU Type: Unknown
Intel Mobile Pentium II @266MHz
CPU Type: Unknown
Intel Mobile Pentium II @300MHz
ChipsetIntel 430TXIntel 440BX
RAMType: SDRAM
Standard: 32MB
Maximum: 96MB
Storage2.5" IDE
Requires Adapter: Unknown
Standard: 3.2GB
2.5" IDE
Requires Adapter: Unknown
Standard: 4GB
2.5" IDE
Requires Adapter: Unknown
Standard: 4.3GB
Display Options12.1" Active Matrix LCD @800x60012.1" HPA/Passive Matrix LCD @800x60013.0" HPA/Passive Matrix LCD @1024x76812.1" Active Matrix LCD @800x600
Graphics ChipsetUnknown
VRAM: 2MB
NeoMagic MagicGraph 128XD (NM2160)
VRAM: 2MB
AudioESS AudioDrive 1879
- Stereo Speakers
- Microphone
Unknown 16-bit Stereo Sound
- Stereo Speakers
- Microphone
Main BatteryLithium Ion (10.8V, 2400mAH)Lithium Ion (10.8V, 6-cell, 2800mAH)
CMOS BatteryUnknown
Power SupplyBarrel JackUnknown
Media Drives3 Spindle
- 3.5" 1.44MB Floppy Drive
- 20X CD-ROM Drive
3 Spindle
- 3.5" 1.44MB Floppy Drive
- 24X CD-ROM Drive
PC Cards2x PCMCIA/CardBus Slots (2x Type II/1x Type III)
- ZoomVideo Support (lower slot)
NetworkingNone56k Modem
Other I/O- 1x Parallel
- 1x Serial
- 1x VGA Out
- 1x PS/2
- 1x USB 1.x
- 1x Mic In
- 1x Line In
- 1x Headphone Out
- Infrared
- 1x Parallel
- 1x Serial
- 1x VGA Out
- 1x PS/2
- 1x USB 1.x
- 1x Mic In
- 1x Line In
- 1x Headphone Out
- 1x Parallel
- 1x Serial
- 1x VGA Out
- 1x PS/2
- 1x Port Replicator Connector
- 1x USB 1.x
- 1x Mic In
- 1x Line In
- 1x Headphone Out
BIOSUnknown
Pointing DeviceFujitsu ErgoTrack

Resources

Link Details
Fujitsu Lifebook C Series User Manual (C340, C350)
Fujitsu LifeBook C325 Product Specifications
Fujitsu LifeBook C325E Product Specifications
Fujitsu LifeBook C342 Product Specifications
