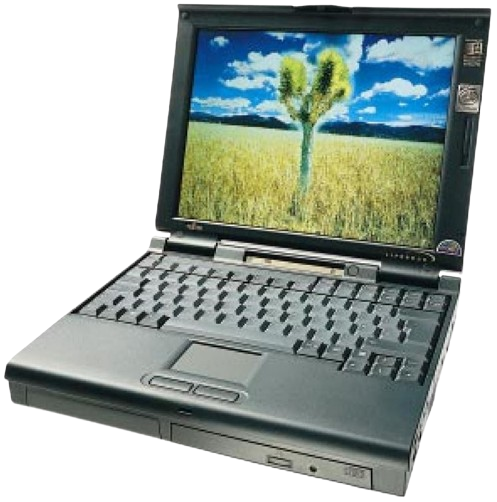

Fujitsu LifeBook 700 Series
The Fujitsu LifeBook 700 Series are Pentium MMX-based laptops that were released in 1997 and 1998. They were Fujitsu's high-end notebook line.
Specifications
| Spec | LifeBook 735Dx | LifeBook 755Tx | LifeBook 765Dx | LifeBook 765Tx | LifeBook 770Tx | LifeBook 790Tx |
|---|---|---|---|---|---|---|
| Release Date | 1997 | April 1998 | ||||
| CPU | CPU Type: Unknown Intel Pentium MMX @133MHz | CPU Type: Unknown Intel Pentium MMX @150MHz | CPU Type: Unknown Intel Pentium MMX @166MHz | CPU Type: Unknown Intel Pentium MMX @200MHz | CPU Type: Unknown Intel Pentium MMX @266MHz | |
| Chipset | Intel 430TX | |||||
| RAM | Type: SDRAM, 1 slot Standard: 16MB Maximum: 80MB | Type: SDRAM, 1 slot Standard: 32MB Maximum: 96MB | Type: SDRAM, 1 slot Standard: 16MB Maximum: 80MB | Type: SDRAM, 1 slot Standard: 32MB Maximum: 96MB | ||
| Storage | 2.5" IDE Requires Adapter: Unknown Standard: 1.6GB | 2.5" IDE Requires Adapter: Unknown Standard: 2GB | 2.5" IDE Requires Adapter: Unknown Standard: 3.2GB | 2.5" IDE Requires Adapter: Unknown Standard: 4GB | ||
| Display Options | 12.1" Passive Matrix LCD @800x600 | 12.1" Active Matrix LCD @800x600 | 12.1" Passive Matrix LCD @800x600 | 12.1" Active Matrix LCD @800x600 | ||
| Graphics Chipset | Trident VRAM: 2MB | |||||
| Audio | ESS AudioDrive 1879 - Stereo Speakers - Microphone | |||||
| Main Battery | Lithium Ion (10.8V, 3300mAH) | |||||
| CMOS Battery | Unknown | |||||
| Power Supply | Unknown | |||||
| Media Drives | 3 Spindle (Dual Modular Bays) - Bay 1 holds battery or 3.5" 1.44MB Floppy Drive - Bay 2 holds 20X CD-ROM Drive, 3.5" 1.44MB Floppy Drive, 2nd HDD, or 2nd Battery | |||||
| PC Cards | 2x PCMCIA/CardBus Slots (2x Type II/1x Type III) - ZoomVideo Support | |||||
| Networking | 56k Modem | |||||
| Other I/O | - 1x Parallel - 1x Serial - 1x VGA Out - 1x PS/2 - 1x Dock Connector - 1x USB 1.x - 1x External FDD Connector - 1x Mic In - 1x Line In - 1x Headphone Out - Infrared | |||||
| BIOS | Phoenix | Unknown | ||||
| Pointing Device | Trackpad or Fujitsu ErgoTrack | Trackpad | Trackpad or Fujitsu ErgoTrack | Trackpad | Fujitsu ErgoTrack | |
Resources
| Link | Details |
|---|---|
 |
Fujitsu Lifebook 700 Series User Manual (735Dx, 755Tx, 765Tx) |
|
Fujitsu Lifebook 700 Series User Manual (770Tx, 790Tx) |
 |
Fujitsu Lifebook 735Dx Product Specifications |
|
Fujitsu Lifebook 765Tx Product Specifications |
|
Fujitsu Lifebook 790Tx Product Specifications |
