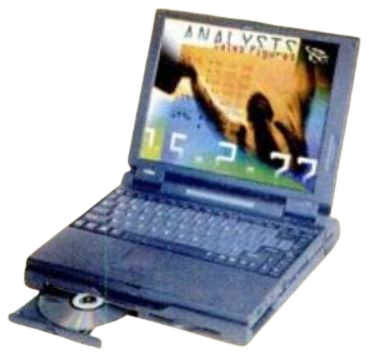

Fujitsu LifeBook 600 Series
The Fujitsu LifeBook 600 Series are Pentium-based ultralight laptops that were released in 1996, 1997, and 1998.
Specifications
| Spec | LifeBook 635T | LifeBook 635Tx | LifeBook 655Tx | LifeBook 656Tx | LifeBook 675Tx | LifeBook 690Tx |
|---|---|---|---|---|---|---|
| Release Date | November 1996 | 1997? | January 1997 | June 1997 | 1997? | April 1998 |
| CPU | CPU Type: Unknown Intel Pentium @133MHz | CPU Type: Unknown Intel Pentium MMX @133MHz | CPU Type: Unknown Intel Pentium MMX @150MHz | CPU Type: Unknown Intel Pentium MMX @200MHz | CPU Type: Unknown Intel Pentium MMX @266MHz | |
| Chipset | Unknown | |||||
| RAM | Type: SDRAM Standard: 16MB Maximum: 80MB | Type: SDRAM, 1 slot Standard: 32MB Maximum: 96MB | ||||
| Storage | 2.5" IDE Requires Adapter: Unknown Standard: 1.3GB | 2.5" IDE Requires Adapter: Unknown Standard: 2GB | 2.5" IDE Requires Adapter: Unknown Standard: 1.3GB | 2.5" IDE Requires Adapter: Unknown Standard: 2GB | 2.5" IDE Requires Adapter: Unknown Standard: 3.2GB | 2.5" IDE Requires Adapter: Unknown Standard: 4GB |
| Display Options | 12.1" Active Matrix LCD @800x600 | 12.1" Active Matrix LCD @1024x768 | ||||
| Graphics Chipset | Chips & Technologies VRAM: 2MB | Unknown VRAM: 2MB | ||||
| Audio | ESS AudioDrive 1878 - Mono Speaker - Microphone | Unknown 16-bit Stereo Sound - Mono Speaker - Microphone | ||||
| Main Battery | Lithium Ion | |||||
| CMOS Battery | Unknown | |||||
| Power Supply | Unknown | |||||
| Media Drives | None, supports external floppy drive and CD-ROM drive via media base | |||||
| PC Cards | 2x PCMCIA/CardBus Slots (2x Type II) - ZoomVideo Support | 2x PCMCIA/CardBus Slots (2x Type II/1x Type III) - ZoomVideo Support | ||||
| Networking | 28.8k Modem | 33.6k Modem | 56k Modem | |||
| Other I/O | - 1x Parallel - 1x Serial - 1x VGA Out - 1x PS/2 - 1x Port Replicator Connector - 1x External FDD Connector - 1x Line In - 1x Headphone Out - Infrared | - 1x Parallel - 1x VGA Out - 1x PS/2 - 1x Dock Connector - 2x USB 1.x - 1x External FDD Connector - 1x Mic In - 1x Line In - 1x Headphone Out - Infrared | ||||
| BIOS | Unknown | |||||
| Pointing Device | Trackpad | |||||
Resources
| Link | Details |
|---|---|
 |
Fujitsu Lifebook 600 Series User Manual |
