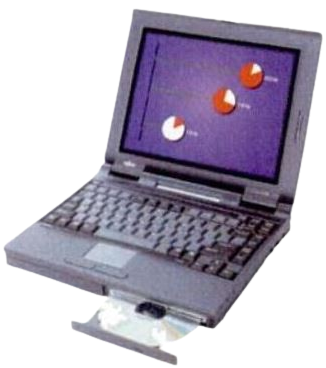

Fujitsu LifeBook 500 Series
The Fujitsu LifeBook 500 Series are Pentium-based laptops that were released in 1996 and 1997.
Specifications
| Spec | LifeBook 531T | LifeBook 535T | LifeBook 555Tx | LifeBook 565Tx | LifeBook 585Tx |
|---|---|---|---|---|---|
| Release Date | 1996 | January 1997 | June 1997 | 1997? | |
| CPU | CPU Type: Unknown Intel Pentium @133MHz | CPU Type: Unknown Intel Pentium MMX @150MHz | CPU Type: Unknown Intel Pentium MMX @166MHz | CPU Type: Unknown Intel Pentium MMX @233MHz | |
| Chipset | Unknown | ||||
| RAM | Type: EDO Standard: 16MB Maximum: 80MB | Type: EDO Standard: 32MB Maximum: 96MB | |||
| Storage | 2.5" IDE Requires Adapter: Unknown Standard: 1.3GB | 2.5" IDE Requires Adapter: Unknown Standard: 2GB | 2.5" IDE Requires Adapter: Unknown Standard: 4GB | ||
| Display Options | 11.3" Active Matrix LCD @800x600 | 12.1" Active Matrix LCD @800x600 | 12.1" Active Matrix LCD @1024x768 | ||
| Graphics Chipset | Chips & Technologies VRAM: 2MB | Trident VRAM: 2MB | |||
| Audio | ESS AudioDrive 1878 - Stereo Speakers - Microphone | ||||
| Main Battery | Lithium Ion | ||||
| CMOS Battery | Unknown | ||||
| Power Supply | Unknown | ||||
| Media Drives | Modular Bay supporting the following: - 3.5" 1.44MB Floppy Drive - 10X CD-ROM Drive - 2nd HDD - 2nd Battery | Modular Bay supporting the following: - 3.5" 1.44MB Floppy Drive - 20X CD-ROM Drive - 2nd HDD - 2nd Battery | |||
| PC Cards | 2x PCMCIA/CardBus Slots (2x Type II/1x Type III) - ZoomVideo Support | ||||
| Networking | 33.6k Modem | ||||
| Other I/O | - 1x Parallel - 1x Serial - 1x VGA Out - 1x PS/2 - 1x Port Replicator Connector - 1x External FDD Connector - 1x Mic In - 1x Line In - 1x Line Out - Infrared | - 1x Parallel - 1x Serial - 1x VGA Out - 1x PS/2 - 1x Port Replicator Connector - 1x External FDD Connector - 1x USB 1.x - 1x Composite Out - 1x S-Video Out - 1x Mic In - 1x Line In - 1x Headphone Out - Infrared | |||
| BIOS | Phoenix | Unknown | |||
| Pointing Device | Trackpad | ||||
Resources
| Link | Details |
|---|---|
 |
Fujitsu Lifebook 500 Series User Manual (565Tx, 585Tx) |
