Epson ActionNote 800 Series

Epson ActionNote 800 Series

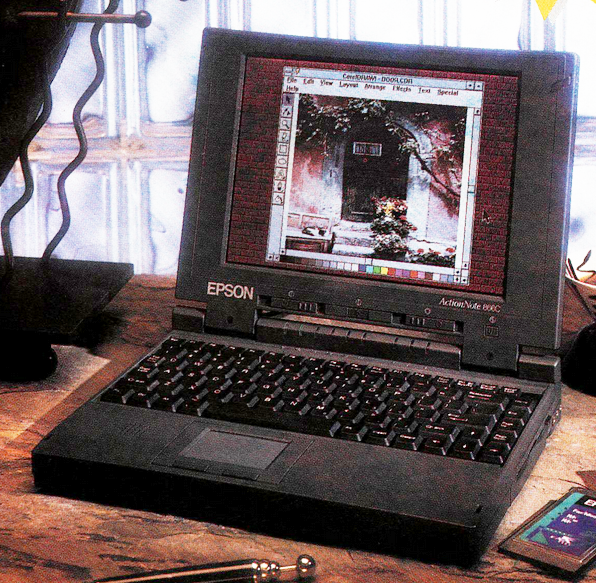

The ActionNote 800 Series were 486-based laptops that were released in 1995. They were manufactured for Epson by ASE, and were sold by at least one other company, so they were not exclusive to Epson.





I know the spec table is too far down the page, it was just too wide to fit around the image.

















Specifications

Spec 800 866C 880C 880CX 890 890C 890CX 895C 895CX
CPU Cyrix 486DX2 @66MHz Cyrix 486DX2 @80MHz Cyrix 486DX4 @100MHz
Chipset Unknown
RAM - 4 or 8MB Standard
- 24MB Maximum
- 8MB Standard
- 24MB Maximum
Hard Disk - IDE 2.5"
- 340MB Standard
- IDE 2.5"
- 540MB Standard
Display Options 9.5" Passive Matrix Grayscale (64-shades) @640x480 10.3" Passive Matrix Color (256 Color) @640x480 10.4" Active Matrix Color (256 Color) @640x480 9.5" Passive Matrix Grayscale (64-shades) @640x480 10.4" Passive Matrix Color (256 Color) @640x480 10.4" Active Matrix Color (256 Color) @640x480 10.4" Passive Matrix Color (256 Color) @640x480 10.4" Active Matrix Color (256 Color) @640x480
Graphics Chipset Chips & Technologies 65535, 512K VRAM
Audio 16-bit Sound Blaster Compatible (Optional, unknown vendor) 16-bit Sound Blaster Compatible (Standard, unknown vendor)
Main Battery NiMH, 2.4AH
CMOS Battery Unknown
Power Supply Barrel Jack
Disk Drives 3.5" 1.44MB Floppy Drive
PC Cards 2x PCMCIA Slots (2x Type II/1x Type III)
Networking Modem (Optional) Modem (Standard)
Other I/O - 1x Serial
- 1x Parallel
- 1x VGA Out
- 1x PS/2
- 1x Port Replicator Connector
- 1x Line In
- 1x Line Out
- 1x Mic In
BIOS Phoenix Unknown
Pointing Device Trackpad

Gallery

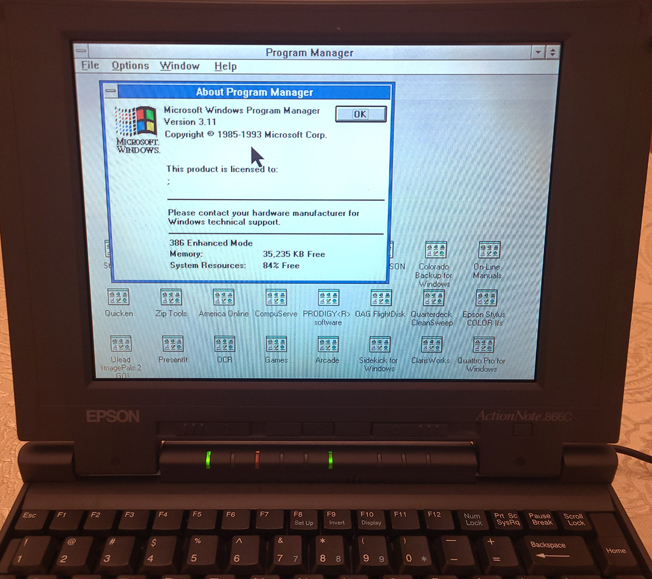

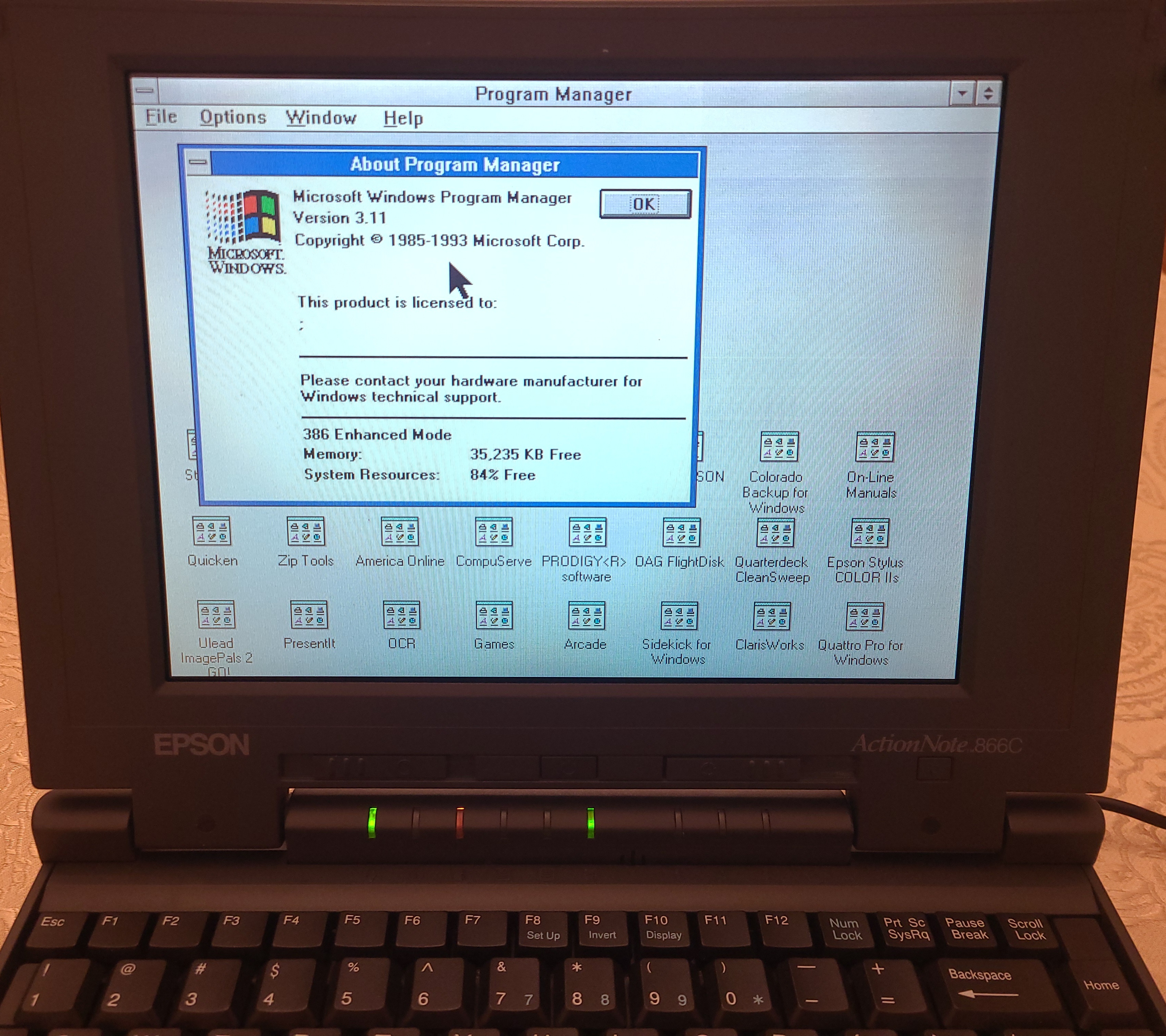

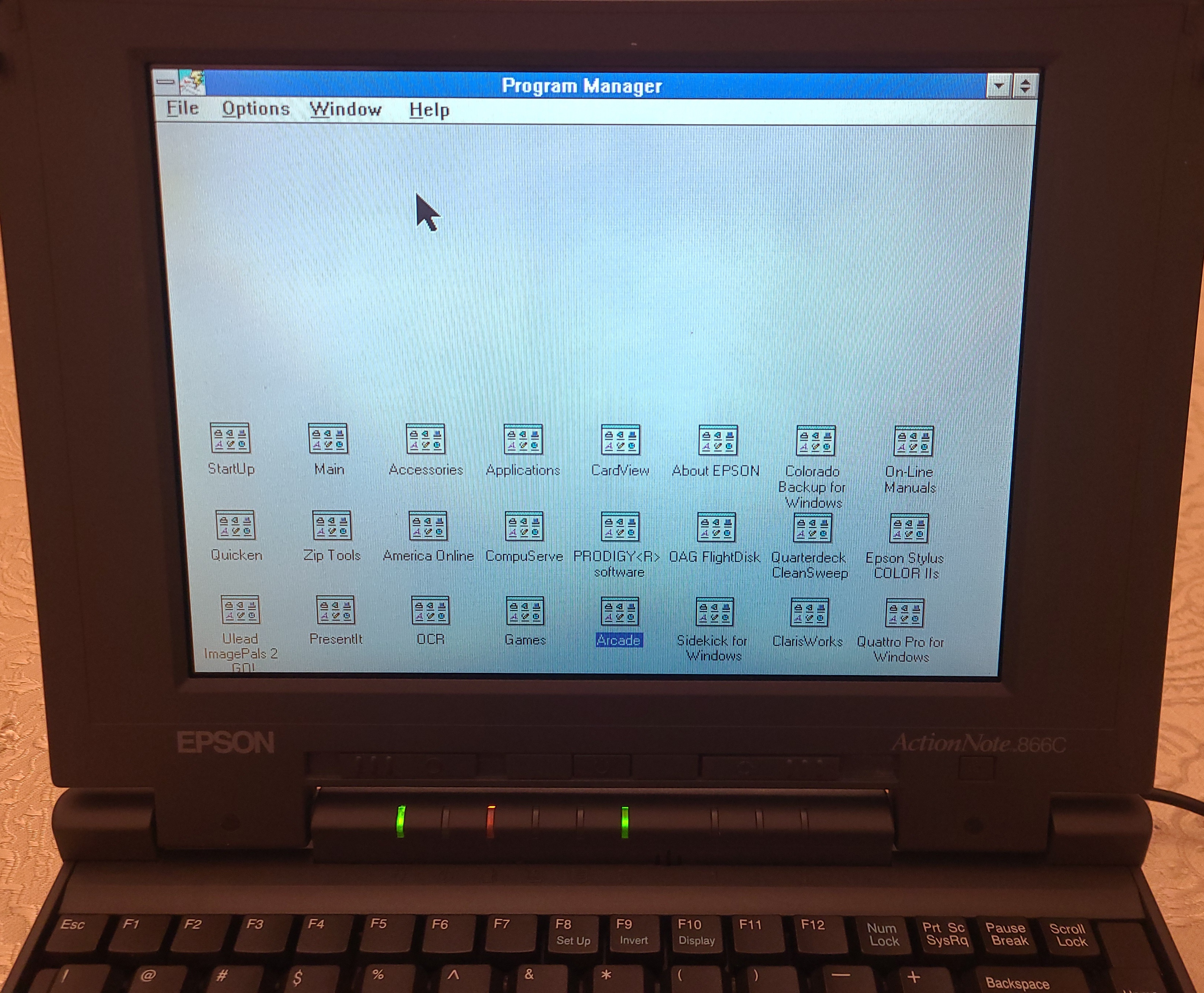

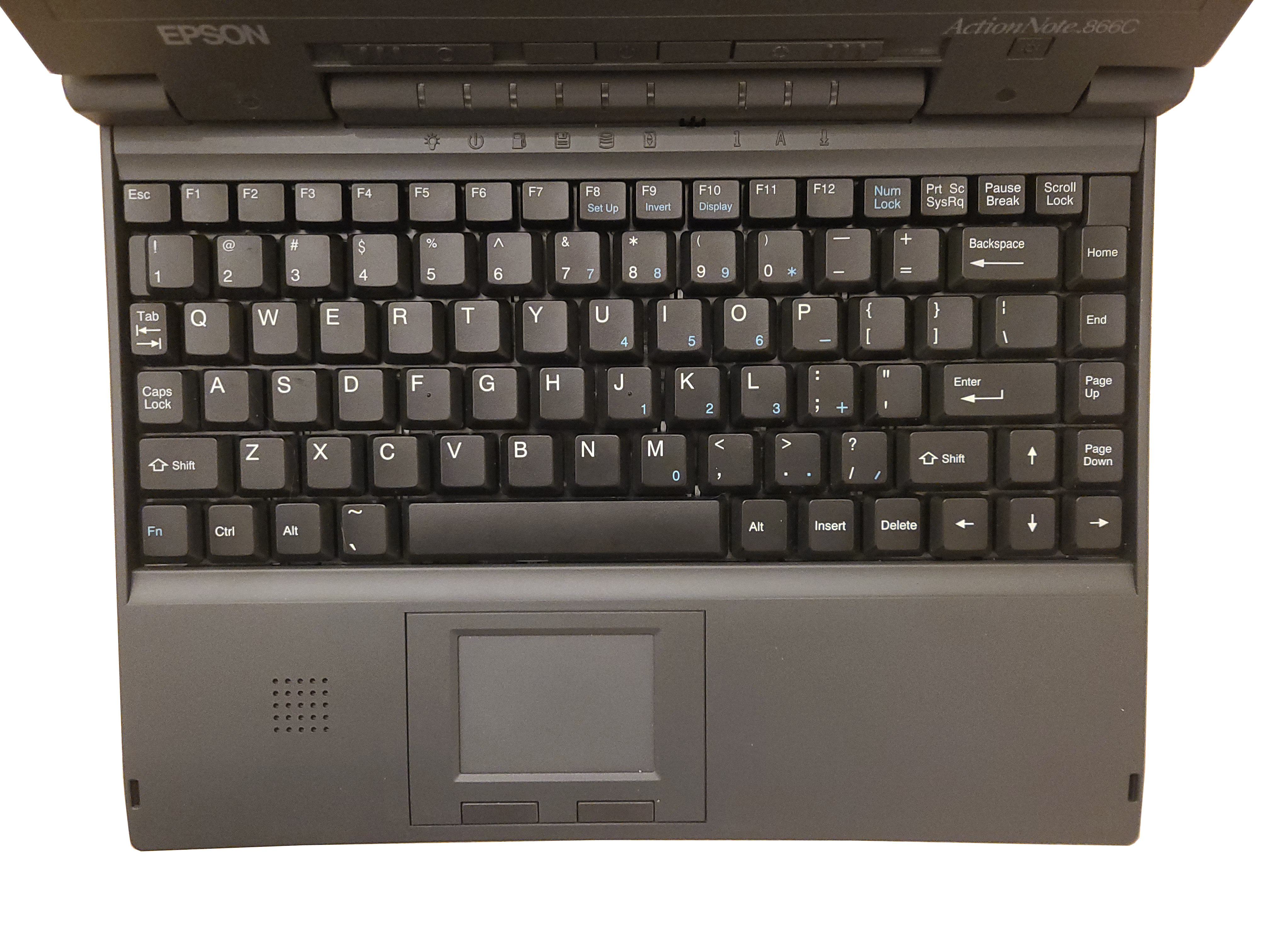

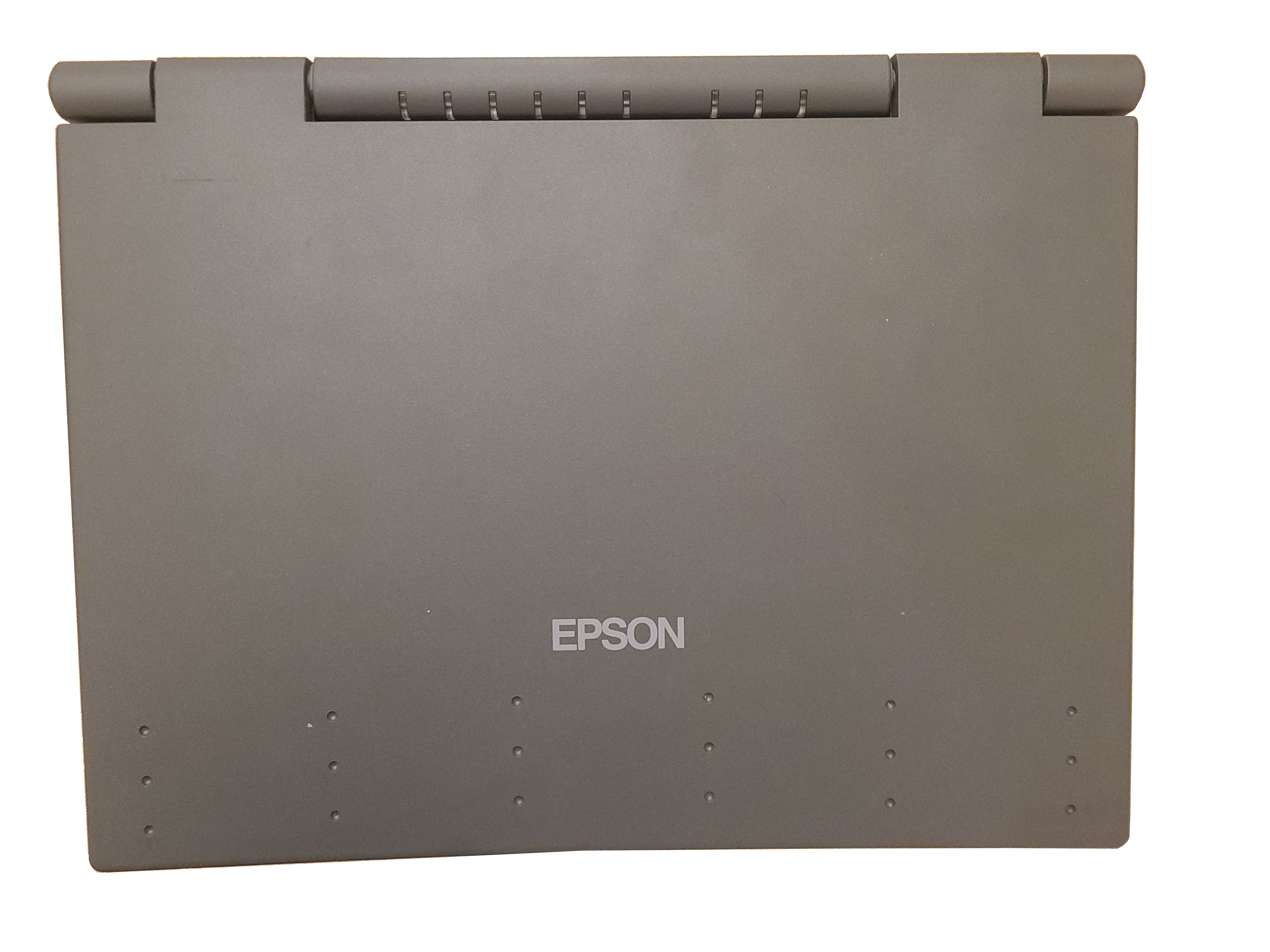

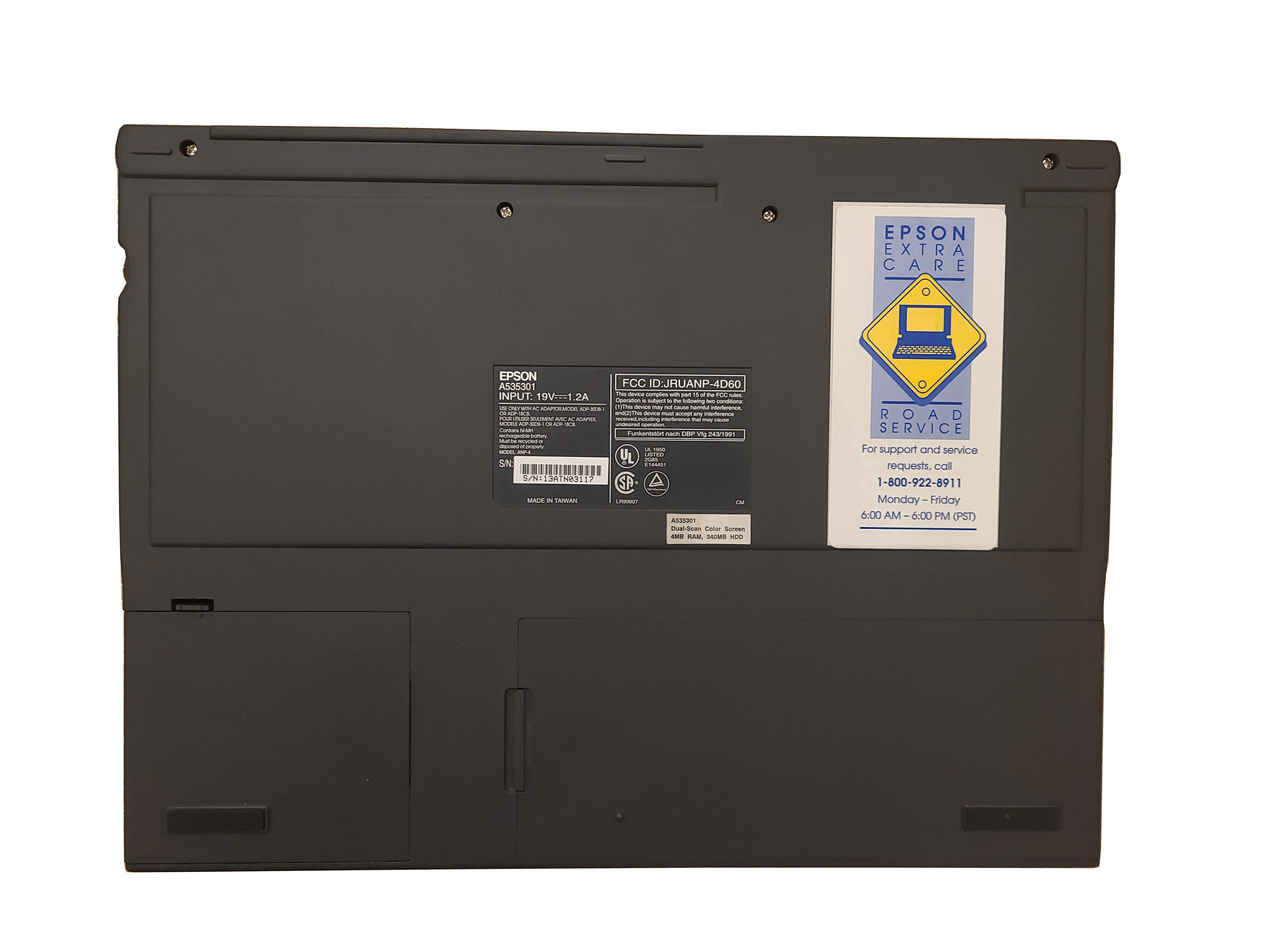

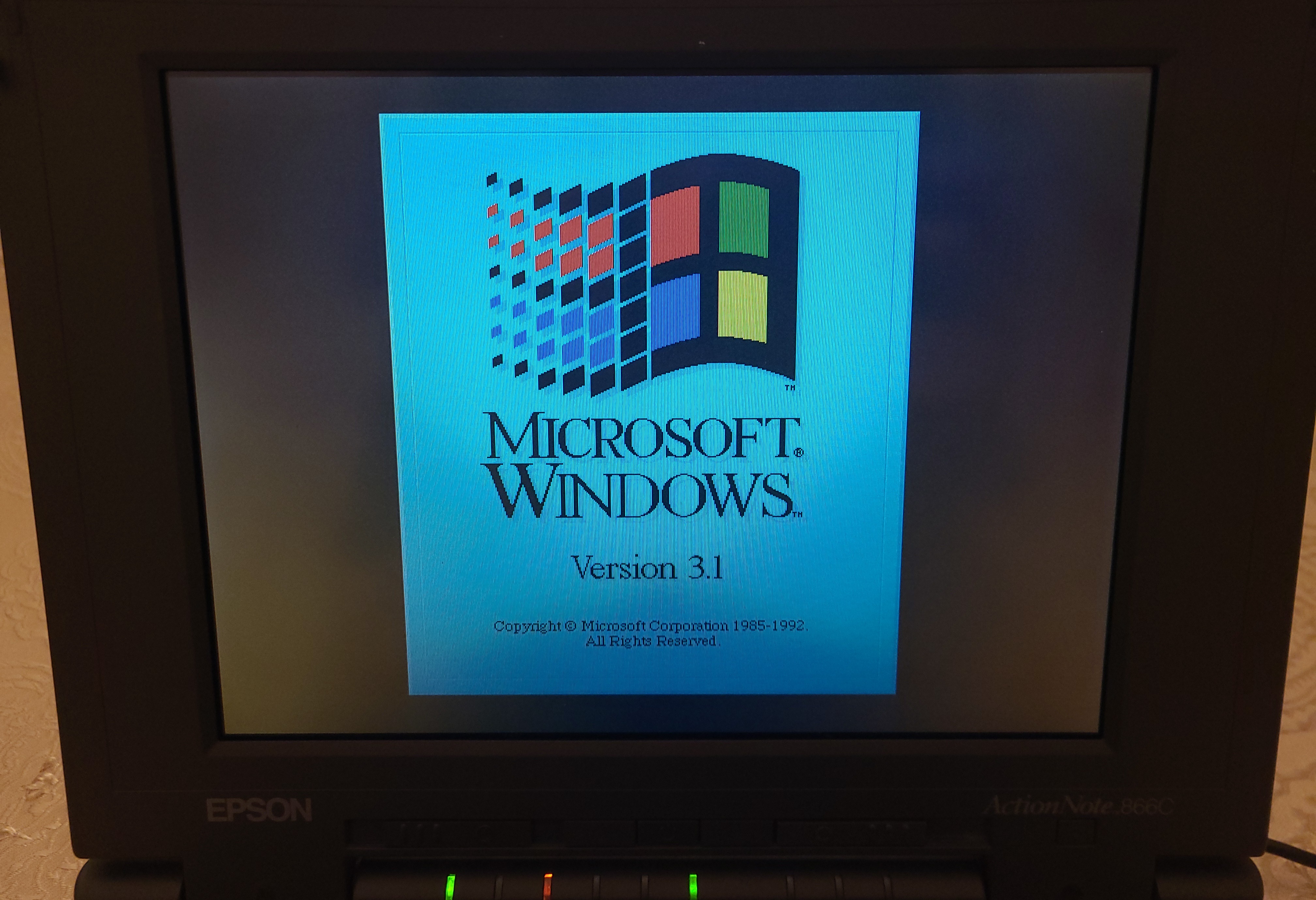

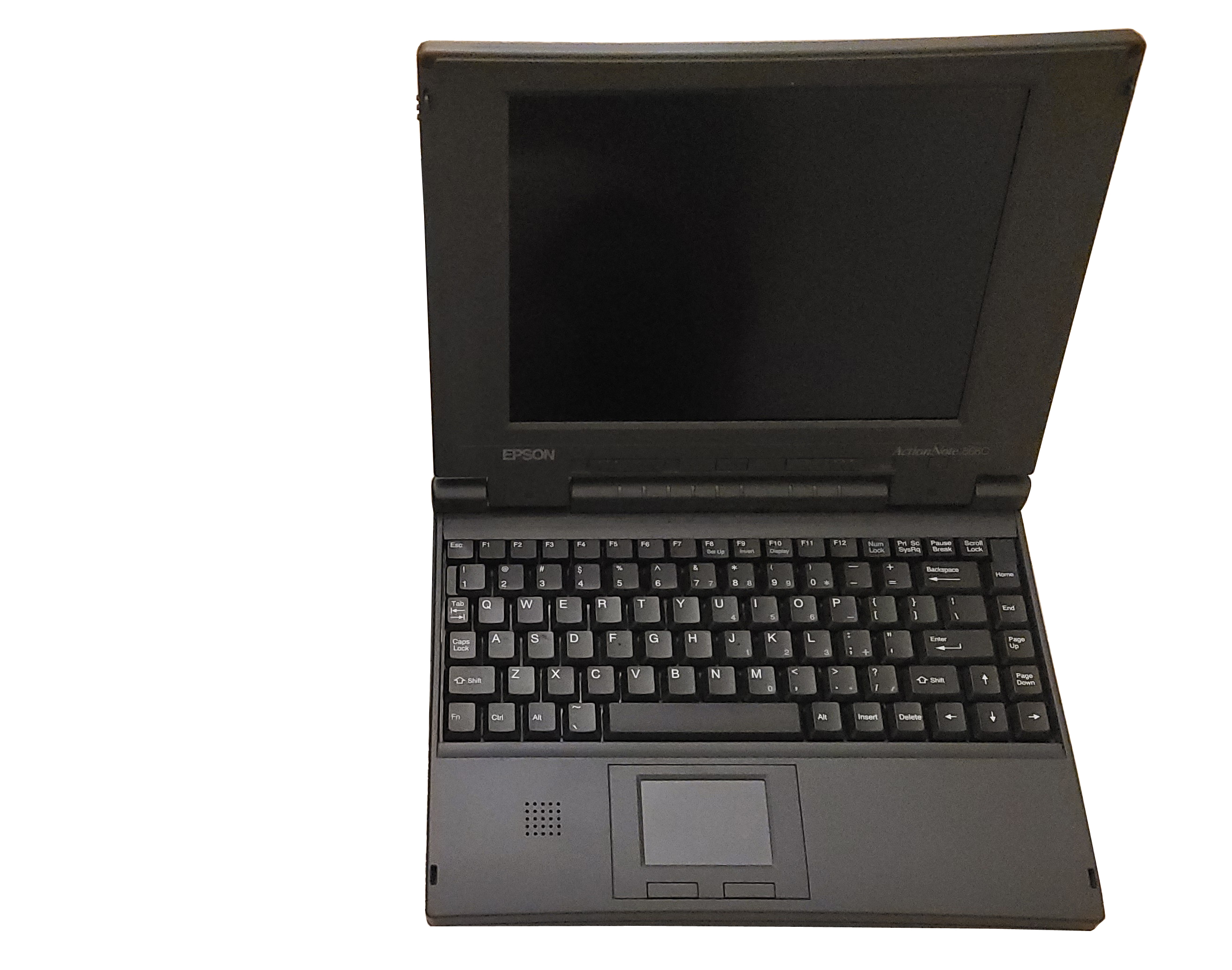

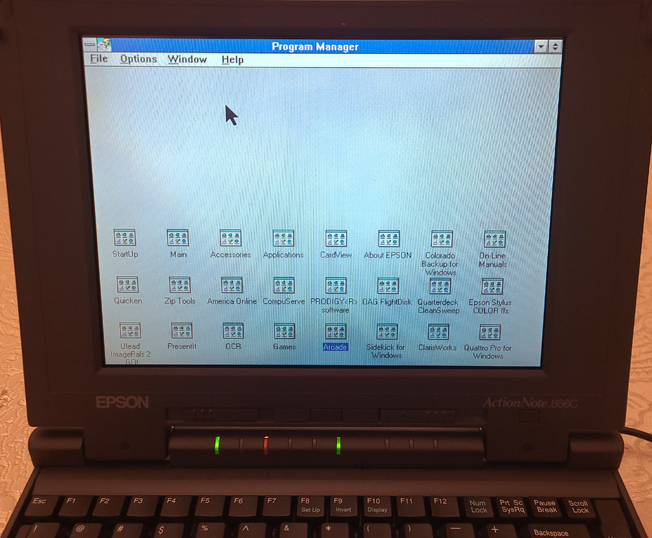

Photos from Chris Logan.









Page last updated (MM/DD/YYYY): 03/05/2025
Update Reason: added image gallery
