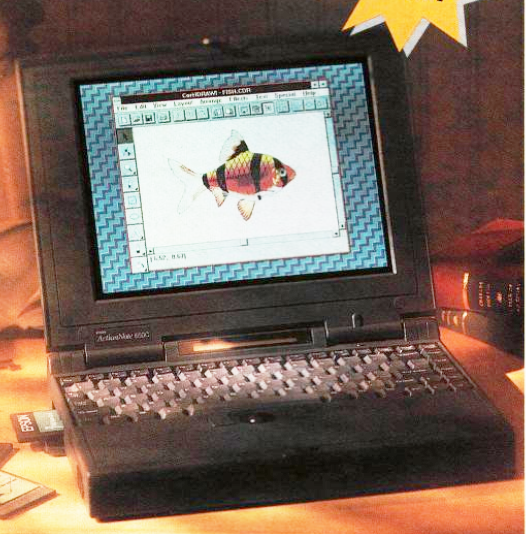

Epson ActionNote 650/660 Series
The ActionNote 650 and 660 Series are 486 laptops that were released in 1995. The series was manufactured by Compal, and are just rebadged versions of generic Compal designs, not ones custom-made by Epson. The 650 is a Compal TS30A and the 650C and 660C are both the Compal TS30AS. The 660CX is probably also a TS30AS.
Specifications
| Spec | 650 | 650C | 660C | 660CX |
|---|---|---|---|---|
| CPU | Cyrix 486DX2 @50MHz | 486DX2 @66MHz | ||
| Chipset | Unknown | |||
| RAM | - 4MB Standard - 20MB Maximum |
- 4MB Standard - 20MB Maximum |
- 8MB Standard - 20MB Maximum |
|
| Hard Disk | - IDE 2.5" - 260MB Standard |
- IDE 2.5" - 340MB Standard |
||
| Display Options | 9.4" Passive Matrix Grayscale @640x480 | 10.3" DSTN/Passive Matrix Color @640x480 | 9.5" TFT/Active Matrix Color @640x480 | |
| Graphics Chipset | - Unknown vendor - 512K VRAM |
- Chips & Technologies 65540 - 512K VRAM |
- Unknown vendor - 512K VRAM |
|
| Audio | PC Speaker Only | |||
| Main Battery | NiMH, 12V 2600mAH | |||
| CMOS Battery | Unknown | 3-cell NiMH VARTA, soldered | ||
| Power Supply | - Proprietary 3-pin - Part Number: TSA3 (make sure it has the 3-pin connector on it, not a barrel jack. I've seen a TSA3 adapter with a barrel jack) |
|||
| Disk Drives | 3.5" 1.44MB Floppy Drive | |||
| PC Cards | 2x PCMCIA Slots (2x Type II/1x Type III) | |||
| Networking | None built-in | |||
| Other I/O | - 1x Serial - 1x Parallel - 1x VGA Out - 1x PS/2 |
|||
| BIOS | SystemSoft | |||
| Pointing Device | Trackball | |||
