ECS Green733/733E/733G

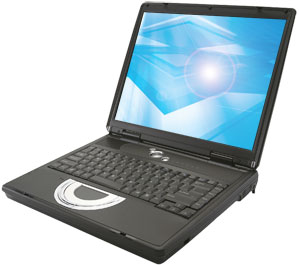

The ECS Green733 is a Pentium 4 desktop replacement laptop that was released in 2003. It is to my understanding that the Green733 is very architecturally similar to the other Green73x laptops, but it has a very different case. There were at least 3 revisions of the Green733, including the original, 733E, and 733G. The main differences between the revisions appears to be processor support.
Specifications
| Spec | Green733 | Green733E | Green733G |
|---|---|---|---|
| CPU | Socket 478 - Intel Pentium 4 "Northwood" (400 or 533MHz FSB) - Intel Celeron |
Socket 478 - Intel Pentium 4 (400MHz FSB), up to 2.8GHz - Intel Pentium 4 (533MHz FSB), up to 3.06GHz - Intel Pentium 4 (800MHz FSB), up to 3.0GHz |
LGA 775 - Intel Pentium 4 "Prescott" 520, 530, or 540 (2.8/3.0/3.2GHz) - Intel Celeron D 320, 325, 330, 335, or 340 (2.4/2.53/2.66/2.8/2.93GHz) |
| Chipset | SiS 651 + SiS 962 | SiS M661FX + 963 | |
| RAM | 1x DDR Slot - 1GB Max |
1x DDR Slot - 512MB Max |
|
| Hard Disk | 2.5" IDE | ||
| Display Options | 14.1" TFT LCD @1024x768 - 15.0" TFT LCD @1024x768 |
||
| Graphics Chipset | SiS 651 Chipset Graphics - Up to 64MB shared (SMA) VRAM |
SiS M661FX Chipset Graphics - Up to 64MB shared (SMA) VRAM |
|
| Audio | Unknown Vendor - AC97 supported - Stereo Speakers |
||
| Main Battery | 8 or 12 cell Lithium Ion | ||
| CMOS Battery | Unknown | ||
| Power Supply | Barrel Jack | ||
| Disk Drives | Optical Drive built-in | ||
| PC Cards | 1x PCMCIA/CardBus slot, ZoomVideo supported | 1x PCMCIA/CardBus slot | |
| Networking | - 10/100 Ethernet built-in - MiniPCI Modem |
- 10/100 Ethernet built-in - Modem built-in - Optional WiFi |
|
| Other I/O | - 2x USB 2.0 - 1x Parallel - 1x VGA Out - 1x Line Out - 1x Line In - 1x S-Video Out - 1x IEEE1394/FireWire - Infrared |
||
| BIOS | AMI | ||
| Pointing Device | Trackpad | ||
Page last updated (MM/DD/YYYY): 11/12/2024
Update Reason: page formatting updated
