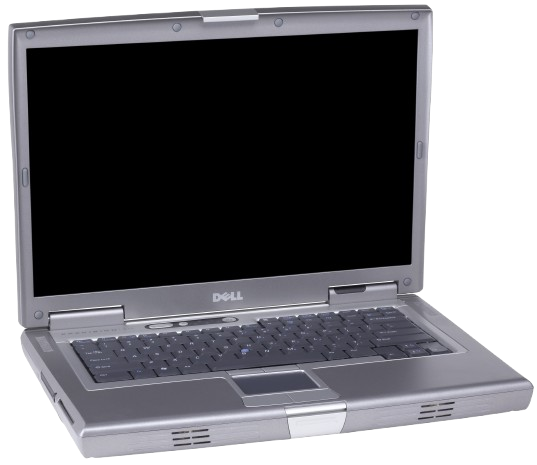

Dell Precision M70
The Precision M70 is a Pentium M-based mobile workstation laptop that was released by Dell in 2005. The M70 is essentially just a souped-up Latitude D810.
Specifications
| Spec | Details |
|---|---|
| CPU | CPU Type: Socket 479 (Banias/Dothan) Intel Pentium M @1.6, 1.86, 2.0, 2.13, or 2.26GHz |
| Chipset | Intel 915PM |
| RAM | Type: DDR2, 2 slots Standard: 512MB, 1GB, or 2GB Maximum: 2GB |
| Hard Disk | 2.5" IDE Uses proprietary adapter?: Yes Standard: 40, 60, 80, or 100GB |
| Display Options | - 15.4" TFT LCD @1280x800 - 15.4" TFT LCD @1680x1050 - 15.4" TFT LCD @1920x1200 |
| Graphics Chipset | NVIDIA Quadro FX Go1400 VRAM: 256MB |
| Audio | Sigmatel STAC9751 - Stereo Speakers - Microphone |
| Main Battery | Lithium Ion (9 cell) |
| CMOS Battery | Lithium |
| Power Supply | Dell Large Barrel Jack - Dell PA-10 or PA-12 |
| Disk Drives | Latitude D-Series Modular Bay (D-Bay) |
| PC Cards | 1x PCMCIA/CardBus Slot (Type II) - TI 6515 Controller |
| Networking | - Modem - Gigabit Ethernet - WiFi - Bluetooth (Optional) |
| Other I/O | - 4x USB 2.0 - 1x Serial - 1x VGA Out - 1x S-Video Out - 1x Dock Connector - 1x Smart Card Slot - 1x Mic In - 1x Headphone Out - Infrared |
| BIOS | Dell BIOS |
| Pointing Device | Trackpad & TrackPoint |
Resources
 Drivers |
 User Manual |
 Service Manual |
|---|
Gallery
No images are currently available. If you own an M70, help the site out by sending some in!
Page last updated (MM/DD/YYYY): 01/16/2025
Update Reason: image added
