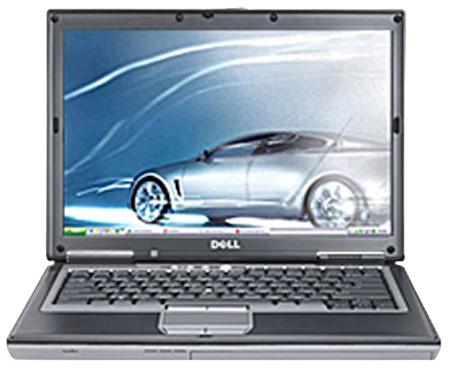

Dell Precision M2300
The Precision M2300 is a Core 2 Duo-based 14-inch mobile workstation laptop, released by Dell in 2007. The M2300 was essentially just a souped-up Latitude D630.
Specifications
| Spec | Details |
|---|---|
| CPU | CPU Type: Socket P - Intel Core 2 Duo T7250 @2.0GHz - Intel Core 2 Duo T7500 @2.2GHz - Intel Core 2 Duo T7700 @2.4GHz - Intel Core 2 Duo T7800 @2.6GHz |
| Chipset | Intel PM965 Express |
| RAM | Type: DDR2, 2 slots Standard: 1, 2, or 4GB Maximum: 5.83GB (2x4GB sticks work, but usable RAM is limited) |
| Hard Disk | 2.5" SATA Uses proprietary adapter?: No Standard: - 80, 120, or 160GB HDD - 32GB SSD |
| Display Options | 14.1" TFT LCD @1440x900 |
| Graphics Chipset | NVIDIA Quadro FX 360M VRAM: 128MB |
| Audio | IDT STAC9205 |
| Main Battery | Lithium Ion (6 or 9 cell) |
| CMOS Battery | Lithium |
| Power Supply | Barrel Jack |
| Disk Drives | Latitude D-Series Modular Bay (D-Bay) |
| PC Cards | 1x PCMCIA/CardBus Slot |
| Networking | - 56k Modem - Gigabit Ethernet - WiFi (Optional) - Bluetooth (Optional) - WWAN (Optional) |
| Other I/O | - 4x USB 2.0 - 1x Serial - 1x VGA Out - 1x IEEE1394/FireWire - 1x Dock Connector - 1x Line Out - 1x Mic In - Smart Card Slot |
| BIOS | Dell BIOS |
| Pointing Device | Trackpad & TrackPoint |
Resources
 Drivers |
 User Manual |
 Service Manual |
 Schematic |
|---|
Gallery
No images are currently available. If you own an M2300, help the site out by sending some in!
