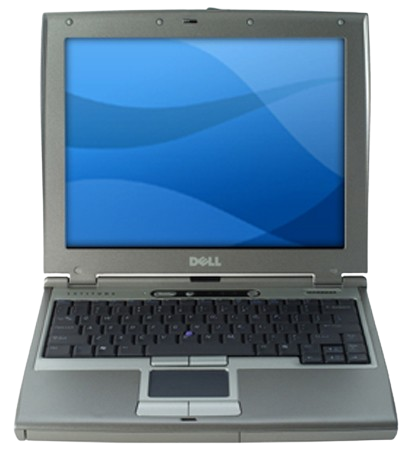

Dell Latitude D400
The Latitude D400 is a 12" Pentium M-based ultraportable laptop that was released in 2003.
Specifications
| Spec | Details |
|---|---|
| CPU | CPU Type: Unknown Intel Pentium M @1.4 or 1.7GHz |
| Chipset | Intel 855GM |
| RAM | Type: DDR, 2 slots Standard: Unknown Maximum: 2GB |
| Hard Disk | 2.5" IDE Uses proprietary adapter?: Yes Standard: 20, 30, 40, or 60GB |
| Display Options | 12.1" TFT LCD @1024x768 |
| Graphics Chipset | Intel 855GM Chipset Graphics VRAM: Up to 64MB shared/SMA |
| Audio | AC97 - Mono Speaker |
| Main Battery | Lithium Ion (4 or 6 cell) |
| CMOS Battery | 6-cell Varta NiMH |
| Power Supply | Barrel Jack |
| Disk Drives | None, supports external D-Bay modules |
| PC Cards | 1x PCMCIA/CardBus Slot - TI PCI7510 Controller |
| Networking | - Modem - Gigabit Ethernet - WiFi - Bluetooth (Optional) |
| Other I/O | - 1x Serial - 1x VGA Out - 2x USB 2.0 (1 doubles as external d-bay connector) - 1x Mic In - 1x Line Out - 1x IEEE1394/FireWire - Infrared |
| BIOS | Dell BIOS (Phoenix-based) |
| Pointing Device | Trackpad & TrackPoint |
Resources
 Drivers |
 User Manual |
 Service Manual |
 Schematic |
|---|
Gallery
No images are currently available. If you own a D400, help the site out by sending some in!
Page last updated (MM/DD/YYYY): 11/14/2024
Update Reason: image replaced
