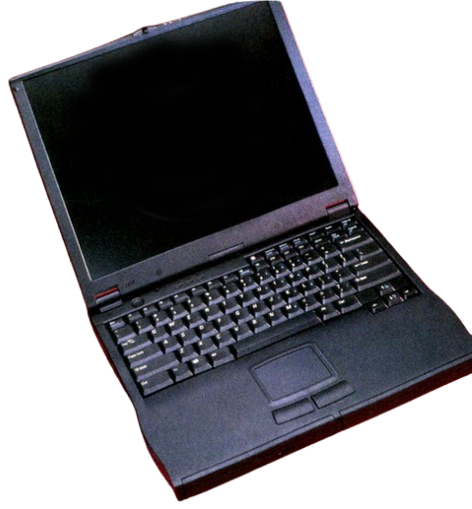

Dell Inspiron 3500
The Inspiron 3500 is a Pentium II-based laptop, released in November 1998. The 3500 was manufactured for Dell by Compal, and was based on Compal's TS30T.
Specifications
| Spec | Details |
|---|---|
| CPU | CPU Type: Unknown - Intel Mobile Pentium II @233, 266, 300, or 333MHz - Intel Celeron @300, 333, or 366MHz |
| Chipset | Unknown |
| RAM | Type: SDRAM Standard: 32 or 64MB Maximum: 256MB |
| Hard Disk | 2.5" IDE Uses proprietary adapter?: Unknown Standard: 3.2, 4.0, 4.3, 6.4, or 10GB |
| Display Options | - 13.3" Active Matrix LCD @1024x768 - 14.1" Active Matrix LCD @1024x768 |
| Graphics Chipset | NeoMagic MagicMedia 256AV (NM2200) VRAM: 2.5MB |
| Audio | NeoMagic NM3298 |
| Main Battery | Lithium Ion |
| CMOS Battery | Unknown |
| Power Supply | Barrel Jack |
| Disk Drives | Modular Bay supporting the following: - 3.5" 1.44MB Floppy Drive - CD-ROM Drive - DVD-ROM Drive - 2nd Battery |
| PC Cards | 2x PCMCIA Slots |
| Networking | Modem |
| Other I/O | - 1x Parallel - 1x Serial - 1x VGA Out - 1x PS/2 - 1x Dock Connector - 1x USB 1.x - 1x Line Out - 1x Line In - 1x Mic In - Infrared |
| BIOS | Phoenix |
| Pointing Device | Trackpad |
Resources
 Drivers |
 User's Manual |
 Service Manual |
|---|
Gallery
No images are currently available. If you own an Inspiron 3500, help the site out by sending some in!
Page last updated (MM/DD/YYYY): 10/26/2024
Update Reason: page converted to php
