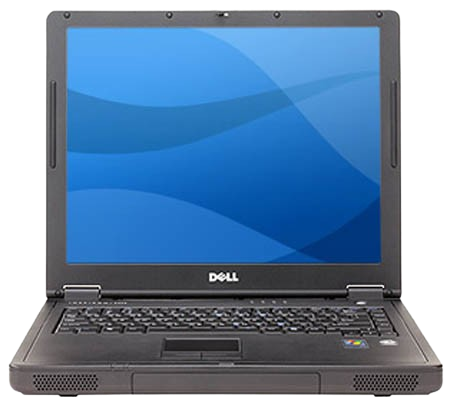

Dell Inspiron 2200
Case Model: PP10S
The Inspiron 2200 is an Intel-based laptop that was released in 2005.
Specifications
| Spec | Details |
|---|---|
| CPU | CPU Type: Socket 478 (Banias/Dothan) - Intel Pentium M @1.6GHz - Intel Celeron M @1.4 or 1.5GHz |
| Chipset | Intel 910GML |
| RAM | Type: DDR, 1 slot Standard: Unknown Maximum: 1280MB |
| Hard Disk | 2.5" IDE Uses proprietary adapter?: Yes Standard: Unknown |
| Display Options | - 14.1" TFT LCD @1024x768 - 15.0" TFT LCD @1024x768 |
| Graphics Chipset | Intel GMA 900 VRAM: Up to 64MB shared/SMA |
| Audio | Sigmatel STAC9752AT |
| Main Battery | Lithium Ion or NiMH (both 8 cell) |
| CMOS Battery | Unknown |
| Power Supply | Barrel Jack |
| Disk Drives | 3 Spindle - 3.5" 1.44MB Floppy Drive - CD-ROM, DVD-ROM, CD-RW, or DVD/CD-RW Drive |
| PC Cards | 1x PCMCIA/CardBus Slot |
| Networking | - Modem - 10/100 Ethernet |
| Other I/O | - 3x USB 2.0 - 1x VGA Out - 1x Mic In - 1x Line Out |
| BIOS | Dell BIOS (Phoenix-based) |
| Pointing Device | Trackpad |
Resources
 Drivers |
 Service Manual |
|---|
Gallery
No images are currently available. If you own an Inspiron 2200, help the site out by sending some in!
