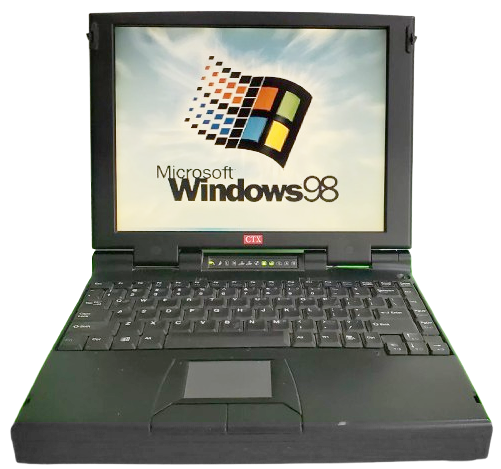

CTX EzBook 700E Series

Seemingly about the same design-wise as the 700 Series but with faster Pentium MMX processors, an AMD option, and other internal component changes and improvements. It also replaced the secondary LCD in between the display hinges with a series of LEDs.

Above is an image of one of the CTX website pages for the 700E. Each one of those links is a separate model in the series, and each model has VERY minor differences. Even something as small as shipping with an included PCMCIA modem would lead to another model name. The laptop itself when ordered would only say EzBook 700E on it. I think the full model number would probably only appear on the serial number, maybe as a way to track the shipping configuration of each laptop for warranty and support? In any case, I'm not writing out here the differences between each one.

Specifications

Spec	Details
CPU	CPU Type: Socket 7 - Intel Pentium MMX @200, 233, or 266MHz - AMD K6-2 @233 or 400MHz
Chipset	Unknown

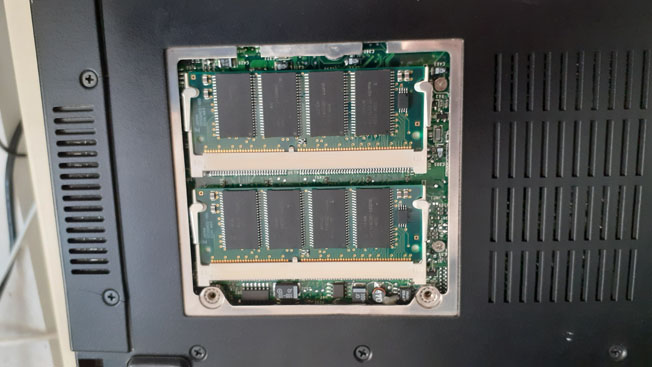

RAM	Type: 2x 144pin EDO Slots (may support SDRAM) Standard: Unknown Maximum: 128MB
Hard Disk	IDE 2.5" Uses proprietary adapter?: Yes Standard: 2 or 4GB

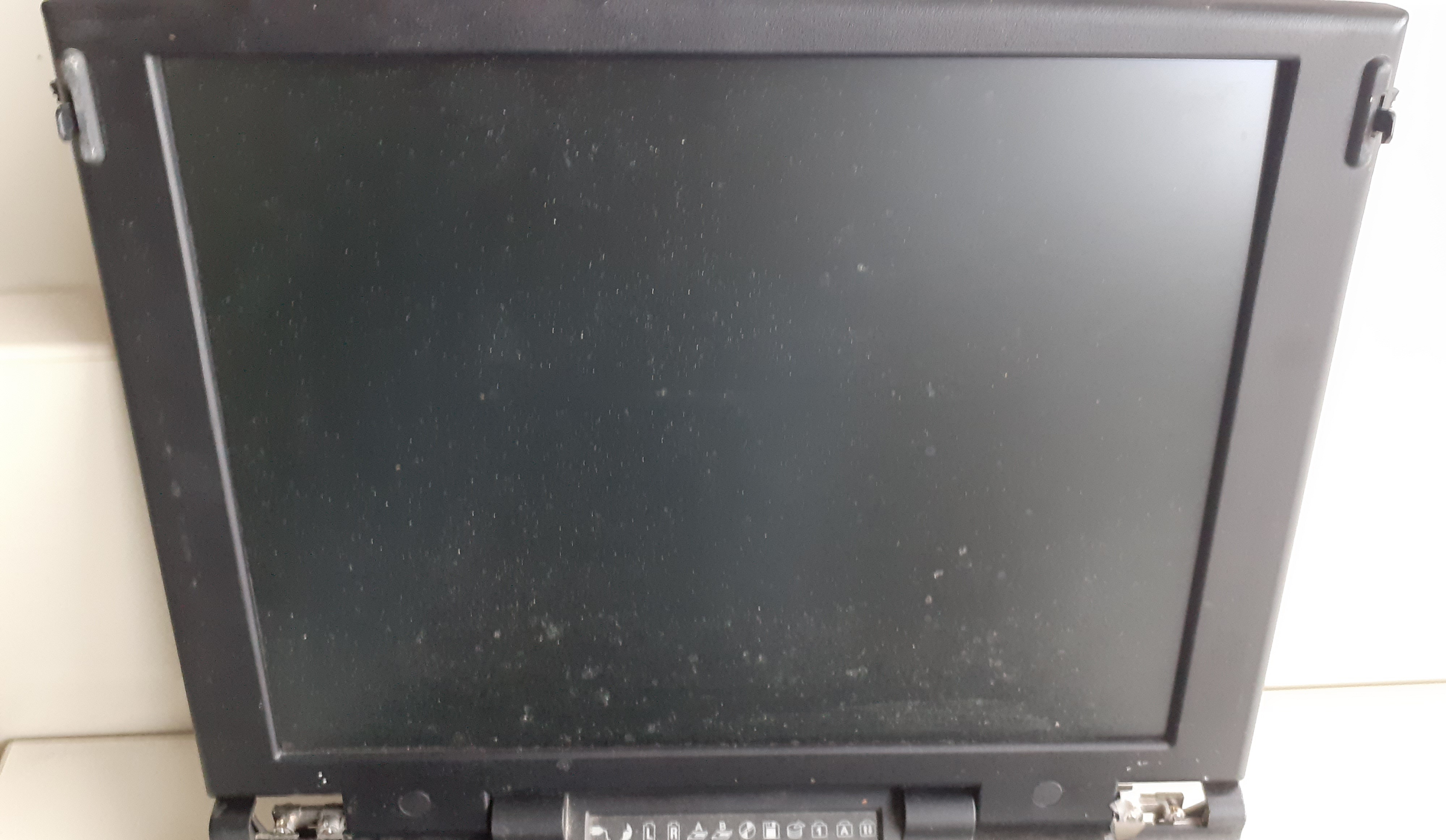

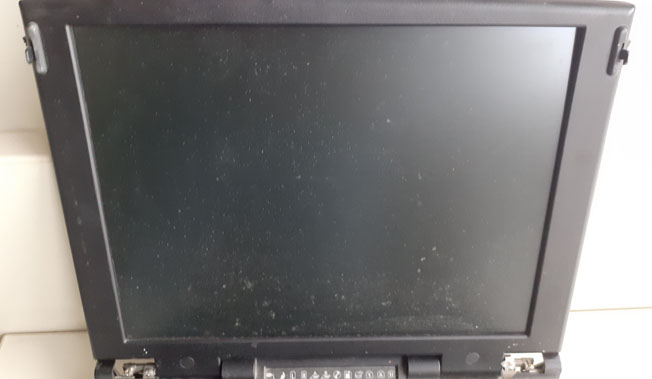

Display Options	12.1" Active Matrix LCD @800x600
Graphics Chipset	NeoMagic MagicGraph 128XD (NM2160) VRAM: Unknown
Audio	ESS AudioDrive 1869

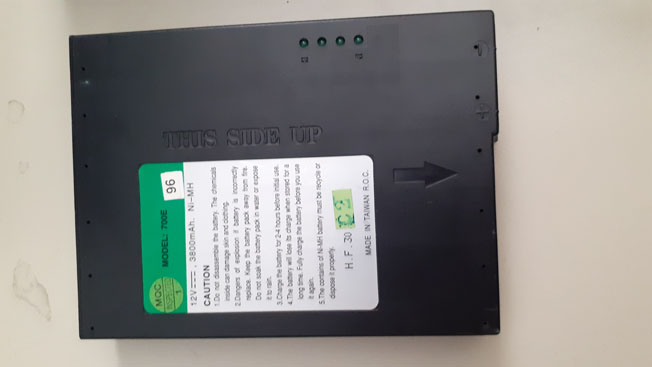

Main Battery	NiMH (3800mAH 33.6W)
CMOS Battery	Unknown
Power Supply	Barrel Jack, 20V

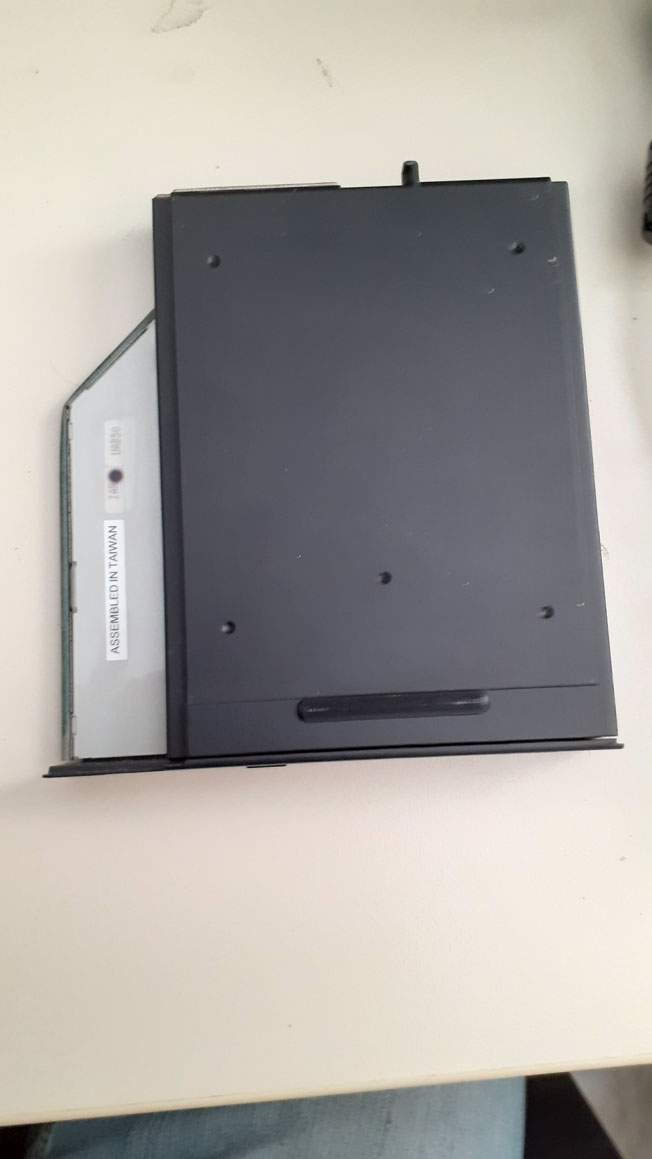

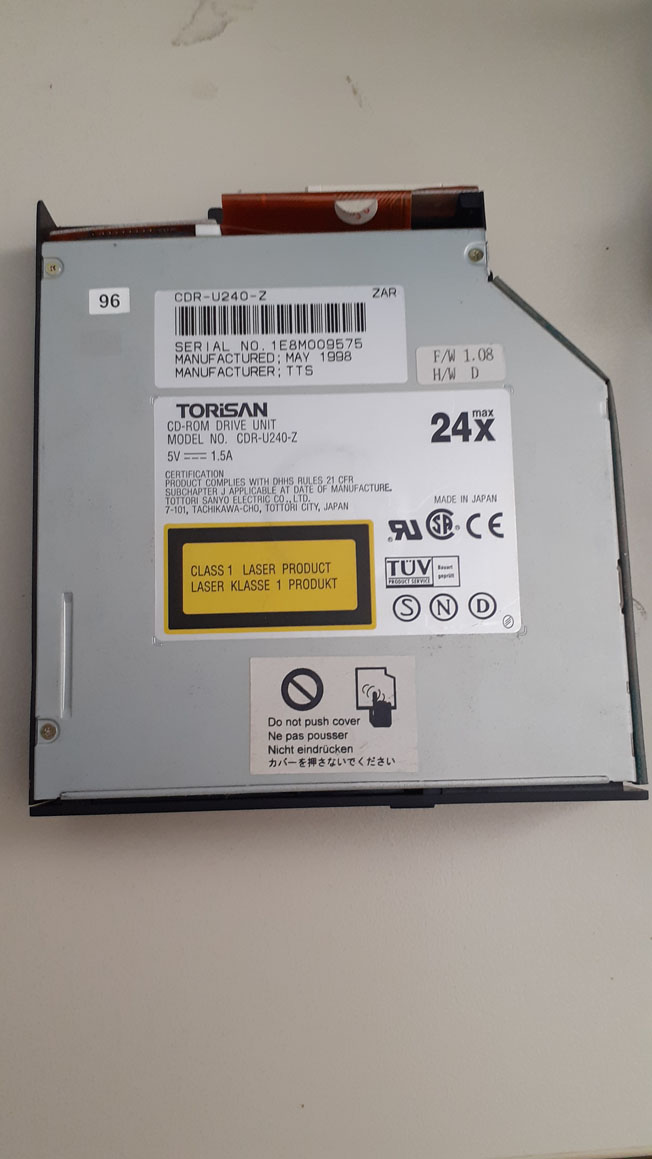

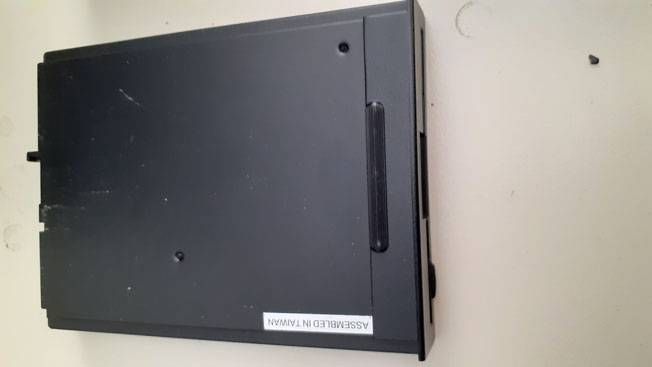

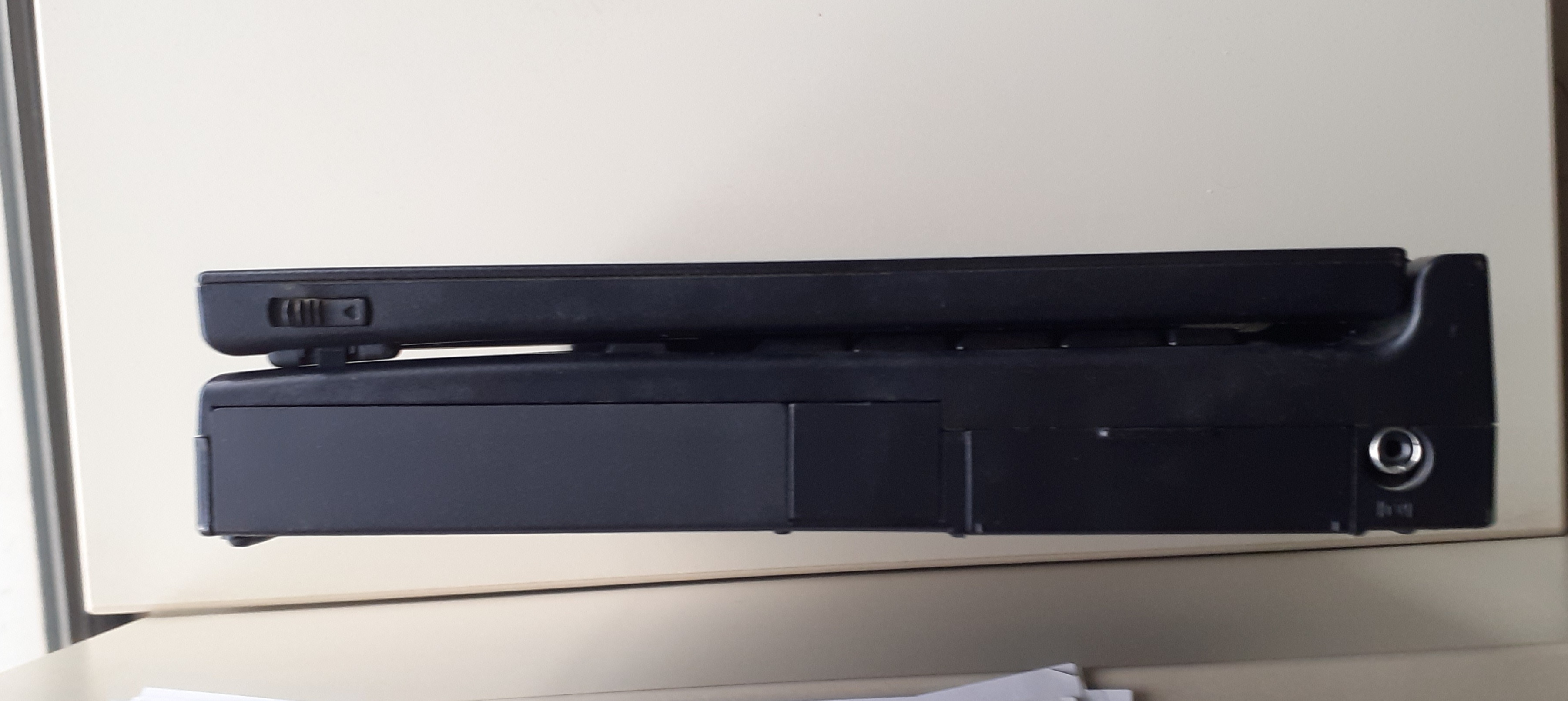

Disk Drives	Dual Modular Bays - Left bay holds floppy drive or battery - Right bay holds CD-ROM drive or battery
PC Cards	2x PCMCIA/CardBus Slots
Networking	None

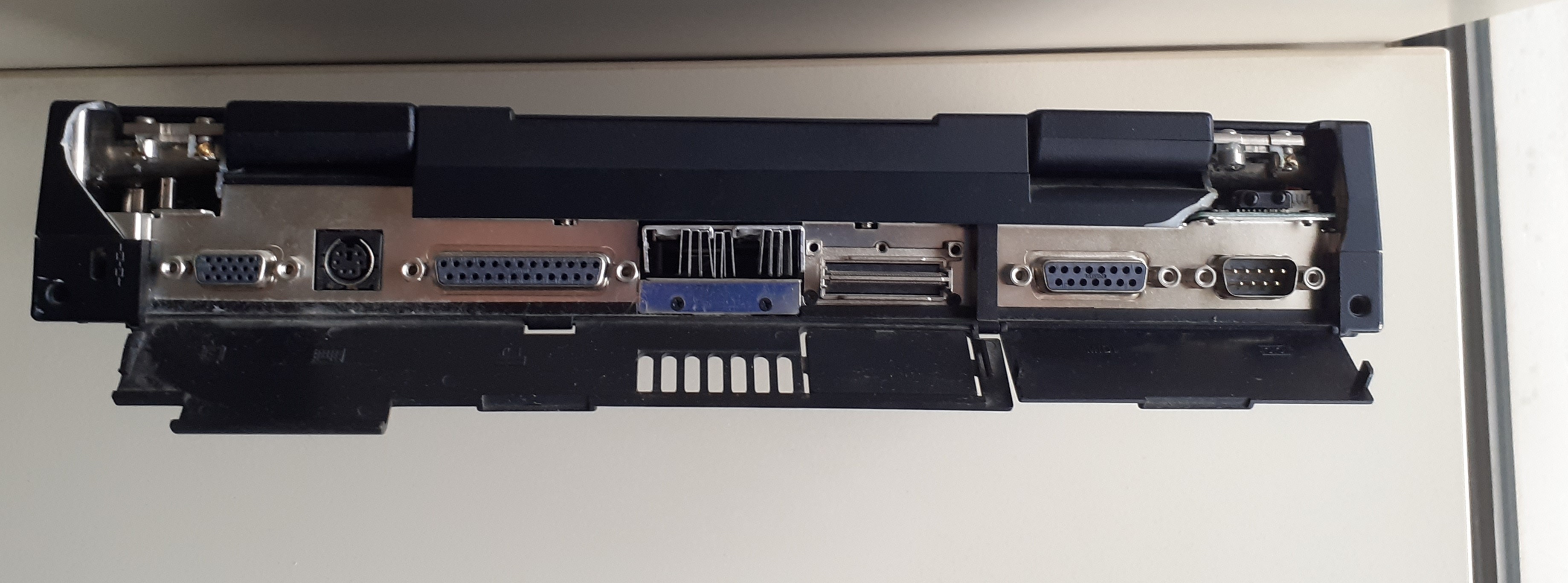

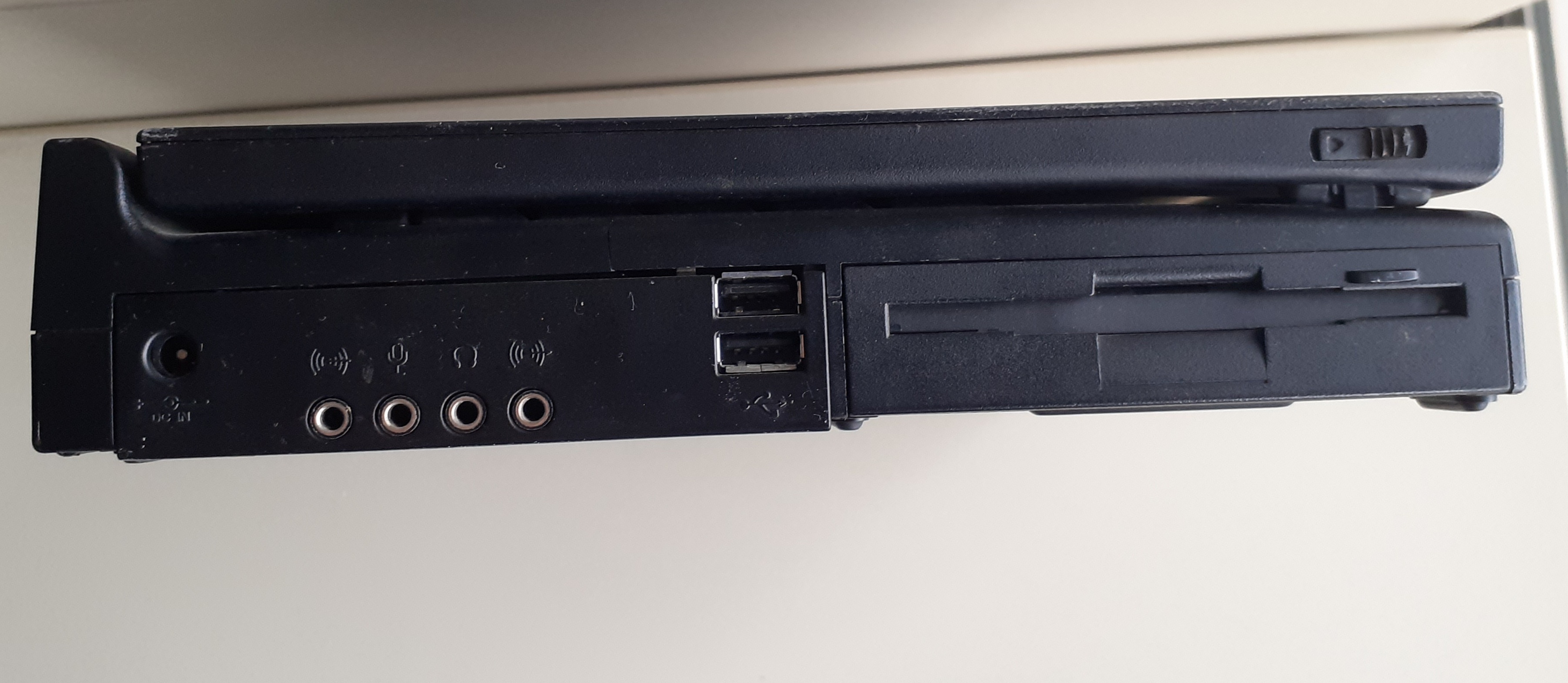

Other I/O	- 1x Parallel - 1x Serial - 1x VGA Out - 1x PS/2 - 1x MIDI/Game Port - 2x USB 1.x - 1x Composite Out - 1x Dock Connector - 1x Headphone Out - 1x Line Out - 1x Line In - 1x Mic In - Infrared

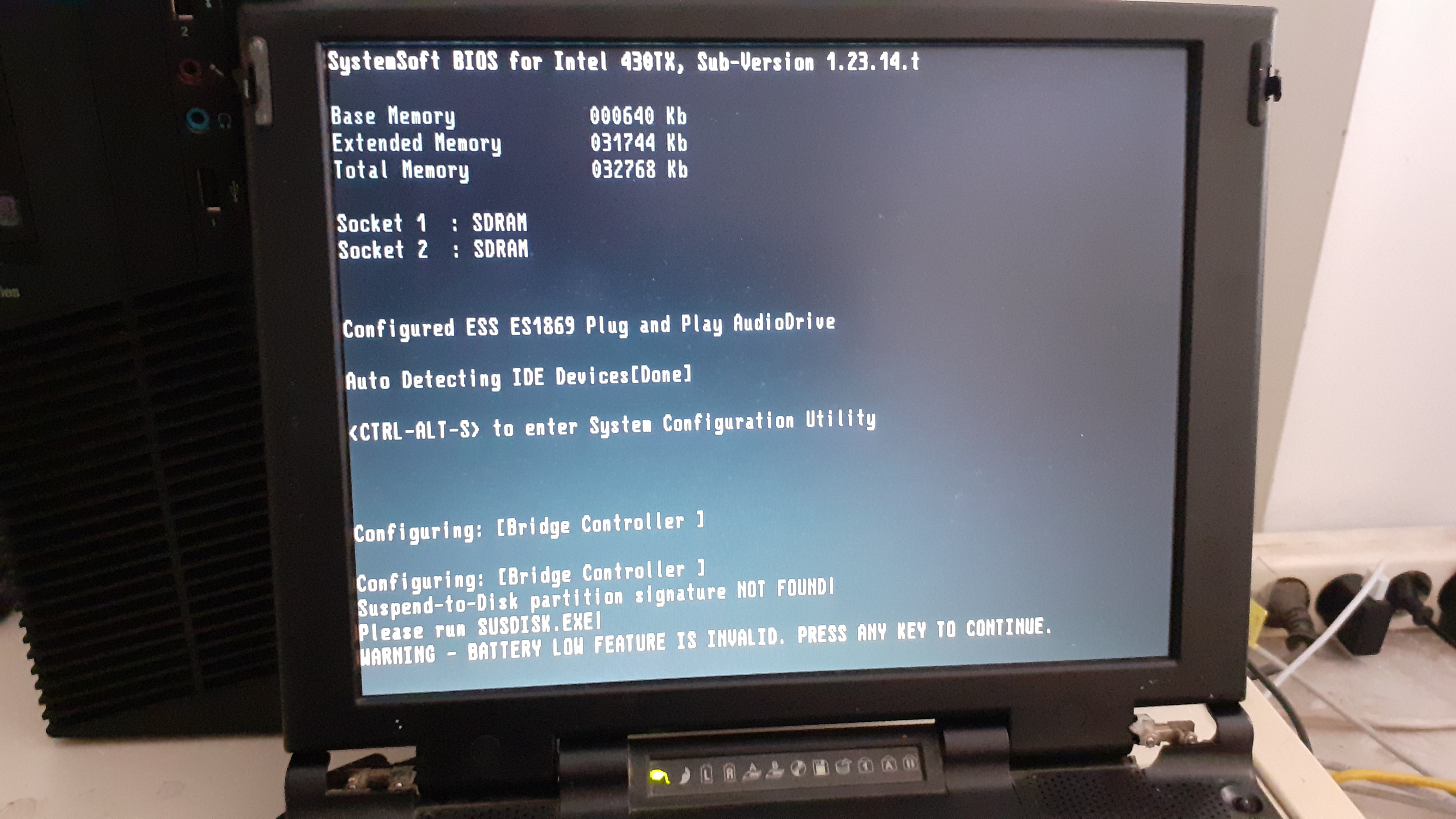

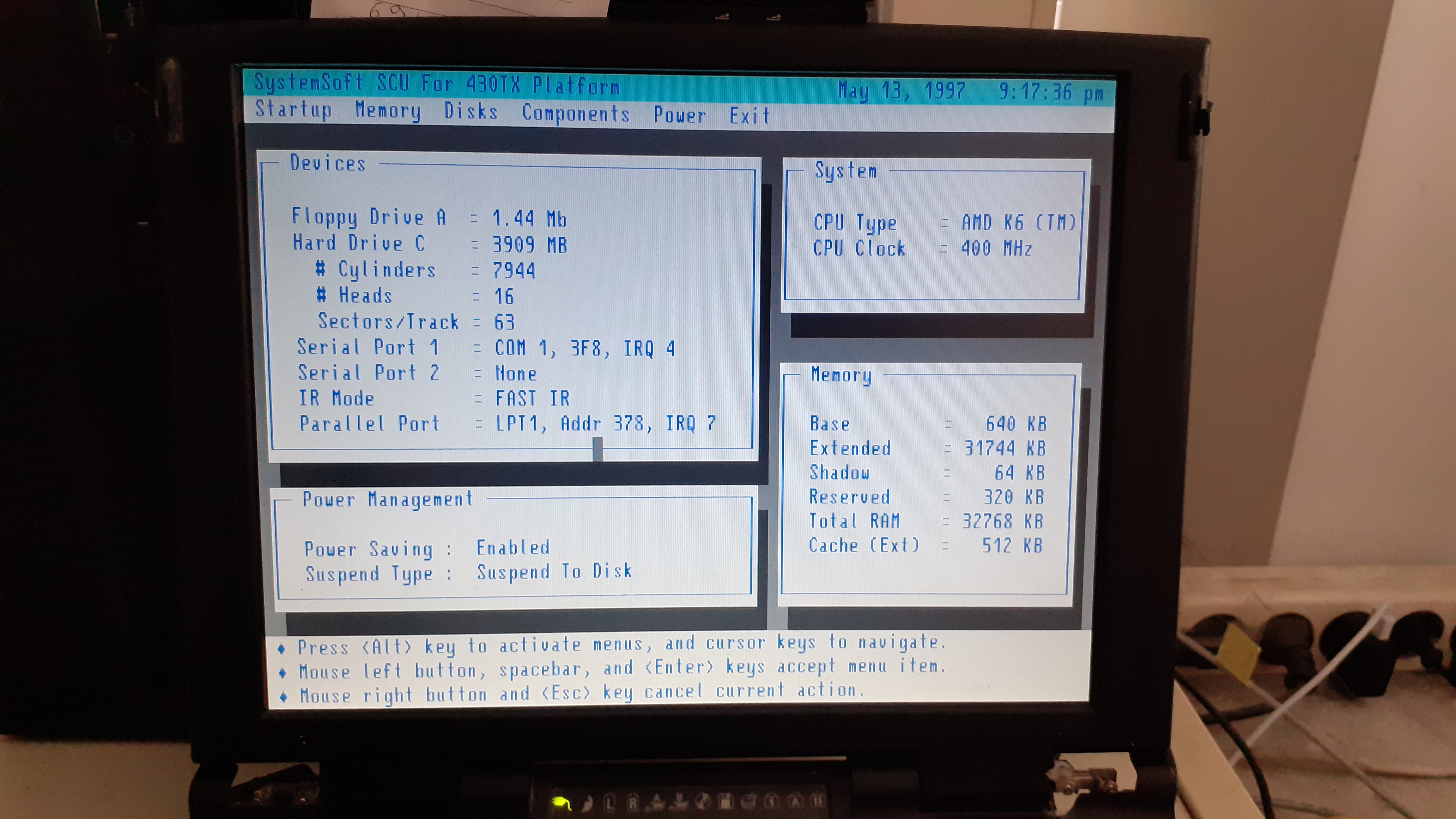

BIOS	SystemSoft

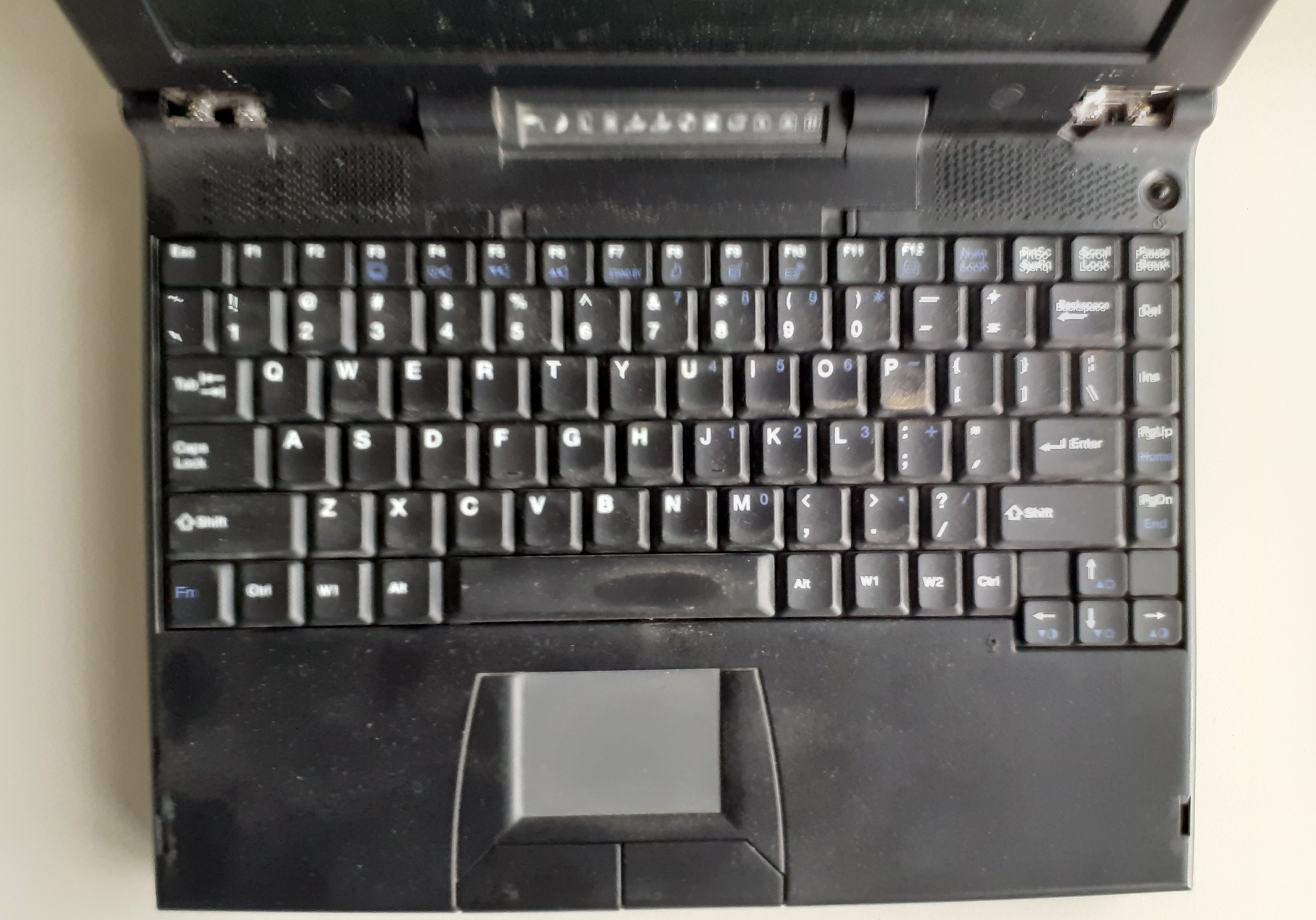

Pointing Device	Trackpad

Resources

Drivers

Common Faults & Maintenance

Hinge Failure

Nearly every 700-series EzBook I've seen show up on eBay has broken hinge mounts at the base of the laptop. These will need to be repaired or reinforced in any 700-series EzBook to keep the hinges working. Most of those also had the hinge covers missing as well.
