The Aramda 7700 Series were Pentium MMX-based desktop replacement laptops, released by Compaq in 1997. They were the top end of Compaq's laptop lineup upon release, superceding the LTE 5000 Series, which would be discontinued not long after. The Armada 7700 Series laptops do bear a strong resemblance to the LTE 5000 Series laptops as well.

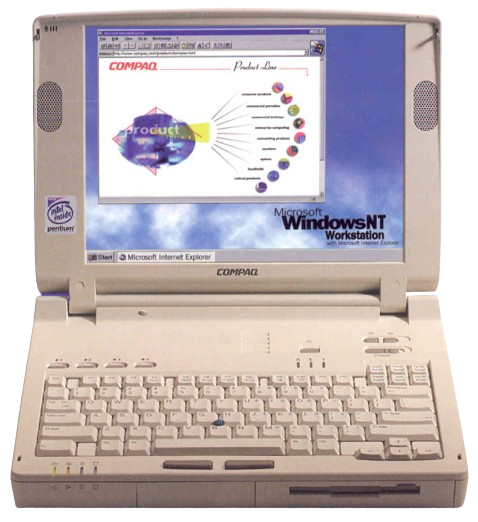

The 7710, 7730, 7750, and 7770 all share the same design, while the 7790 and 7792 have a modified case to accommodate a 13 inch display. The laptop shown on this page is the earlier design.
They are one of only a few laptops I'm aware of to use S3 graphics.
Specifications
| Spec | 7710 | 7730 | 7750 | 7770 | 7790 | 7792 |
|---|---|---|---|---|---|---|
| CPU | Intel Pentium MMX @150MHz | Intel Pentium MMX @166MHz | Intel Pentium MMX @233MHz | Intel Pentium MMX @266MHz | ||
| RAM | 2x 144pin EDO Slots - 16MB Standard - 144MB Maximum |
2x 144pin EDO Slots - 32MB Standard - 144MB Maximum |
||||
| Hard Disk Type | IDE 2.5" | |||||
| HDD Standard Capacities | 1.6GB | 2.1GB | 3GB | Unknown | ||
| Uses Proprietary HDD Adapter? | Yes | |||||
| Display Options | 12.1" TFT/Active Matrix LCD @800x600 | 12.1" TFT/Active Matrix LCD @1024x768 | 12.1" TFT/Active Matrix LCD @800x600 | 13" TFT/Active Matrix LCD @1024x768 | ||
| Graphics Chipset | S3 86CM65 - 2MB VRAM |
|||||
| Audio | ESS AudioDrive 1878 | |||||
| Main Battery | Lithium Ion | |||||
| CMOS Battery | Has a VARTA battery inside | |||||
| Power Supply | Internal PSU, uses standard 3-pin mains cable | |||||
| Disk Drives | Modular Bay - holds CD-ROM, Floppy Drive, 2nd Hard Drive, or 2nd Battery | |||||
| PC Cards | 2x PCMCIA/CardBus Slots w/ ZoomVideo Support | |||||
| Networking | Internal Modem | |||||
| Other I/O | - 1x Parallel - 1x Serial - 1x VGA Out - 1x PS/2 - 1x Dock Connector - 1x Headphone Out - 1x Line In - 1x Mic In - Infrared |
|||||
| BIOS | Compaq BIOS | |||||
| Pointing Device | TrackPoint | |||||
Resources
 User Manual |
 Service Manual (ArmadaStation Dock) |
|---|
Page last updated (MM/DD/YYYY): 08/04/2024
Update Reason: added resources section
