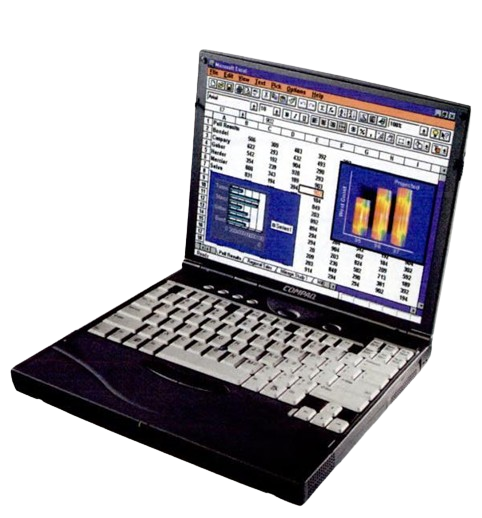

Compaq Armada 3500
The Aramda 3500 is a lightweight Pentium II-based laptop that was released in late 1998.
Specifications
| Spec | Details |
|---|---|
| CPU | CPU Type: Unknown Intel Mobile Pentium II @266 or 300MHz |
| Chipset | Unknown |
| RAM | Type: Unknown Standard: 32 or 64MB Maximum: 160 or 192MB |
| Hard Disk | 2.5" IDE Uses proprietary adapter?: Unknown Standard: 4.1 or 6.4GB |
| Display Options | - 12.1" Active Matrix LCD @800x600 - 13.3" Active Matrix LCD @1024x768 |
| Graphics Chipset | Chips & Technologies VRAM: 2MB |
| Audio | ESS AudioDrive 1869 |
| Main Battery | Lithium Ion |
| CMOS Battery | Unknown |
| Power Supply | Proprietary 3-pin - Compaq PP2012 |
| Disk Drives | None |
| PC Cards | 2x PCMCIA/CardBus Slots |
| Networking | None |
| Other I/O | - 1x Parallel - 1x Serial - 1x VGA Out - 1x PS/2 - 1x Dock Connector - 1x USB 1.x - 1x External FDD Connector - 1x Line In - 1x Headphone Out - Infrared |
| BIOS | Unknown |
| Pointing Device | TrackPoint |
Resources
 Service Manual |
|---|
