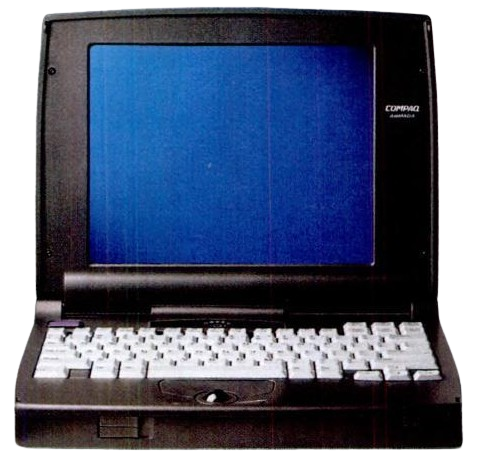

Compaq Armada 1100 Series
The Aramda 1100 Series were budget Pentium laptops, first released in 1996. They appear to more or less be direct successors to the Contura 400 Series from the previous year.
Specifications
| Spec | Armada 1110 | Armada 1120 | Armada 1120T | Armada 1125 | Armada 1130 | Armada 1130T | Armada 1135 |
|---|---|---|---|---|---|---|---|
| CPU | CPU Type: Unknown Intel Pentium @75MHz | CPU Type: Unknown Intel Pentium @100MHz | CPU Type: Unknown Intel Pentium @120MHz | CPU Type: Unknown Unknown | |||
| Chipset | Unknown | ||||||
| RAM | Type: Unknown Standard: 8MB Maximum: 24MB | Type: Unknown Standard: Unknown Maximum: Unknown | |||||
| Storage | 2.5" IDE Requires Adapter: Unknown Standard: 810MB | 2.5" IDE Requires Adapter: Unknown Standard: Unknown | |||||
| Display Options | 10.4" Passive Matrix Color @640x480 | 10.4" Active Matrix Color @640x480 | 10.4" Passive Matrix Color @640x480 | 10.4" Passive Matrix Color @800x600 | 10.4" Active Matrix Color @800x600 | 10.4" Passive Matrix Color @800x600 | |
| Graphics Chipset | Cirrus Logic GD7548 VRAM: Unknown | ||||||
| Audio | PC Speaker | ||||||
| Main Battery | NiMH | ||||||
| CMOS Battery | Unknown | ||||||
| Power Supply | Barrel Jack | ||||||
| Media Drives | 3.5" 1.44MB Floppy Drive | ||||||
| PC Cards | 2x PCMCIA Slots | ||||||
| Networking | None | ||||||
| Other I/O | - 1x Parallel - 1x Serial - 1x VGA Out - 1x PS/2 | ||||||
| BIOS | Compaq BIOS | ||||||
| Pointing Device | Trackball | ||||||
Resources
 Service Manual |
|---|
Page last updated (MM/DD/YYYY): 02/24/2025
Update Reason: page converted to php
Have additional information on this laptop? Want to send me photos to use on the site? Send me an email: macdatnet@gmail.com
