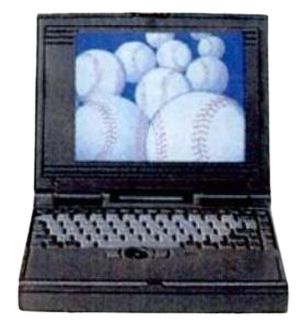

Compal TS38
The Compal TS38 is a 486-based generic/ODM laptop that was released around June 1993. It shares the same design as the later and much more common TS30A, but uses slower processors and lacks a sound card.
As a generic/ODM laptop, the TS30V was sold under a variety of names. Below is the current list of brands known to have sold them.
- MidWest Micro Elite 486SX/DX Series
- Others, I'm sure
Specifications
It is entirely possible that these were available with more options than what I currently know of.
| Spec | Details |
|---|---|
| CPU | CPU Type: Socket 486 - Intel 486SX @25MHz - Intel 486DX @33MHz - Intel 486DX2 @50MHz |
| Chipset | Unknown |
| RAM | Type: Proprietary Standard: N/A Maximum: 20MB |
| Storage | 2.5" IDE Requires Adapter: Unknown Standard: N/A |
| Display Options | - Passive Matrix Grayscale @640x480 - Passive Matrix Color @640x480 - Active Matrix Color @640x480 |
| Graphics Chipset | Unknown VRAM: 512KB |
| Audio | PC Speaker |
| Main Battery | Unknown |
| CMOS Battery | Likely a soldered 3-cell Varta NiCad |
| Power Supply | Hirose RP-34 (3-pin) |
| Media Drives | 3.5" 1.44MB Floppy Drive |
| PC Cards | 2x PCMCIA Slots (2x Type II/1x Type III) |
| Networking | None |
| Other I/O | - 1x Parallel - 1x Serial - 1x VGA Out - 1x PS/2 |
| BIOS | SystemSoft |
| Pointing Device | Trackball |
