Chicony SN8660/SN8660C

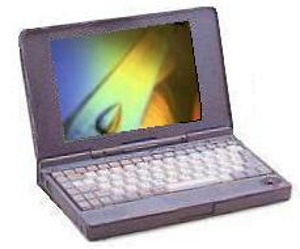

The Chicony SN8660 is a 486-based subnotebook that was released in 1993. The SN8660C is exactly the same, except it has a color display and a different video chip. You can find some photos of this laptop here.
Per that thread, they use the same charger as the Epson ActionNote 500C, which is P/N PSA-4645C. These supplies are still readily available on eBay.
These laptops were rebadged/resold by Ambra (SN425 and SN425c), Canon, and AJP (486 Subnote).
Specifications
| Spec | Details |
|---|---|
| CPU | CPU Type: Unknown Intel 486SX @25MHz |
| Chipset | Unknown |
| RAM | Type: Proprietary Standard: 4MB Maximum: 20MB |
| Hard Disk | 2.5" IDE Uses proprietary adapter?: Yes Standard: N/A |
| Display Options | - Passive Matrix Grayscale @640x480 - Passive Matrix Color @640x480 |
| Graphics Chipset | Chips & Technologies 65525 (Grayscale) or 65530 (Color) VRAM: 512KB |
| Audio | PC Speaker |
| Main Battery | NiCad or NiMH |
| CMOS Battery | Unknown |
| Power Supply | Kycon KPPX-4P Connector |
| Disk Drives | None, external floppy drive only |
| PC Cards | 1x Type II PCMCIA Slot |
| Networking | None |
| Other I/O | - 1x Parallel - 1x Serial - 1x Dock Connector? - Others? |
| BIOS | Quadtel (Phoenix) |
| Pointing Device | Trackball |
Page last updated (MM/DD/YYYY): 11/21/2024
Update Reason: page created
Have additional information on this laptop? Want to send me photos to use on the site? Send me an email: macdatnet@gmail.com
