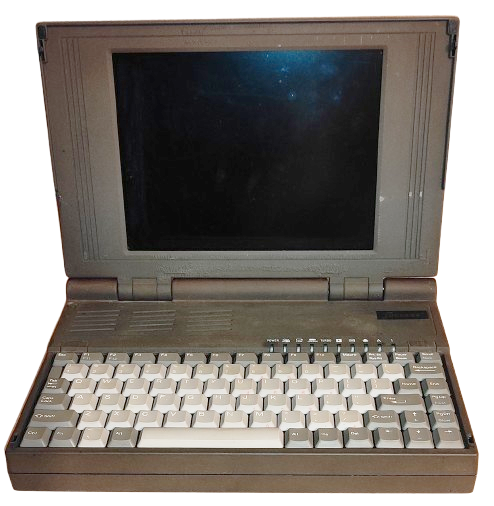

Chicony NB5625
The Chicony NB5625 is a 386-based laptop that was released in 1992. It shares an identical design to the NB5620, but has a 25MHz processor, rather than a 20MHz one.
Below is a list of brands that rebadged/sold the NB5625.
- Midwest Micro ULTRA 386SX-25
- Hyundai
- Success
Specifications
| Spec | Details |
|---|---|
| CPU | CPU Type: Unknown Intel 386SX @25MHz |
| Chipset | VLSI VL82C320 |

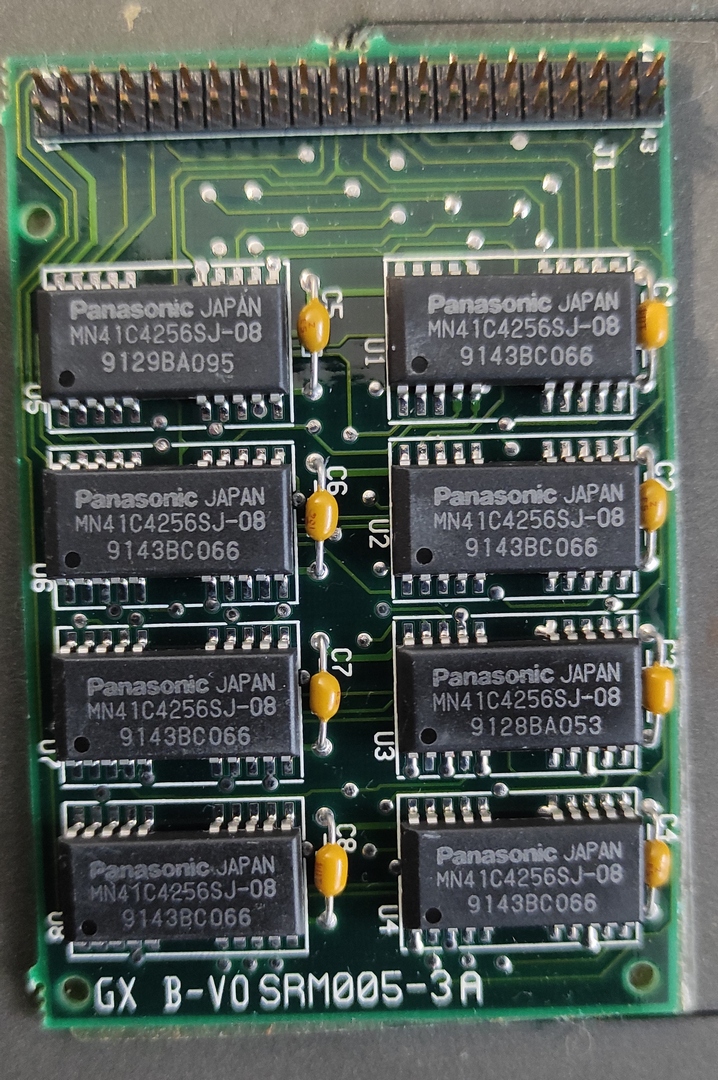

| RAM | Type: Proprietary Standard: 1MB Maximum: 5MB |
| Storage | 2.5" IDE Requires Adapter: Unknown Standard: Unknown |
| Display Options | 9.5" Passive Matrix Grayscale (32 shades) LCD @640x480 |
| Graphics Chipset | Unknown VRAM: Unknown |
| Audio | PC Speaker |
| Main Battery | NiCad |
| CMOS Battery | Soldered NiCad |

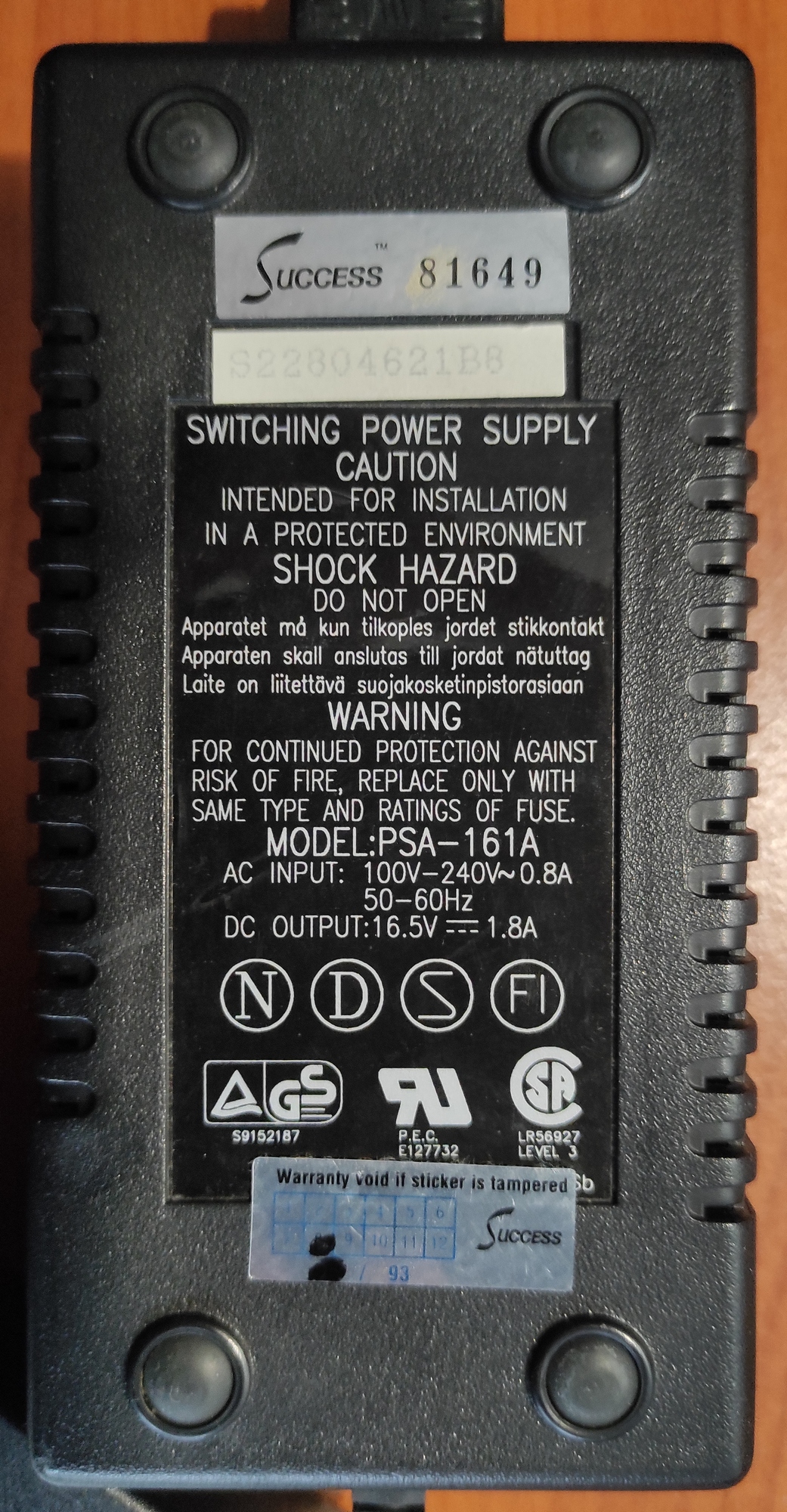

| Power Supply | Proprietary 3-pin - PSA-161A AC Adapter |

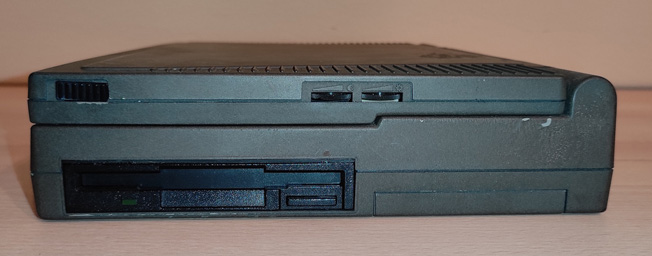

| Media Drives | 3.5" 1.44MB Floppy Drive |
| PC Cards | None |
| Networking | None |

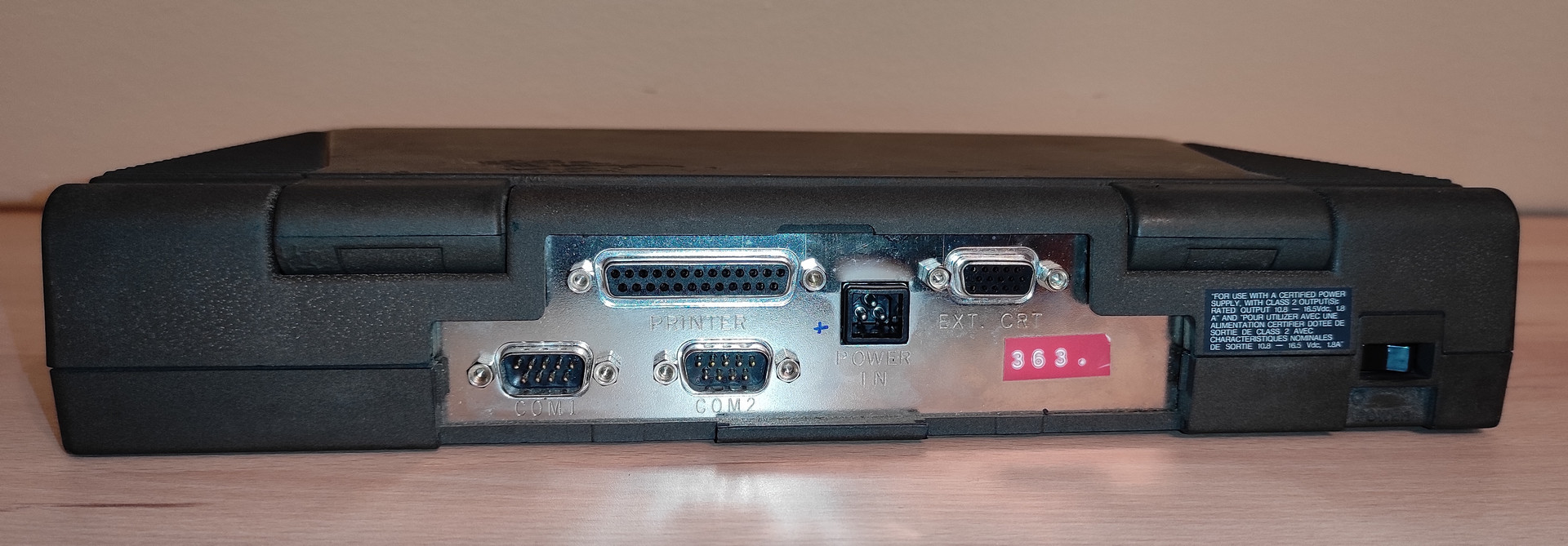

| Other I/O | - 1x Parallel - 2x Serial - 1x VGA Out - 1x PS/2 |
| BIOS | AMI |
| Pointing Device | None |

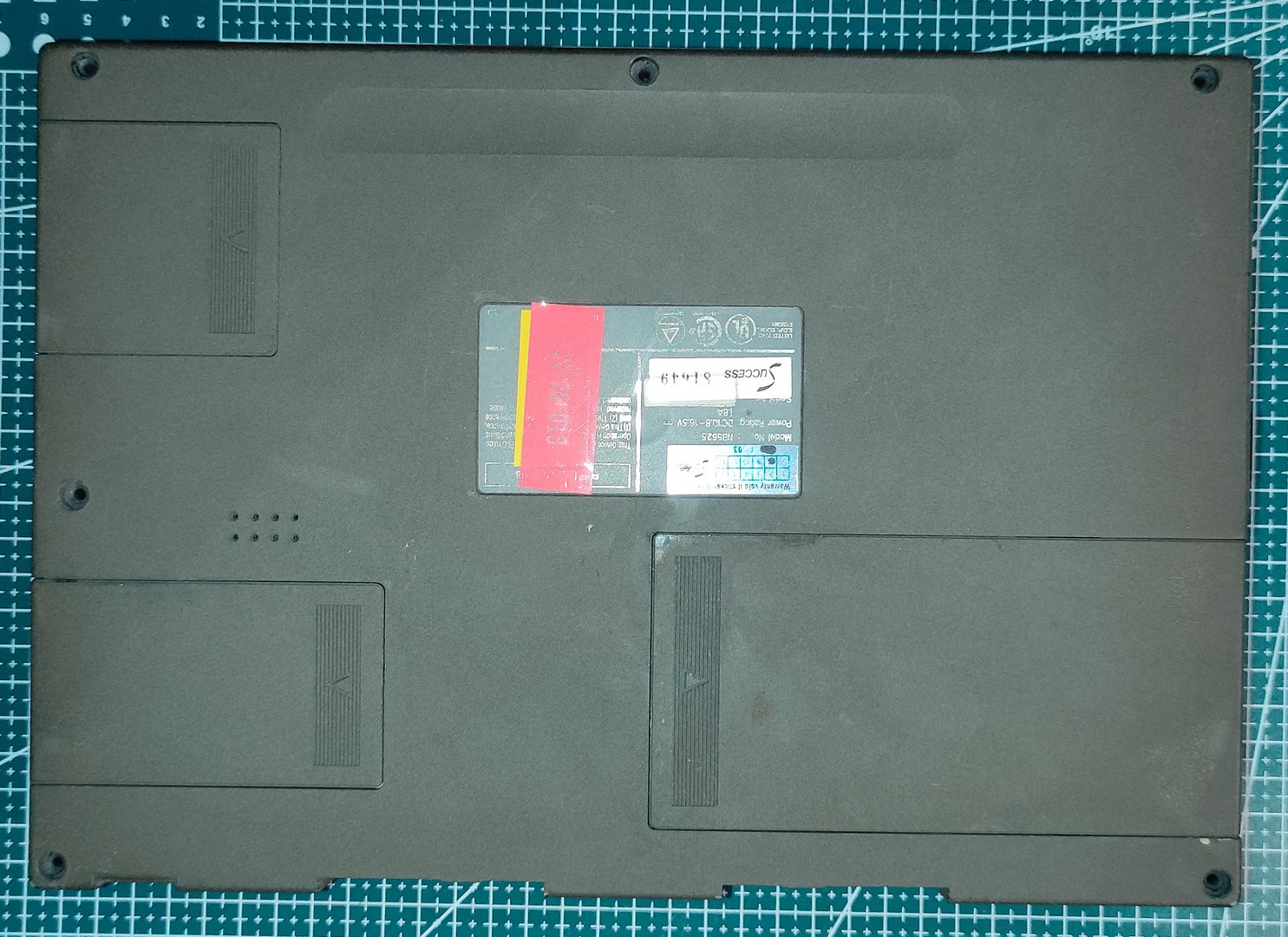

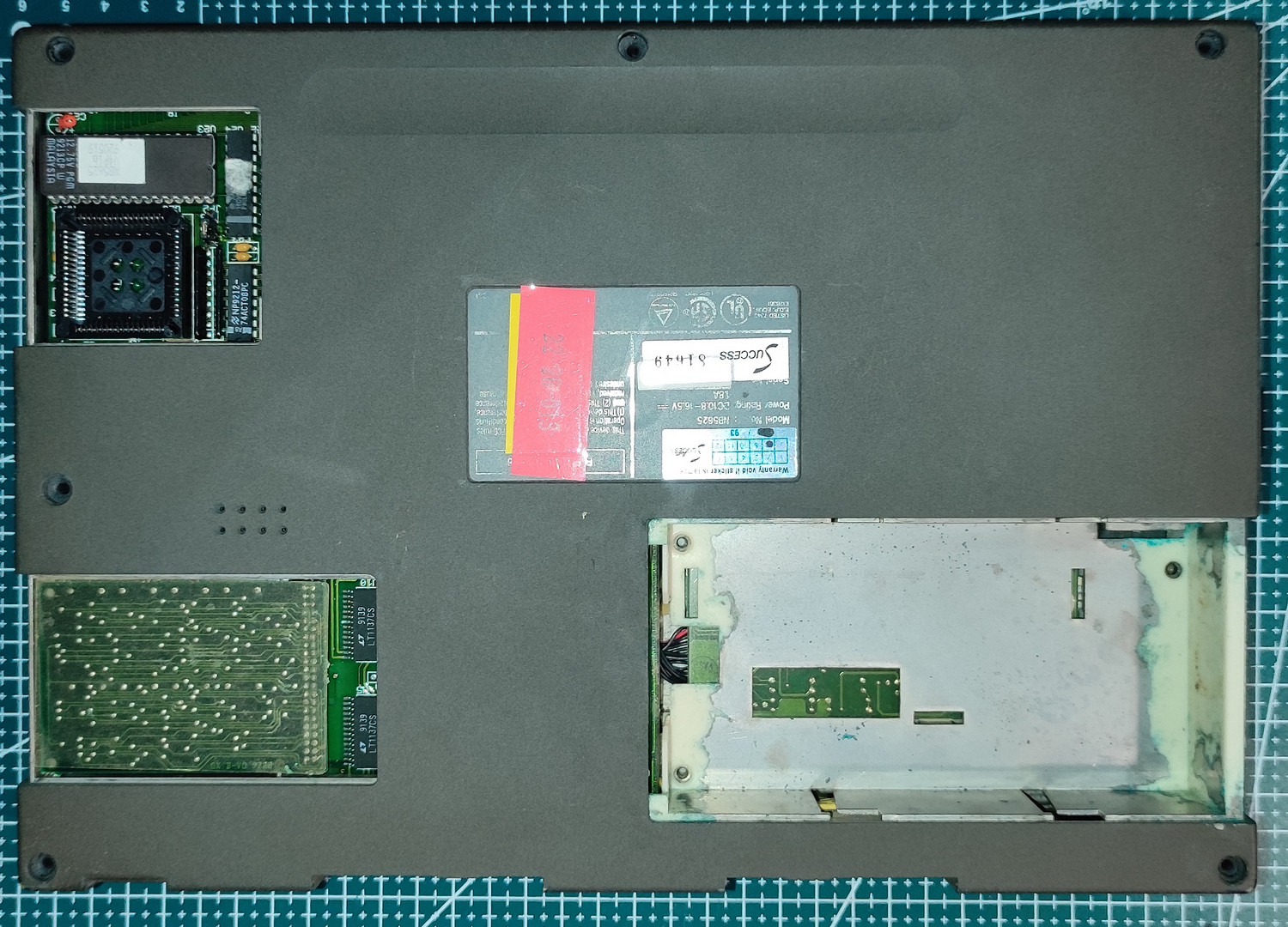

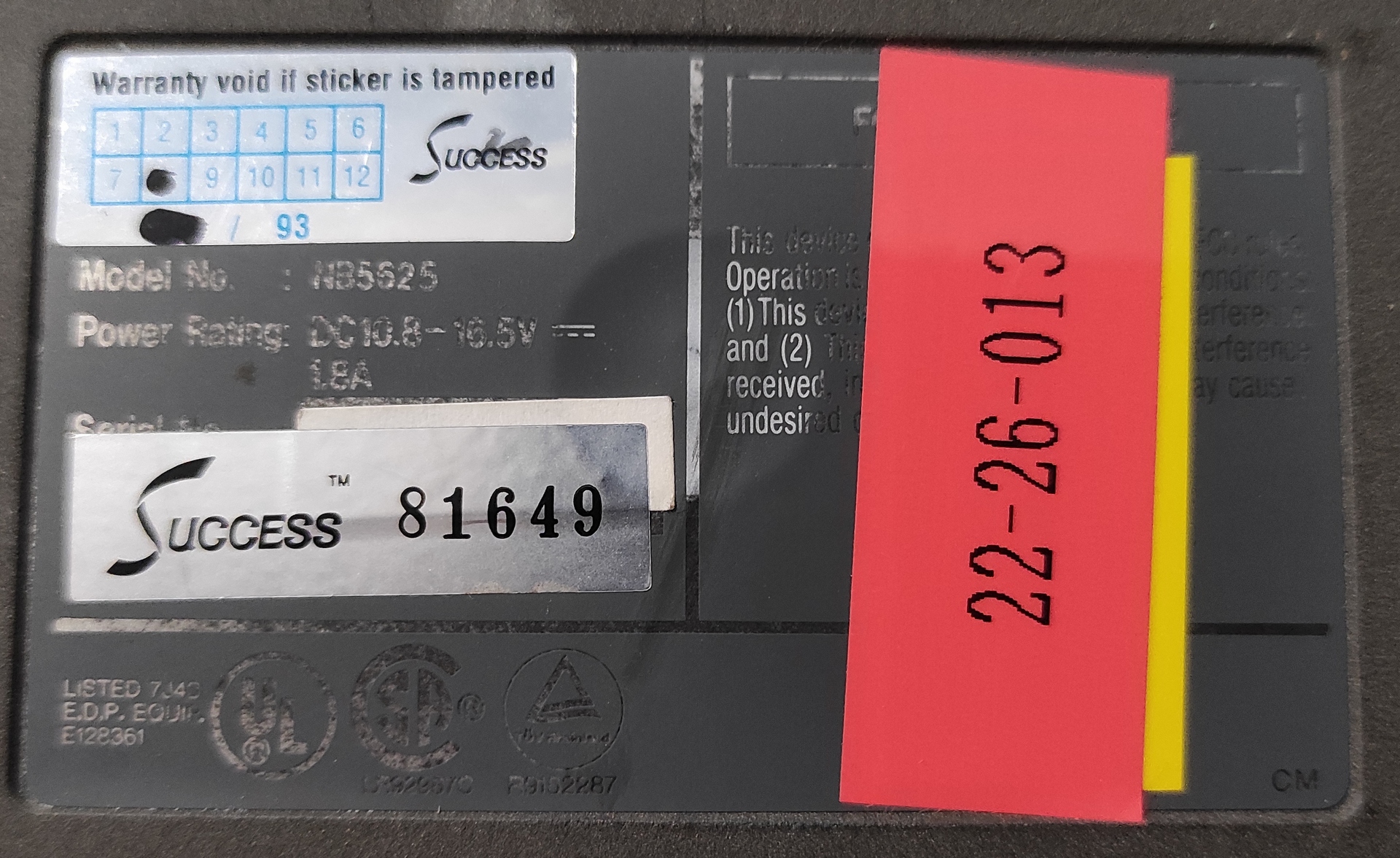

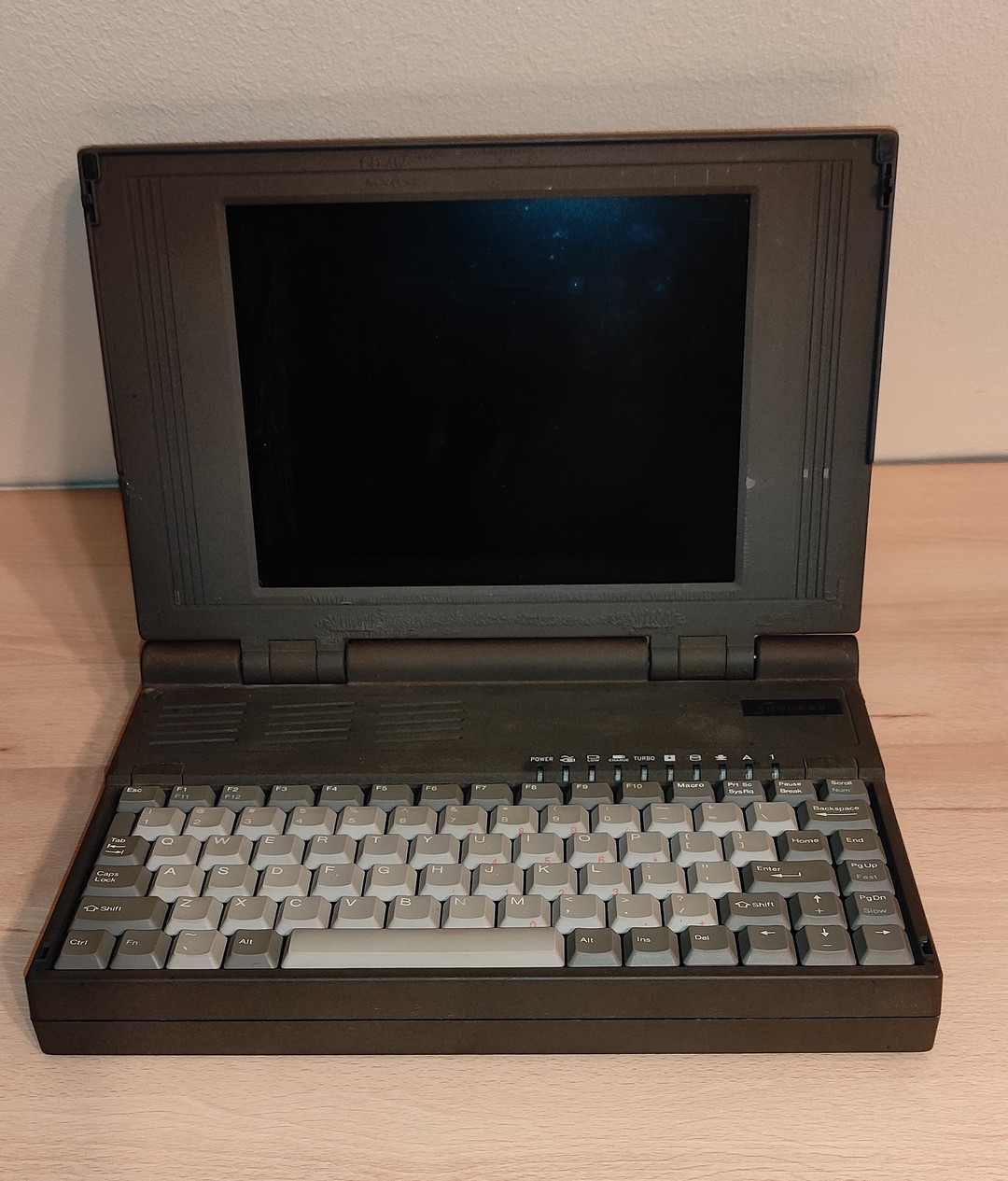

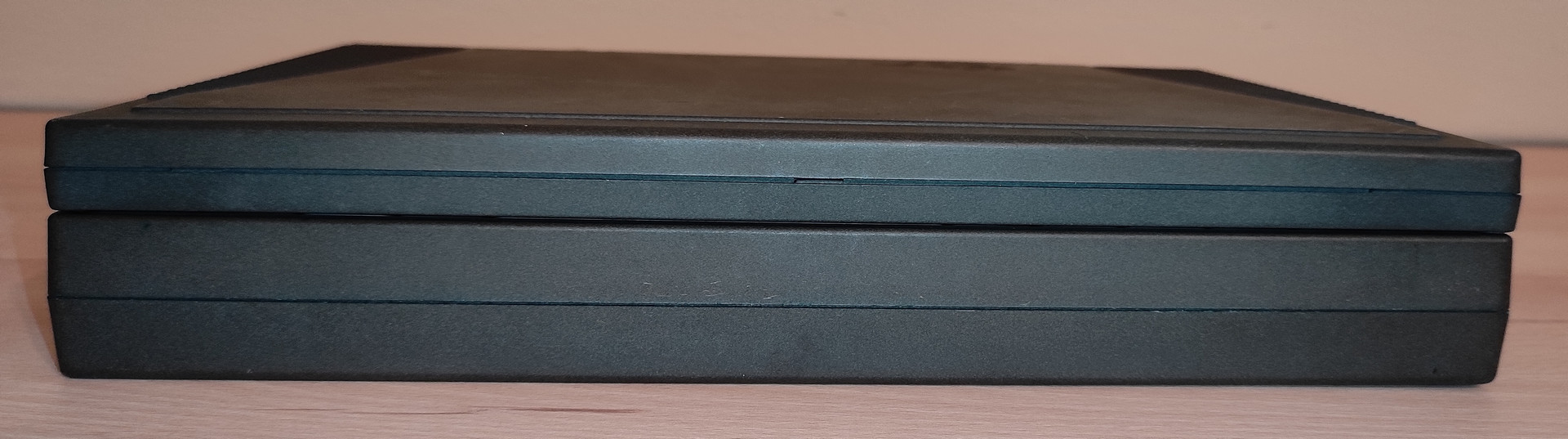

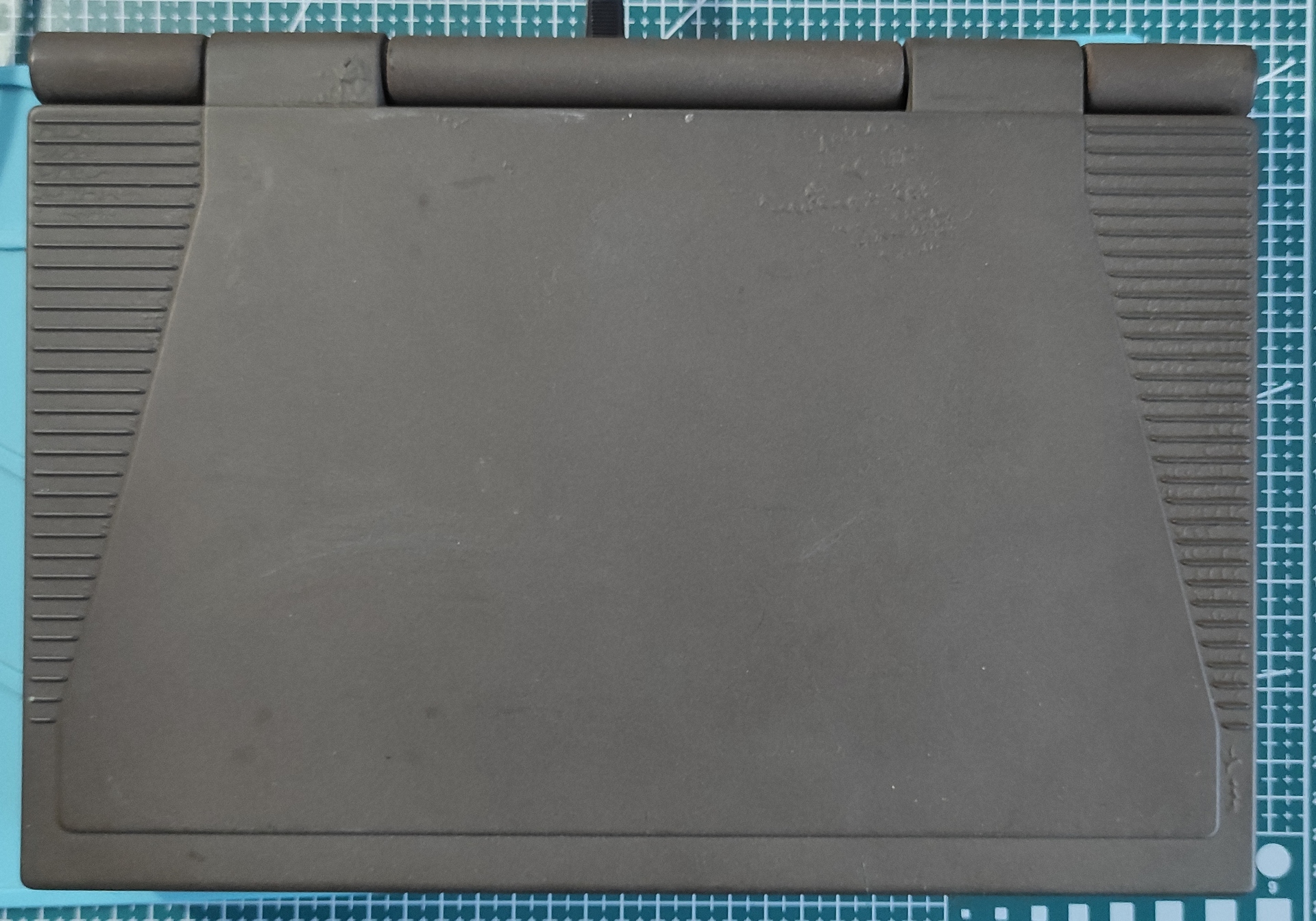

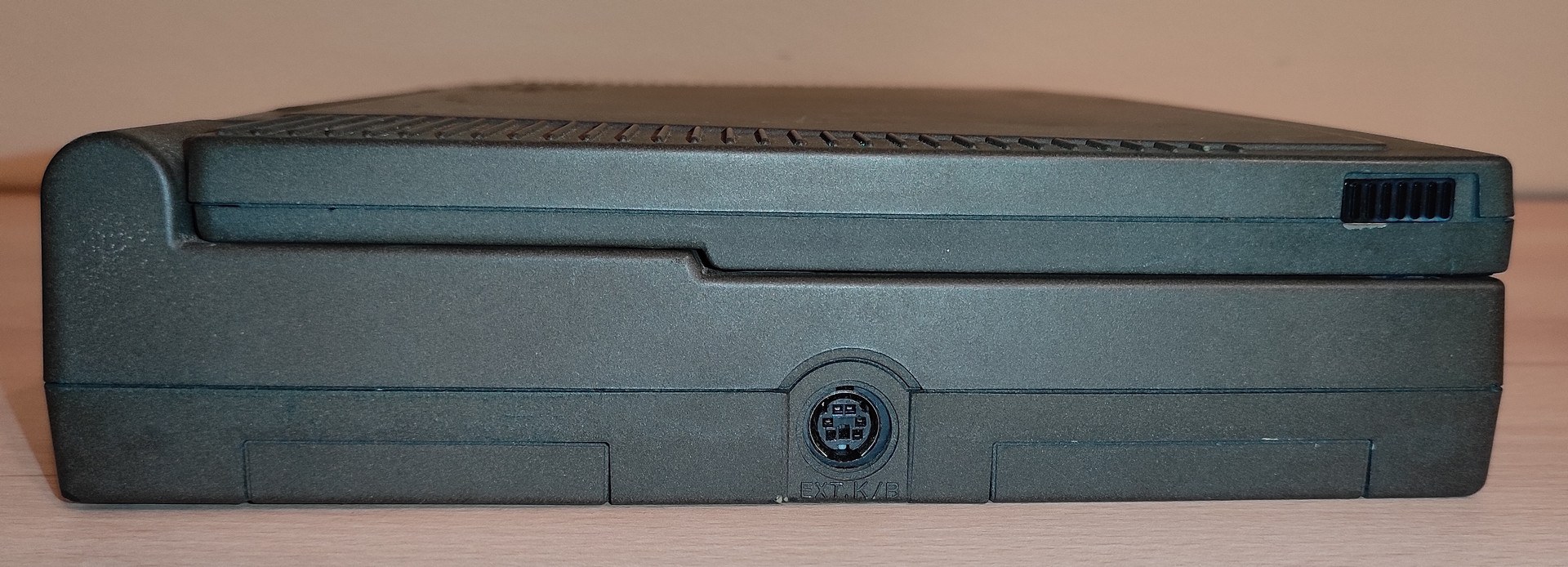

Gallery
Photos from Flashy. Thank you!
Page last updated (MM/DD/YYYY): 03/17/2025
Update Reason: added specs and photos
