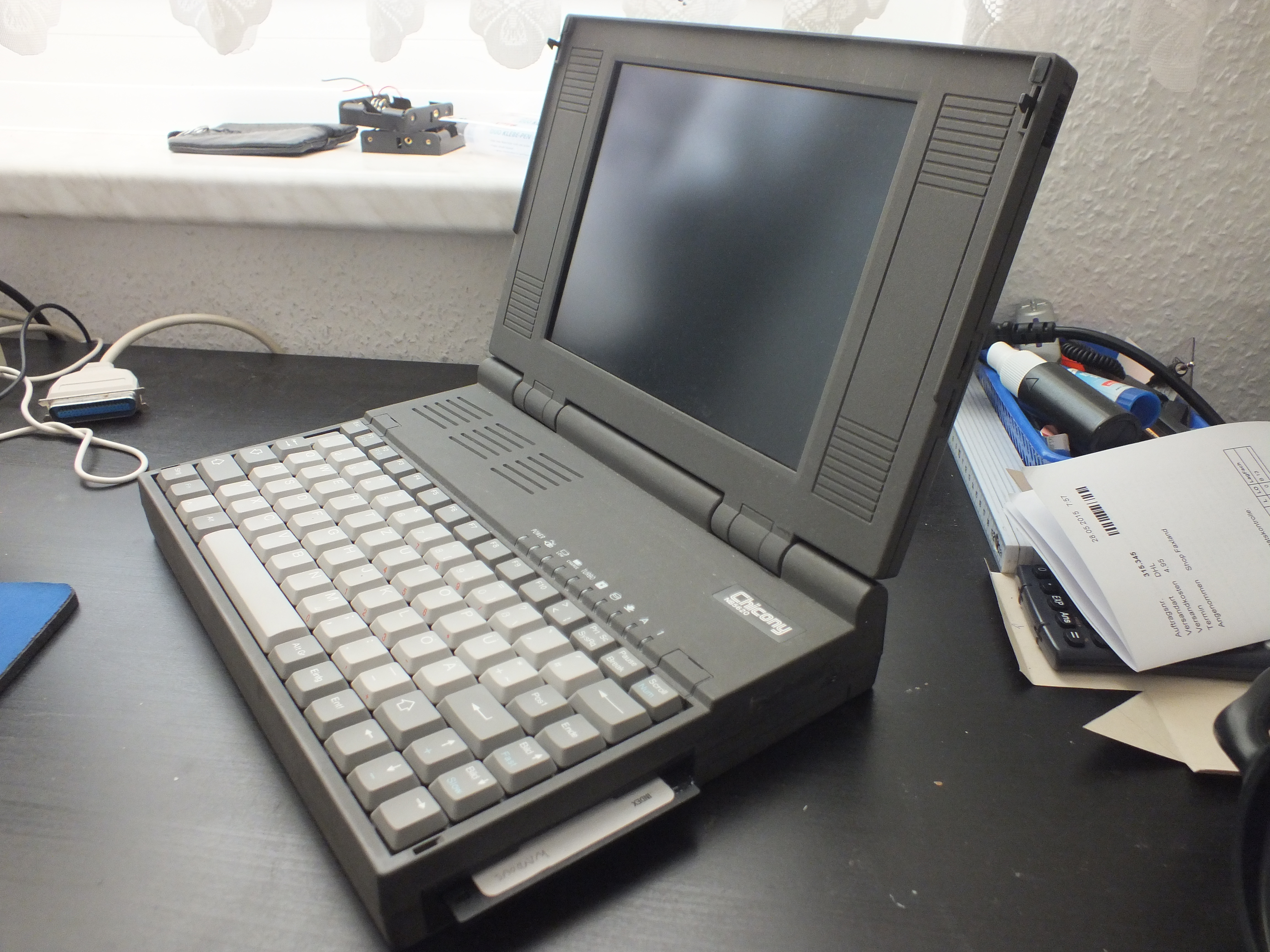

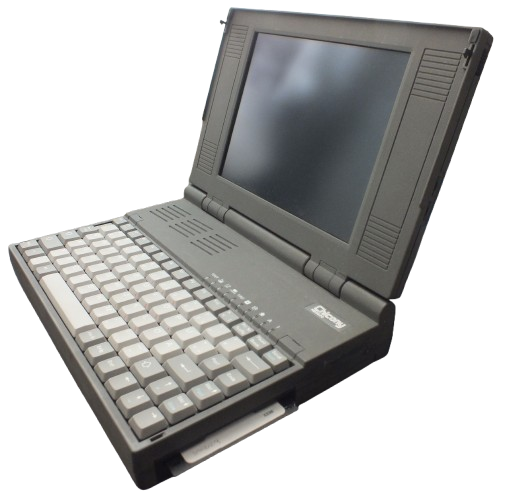

Chicony NB5620
The Chicony NB5620 is a 386-based laptop that was released in 1991.
This model was sold as/by: Unknown
Specifications
| Spec | Details |
|---|---|
| CPU | CPU Type: Unknown Intel 386 @20MHz |
| Chipset | Unknown |
| RAM | Type: Unknown Standard: Unknown Maximum: 5MB |
| Hard Disk | 2.5" IDE Uses proprietary adapter?: Unknown Standard: Unknown |
| Display Options | Passive Matrix Grayscale @640x480 |
| Graphics Chipset | Cirrus Logic GD610/620 VRAM: 256KB |
| Audio | PC Speaker |
| Main Battery | NiCad |
| CMOS Battery | Unknown |
| Power Supply | Proprietary 3-pin |
| Disk Drives | 3.5" 1.44MB Floppy Drive |
| PC Cards | None |
| Networking | Unknown |

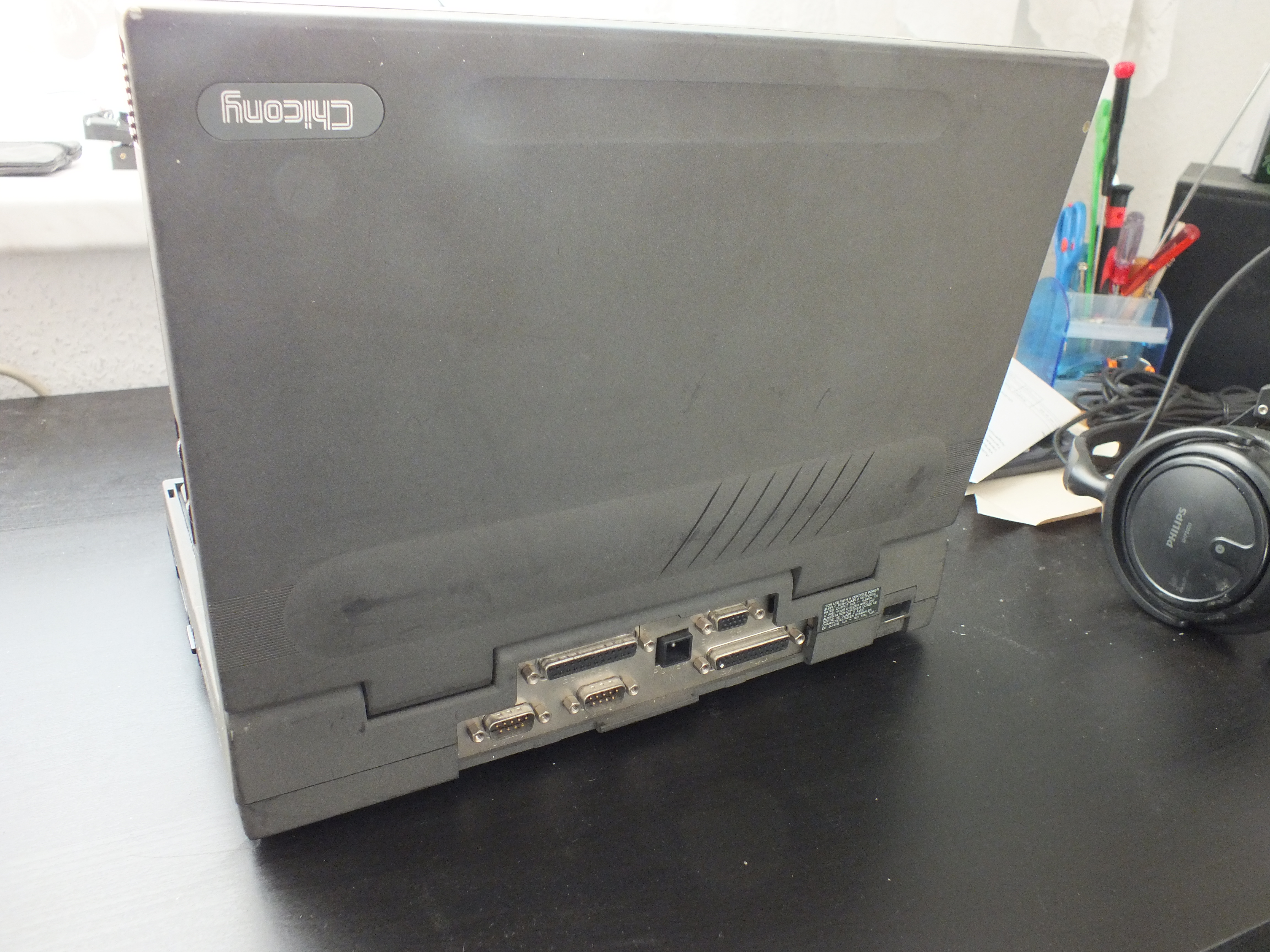

| Other I/O | - 1x Parallel - 2x Serial - 1x VGA Out - 1x PS/2 |
| BIOS | AMI |
| Pointing Device | None |
Resources
Thanks to Tombowolf!
Driver Floppy Disk
User Manual
