Chicony NB5
The Chicony NB5 (also known as the NB5D) is a 486-based laptop that was released in 1994. I don't have all the specs for this one right now, so if you own one, I could use your help. It appears that a version of this laptop was able to have the rear display cover removed to allow for it to be used with an overhead projector.
As a generic/ODM laptop, the NB5 was sold under a variety of names. Below is the current list of brands known to have sold them.
- Acrobat - European brand, maybe Austrian??
- Leading Edge Aviva 2000 (USA)
- Wedge ShowBIZ 586 Presentation (Cyrix 5x86, overhead projector convertable) (USA)
Specifications
| Spec | Details |
|---|---|
| CPU | CPU Type: Socket 3 - Intel 486DX2 @66MHz - Intel 486DX4 @100MHz - Cyrix 5x86 |
| Chipset | Unknown |
| RAM | Type: Proprietary Standard: Unknown Maximum: 32MB |
| Storage | 2.5" IDE Requires Adapter: Unknown Standard: Unknown |
| Display Options | - Passive Matrix Color LCD @640x480 - Active Matrix Color LCD @640x480 |
| Graphics Chipset | Chips & Technologies 65545 VRAM: 1MB |
| Audio | ESS AudioDrive 488 (Optional) |
| Main Battery | NiMH (12V, 1800mAH) |
| CMOS Battery | Unknown |
| Power Supply | Kycon KPPX-4P Connector |
| Media Drives | Modular Bay holds 3.5" 1.44MB Floppy Drive or 2nd Battery |
| PC Cards | 2x PCMCIA Slots |
| Networking | None |
| Other I/O | - 1x Parallel - 1x Serial - 1x VGA Out - 1x PS/2 - 1x Dock Connector - 1x Line Out - 1x Mic In |
| BIOS | Phoenix |
| Pointing Device | Trackball |
Resources
 Driver Floppy Disks |
|---|
Gallery

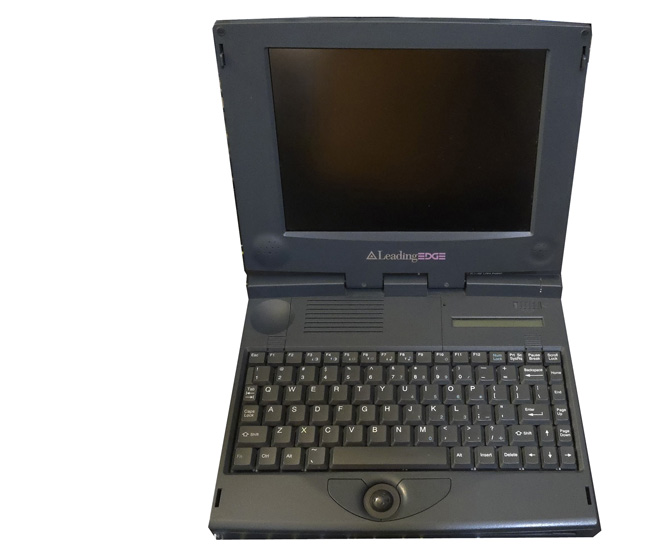

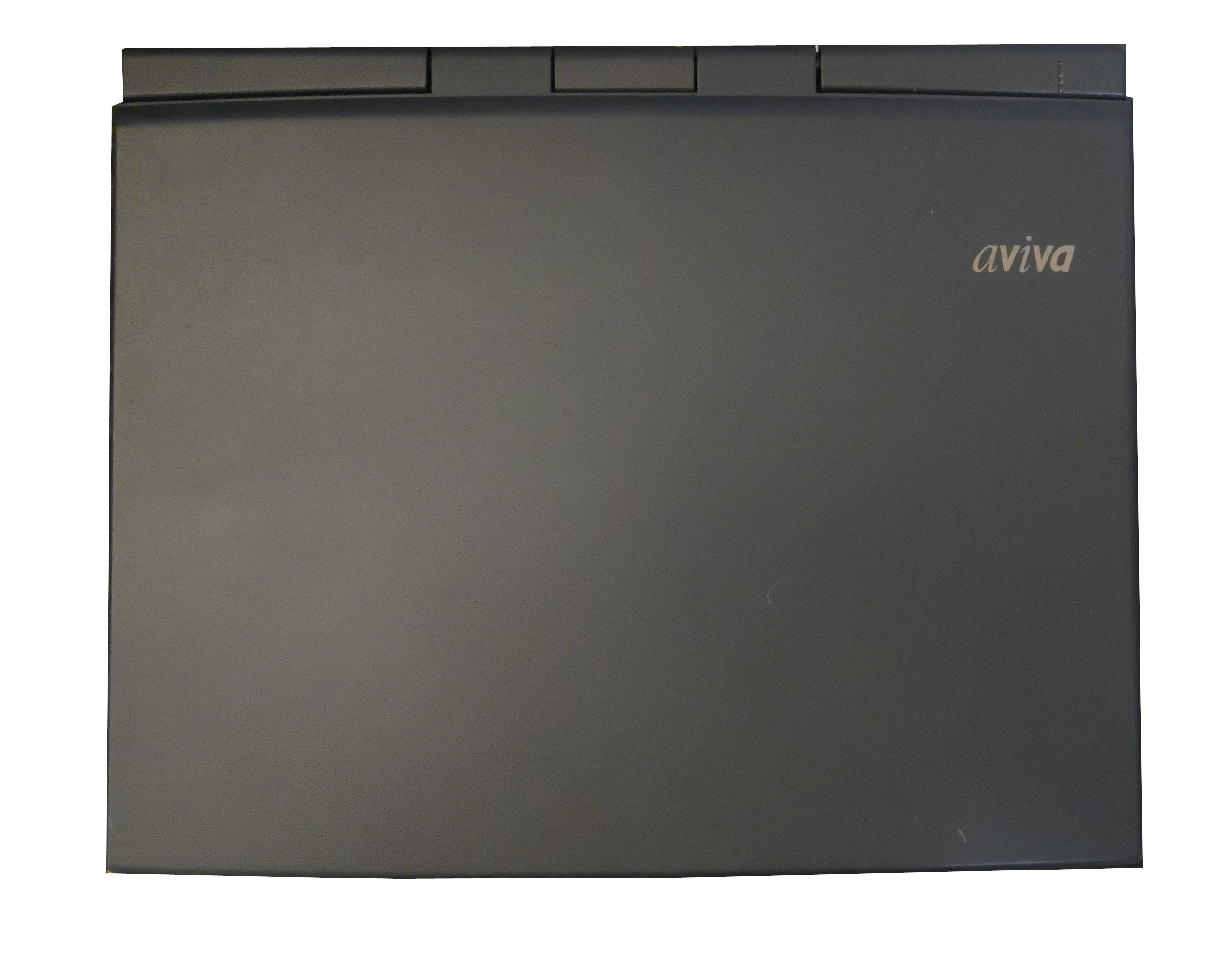

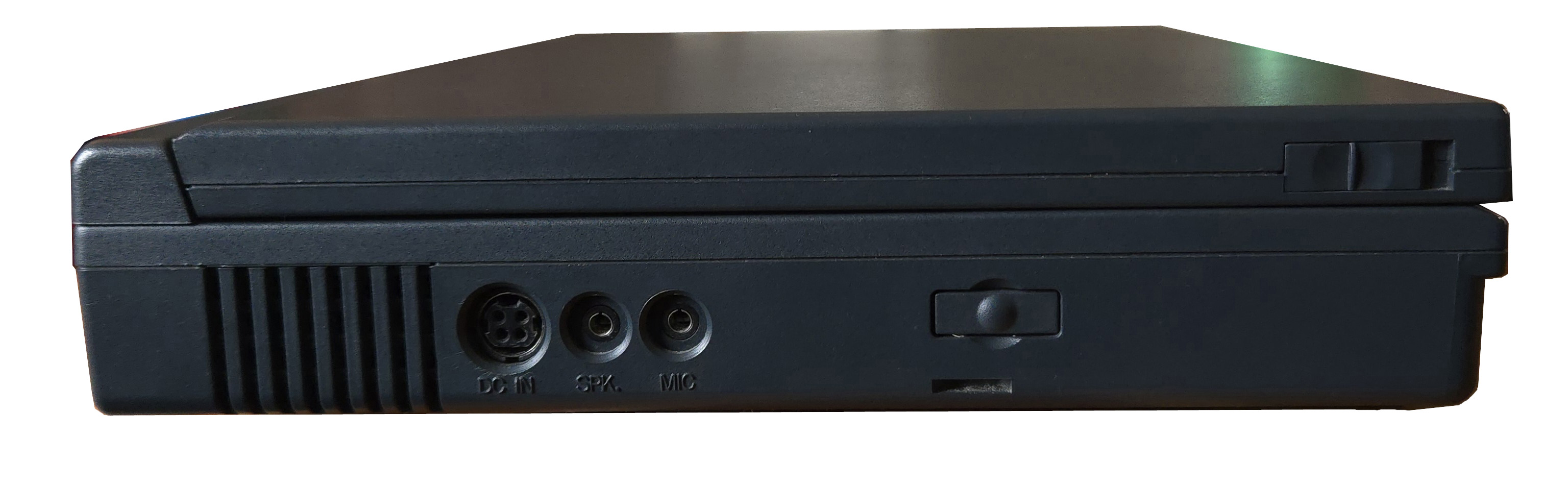

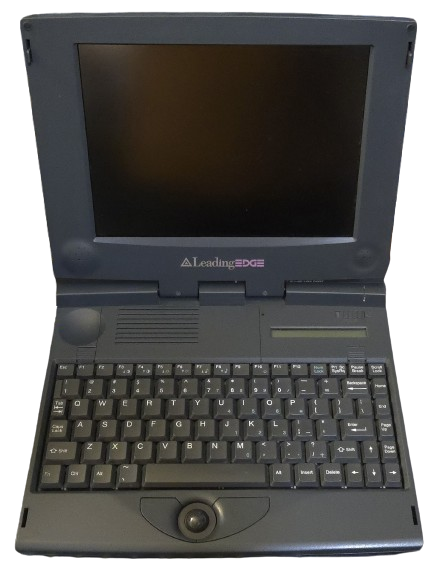

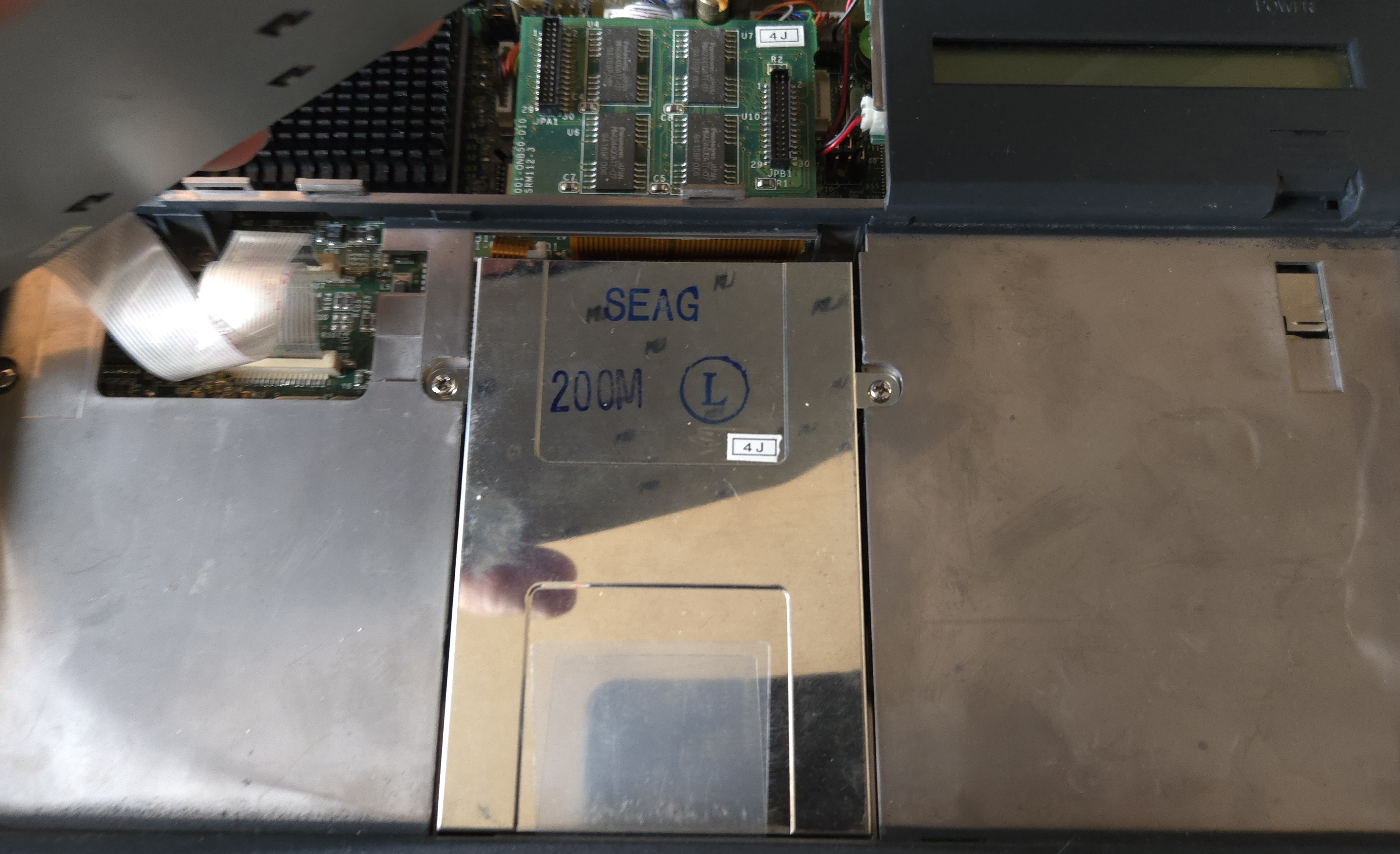

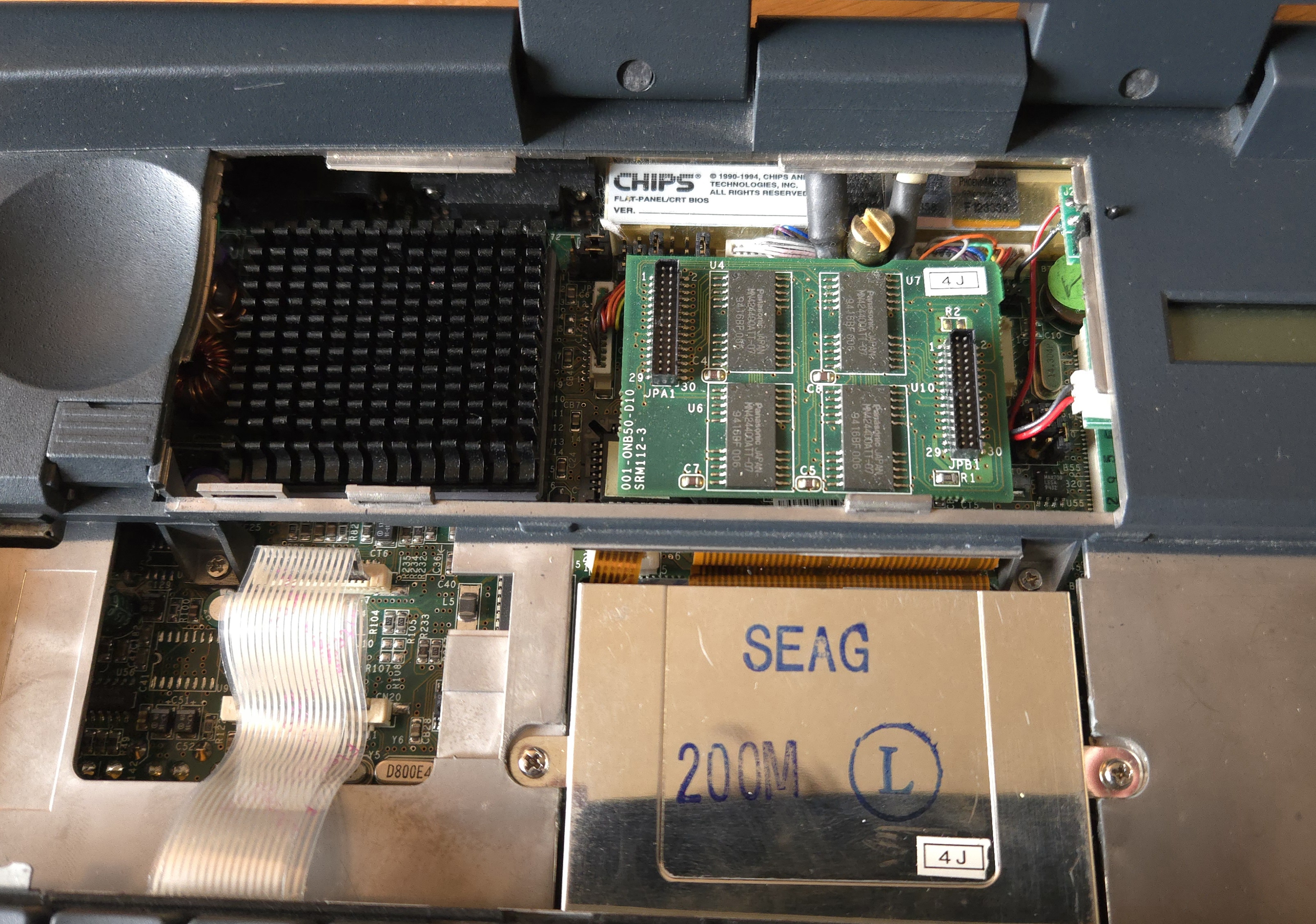

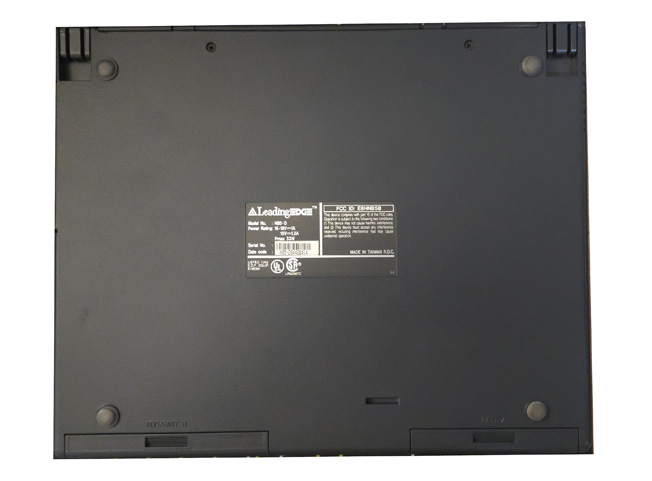

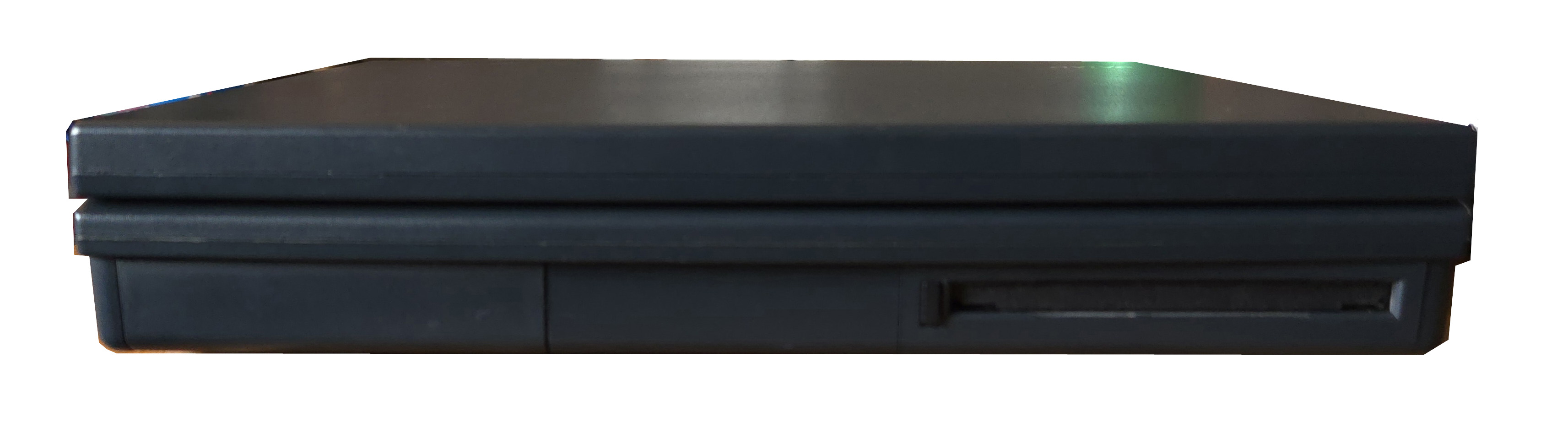

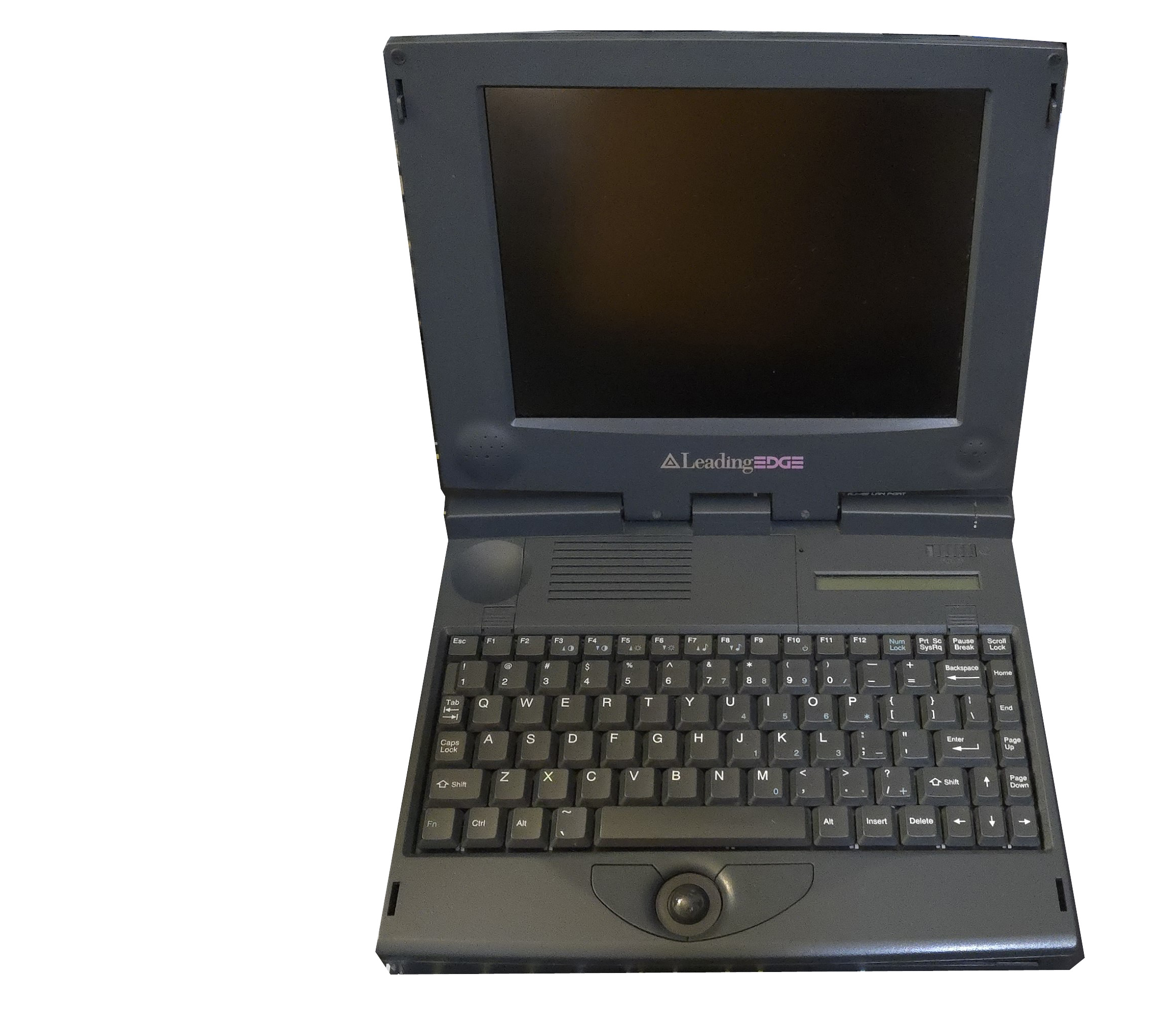

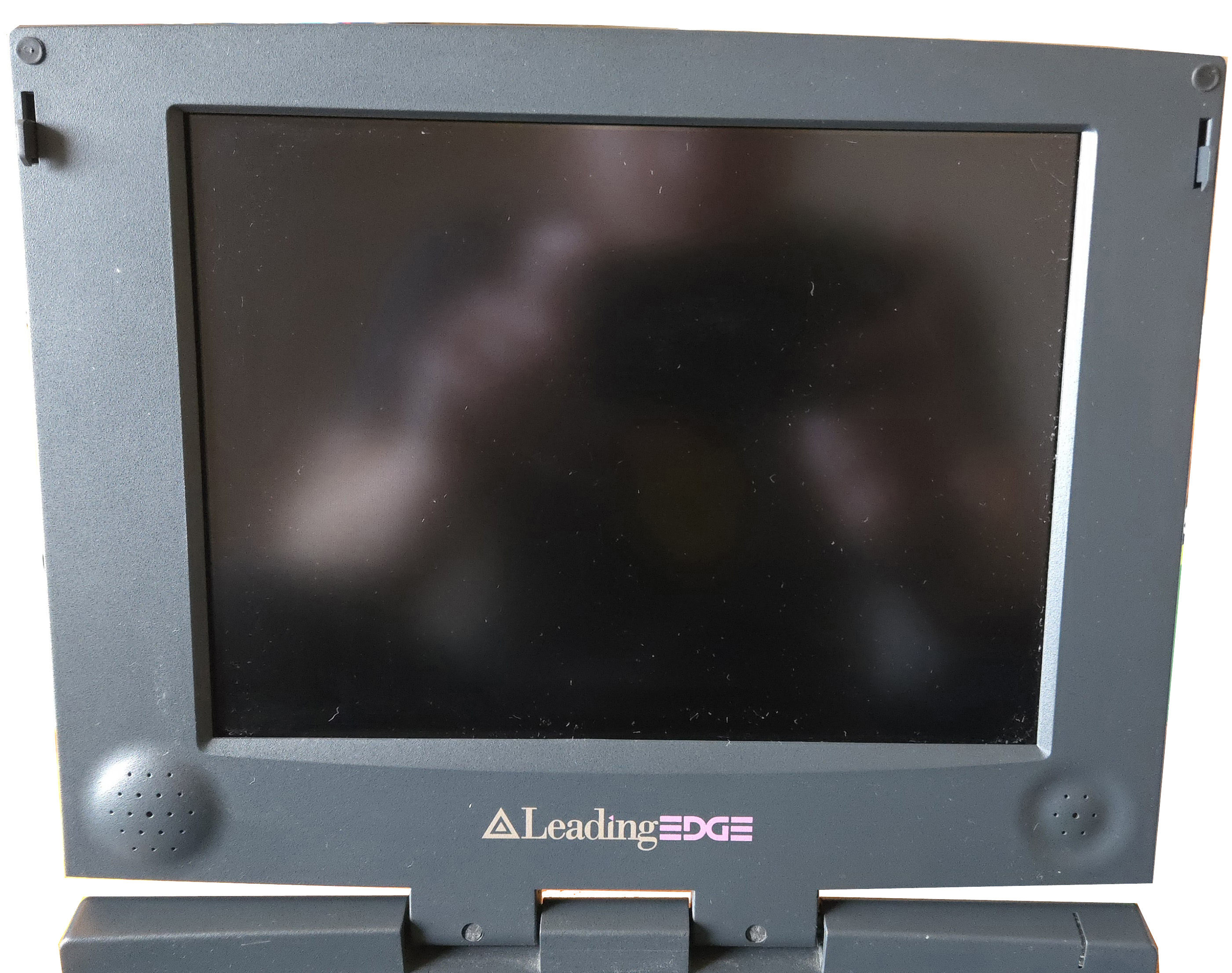

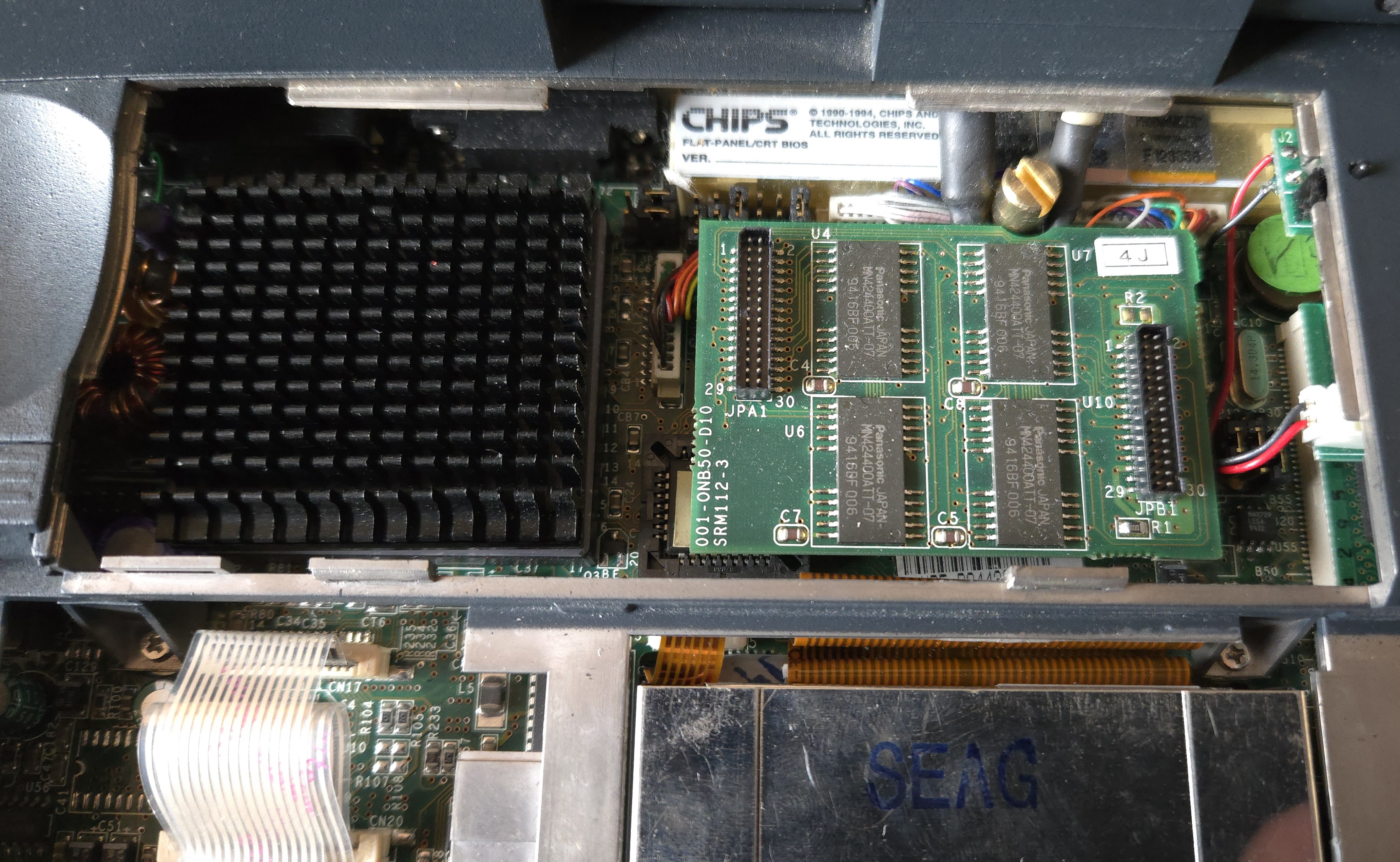

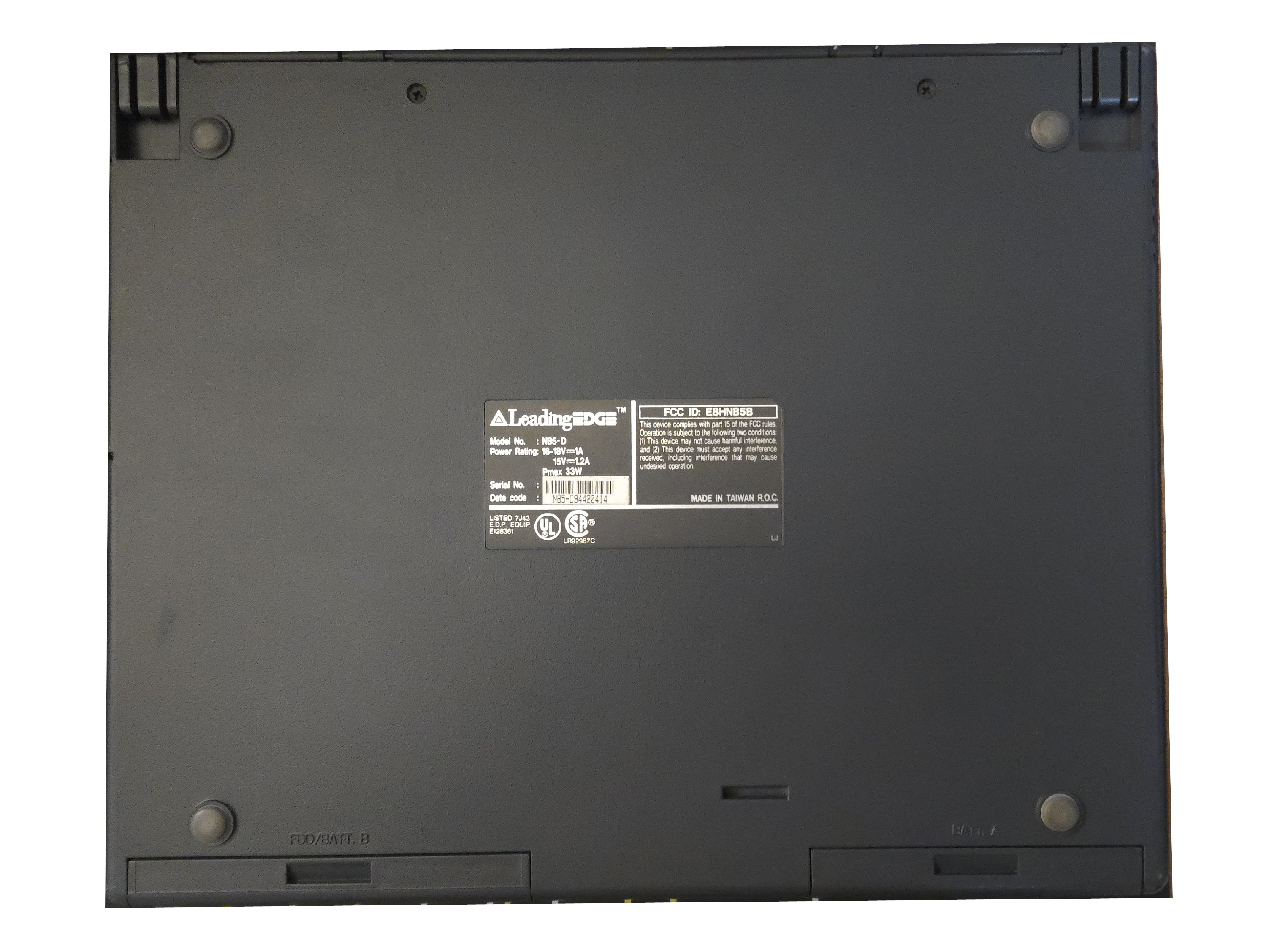

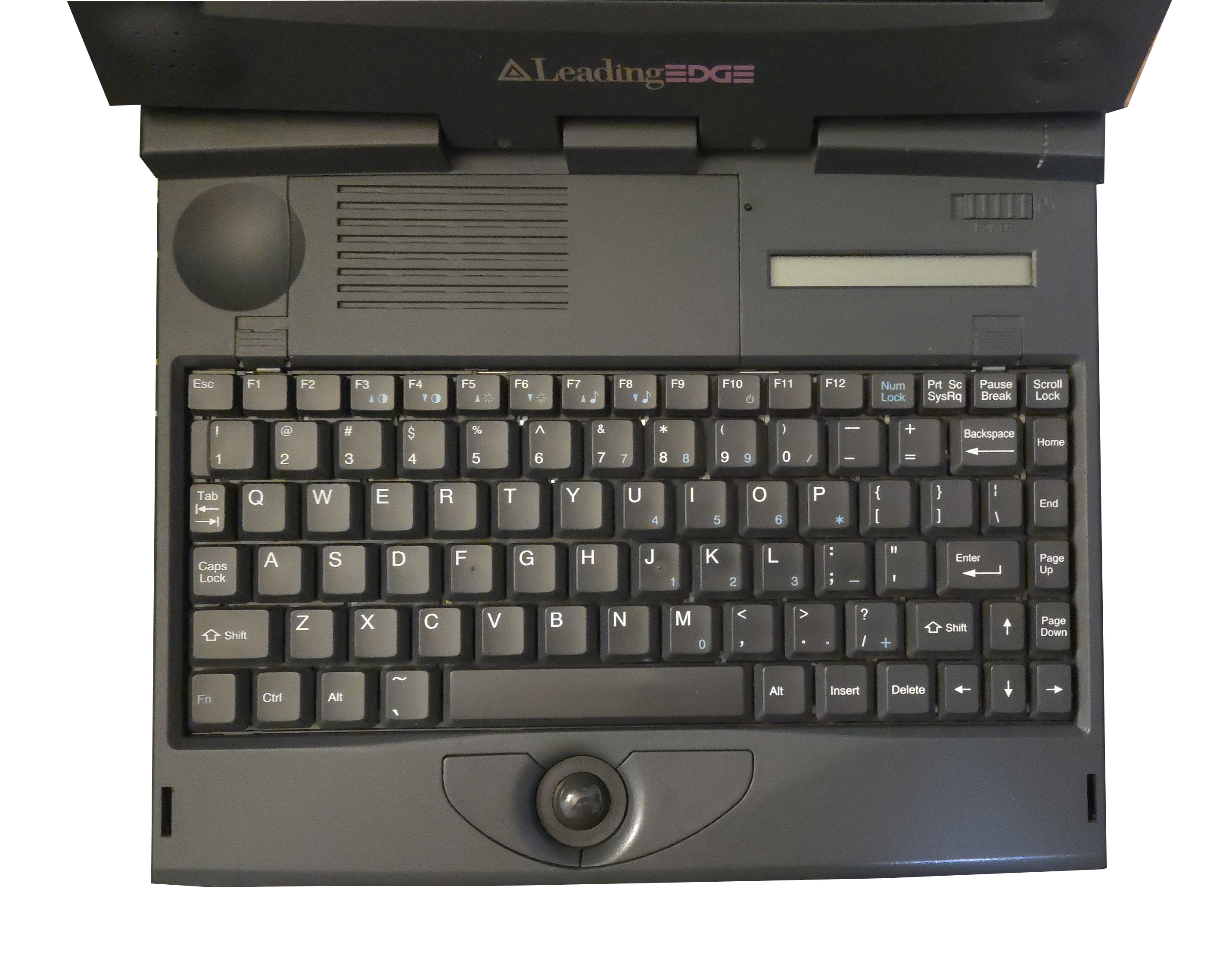

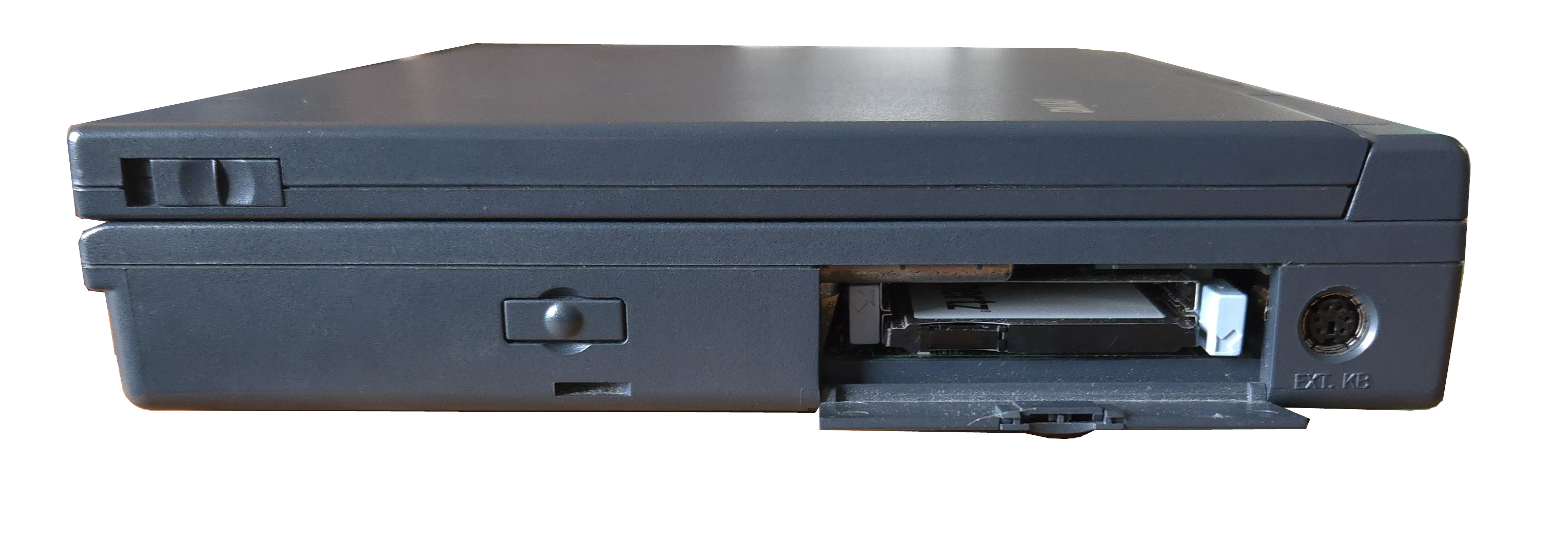

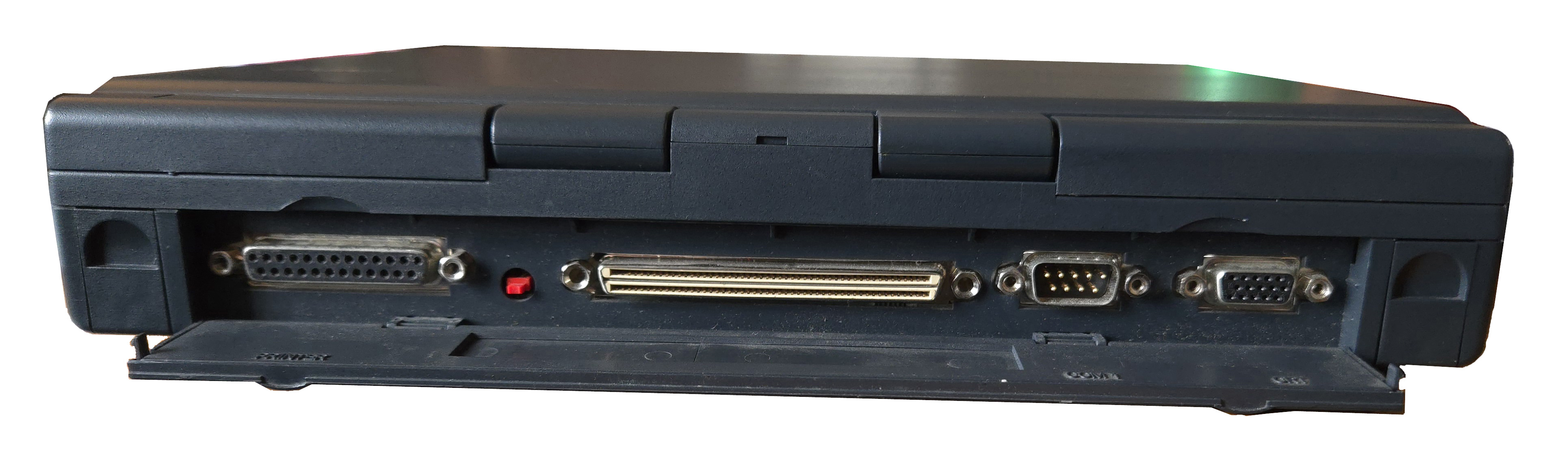

Photos of a Leading Edge branded unit, provided by Chris Logan. Thank you! Click on a photo to view the full-size version.
Page last updated (MM/DD/YYYY): 12/31/2024
Update Reason: added new info and images
Have additional information on this laptop? Send me an email: macdatnet@gmail.com
