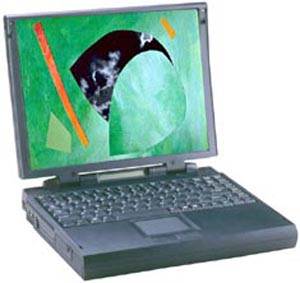

Chicony MP983
The Chicony MP979 is a Socket 7 laptop that is compatible with a variety of Intel and AMD CPUs. It shares a similar design to the older MP975, but is modified to be a 3-spindle design (Floppy, CD-ROM, hard drive all built-in), where the MP975 uses a modular bay. I have far more information on this laptop than what is currently on this page thanks to orphanlaptops, and I'll be adding more soon. Just know for now that there are several revisions of the MP983 with various minor differences.
This model was sold as/by: HyperData MediaGo 785, AMS Tech TravelPro 2500 Series
Specifications
| Spec | Details |
|---|---|
| CPU | CPU Type: Socket 7 - Intel Pentium MMX "Tillamook" @166-266MHz - AMD K6/K6-2 Mobile @233-366MHz - Can be modified to support K6-2+/K6-3+ |
| Chipset | Unknown |
| RAM | Type: Unknown Standard: Unknown Maximum: 128MB |
| Hard Disk | 2.5" IDE Uses proprietary adapter?: Unknown Standard: N/A |
| Display Options | - 12.1" Passive Matrix LCD @800x600 - 12.1" Active Matrix LCD @800x600 - 13.3" Active Matrix LCD @1024x768 |
| Graphics Chipset | NeoMagic MagicGraph 128ZV+ (NM2097) or 128XD (NM2160) VRAM: Unknown |
| Audio | ESS AudioDrive 1869S |
| Main Battery | NiMH or Lithium Ion |
| CMOS Battery | Soldered rechargeable, unknown type |
| Power Supply | Unknown |
| Disk Drives | 3 Spindle - 3.5" 1.44MB Floppy Drive - CD-ROM |
| PC Cards | 2x PCMCIA/CardBus Slots - ZoomVideo Support |
| Networking | Modem (Optional) |
| Other I/O | - 1x Parallel - 1x Serial - 1x VGA Out - 1x PS/2(?) - 1x Dock Connector - 1x USB 1.x - 1x Video In - 1x Line Out - 1x Line In - 1x Mic In - Infrared |
| BIOS | Unknown |
| Pointing Device | Trackpad |
CPU Switch Block settings and other info will be added soon. For now, see the orphanlaptops page linked above.
Page last updated (MM/DD/YYYY): 11/03/2024
Update Reason: page converted to php
Have additional information on this laptop? Want to send me photos to use on the site? Send me an email: macdatnet@gmail.com
