Chaplet iLuFA 820

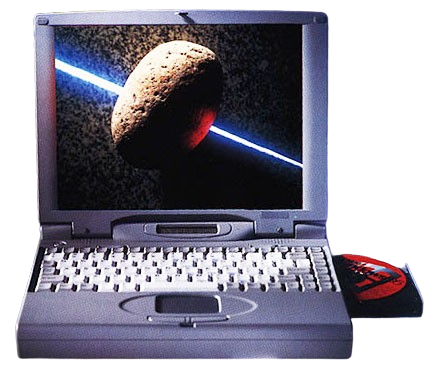

The Chaplet iLuFA 820 is a 486-based generic/ODM laptop that was released in 1995. They were essentially a 486 version of the much more common iLuFA 860, which used Pentium processors. Based on this, I'd assume that like the 860, the 820s are labelled as "Model 800", under which it will say either Type 820C for passive matrix models, or 820T for active matrix models.
Specifications
| Spec | Details |
|---|---|
| CPU | CPU Type: Unknown Intel 486DX4 @100MHz |
| Chipset | Unknown |
| RAM | Type: Unknown Standard: 4MB Maximum: 36MB |
| Storage | 2.5" IDE Requires Adapter: Unknown Standard: 540MB |
| Display Options | - Passive Matrix Color LCD - Active Matrix Color LCD |
| Graphics Chipset | Unknown VRAM: 1MB |
| Audio | Unknown 16-bit stereo sound |
| Main Battery | NiMH |
| CMOS Battery | Likely - Soldered NiMH Varta |
| Power Supply | Unknown |
| Media Drives | Modular Bay supporting the following: - 3.5" 1.44MB Floppy Drive - CD-ROM Drive - 2nd Battery |
| PC Cards | 2x PCMCIA Slots (2x Type II/1x Type III) |
| Networking | Unknown |
| Other I/O | Unknown |
| BIOS | Unknown |
| Pointing Device | Trackpad |
Page last updated (MM/DD/YYYY): 03/17/2025
Update Reason: page created
