Chaplet Systems 1500

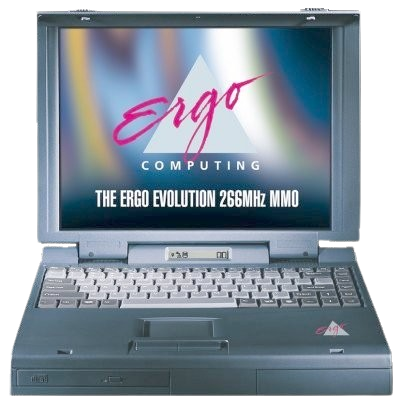

The Chaplet 1500 is an MMC1-based generic/ODM laptop that was released in 1997. So far, the only brand I know of that sold this one was Ergo, specifically their UK branch, which sold it as the Ergo Evolution.
This is currently the newest Chaplet laptop that I have information on, but it is unlikely that it was their last laptop.
Specifications
| Spec | Details |
|---|---|
| CPU | CPU Type: MMC1 - Intel Mobile Pentium II @266MHz - Intel Pentium MMX @200, 233, or 266MHz |
| Chipset | Intel 430TX |
| RAM | Type: EDO or SDRAM? Standard: Unknown Maximum: 128MB |
| Storage | 2.5" IDE Requires Adapter: Unknown Standard: N/A |
| Display Options | 13.3" Active Matrix LCD @1024x768 |
| Graphics Chipset | Chips & Technologies 65555 or 65560 VRAM: 2MB |
| Audio | ESS AudioDrive 1878 - Stereo Speakers - Microphone |
| Main Battery | Lithium Ion |
| CMOS Battery | Unknown |
| Power Supply | Unknown |
| Media Drives | 3 Spindle? - 3.5" 1.44MB Floppy Drive - CD-ROM Drive |
| PC Cards | 2x PCMCIA/CardBus Slots (2x Type II/1x Type III) - ZoomVideo Support |
| Networking | Modem (Optional) |
| Other I/O | - 1x Parallel - 1x Serial - 1x VGA Out - 1x PS/2 - 1x Dock Connector - 2x USB 1.x - 1x TV Out - Audio Jacks? - Infrared |
| BIOS | Unknown |
| Pointing Device | Trackpad |
Docking Station
The docking station for this laptop added the following functionality:
- One full-length PCI slot
- One ISA slot
- 2x smart bays (HDD, FDD, CD-ROM)
- MIDI/Game Port
- 3.5" Drive bay for internal HDD
- Two USB ports
- Stereo Speakers
Page last updated (MM/DD/YYYY): 03/17/2025
Update Reason: page created
Have additional information on this laptop? Want to send me photos to use on the site? Send me an email: macdatnet@gmail.com
