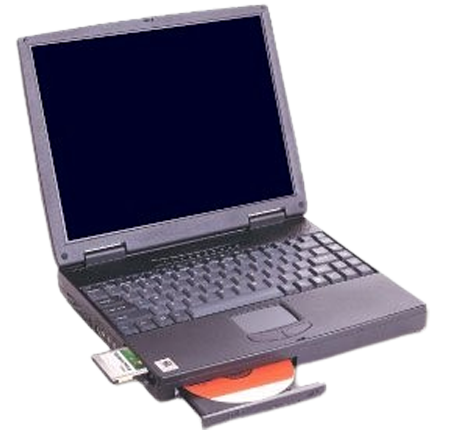

Alpha-Top Green797
The Alpha-Top Green797 is an Intel Socket 370-based laptop released in 1999. It shared some visual resemblance to the Green760/790 but doesn't share any parts except for a few minor things. About the only compatible part is the keyboard. It is nearly identical to the Green795, which uses AMD processors instead of Intel.
A specsheet for this laptop indicates that it supports Socket 370 Celeron CPUs or FC-PGA Pentium IIIs, meaning it must have used some sort of daughtercard system for processor support.
Specifications
| Spec | Details |
|---|---|
| CPU | CPU Type: Socket 370 - Intel Celeron @333, 366, 400, 433, 466, 500, or 533MHz - Intel Pentium III |
| Chipset | Intel 440ZXm/440BX |
| RAM | 2x 144pin SDRAM slots Standard: Unknown Maximum: 256MB |
| Hard Disk | 2.5" IDE Uses proprietary adapter?: Unknown |
| Display Options | - 12.1" Passive Matrix LCD @800x600 - 12.1" Active Matrix LCD @800x600 - 14.1" Active Matrix LCD @1024x768 |
| Graphics Chipset | ATI Mobility-M VRAM: 4 or 8MB |
| Audio | Creative Labs EV1958 or ESS Allegro 1988 (info conflicts)
- Stereo Speakers - Microphone |
| Main Battery | - NiMH (10 cell 4000mAH) - Lithium Ion (9 cell 5100mAH) - Both from Sony |
| CMOS Battery | Unknown |
| Power Supply | Barrel Jack |
| Disk Drives | 3 Spindle - 3.5" 1.44MB Floppy Drive - CD-ROM or DVD-ROM |
| PC Cards | 2x PCMCIA/CardBus slots - ZoomVideo Support |
| Networking | Modem |
| Other I/O | - 1x Parallel - 1x Serial - 1x VGA Out - 1x USB 1.x - 1x PS/2 - 1x S-Video Out - 1x 20-pin Port Replicator Connector - 1x Headphone/Line/SPDIF Out - 1x Mic In - 1x Line In |
| BIOS | Phoenix |
| Pointing Device | TrackPad |
Audio Support Note: There's a spec conflict here - one specsheet (orphanlaptops) says it uses the Creative card and another specsheet (assurance) says it uses the ESS card. It's possible that both are right, and that there were multiple revisions of this laptop.
Page last updated (MM/DD/YYYY): 10/15/2024
Update Reason: php conversion
