WinBook XP
Working as of August 2025.
| Release Year | 1994 |
|---|---|
| CPU | Intel 486DX4 @100MHz (overclocked 75MHz chip) |
| RAM | 32MB (Maximum) |
| Primary Storage | Hitachi DK224A-14 (1.3GB) |
| Display | 9.5" Active Matrix Color LCD @640x480 (Hitachi) |
| Graphics | Western Digital WD90C24 VRAM: 1MB |
| Sound Chip | ESS AudioDrive 1688 |
| OS | Windows 95 |

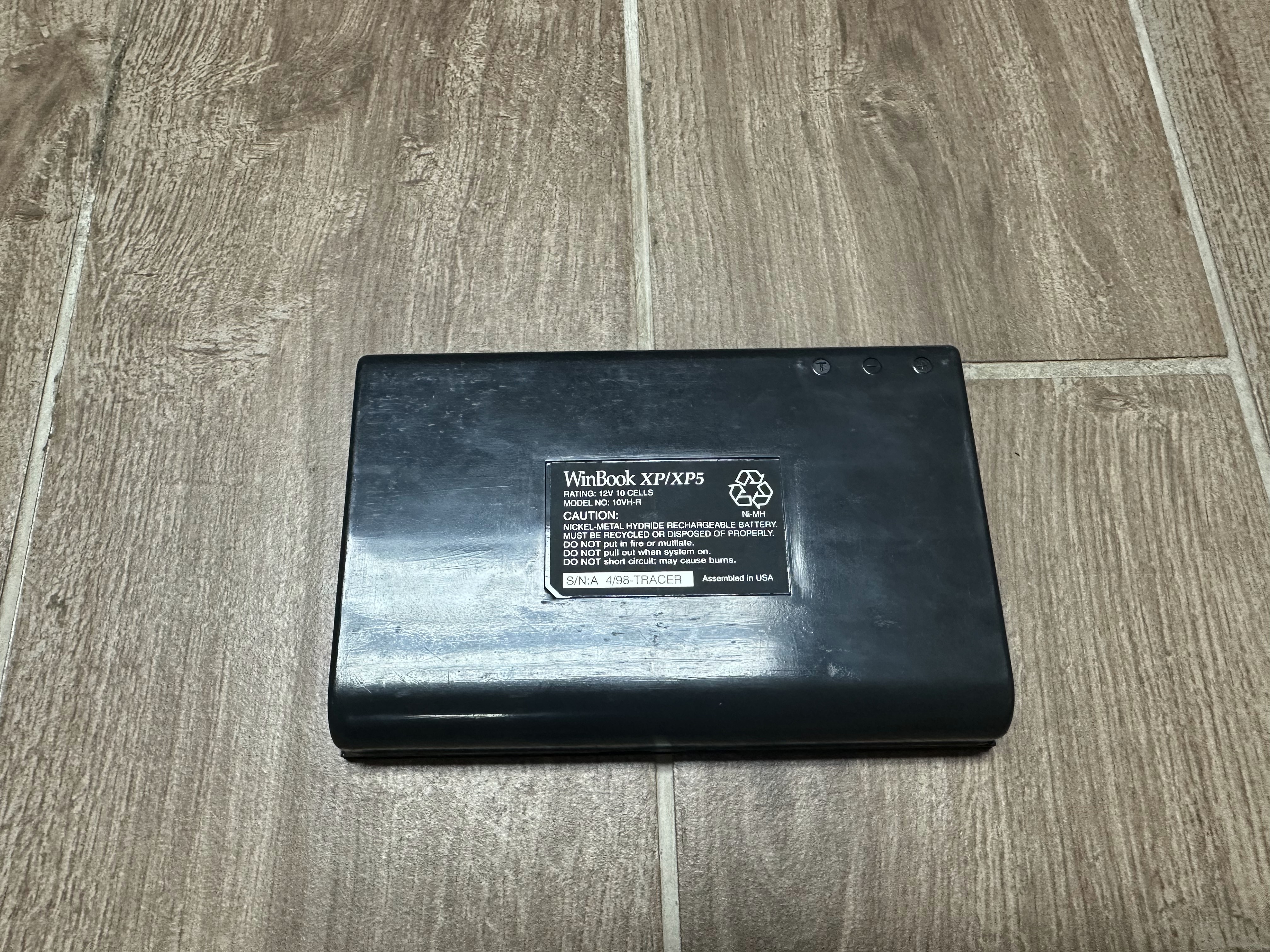

| Battery | OEM NiMH (Rebuilt August 2025, 3-hour battery life, shared with my XP5) |
| CMOS Battery | NiMH 3-cell, replaced 2025 |
| Power Supply | OEM |
| Capacitors | Original |
| Issues | W1D has a bad belt, LCD has subpixel disease |
| Where I got it | eBay |
| When I got it | 2025 |
| Price Paid | ~$70?? |
For specific general specifications on this model of laptop, see it's page on the laptop portal.
Maintenance Performed Since Acquisition (in chronological order)
- General internal inspection
- CMOS battery removed, replaced, corrosion cleaned
- Hinges reinforced and repaired, palmrest replaced with intact spare.
- DSTN display replaced with TFT display from parts unit

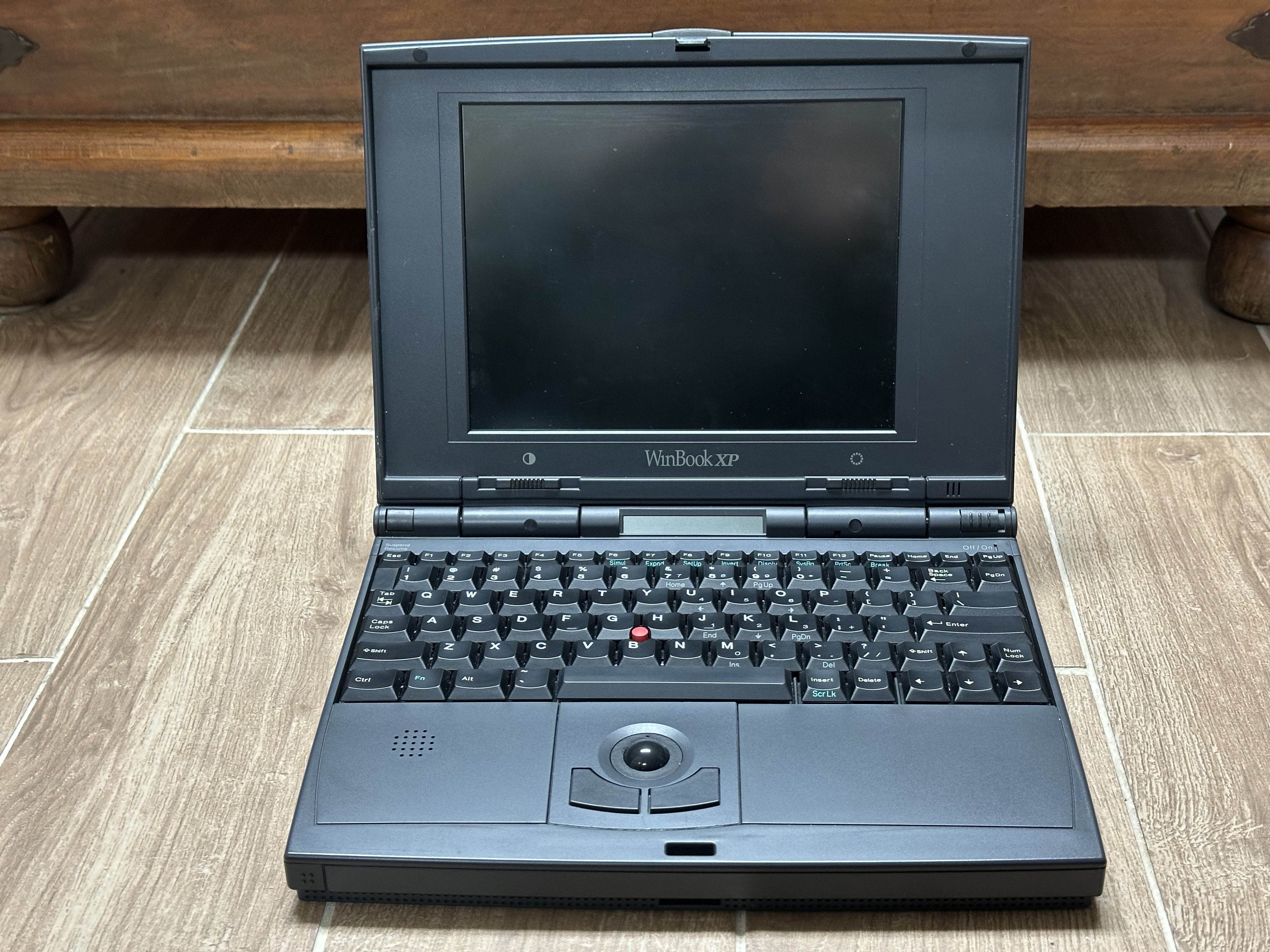

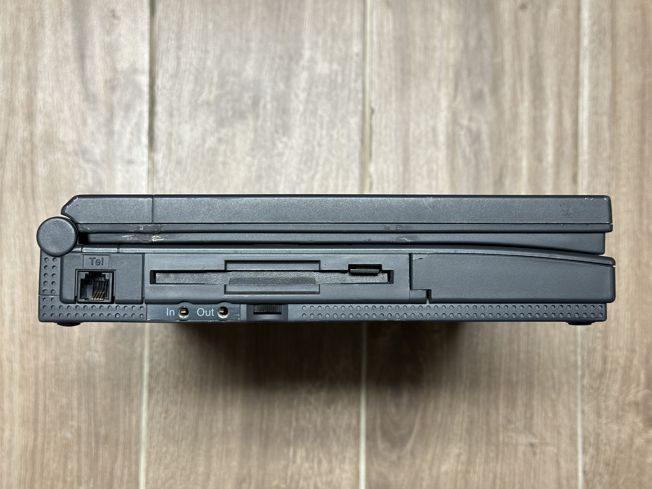

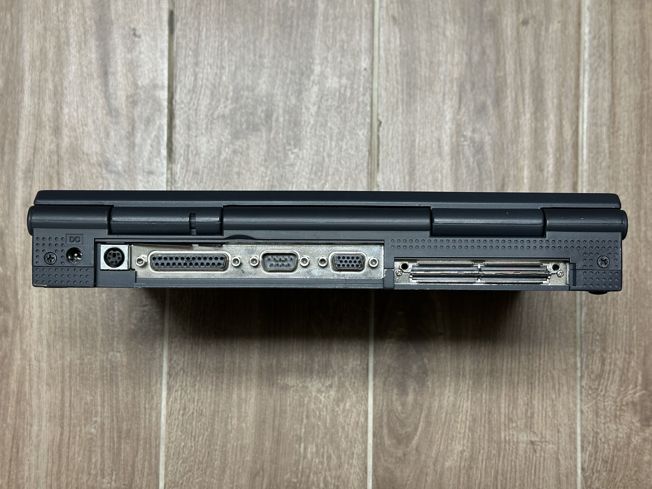

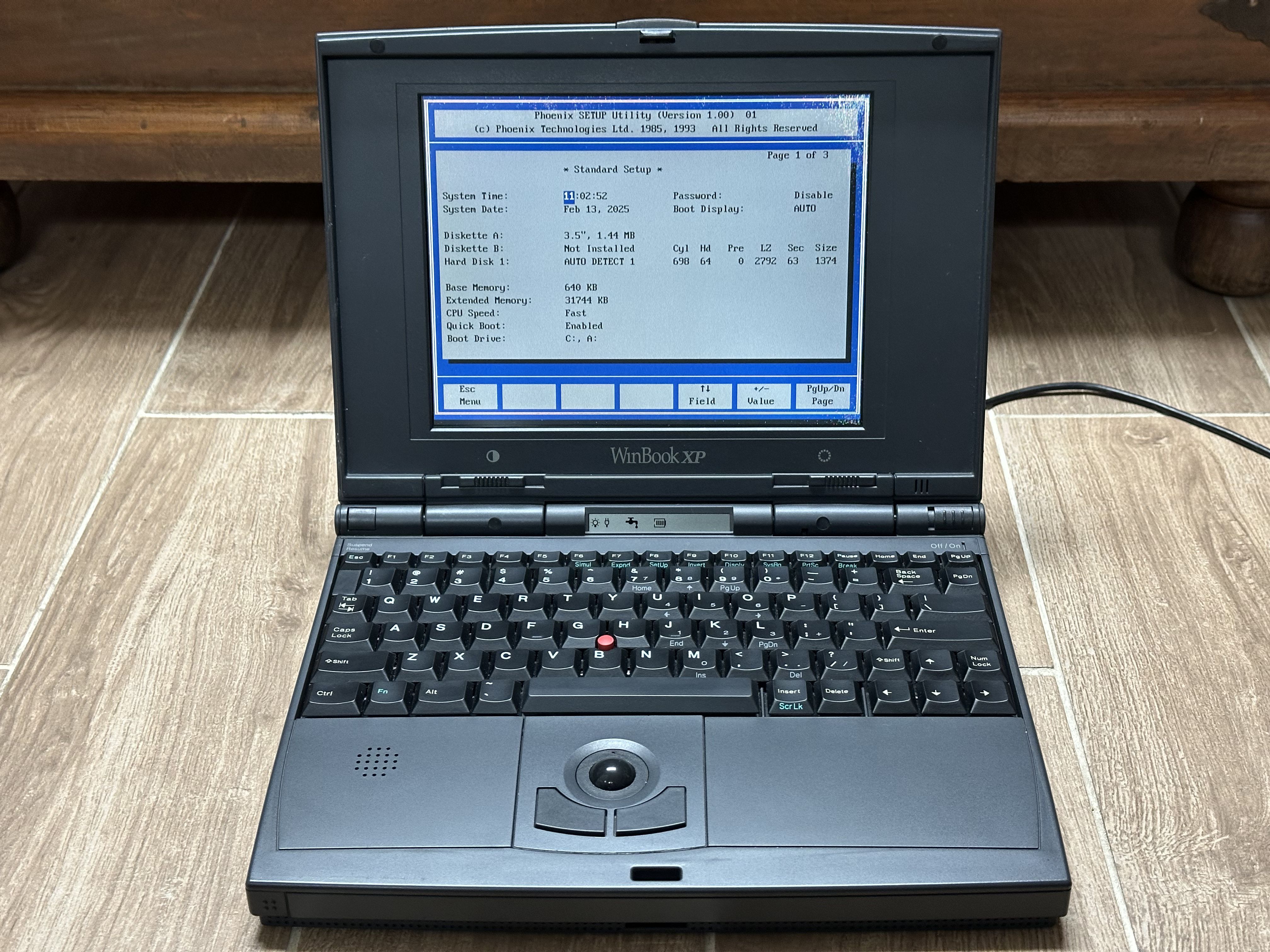

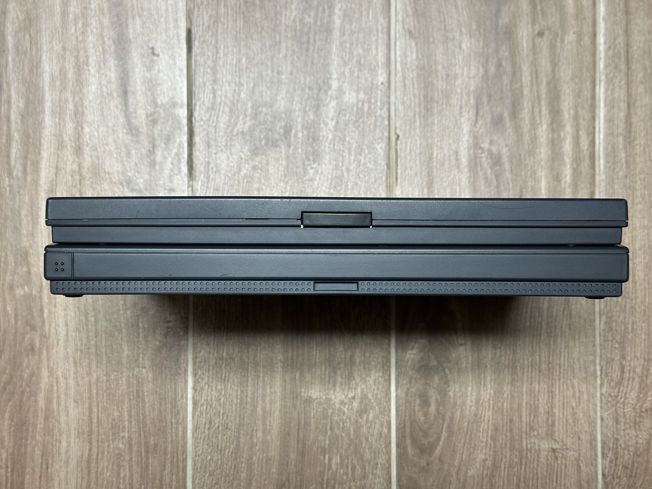

Image Gallery
Page last updated (MM/DD/YYYY): 08/14/2025
Update Reason: page created
